WAC ATL64WLD Installation Instructions Manual

Installation Statement:
l. Before installation, carefully read the manual and operate according to the content of the manual;
2. Installed by qualified electricians
3. To avoid the risk of electric shock, make sure to turn off the power before installation and maintenance;
4. Suitable for indoor installation and use (not suitable for humid environments);
5. The light source of this lamp is no replaceable, and once it needs to be replaced (such as at the end of the lamp's lifespan), the
entire lamp should be replaced;
6. Do not install the lighting fixtures on unstable or unstable ceilings to prevent them from falling;
7. Keep this manual properly for future use.
Attention:
1. When moving lighting fixtures, be careful not to press the panel!
2. If there is any protrusion or protrusion on the back cover of the lamp, press down with both hands and then release it to reset the
cover!

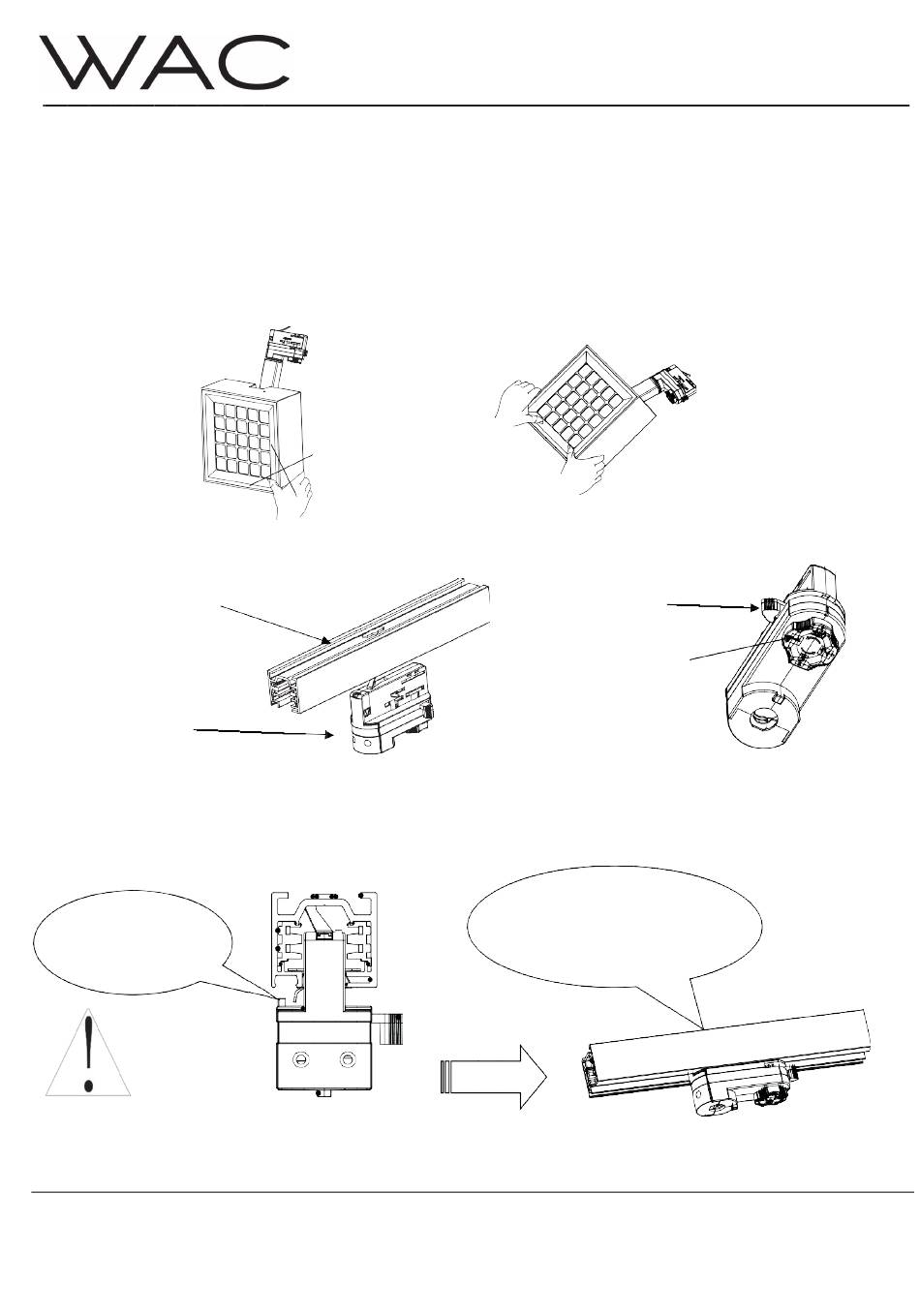

1、 Assemble the rail light connector
l. Before assembly, ensure that the conductive switch is at a 90 ° angle with the connector and that the reversing knob is in an
"OFF" state.
W2 guide rail
Rail light connector
Align the protrusion of the rail light connector with the groove
2.
of the rail before assembly.
Attention:
Connection
Attention: Connection
The protrusion of
The protrusion of the device
the device needs to
b th id
needs to be on the same
Licensed by "WAC" trademark holder - WAC LIGHTING, USA
Chinese Marketing Headquarters
Address
China factory
Address
: WAC Lighting (Shanghai) Co, Ltd.
: 14,Lane 299, Bi Sheng Road, Shanghai 201204,China
: Manufactured WAC Lighting (Dongguan) Co, Ltd.
: 390, Qingfeng Road, Qingxi Town, Dngguan, Guangdong. Postal code: 523653
Installation Instructions
Model: ATL64WLD Wall Washer
Conductive switch
导电开关
Cabinet change knob gear
After assembly, rotate the
装配完成后将"导电开
"conductive switch" clockwise by
关"顺时针旋转 90°进
90 ° to conduct and lock itbe on
行导通及锁定
the same side as the track groove
1 /2
