WAC AEP1NI Installation Instruction

Installation Precaution:
1. Please read the instructions carefully before installation.
2. Please ask professional electrician to install.
3. To avoid the danger of electric shock, please make sure to turn off the power
before installing, maintaining or replacing the lamps.
4. The installation of lamps and lanterns should follow the corresponding local
laws and regulations.
5. Suitable for indoor and outdoor installation and use.
6. Please keep the instruction manual for reference.
Fixture Installation:
I. Installation of luminaires:

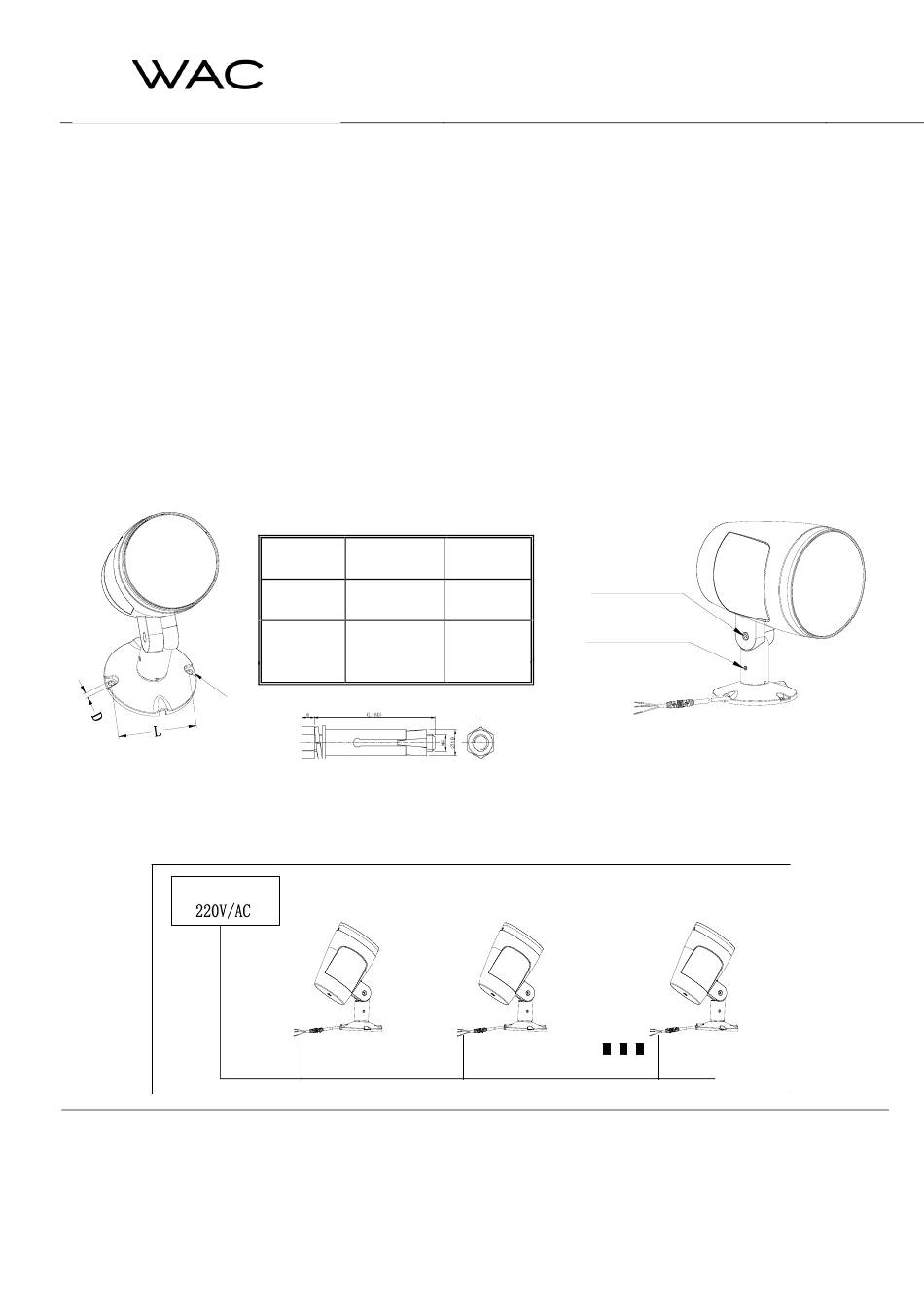

1. Secure the fixture with suitable expansion bolts (M6) through the
mounting holes shown in the illustration (mounting screws are not
supplied).
Fixture
Mounting holes
II. Wiring and Control Adjustment:
1. Power input: AC220V or DC24V or DC48V, the product is a non-dimming version of the wiring
schematic wiring refer to the power input line labeling wiring.
Mains
Authorized by WAC Lighting Corporation, USA, holder of the "WAC" trademark.
China Marketing Headquarters:
Address:
China Factory:
Address:
Base Hole
Fixture Model
Dimensions (D)
AEP1NI*
6.5mm
AEP1SI*
AEP1MI*
6.5mm
AEP1LI*
AEP5MI*
Power Input Cord Power Input Cord
WAC Lighting Technology (Shanghai) Co.
Room 102, No. 14, Lane 299, Bisheng Road, Pilot Free Trade Zone, Shanghai (201204), P.R.C.
Manufactured WAC Lighting(Dongguan)Co,Ltd
No. 390, Qingfeng Road, Qingxi Town, Dongguan City, Guangdong Province, 523653, P.R. China
Installation Instruction
Model: AEP1NI* AEP1SI* AEP1MI* AEP1LI* AEP5MI*
2. Lighting Angle Adjustment: Adjust the screws with hexagonal
wrench, turn the lamps to the required angle (vertical direction
before 30 degrees, after 90 degrees adjustable).
Base Hole
Distance (L)
Vertical Adjustment Screw
65mm
Horizontal Adjustment Screw
105mm
Power Input Cord
