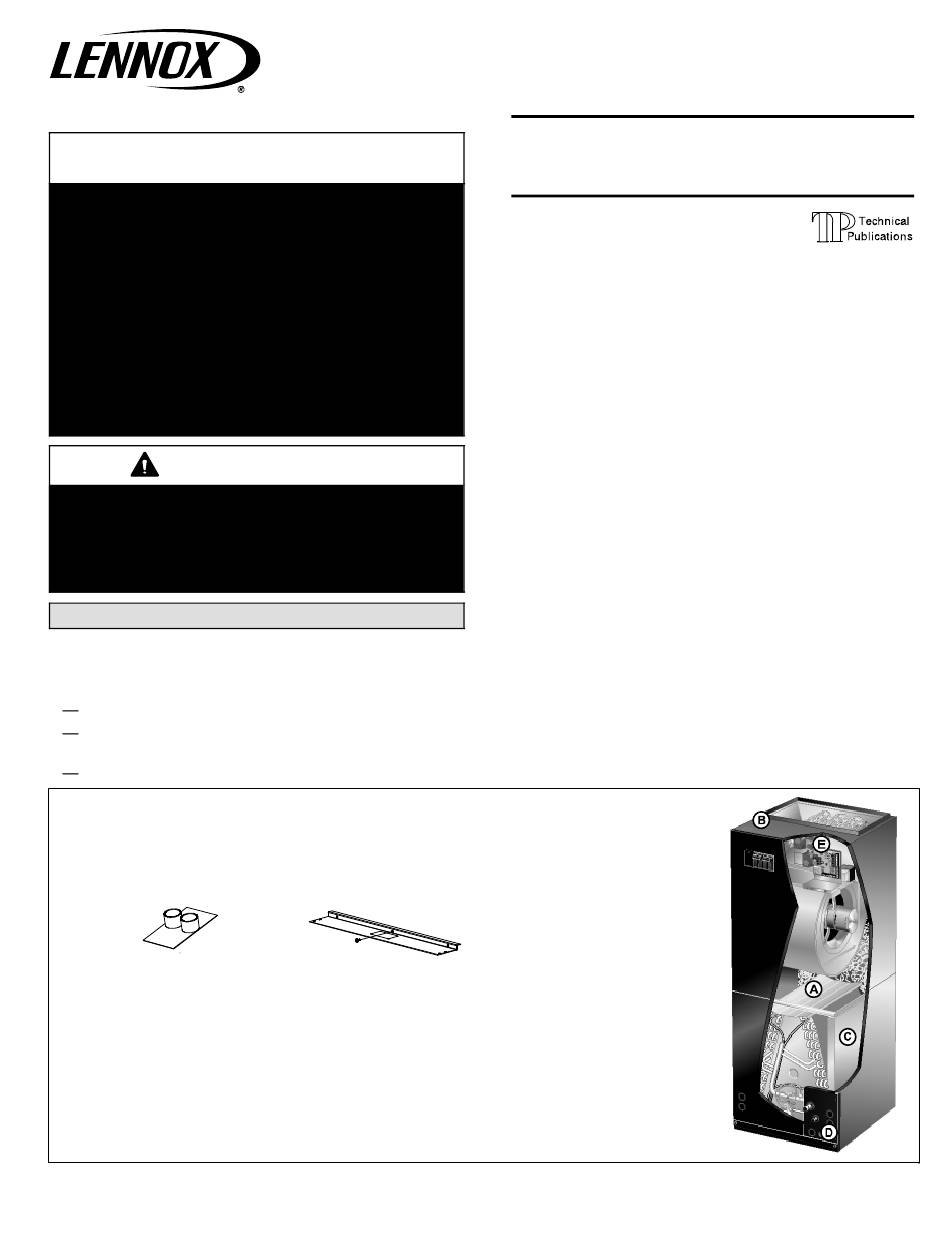

Lennox Signature Collection CBX32MV Installation Instructions Manual

Lennox Signature Collection CBX32MV Installation Instructions Manual

Multi−position air handler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E2010 Lennox Industries Inc.
Dallas, Texas, USA
NOTICE
A thermostat is not included and must be ordered
separately.
D The Lennox icomfort Touch™ thermostat must be used
in communicating applications.
D In non−communicating
®
ComfortSense
7000 thermostat may be used, as well
as other non−communicating thermostats.
In all cases, setup is critical to ensure proper system
operation.
Field wiring for both communicating and non−
communicating applications is illustrated in diagrams,
which begin on Page 12.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause personal injury, loss of life, or
damage to property.
Installation and service must be performed by a licensed
professional installer (or equivalent) or a service agency.

Shipping and Packing List

Check unit for shipping damage. Consult last carrier
immediately if damage is found.
Package 1 of 1 contains the following:
1
Assembled air handler unit
2
Downflow shields (if required for downflow
configuration only)
1
Drip shield (for −068 only)
IMPORTANT INFORMATION TO INSTALLER
CHECK FOR AND REMOVE THE FOLLOWING ITEMS BEFORE OPERATING UNIT.
A
BLOWER HOUSING SUPPORT PAD.
HORIZONTAL DRAIN PAN (SEE UPFLOW
C
APPLICATIONS ON PAGE 5 AND DOWNFLOW
APPLICATIONS ON PAGE 8 )
CONFIGURE/DETECTING ELECTRIC HEAT SECTION ON PAGE 24. SEE
E
PAGE 15 FOR JUMPER AND LINK GUIDE.
IMPORTANT: CONFIGURATION OF AIR HANDLER CONTROL BOARD MUST BE CHECKED BEFORE
START−UP TO ENSURE PROPER SYSTEM OPERATION. SEE JUMPER AND LINK GUIDE ON PAGE 15 AND
CONFIGURING UNIT SECTION STARTING ON PAGE 28.
03/10
*2P0310*
applications,
the Lennox
B
TOP CAP SHIPPING BRACKET (REPLACE
SCREWS IN TOP CAP AFTER REMOVAL).
D
REFRIGERANT LINE PLUGS (SEE BRAZING CONNECTION
ON PAGE 8] .
INSTALLATION
INSTRUCTIONS
Dave Lennox Signature
Collection CBX32MV Units
MULTI−POSITION AIR HANDLER
506274−01
03/10
Supersedes 02/10
RETAIN THESE INSTRUCTIONS FOR FUTURE

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 1
REFERENCE
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
506274−01
*P506274-01*
®
Litho U.S.A.
1
. . . .
2
. . . .
3
4
4
4
5
5
8
10
11
11
12
. .
20
24
27
34
35
35
36
36
36
