Icy Box IB-M2HSF-703 Manual

Safety Information

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

levels
Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

Warns of a directly hazardous situation causing death or serious injury.

Warns of a potentially hazardous situation that may cause death or serious injury.

Warns of a potentially hazardous situation that may cause minor injury.

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

  1. Risk of electrical shock

    Contact with parts conducting electricity
    Risk of death by electrical shock
  • Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
  • Do not remove contact p otection panels
  • Avoid contact with conducting parts
  • Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
  • Operate the device using a power unit meeting the specifications of the type plate only!
  • Keep the device/power unit away from humidity, liquid, vapour and dust
  • Do not modify the device
  • Do not connect the device during thunderstorms
  • Approach specialist retailers if you require repairs
  1. Hazards during assembly (if intended)

    Sharp components
    Potential injuries to fingers or hands during assembly (if intended)
  • Read the operating instructions prior to assembly
  • Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
  • Use suitable tools
  • Use potentially enclosed accessories and tools only
  1. Hazards caused by a development of heat

    Insufficient device/power unit ventilation
    Overheating and failure of the device/power unit
    • Prevent externally heating up components and ensure an exchange of air
    • Do not cover the fan outlet and passive cooling elements
    • Avoid direct sunlight on the device/power unit
    • Guarantee sufficient ambient air for the device/power unit
    • Do not place objects on the device/power unit
  1. Hazards caused by very small parts and packaging Risk of suffocation

    Risk of death by suffocation or swallowing
    • Keep small parts and accessories away from children
    • Store/dispose of plastic bags and packaging in an area that is inaccessible to children
    • Do not hand over small parts and packaging to children
  2. Potential data loss

    Data lost during commissioning
    Potentially irreversible data loss
  • Always comply with the information in the operating instructions/quick installation guide
  • Exclusively use the product once the specifications have been met
  • Back up data prior to commissioning
  • Back up data prior to connecting new hardware
  • Use accessories enclosed with the product
  1. Cleaning the device

    Harmful cleaning agents
    Scratches, discolouration, damage caused by moisture or short circuit in the device
    • Disconnect the device prior to cleaning
    • Aggressive or intense cleaning agents and solvents are unsuitable
    • Make sure there is no residual moisture after cleaning
    • We recommend cleaning devices using a dry, anti-static cloth

Manual IB-M2HSF-703

Dear Customer, thanks for choosing an ICY BOX® product.

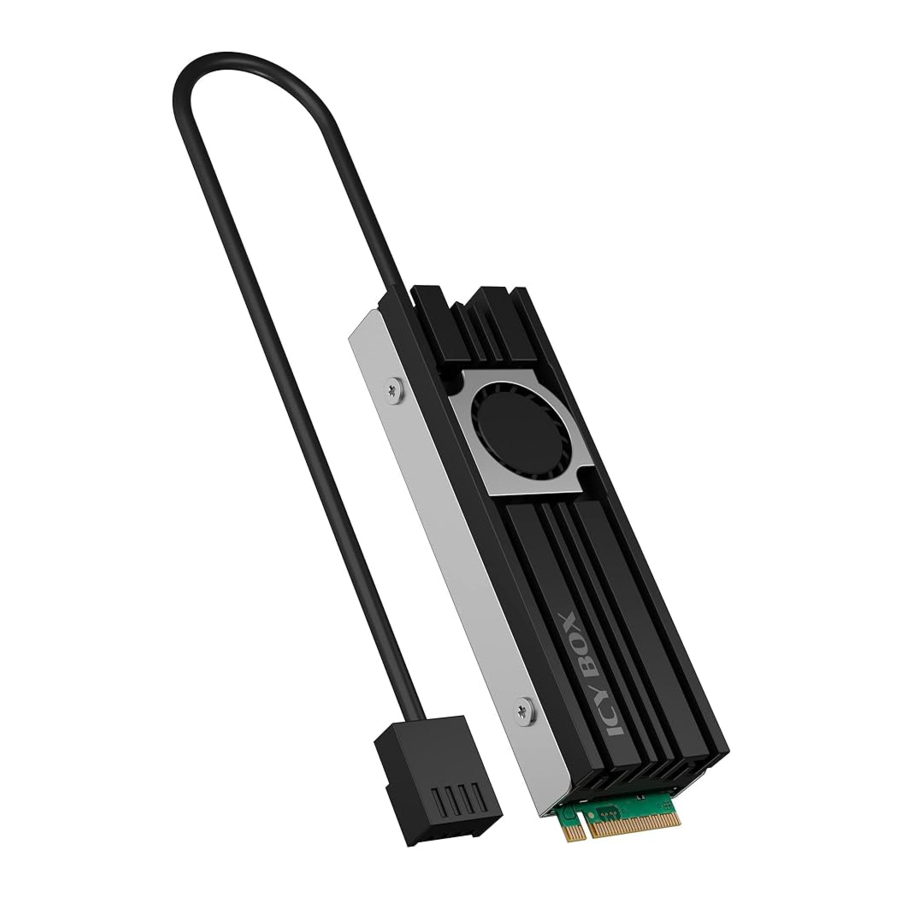

The IB-M2HSF-703 is a high-performance M.2 cooler with integrated fan. The combination of heat sink and fan can reduce the temperature of your M.2 SSD by up to 25%* for a long lasting and stable performance in your work flow. The fan ensures that the heat is perfectly dissipated.
*Depends on SSD manufacturer, model, version and workload of the SSD

Package Content
1x IB-M2HSF-703, 1x counter plate, 2x thermal pad, 1x screwdriver, 1x set of screws, 1x quick installation guide

Key Features

  • M.2 SSD heat sink
  • Silent 20 mm fan
  • Temperature reduction of up to 25%*
  • Made of high-grade aluminium
  • For M.2 SSD size 22x 80 mm
    *Depends on SSD manufacturer, model, version and workload of the SSD.

Installation

  1. Unscrew all four screws of the counter plate on the bottom of the heat sink.
    Installation - Step 1
  2. Install both thermal pads. Install the first thermal pad on the counter plate and the second thermal pad on the top of your M.2 SSD. Now gently press the SSD together with the thermal pad on the counter plate. Then press the M.2 SSD together with the counter plate on the bottom of the main heat sink and fix it with all four screws.
    Note: Make sure that the contacts of the M.2 SSD protrude over the counter plate. Also, when installing a 22x 80 mm M.2 SSD, make sure that the M.2 SSD and the counter plate are aligned in the same way (notch at the end).
    Installation - Step 2
  3. Carefully insert the M.2 SSD with heat sink into the M.2 slot of your motherboard at an angle of about 30°. Now fix heat sink and M.2 SSD with the delivered screw.
    Note: Please make sure that the M.2 SSD and the M.2 socket fit together (e.g. M-Key NVMe M.2 SSD and M-Key socket on motherboard).
    Installation - Step 3
  4. Finally plug the 4 pin fan plug to a free 4 pin socket on your motherboard. The fan will run all the time when connected. The fan is NOT temperature controlled and speed is NOT adjustable!
    Installation - Step 4
