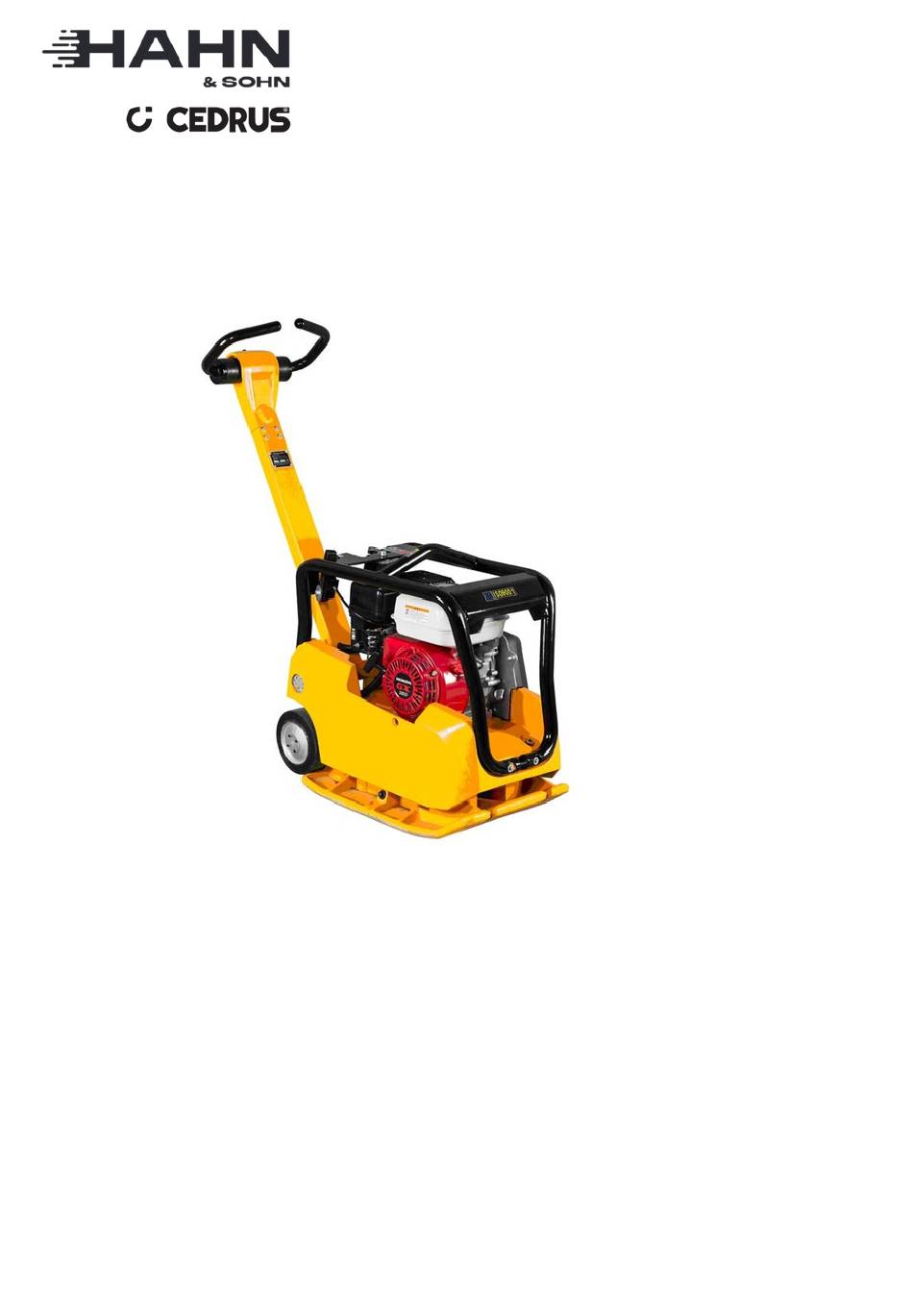

- Page 1 HAHN A SYN s.r.o. Hahn & Sohn GmbH Janahof 53 Lelkova 186/4 93413 Cham 747 21 Kravaře Deutschland CZECH REPUBLIC hahn@hahn-sohn.de info@hahn-profi.cz CEDZG04 Operator´s Manual...
- Page 2 CONTENTS This machine has been equipped with an EPA certified engine. Additional information can be found in the engine manufacturers notes. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
-
Page 3: Foreword
FOREWORD Foreword For your own safety and protection from bodily injuries, carefully read, understand and follow the safety instruc- tions in this manual. Please operate and maintain your machine in accordance with the instructions in this manual. Defective machine parts are to be replaced as soon as possible. All rights, especially the right for copying and distribution are reserved. -
Page 4: Table Of Contents
TABLE OF CONTENTS FOREWORD SAFETY INSTRUCTIONS General instructions Operation Safety checks Maintenance Transport Maintenance checks TECHNICAL DATA DESCRIPTION Applications Dimensions Max. admissible inclination Description of function TRANSPORT TO WORK SITE, RECOMMENDATIONS ON COMPACTION Transport to work site Recommendations on compaction OPERATION Engine check before starting Starting the engine... - Page 5 TABLE OF CONTENTS FAULTS Reverse speed too low Forward speed too low No advance Loss of hydraulic Engine does not start...
-
Page 6: Safety Instructions
SAFETY SAFETY INSTRUCTIONS FOR THE USE OF VIBRATORY PLATES WITH COMBUSTION ENGINES General instructions Vibratory plates may only be operated by persons who are at least 18 years of age are physically and mentally fit for this job have been instructed in guiding vibratory plates and proved their ability for the job to the employer may be expected to carry out the job they are charged with carefully. -
Page 7: Safety Checks
SAFETY Make sure the soil or subsoil to be compacted has a high enough load carrying capacity. Use appropriate protective clothing while working or while carrying out maintenance work. When traveling backwards the operator has to guide the vibration plate laterally by its guide handle so that he will not be squeezed between the handle and a possible obstacle. -
Page 8: Technical Data
TECHNICAL DATA CEDZG04 Advance and reverse travel m/min: m2/h: Compacted area Operating weight From drive engine directly to exciter unit via Power transmission centrifugal clutch and V-belt Exciter min-1 (Hz) ca. 5400 (90) Vibrations Centrifugal force Fuchs Titan Unic 10W40 MC (SAE 10W40) Oil quantity Air-cooled single-cylinder 4-cycle gasoline engine Drive motor... -
Page 9: Description
DESCRIPTION Applicati ns This vib atory plate is optimally suited fo all types of soil compaction applications in confined a eas thanks to it's nar ow design and the infinitely va iable change of di ection; application examples a e e.g. compaction in cable t enches, ma ginal st ip compaction during asphalt pavement patchwork as well as all those compaction jobs fo which the use of la ge... -
Page 10: Description Of Function
DESCRIPTION Description of function The vibration required for compaction is produced by the exciter (5) which is firmly joinded to the lower mass (4). This exciter (5) is designed as a central vibrator with aligned vibrations. Such a principle permits the direc- tion of vibration to be changed by turning the eccentric weights (13). -
Page 11: Transport To Work Site, Recommendations On Compaction
TRANSPORT TO WORK SITE, RECOMMENDATIONS ON Transport to work site Conditions: To transport the vibration plate, use only suitable lifting equipment with a minimum load-bearing capacity of 200 kg. Only attach suitable tackle at the central lifting point (15) provided. Always tie down the vibratory plate by the protective frame (14) and latch the center pole in place during transport of the vibratory plate on the loading area of a transport vehicle. -
Page 12: Operation
OPERATIO Engine check before starting 1.Oil level check Insert dipstick in oil filler neck, but without screwing in. If oil level is low, fill to the top of the oil filler neck with high grade Fuchs Titan Unic 10W40 MC oil. ☛ATTENTION! Place machine in horizontal position before checking engine oil level. - Page 13 OPERATIO 3.Pull the throttle lever (6) back slightly. 4.Turn the engine switch to the „I“ position. 5.Pull the starter grip lightly until resistance is felt, then pull briskly. Do not allow the starter grip to snap back against the engine. Return it gently to prevent Caution: damage to the starter.
-
Page 14: Operation The Engine
OPERATIO Operation the engine As the engine warms up, gradually move the choke lever to the OPEN position. Position the throttle lever for the desired engine speed. Oil alert system The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crank- case. -
Page 15: Stopping The Engine
OPERATIO Stopping the engine To stop the engine in an emergency, turn the engine switch to the „0“ position. Under normal conditions, use the following procedure: 1.Push the throttle lever forward all the way to the stop. 2.Turn the ignition switch to the „0“ position. 3.Turn off the fuel shut-off valve (lever in arrow direction). -
Page 16: Maintenance
MAINTENANCE Maintenance schedule Check all external screw connections for tight fit approx. 8 hours after first operation. Parts Maintenance jobs Maintenance interval Check for external damage and tight fit. daily Air filter Check filter cartridge, clean or replace if necessary. Check tank lid for tight fit, replace if necessary. -
Page 17: Engine Oil
MAINTENANCE Engine oil Check oil level: The engine must be horizontally place when filling in oil or checking the oil level. Check oil level with dip stick (16). If oil level is to low, top up with brand quality oil Fuchs Titan Unic 10W40 MC through oil feed opening (16). -
Page 18: Hydraulic Control
MAINTENANCE Hydraulic control Check oil level: 1.Move centre pole into vertical position. 2.Push operating control handle (7) to forward travel position. 3.Open filler bore (17). 4.The oil level must reach the upper edge of the gear; add Fuchs Renolin MR 520 hydraulic fluid if required. -
Page 19: Fuel Strainer Cup Cleaning
MAINTENANCE Fuel strainer cup cleaning Turn the fuel valve to Off. Remove the sediment cup and O-ring, and wash them in nonflammable or high flash point solvent. Dry them thoroughly, and reinstall securely. Turn the fuel valve on, and check for leaks. Spark plug Recommended spark plug: BP6ES-11, BPR6ES-11 (NGK), W20EP-U11, W20EPR-U11 (ND). -
Page 20: Air Filter Service
MAINTENANCE Air filter service A dirty air filter will restrict air flow to the carburettor. To prevent carburettor malfunction, service the air filter regularly. Service more freqently when operating the engine in extremely dusty areas. Warning: Never use gasoline or low flash point solvents for cleaning the air cleaner element. A fire or ex- plosion could result. - Page 21 FAULTS Reverse speed too low Cause: - Too little hydraulic oil in the centre pole head. - Air in hydraulic control. Remedy: - Top up hydraulic oil. -Bleed system. Forward speed too low Cause: - Too much oil in centre pole head. Remedy: - Correct oil level in accordance with mark.
