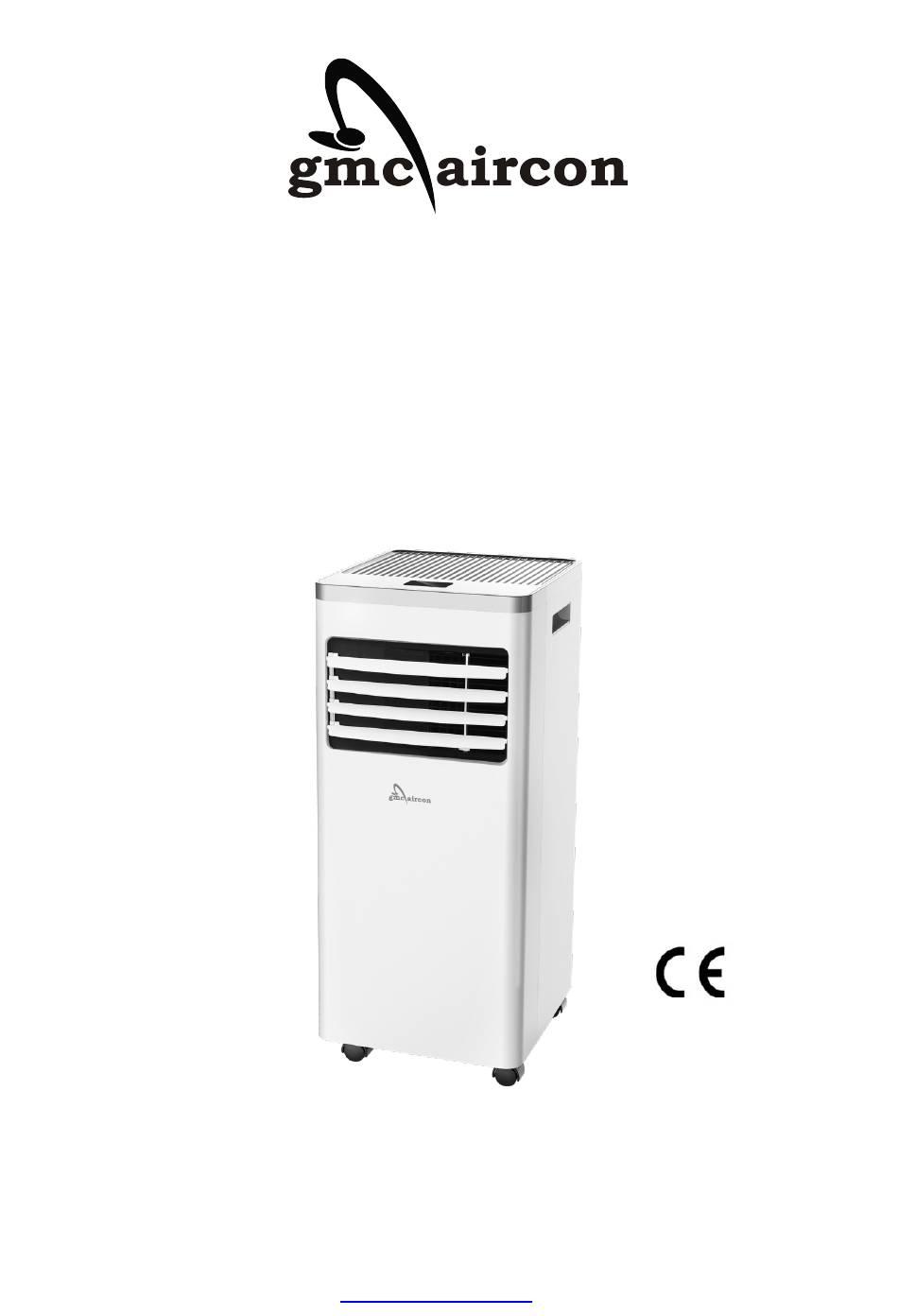

Page 1: Owners Manual
MODEL: GMCP07 (Cooling Only) Portable Air Conditioner OWNERS MANUAL PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173... - Page 2 Please read this manual carefully before using your appliance for the first time and then please store this manual for future reference. Thank you again for choosing GMC Aircon. If you have any issues at all with your product or any questions then the quickest route for resolution is to please contact us through our website www.gmcaircon.co.za...
-
Page 3: Table Of Contents
Table of Contents OWNERS MANUAL ......................... 1 BEFORE YOU BEGIN ........................4 PRODUCT DESCRIPTION ......................4 SPECIFICATIONS ........................... 5 PRODUCT OVERVIEW ........................6 PRODUCT DIAGRAM ......................6 FEATURES ..........................7 INSTALLATION ..........................8 UNPACKING ..........................8 SAFETY ............................9 SPECIAL RECOMENDATIONS: ..................... 10 POWER SOURCES ........................ -
Page 4: Before You Begin
BEFORE YOU BEGIN PRODUCT DESCRIPTION The GMCP7 portable air conditioner is a great cooling solution for small rooms up to 16m2 creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed. -
Page 5: Specifications
SPECIFICATIONS Model GMCP07 Cooling Capacity 7000 Btu/h Rated Voltage AC 220 – 240 V Rated Frequency 50 Hz Cooling Rated Input Power 780 W Cooling Rated Input Current 3.5 A IP Code IPX1 Sound Level ≤ 65 dBa Refrigerant / Charge R410a / 120 g Net Weight 20 Kg... -
Page 6: Product Overview
PRODUCT OVERVIEW PRODUCT DIAGRAM Air inlet with Control panel Drainage Hole air filter Air outlet with adjustable Caster Air Exhaust louver Handle Note: The appearance is only for reference. Please see the real product for detailed information. For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173... -
Page 7: Features
FEATURES High Capacity in a compact size unit which includes a fan, cooling and dehumidifying. Temperature setting and display LED Digital display Electronic control with a built-in timer and sleep mode function Self-evaporating system for better efficiency ... -
Page 8: Installation
INSTALLATION UNPACKING Unpack the carton and take the appliance and accessories out. Check the device after unpacking for any damage or scratches on it. Accessories: 1. Exhaust hose 2. Hose connector 3. Window kit adapter ... -
Page 9: Safety
SAFETY PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING YOUR NEW GMC AIRCON APPLIANCE. Only use this air conditioner for domestic purposes and in the way indicated in these instructions. Do not use this air conditioner outside and always place it ... -
Page 10: Special Recomendations
advise on the best possible solution for your air conditioner. Never use non approved substances on your appliance, this could cause damage to your air conditioner and will void the warranty. Please contact us on 012-661-1173 or through www.gmcaircon.co.za for advice. SPECIAL RECOMENDATIONS: Install your portable air conditioner on a flat surface free ... -
Page 11: Choose Your Location
CHOOSE YOUR LOCATION If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up. Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation. -
Page 12: Attach The Exhaust Hose
ATTACH THE EXHAUST HOSE The air conditioner requires being vented to the outside so that the hot exhaust air can be removed. Do not replace or extend the exhaust hose as this will result in decreased efficiency, and will cause the machine to fail. Step 1: Connect the hose connector to one end of the exhaust hose. - Page 13 Step 4: Close your window to secure the kit in place. It needs to hold the It is recommended that t window kit firmly in place. he gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
- Page 14 Step 6: Adjusting the length of the flexible exhaust hose, and avoid bends in the hose. Then place AC near an electrical outlet. Step 7: Adjust the louver at the air outlet, and then switch on the unit. GMC have designed and produced a locally manufactured window kit to fit non sliding windows.
-
Page 15: Operation
OPERATION CONTROL PANEL AND DISPLAY POWER Press to switch the machine on or off. Press to switch the operation mode between fan, MODE cooling, and dehumidifier. Press to switch the fan speed between HIGH and SPEED DOWN Decreasing the desired temperature or timer setting. Increasing the desired temperature (16 ℃... - Page 16 1. High Fan Speed 2. Low Fan Speed 3.Timer 4. Dehumidifier Mode 5. Cooling Mode 6. Fan Mode 7. Sleep 8. Lock 9. Display Window For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173...
-
Page 17: Remote Control
REMOTE CONTROL SETTINGS Start-up and Shutdown Press “POWER” to turn the unit on. Press “MODE” button to select the desired operation mode. Press “POWER” again to turn off the power. For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173... -
Page 18: Operation Mode
OPERATION MODE The unit has five operation modes: Cool, dry, fan, sleep. Cooling your room Select the cool mode to lower the temperature in your room. Press the MODE button repeatedly until the COOL indicator lights Press the Up/Down button to adjust the temperature which is displayed on the screen. -
Page 19: Timer Setting
TIMER SETTING（1hour-24hours）: The timer has two ways of operating: Press Timer key to Press Up /Down To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. Press Up /Down Press Timer key to To turn on repeatedly to set the turn on the timer... -
Page 20: Overload Protection
OVERLOAD PROTECTION In the event of a power loss, to protect the compressor there is a 3-minute delay before the compressor restarts. WARNING! Install the unit in rooms which exceed 8 m². For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173... -
Page 21: Maintenance
MAINTENANCE SELF- EVAPORATING SYSTEM The self-evaporating system uses the water collected from the evaporator to cool the condenser coils for better efficiency and better performance. There is no need to empty the drainage tank in cooling operation. The only time you may have to drain the unit is in drying operation and high humidity conditions. -
Page 22: Cleaning The Air Filter
To avoid water spillage: • As the negative pressure of condensate drain pan is large, tilt the drain hose downward toward the floor. It is appropriate that the degree of inclination should exceed 20 degrees. • Straighten the hose to avoid a trap existing in the hose. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. - Page 23 Pic2. Rinse the air filter under Pic1. Switch off the unit and remove running water. the two air filters. For enquiries or support: visit www.gmcaircon.co.za or contact us on 012-661 1173...
-
Page 24: Troubleshooting
TROUBLESHOOTING Symptom Inspection Solution Check the power Insert the power cord connection in securely. securely into the wallOutlet. The unit is Check if the water level Empty the drain pan by indicator lights up? remove the rubber plug. operating. -
Page 25: Storage
STORAGE STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and remove exhaust hose and window kit, store with the unit. -
Page 26: Disposal
DISPOSAL Do not release any refrigerant into the atmosphere as this contravenes local environmental laws’ – If in doubt please do WARNING!!! not hesitate to contact us on 012-661-1173 www.gmcaircon.co.za Do not dispose of electrical appliances unsorted municipal waste, separate collection facilities. Contact your local government for information regarding collection... -
Page 27: Service And Warranty
SERVICE AND WARRANTY GMC Air conditioning was established in 1995 and is one of South Africa’s leading cooling and heating companies. We pride ourselves on 100% customer satisfaction and have the highest online rating of all heating and cooling companies, We will strive to ensure you are 100% satisfied with your product.
