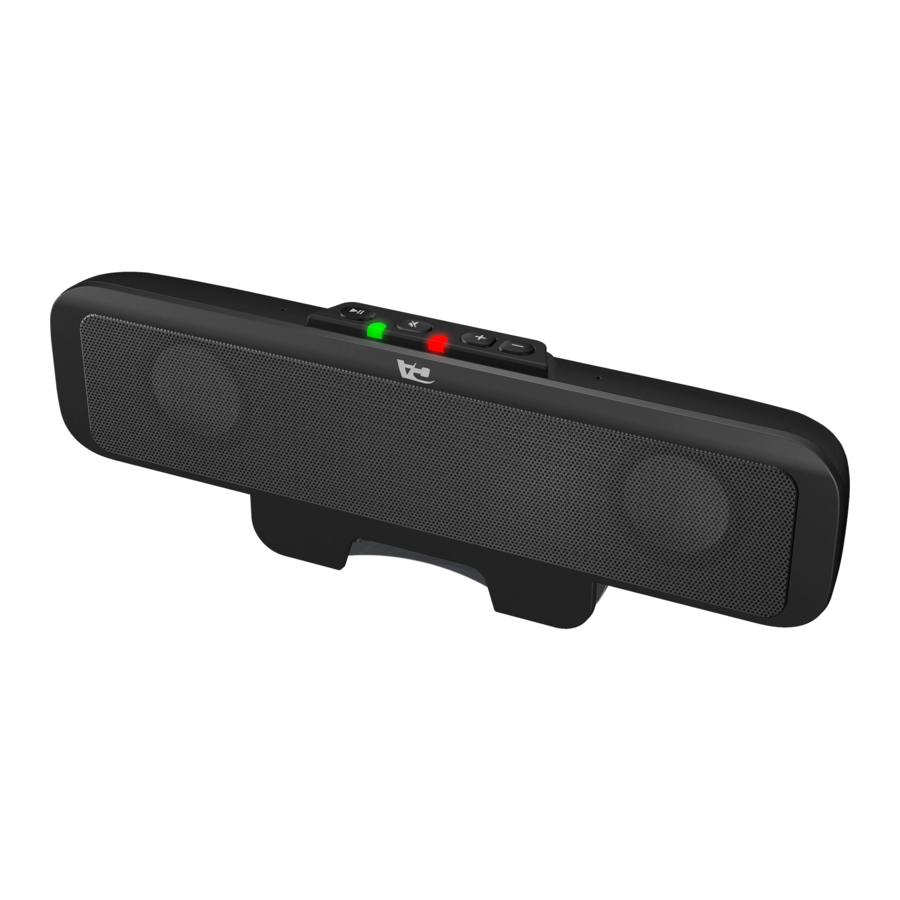

Cyber Acoustics CA-2890 Manual

In the Package

warning Note: The USB Type A to C Adapter is packed along with the QSG inside the box.

Using the Speaker Bar

Best for Use In Home - Office - Traveling
Using the Speaker Bar

Getting Started

The Cyber Acoustics USB Speaker Bar can be used with a USB connection to your Windows 10 PC or Mac.

USB connection - Using with a PC or Mac

Insert the USB Type A end of the Cable into the USB Type A port on your computer.
Source Light will be lit solid Green.

The Cyber Acoustics USB Speaker Bar features full plug and play support for Windows 10, OSX / MacOS and Chromebooks. After plugging the speaker bar into the computer, you may start any application that accepts a speaker bar and begin using your speaker bar.

If the computer does not automatically recognize the speaker bar when it is plugged into the USB Type A port, try plugging the USB Cable into a different USB Type A port. If this does not work, then restart the computer. This will cause the speaker bar to be recognized in most instances.

Lights

LED Indicator

Lights - LED Indicator

Controls

Press to Play / Pause when playing music

Press to Mute / Unmute the speaker

Press to increase the volume
Press & hold to increase the volume continuously until maximum level
(A light beep sound will be heard when the volume level reaches maximum)

Press to decrease the volume
Press & hold to decrease the volume continuously until minimum level
(A light beep sound will be heard when the volume level reaches minimum)

Technical Specifications

Power:	5V / 0.5A - Power Source 2W when playing music (1W x 2)
Frequency response	Speaker: 80 - 16,000Hz
Impedance	Speaker: 4 ohms
Recommended System Requirements
Supported operating system	Windows 10, Mac OS X 10.4.11 or higher
Operating temperature	Product working at ambient temperature for 0~35°C

Frequently Asked Questions

Frequently Asked Questions	Possible Solutions
Windows 10: Speaker bar does not set up automatically	In the search box on the taskbar, type control panel, then select it from the results. Select Hardware and Sound from the Control Panel, and then select Sound. On the Playback tab, right-click "CA-2890 USB Speaker Bar", select Set as Default Device, and then select OK. Verify green circle with a check mark next to "CA-2890 USB Speaker Bar". (Optional) To adjust the speaker volume, click Properties. When finished, click "Apply" then "OK".
Mac: Speaker bar does not set up automatically	Open the Finder Application, then select Applications. Open System Preferences, then click Sound. Select the Output tab, then select "CA-2890 USB Speaker Bar". Make sure that the mute button isn't selected. When finished, close System Preferences.
Speaker bar does not have sound	Check the computer's volume level. Check proper seating of cable connection. Verify the application settings you are using. Some applications have separate volume level control. Check that the computer recognizes the speaker bar - showing it is connected and selected within your computer OS settings. (See the Page for Windows and Mac setting instructions) Verify the output levels within the sound / audio settings of your computer's settings. Unplug the speaker bar from the USB port of the computer and then re-insert into the USB port of the computer. Restart your computer and re-verify the above steps. Restarting often helps a computer connect to the speaker.

Customer Support

If you have a question about your Cyber Acoustics USB Speaker Bar, our Customer Service Team wants to assist you.

Contact us at:
www.cyberacoustics.com/support/contact

Safety and Precautions

Read and follow all instructions – All operating and use instructions should be followed.
Protect the speaker bar from being pinched, particularly at the connectors. Unplug during lightning storms or when unused for long periods of time.
Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not make alterations to the speaker bar.
Do not place near naked flame sources, such as lighted candles.
Do not expose to excessive heat (e.g. from storage in direct sunlight, fire or the like).
