Related Manuals for Cyber Acoustics CA-2890BT
Summary of Contents for Cyber Acoustics CA-2890BT

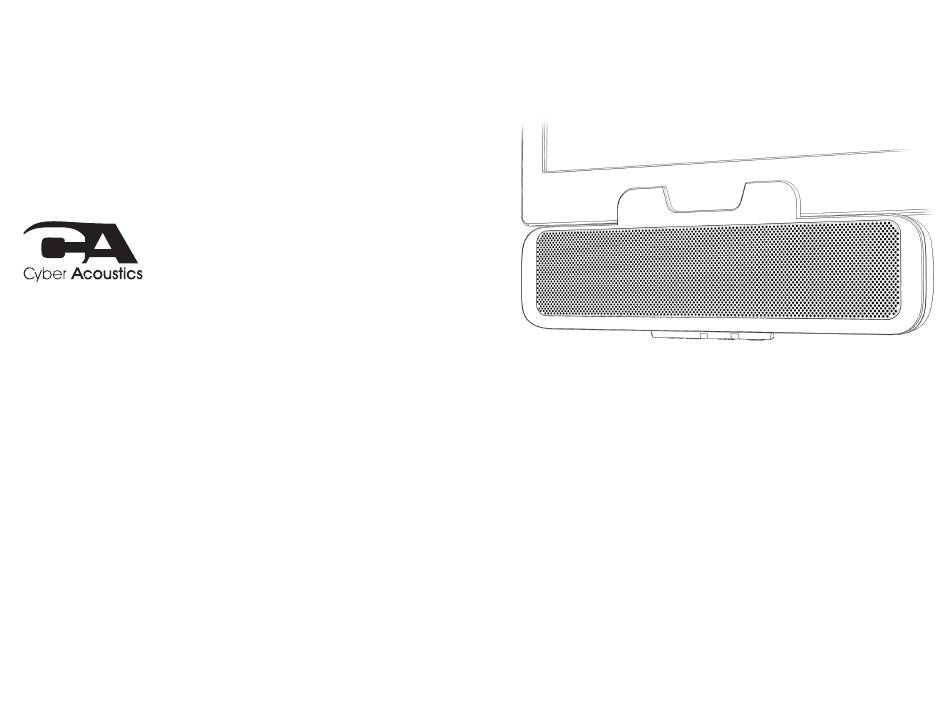

- Page 1 Quick Start Guide Cyber Acoustics Speaker Bar (CA-2890BT) Use at Home, Office or Traveling CA P/N: CA-2890BT Rev. A00 www.CyberAcoustics.com 2022-05...
- Page 2 In the Package Quick Start Guide Cyber Acoustics Speaker Bar (CA-2890BT) Use at Home, Office or Traveling CA P/N: CA-2890BT Rev. A00 www.CyberAcoustics.com 2022-05 Quick Start Guide USB Type A to C Adapter Note: The USB Type A to C Adapter is packed along with the QSG inside the box.
-
Page 3: Table Of Contents
Table of Contents Pages Using the Speaker Bar Getting Started - USB Connection Getting Started - Bluetooth Connection Lights Controls Technical Specifications Frequently Asked Questions 8,9,10 Customer Support Safety and Precautions Compliance Information 13,14... -
Page 4: Using The Speaker Bar
Using the Speaker Bar Best for Use In Home - Office - Traveling / USB Page 1... -
Page 5: Getting Started - Usb Connection
- The Speaker Bar will power on and connect to your PC in USB mode. - Source Light will be lit solid Green. The Cyber Acoustics Speaker Bar features full plug and play support for Windows 10, OSX / MacOS and Chromebooks. After plugging the Speaker Bar into the computer, you may use for playing music, videos or as a speakerphone with applications such as Zoom, Teams, Skype, etc. -
Page 6: Getting Started - Bluetooth Connection
- To disconnect the current device, press and hold down the Multi-Function Button for 5 seconds. - The Source Light will begin flashing blue and the Cyber Acoustics Speaker Bar is ready for the next device to pair and connect. - Page 7 With your iPhone, iPad/Tablet, Smartphone - Go to Settings > Bluetooth, check Bluetooth is on - Select 'Cyber Acoustics Speaker Bar (CA-2890BT)' when it appears under DEVICES - Your device will connect in a few seconds - The Source Light will turn solid blue...
-
Page 8: Lights
Lights Source Light USB mode - Solid Green Bluetooth mode - Flashing Blue - Ready to pair with Smartphone or Tablet - Solid Blue - Connected to Smartphone or Tablet Call / Microphone Mute Indicator Flashing Red – Incoming call from Smartphone Solid Purple –... -
Page 9: Controls
Controls Multi-Function Button Press twice to switch between Bluetooth and / USB mode Press & hold for 5 seconds to disconnect the connected Smartphone or Tablet Press once to Answer/End a call or Play/Pause music - Music will pause automatically when there is an incoming call from a Smartphone Press twice to reject an incoming call When talking, press once to mute the mic input;... -
Page 10: Technical Specifications
Technical Specifications Specifications Power: • 5V / 0.5A - Power Source • 2W when playing music (1W x 2) • Speaker: 80 - 16,000Hz Frequency response • Microphone: 100 - 16,000Hz • Speaker: 4 ohms Impedance • Microphone: 2.2k ohms Recommended System Requirements Supported operating system Windows 10, Mac OS X 10.4.11 or higher... -
Page 11: Frequently Asked Questions
To start fresh, with your Bluetooth device, select “Forget this device,” to remove the “Cyber Acoustics Speaker Bar (CA-2890BT)” from the list. You may need to turn off the Bluetooth function on your device to fully clear your list. - Page 12 Speaker Bar does not set up automatically Default Device, and then select OK. • Verify green circle with a check mark next to “Cyber Acoustics Speaker Bar (CA-2890BT)”. • On the “Recording” tab, right-click “Cyber Acoustics Speaker Bar (CA-2890BT)”, select Set as Default Device, and then select OK.
- Page 13 Frequently Asked Questions Frequently Asked Questions Possible Solutions - Check the computer’s volume level. USB connection Speaker Bar does not have sound / - Check proper seating of cable connection. Microphone is not working - Verify the application settings you are using. Some applications have separate volume level control.
-
Page 14: Customer Support
Customer Support If you have a question about your , our Cyber Acoustics Speaker Bar Customer Service Team wants to assist you. Contact us at: www.cyberacoustics.com/support/contact Page 11... -
Page 15: Safety And Precautions
- Do not expose to excessive heat (e.g. from storage in direct sunlight, fire or the like). 2022 Cyber Acoustics or its subsidiaries. All rights reserved. Cyber Acoustics and other trademarks are trademarks of Cyber Acoustics or its subsidiaries. Other trademarks may be trademarks of their respective owners. -
Page 16: Compliance Information
Unique Identifier: (CA-2890BT) Responsible Party - Cyber Acoustics LLC 3109 NE 109th Ave., Vancouver, WA 98682 cyberacoustics.com Compliance Information Statement: FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. - Page 17 RF exposure statement This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102.
Need help?
Do you have a question about the CA-2890BT and is the answer not in the manual?
Questions and answers
I have the CA-2890 USB speaker bar. The sound is really good if I **** listening to a video from a webpage. However, it is very, very low if I **** listening to a recording. any suggestions? I've had it for a couple of months and it's too late to return it.
To improve the sound volume of the Cyber Acoustics CA-2890BT speaker bar when listening to recordings, follow these steps:
1. Check Volume Levels – Ensure that the computer’s volume level is turned up.
2. Set as Default Device – Open sound settings, navigate to the "Recording" tab, right-click "Cyber Acoustics Speaker Bar (CA-2890BT)", select "Set as Default Device", and click OK.
3. Verify Green Check Mark – Ensure there is a green circle with a check mark next to the speaker bar in the sound settings.
4. Adjust Volume in Properties (Optional) – Click "Properties" for the speaker bar and adjust the volume settings.
5. Mute Settings – Make sure the mute button is not selected under both the "Input" and "Output" tabs in sound settings.
Following these steps should help improve the sound volume when listening to recordings.
This answer is automatically generated
