Lenovo Smart Display 8 Manual

Basics

• All pictures and illustrations in this document are for reference only.
• The Google Home app supports both Android and iOS systems. This document uses the Android system as an illustrative example.
• Because the Google Home app will regularly be updated, refer to the latest version for the actual procedure and screenshots.

Before using this information and the product it supports, be sure to read the following:

• Safety, Warranty & Quick Start Guide
• Regulatory Notice
• Important safety and handling information

Getting started

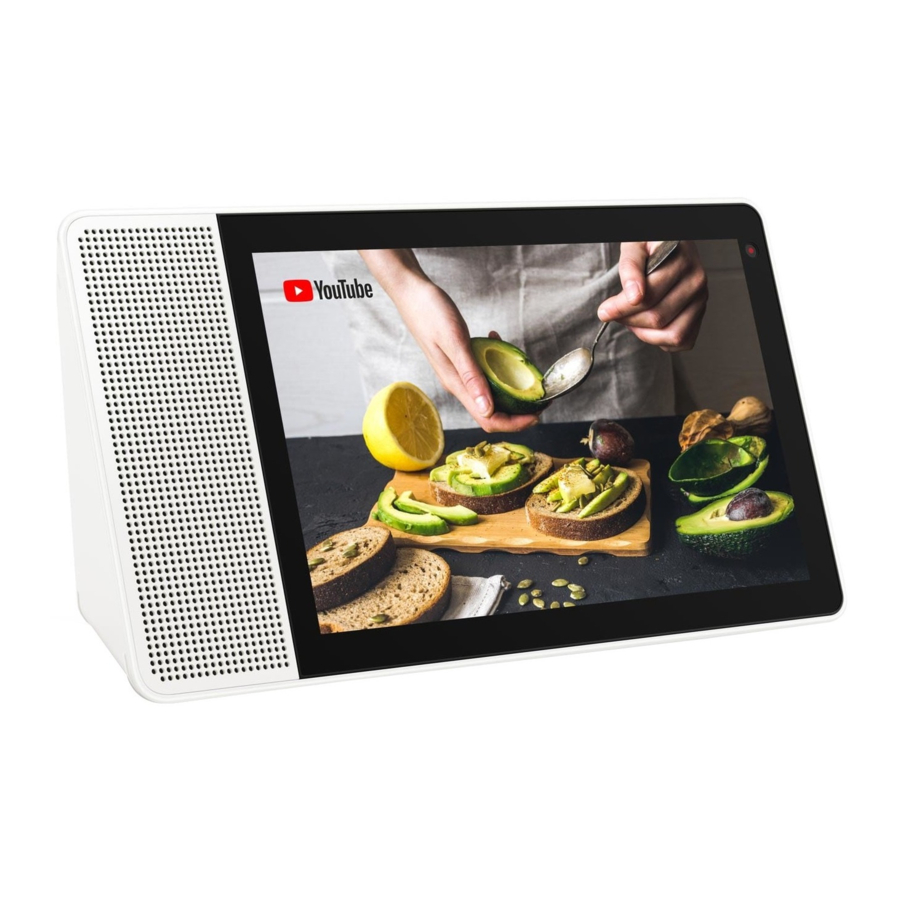

Overview

	Front camera		Light/proximity sensor		Touch screen
	Speaker		Microphone		Microphone mute switch
	Volume buttons		Power adapter connector		Service tool1
	Camera privacy shutter

¹ Only used for after-sales service maintenance. Do not open the service tool cover. Doing so may cause permanent damage to the Lenovo Smart Display.

Plugging in the unit to turn it on

Plug the power adapter into the Lenovo Smart Display and then into a power outlet.
Connect the Lenovo Smart Display to a power outlet using the power adapter provided.

The power adapter is suitable for the Lenovo Smart Display. Do not use it for other purposes.

Downloading the Google Home app

1. Open the Google Play Store or App Store in your phone/tablet.

2. Search for Google Home.
3. Download and run the Google Home app on your phone/tablet.


Connecting the Unit to the Internet

You'll need to connect your Lenovo Smart Display to the Internet before using it.

1. Open the Google Home app.
2. Tap Get started and register your Google account.
3. The Google Home app will scan the nearby devices automatically.
4. Select the device that you want to connect.
5. Follow the on-screen instructions to set up your Lenovo Smart Display.

• Use the same Wi-Fi network for your Lenovo Smart Display and phone/tablet.
• The system may be updated automatically when using it for the first time. Wait several minutes without operating.

Using the touch screen

Tap on an item.

Swipe from the left edge towards the right to return to the prior screen.

Swipe from the bottom edge upwards to access quick settings.

• : Adjust the screen brightness.
• : Adjust the volume.
• : Enable/disable the Do not disturb function.
• : View the shortcut setting menu.

Talking to the unit

The Lenovo Smart Display has the Google Assistant built in. Just say "Hey Google" or "Ok Google" to get started.
You can say "Hey Google, what can you do?" or tap on the Explore tile on the Home screen to learn about how your Google Assistant on your Smart Display can help you.

For example:
If you say "Hey Google, how's the traffic to work?" the Lenovo Smart Display will tell you the traffic information.

Access your settings in the Google Home app at any time to add or modify your home address, work address, set your nickname, and more.

Factory reset

Press and hold the volume up button and the volume down button at the same time for a few seconds.

Using the Google Home app

Use the Google Home app to manage your device. Through the app, you can modify your Google Assistant settings including your personal information, your media service preferences, and your connected smart home devices.

	Tap to view the options menu.
	Tap to view the available devices and connected devices nearby.
	Display disconnected and available devices nearby.
	Display what the connected device is playing.
	Main tabs include the Discover tab the Browse tab.

Making a video call

You can make a video call through the Lenovo Smart Display.

1. Link your mobile phone number to your Google account by performing the following:
   1. Download and install the Google Duo app in your mobile phone.
   2. Register your mobile phone number in Google Duo.
2. Open the Google Home app and perform the following:
   1. Tap > More settings.
   2. Select the device that needs setting, and open Personal results and Home screen & notifications.
   3. Link your phone number in Duo video calling.

• Make sure that you use the same mobile phone number to link Google Duo, Google Home and the Google account.
• Make sure that you use the same Google account in Google Duo, Google Contacts, and Google Home.

3. Make a video call through voice commands in the Lenovo Smart Display such as: "Hey Google, call Mom."

Make sure that the person you'd call has been added as a contact.

Important safety and handling information

To avoid personal injury, property damage, or accidental damage to the product, read all of the information in this section before using the product. For additional tips to help you operate your device safely, go to http://www.lenovo.com/safety. ;

Handle your device with care
Do not drop, bend, or puncture your device. Do not insert foreign objects into or place heavy objects on your device. Sensitive components inside might become damaged. When using your device, keep it away from hot or high-voltage environments, such as electrical appliances, electrical heating equipment, and electrical cooking equipment. Use your device only in environments within the temperature range of 0°C (32°F) to 40°C (104°F) (storage -20°C (-4°F) to 60°C (140°F)) to avoid damage.
Don't expose your device to water, rain, extreme humidity, sweat or other liquids.

Do not disassemble or modify your device
Your device is a sealed unit. There are no end-user serviceable parts inside. All internal repairs must be done by a Lenovo-authorized repair facility or a Lenovo-authorized technician. Attempting to open or modify your device will void the warranty.

Plastic bag notice
Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Adapter information
Adapter shall be installed near the equipment and shall be easily accessible.

• Prevent AC adapter from getting wet.
• Use approved charging methods only.
  Note: Please only use standard Lenovo power adapters. The use of third-party power adapters will affect the charging speed, resulting in abnormal charging and potential damage to the device.
  Connect a standard power adapter to a suitable power outlet.

Charging devices might become warm during normal use. Ensure that you have adequate ventilation around the charging device. Unplug the charging device if any of the following occurs:

• The charging device has been exposed to rain, liquid, or excessive moisture.
• The charging device shows signs of physical damage.
• You want to clean the charging device.

Lenovo is not responsible for the performance or safety of products not manufactured or approved by Lenovo. Use only approved Lenovo AC adapters.
