PASCO PS-3215 Reference Manual

Wireless colorimeter and turbidity sensor

Advertisement

Available languages

Available languages

Quick Links

Smart Leitfähigkeitssensor
Bestellnummer 116.4031
Im Lieferumfang enthalten
- Smart Leitfähigkeitssensor

Zusätzlich erforderlich: Software SPARKvue oder Capstone von PASCO

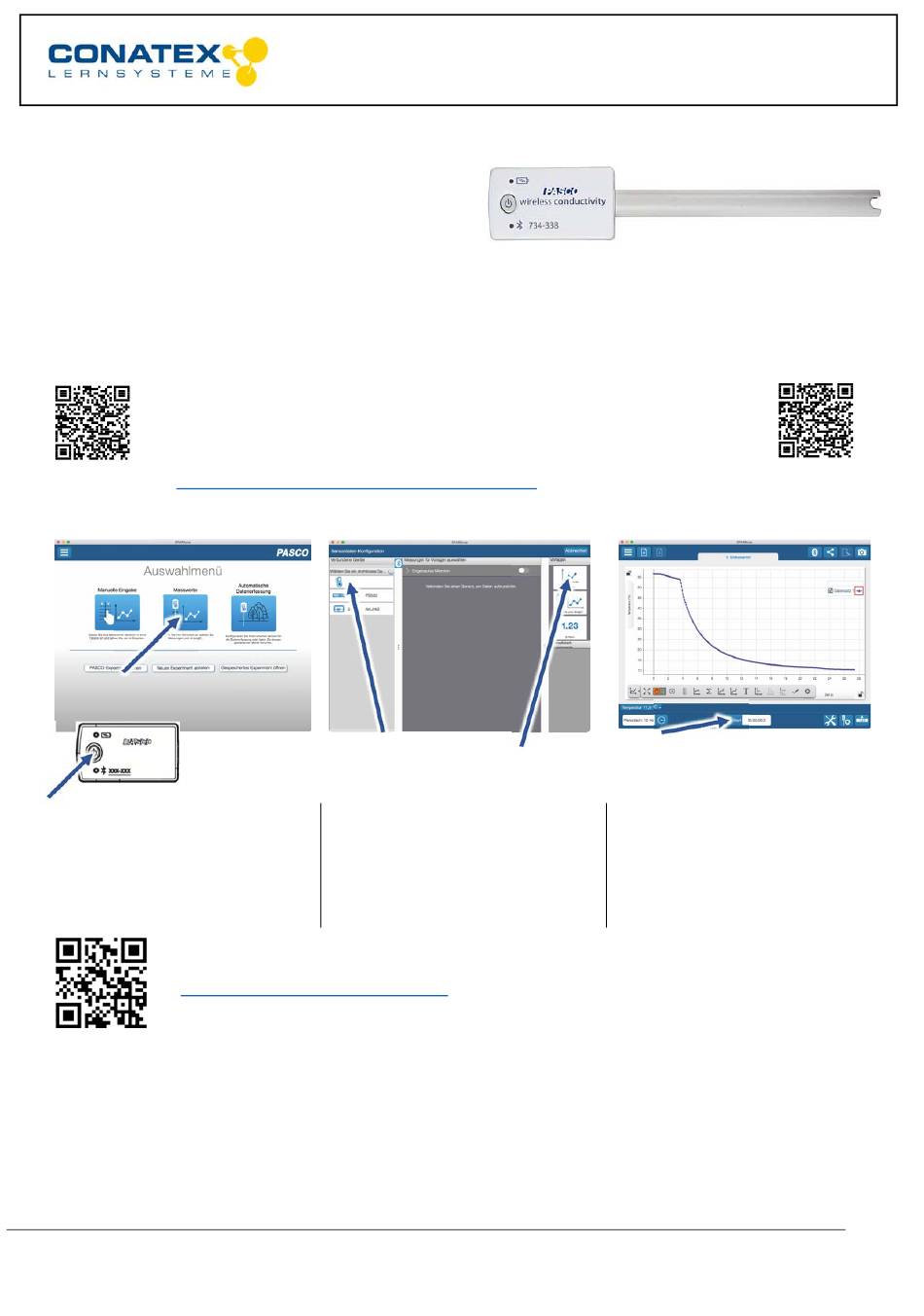

Schnellstart für Smartphones
Kostenlose App für Android und iOS
Scannen Sie den QR-Code ein und Sie gelangen direkt zur kostenlosen App
„SPARKvue" in Ihrem AppStore. Sie installieren die App auf Ihrem Endgerät
(Tablet / Smartphone mit iOS oder Android).
Für Windows PC und Mac finden Sie eine kostenpflichtige Variante unter
Zur iOS-App
>>https://www.conatex.com/catalog/sku-1104020.
Einschalten
Draufsicht
Sie schalten Ihren Sensor auf
der Oberseite ein und starten die
SPARKvue App. Auf dem
Startbildschirm wahlen Sie in der
Mitte den Punkt „Messwerte".
Mit folgendem QR-Code gelangen Sie direkt zu unserer kostenlosen Video-Anleitung. Diese
finden Sie in unserem Webshop auch bei der Lizenz von SPARKvue unter
>>http://www.conatex.com/q1104020. Dort finden Sie auch Betriebsanleitungen zum
kostenlosen Download.
© Alle Rechte vorbehalten – web: www.conatex.com – Email: digital-team@conatex.com
Verbinden
Sensorauswahl
Sie kommen zur Sensor-
Konfiguration. In der linken Spalte
wählen Sie Ihren Sensor aus.
Danach können Sie rechts die
Darstellung der Messwerte
aussuchen.
Hotline zum Digital-Team: +49 (0)6849 – 99296 54
Version 1.0 vom 24. April 2020
Messen & Auswerten
Messung starten &
Darstellung
beenden
Um eine Messung zu starten
klicken Sie auf den grünen
Knopf mittig unten in der Leiste.
Die Messung beendet Sie in
dem Sie wieder auf das nun rote
Quadrat drücken.
Bedienungsanleitung
BAD_1164031_V1.docx
Zur Android-App
Seite 1 von 4


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PASCO PS-3215

  • Page 1 Bestellnummer 116.4031 Im Lieferumfang enthalten - Smart Leitfähigkeitssensor   Zusätzlich erforderlich: Software SPARKvue oder Capstone von PASCO Schnellstart für Smartphones Kostenlose App für Android und iOS Scannen Sie den QR-Code ein und Sie gelangen direkt zur kostenlosen App „SPARKvue“ in Ihrem AppStore. Sie installieren die App auf Ihrem Endgerät (Tablet / Smartphone mit iOS oder Android).
  • Page 2 Bedienungsanleitung Version 1.0 vom 24. April 2020 BAD_1164031_V1.docx   Zweck und bestimmungsgemäßer Gebrauch Der Smart-Leitfähigkeitssensor misst die elektrische Leitfähigkeit einer Lösung oder die Konzentration gelöster Feststoffe (Salze) in wässrigen und nicht-wässrigen Proben. Sein Messbereich beträgt 0 bis 20000 µS/cm. Er lässt sich drahtlos über Bluetooth an Smartphones, Tabletts und Computer anschließen. Mit einem eigenen Speicher ausgestattet, ist er außerdem in der Lage Messwerte selbstständig zu erfassen und anschließend als Block zu übertragen.
  • Page 3: Fehlerbehebung

    Datenerfassung über USB Entweder überträgt der Sensor laufend Messwerte an ein gekoppeltes Gerät oder er speichert sie intern. Gespeicherte Messreihen können bei der nächsten Verbindung mit PASCO Software ausgelesen werden. Die unabhängige Messwerterfassung empfiehlt sich besonders für Langzeitexperimente. Technische Spezifikationen Messbereich -0 bis 20000 µS/cm...
  • Page 4: Technische Unterstützung

    Bedienungsanleitung Version 1.0 vom 24. April 2020 BAD_1164031_V1.docx   Sicherheitshinweise  Vor Inbetriebnahme des Gerätes ist die Bedienungsanleitung sorgfältig und vollständig zu lesen. Sie schützen sich und vermeiden Schäden an Ihrem Gerät.  Verwenden Sie das Gerät nur für den vorgesehenen Zweck. ...
  • Page 5 - Transparenter Schraubverschluss - Micro USB Kabel (1 Meter)   Zusätzlich erforderlich: Software SPARKvue oder Capstone von PASCO Schnellstart für Smartphones Kostenlose App für Android und iOS Scannen Sie den QR-Code ein und Sie gelangen direkt zur kostenlosen App „SPARKvue“ in Ihrem AppStore. Sie installieren die App auf Ihrem Endgerät (Tablet / Smartphone mit iOS oder Android).
  • Page 6 Bedienungsanleitung Version 1.0 vom 24. April 2020 BAD_1194002_V1.docx   Zweck und bestimmungsgemäßer Gebrauch Der Smart O2-Sensor für gelösten Sauerstoff misst den Sauerstoffgehalt in einer wässrigen Lösung als Sättigung in % und als Konzentration in mg/l. Außerdem misst er Temperatur und Druck um die gemessenen Rohdaten automatisch zu kompensieren. Auch in Luft liefert die Sauerstoffmessung brauchbare Ergebnisse, die sich mit zunehmender Luftfeuchtigkeit verbessern.
  • Page 7 Datenerfassung über USB Entweder überträgt der Sensor laufend Messwerte an ein gekoppeltes Gerät oder er speichert sie intern. Gespeicherte Messreihen können bei der nächsten Verbindung mit PASCO Software ausgelesen werden. Die unabhängige Messwerterfassung empfiehlt sich besonders für Langzeitexperimente. Technische Spezifikationen Betriebstemperatur 0°...
  • Page 8 Bedienungsanleitung Version 1.0 vom 24. April 2020 BAD_1194002_V1.docx   Gelöster Sauerstoff, Sättigung Messbereich 0 %l bis 200 % Auflösung 0,1 % ± 1% Genauigkeit ± 10 % über 200% Messwert Temperatur Messbereich 0° C bis 50° C Auflösung 0,1° C Genauigkeit ±...
  • Page 9 Bedienungsanleitung Version 1.0 vom 24. April 2020 BAD_1194002_V1.docx   Entsorgungshinweise Elektro-Altgeräte Entsorgung Es obliegt Ihrer Verantwortung, Ihr elektronisches Gerät gemäß den örtlichen Umweltgesetzen und -vorschriften zu recyceln, um sicherzustellen, dass es auf eine Weise recycelt wird, die die menschliche Gesundheit und die Umwelt schützt. Um zu erfahren, wo Sie Ihre Altgeräte zum Recycling abgeben können, wenden Sie sich bitte an Ihren örtlichen Abfallentsorgungsdienst oder an den Ort, an dem Sie das Produkt gekauft haben.
  • Page 10 R e f e r e n c e G u i d e 013-15830A Wireless Colorimeter and Turbidity Sensor PS-3215 Included Equipment Item Included Equipment Item Wireless Colorimeter and Turbidity Sensor USB-to-Micro-USB Cable Cuvettes and Cuvette Holder 100 NTU Calibration Solution Bottle...
  • Page 11: Operation

    Software Help the unit is fully charged. The battery is partially charged at the factory. Initial charging time may be NOTE: See the SPARKvue Help or PASCO Capstone three hours or longer. Help for information about collecting, displaying, and analyzing data.
  • Page 12 In PASCO Capstone, select PASCO Capstone Help from the Help menu, or press F1. Connect the Sensor Wirelessly Start the PASCO data collection software (such as PASCO Capstone or SPARKvue). PASCO Capstone: Select “Hardware Setup” in the Tools palette. When the software detects the Wireless Col-...
  • Page 13 W i r e l e s s C o l o r i m e t e r a n d T u r b i d i t y S e n s o r Operation Calibration Preparation Procedure The SPARKvue Sensors window opens with a list of all the available measurements possible with the sensor.
  • Page 14 Green blink Connected Green ON Charged and always ready to use, so all of the PASCO wireless products are designed for long battery life. For example, For a wireless Bluetooth connection the Wireless Colorimeter and Turbidity Sensor turns itself off after a brief time of inactivity to conserve battery life.
  • Page 15: Technical Support

    You can think of the software as taking in raw data and Limited Warranty outputting calibrated data. When you perform a calibration, For a description of the product warranty, see the PASCO web site. the software redefines the linear equation that transforms Copyright the raw input data into the calibrated output data.
  • Page 16: Types Of Calibration

    Normally this difference would be insignificant; however, an offset calibration can be used to bring the sensors into closer alignment. Using PASCO Software for Calibration NOTE: Check the on line Help System in SPARKvue or Capstone for the most up-to-date calibration information.
  • Page 17 R e f e r e n c e G u i d e 013-15518A Wireless Weather Sensor with GPS PS-3209 Weather Resistant Gasket Included Equipment Item Included Equipment Item Wireless Weather Sensor with GPS USB-to-Micro-USB Cable...
  • Page 18 (GPS) module. It is durable and weather-resistant (IP-64) and can connect wirelessly via Bluetooth to a comput- ing device such as a tablet or computer using PASCO data collection software (see www.pasco.com). The software sup- ports data logging when the instrument is not connected to a computing device. The Wireless Weather Sensor has a rechargeable battery pack.
  • Page 19 To turn off the sensor, press and HOLD the ON/OFF button until the Battery status LED shines red momen- tarily and the other status LEDs stop shining. Software Help NOTE: See the SPARKvue Help or PASCO Capstone Vane Help for information about collecting, displaying, and Pivot Post analyzing data.
  • Page 20: Status Led Information

    W i r e l e s s W e a t h e r S e n s o r w i t h G PS Operation SPARKvue: In the Home screen, select the “Bluetooth” Select a measurement to automatically open a Graph icon at the top of the screen.
  • Page 21: Measurement Tips

    P S - 3 2 0 9 W i r e l e s s W e a t h e r Se n s o r Wireless Weather Sensor Consider using the PS-3553 Weather Vane Accessory when measuring weather conditions including wind speed and direction.
  • Page 22: Theory Of Operation

    Humidity (as a percentage), and T is Temperature in °C. Data from the Wireless GPS Sensor is relayed by Blue- tooth to the PASCO data collection software on a com- Wind Chill puting device such as a computer or tablet.
  • Page 23: Sensor Setup

    Source in very cold or very hot environments. GPS status LED does not shine. If the battery will not hold a charge, contact PASCO If the sensor cannot track at least three satellites, it Technical Support.
  • Page 24 Email: www.pasco.com/support Web: Limited Warranty For a description of the product warranty, see the PASCO catalog. Copyright This PASCO scientific reference guide is copyrighted with all rights reserved. Permission is granted to non-profit educational institutions for reproduction of any part of this manual, providing the reproductions are used only in their laboratories and classrooms, and are not sold for profit.
  • Page 25 1. Attach the Pivot Pin to the Tripod by screwing the Pin onto the 14-20 threaded rod on the Tripod. 2. Screw the Rod into the PS-3209 Sensor as Wireless Weather Accessories Shown with PS-3209 Sensor (not included) shown and attach the Vane. 800-772-8700 www.pasco.com...
  • Page 26 Reproduction under any other circumstances, without the written consent of PASCO scientific, is prohibited. Trademarks PASCO and PASCO scientific are trademarks or registered trademarks of PASCO scientific, in the United States and/or in other countries.

Table of Contents
