PS‐3219: Wireless Motion Battery Replacement Instructions
Reference: Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:

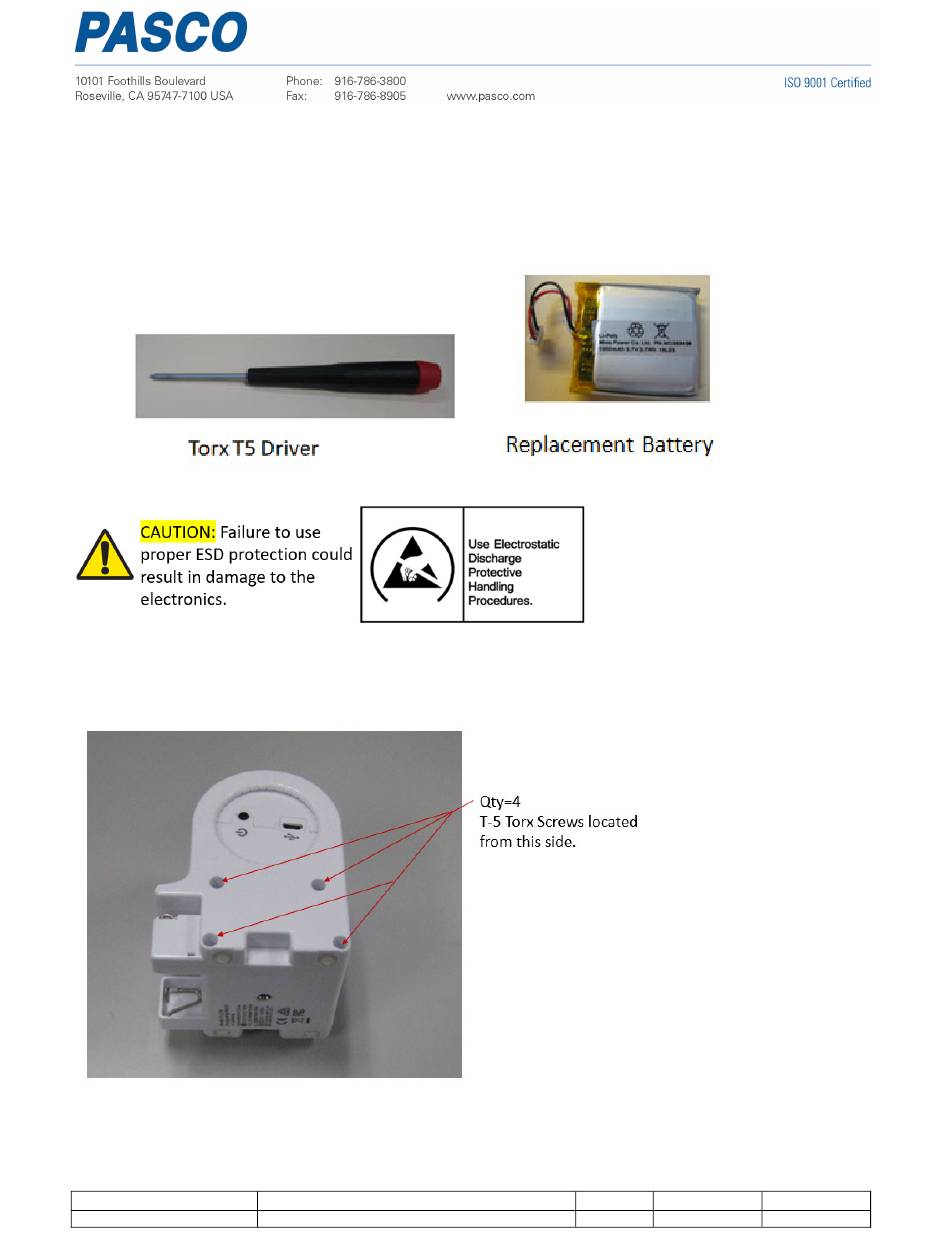

Position the Sensor as shown. Note the location of the (4) T5 Screws.
Unscrew the 4 screws.
PASCO Form Number
Description
Date
Revision
013-17359
PS-3219 Battery Replacement Instructions
05-05-22
Page 1 of 4
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO PS-3219
Summary of Contents for PASCO PS-3219
- Page 1 PS‐3219: Wireless Motion Battery Replacement Instructions Reference: Battery part number 540‐113; Li‐Poly 1000 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1: Position the Sensor as shown. Note the location of the (4) T5 Screws. Unscrew the 4 screws. PASCO Form Number Description Date Revision 013-17359 PS-3219 Battery Replacement Instructions 05-05-22 Page 1 of 4 ...
- Page 2 Step 2: Flip over with the screws facing the ground and remove the top half. The screws should fall out. If not, shake until the screws fall out. Note the keepers/nut assembly may also fall out of their slot. Take note to put back during re‐assembly. Step 3: Remove the Motion Module from the assembly and unscrew the qty=4 short T5 screws as shown. PASCO Form Number Description Date Revision 013-17359 PS-3219 Battery Replacement Instructions 05-05-22 Page 2 of 4 ...
- Page 3 Step 4: Lift the top off and rotate as shown. Note: screws may stay inside their slots which is OK. Step 5 : Unscrew the qty=2 T5 Torx battery door screws as shown. Unplug the battery from its connector. Remove the battery and add the replacement battery at the location shown and plug the battery into its mating connector and put back and secure the battery door. PASCO Form Number Description Date Revision 013-17359 PS-3219 Battery Replacement Instructions 05-05-22 Page 3 of 4 ...
- Page 4 Step 6 : Reverse the steps noted above to complete the reassembly. Dispose of the battery properly per the instructions. If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-17359 PS-3219 Battery Replacement Instructions 05-05-22 Page 4 of 4 ...
