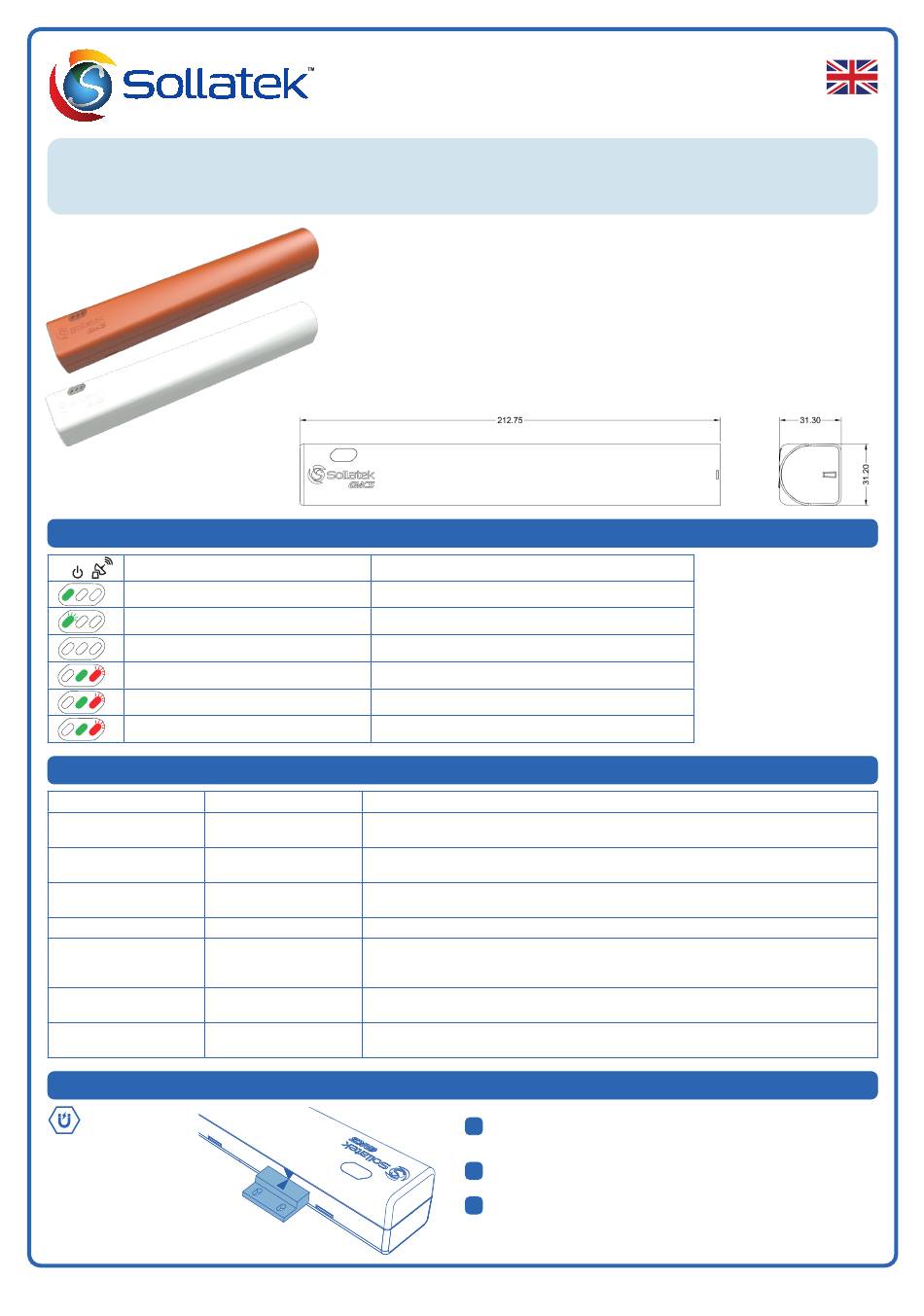

Sollatek GMC5 Installation & Operating Manual

This instructions contains important safety instructions. Before using this product please read all instructions carefully.
I N T E L L I G E N T R E F R I G E R A T I O N
GMC5 & GMC5T
INSTALLATION & OPERATING MANUAL
LED OPERATIONAL DESCRIPTION
Description
ON for 2 sec, then OFF
Flashing twice (250 ms ON/250 ms OFF)
OFF, OFF
ON, Flashing (64 ms ON/800 ms OFF)
ON, Flashing (64 ms ON/200 ms OFF)
ON, Flashing (64 ms ON/600 ms OFF)
OPERATION SETTINGS
Parameter
Movement duration to state
a movement
Post stopping duration to
transmit
Transmission settings
Server ping interval
Daily allowed movement
Temperature threshold
alarm
Temperature measurement
interval
TURNING THE TRACKER ON
Supplied Magnet
Tel: +44 (1753) 214 500 Technical Support: sollateksupport@sollatek.com Sales: sales@sollatek.com www.sollatek.com
C O N T R O L S
The GMC5 is a ready to go smart tracking device ideal for small to medium assets. The
GMC5 uses Wi-Fi for precise geo-location and GSM for transmitting its location to the
online portal.
The GMC5T has an embedded temperature sensor to provide accurate temperature
measurements to the online portal.
There are three operational modes (stationary, movement and post-movement) to maximise
battery life. Transmission intervals can be fully customised Over The Air via the online portal.
The GMC5 is fully sealed and rated IP65 (TBC), so can be mounted in the harshest of
environments. The GMC5 can be mounted via industrial adhesive pads or the screw
mounting base (sold separately).
Meaning
Tracker turning ON
Tracker turning OFF
Cellular Communication Powered Down
Searching for Network
Registered with Network
Data Transfer in Progress
Default Setting Description
30 Sec The period of constant movement to trigger movement mode
The period the GMC5 must remain stationary after sensing movement before transmitting
1 Hour
(post-movement mode)
Transmission on movement The GMC5 will send data once a movement has been sensed and again once movement has
and post stopping stopped
7 Days The duration between transmissions when the GMC5 is in stationary mode
The total duration throughout the day which the GMC5 can be moved without triggering a
5 Minutes movement event. All movement after this, which is greater than movement duration will trigger
a movement event
The maximum allowed temperature before the GMC5 reports an alarm. When the temperature
-14°C
falls below the threshold, the GMC5 will cancel the alarm
1 Hour The duration between the GMC5 recording temperature measurements
Sollatek (UK) Ltd. Sollatek House, Waterside Drive, Langley, Slough, SL3 6EZ, UK
1
Align the arrow on the magnet to the activation area of the GMC5
marked by an arrow on the device.
2
The Green LED will light for 2 sec, then turn OFF.
3
The GMC5 will then be turned ON.
Note: to test transmission and force the GMC5 to send data to the portal,
place the magnet close to the activation point 3 times.
English
