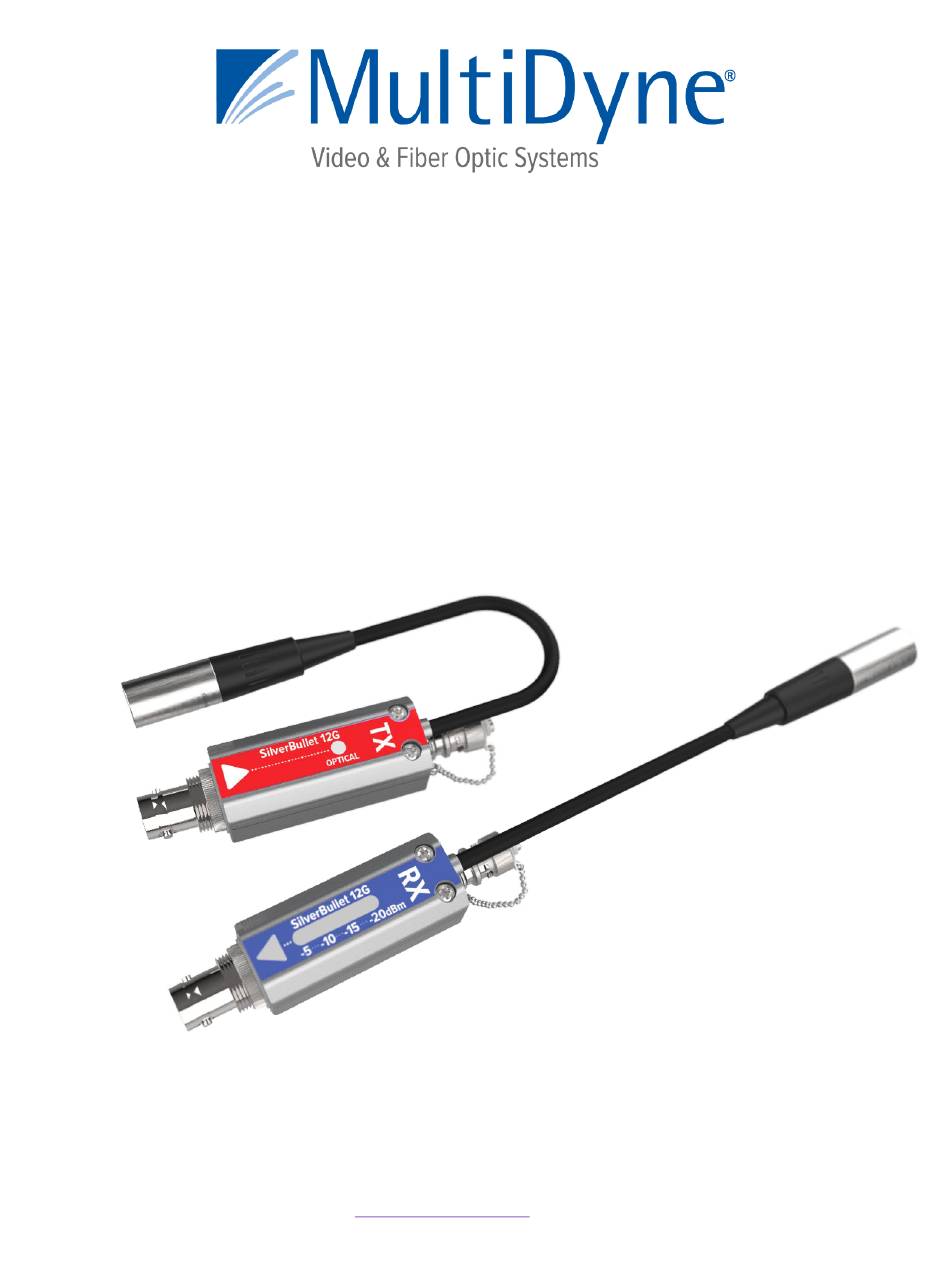

- Page 1 SilverBullet 12G SDI Fiber Transport USER MANUAL 252 Indian Head Road, Kings Park, NY 11754 USA (877) 685-8439 / (516) 671-7278 / FAX (516) 671-3362 sales@multidyne.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS www.multidyne.com Table of Contents Safety Info ............................. 3 Overview ............................6 Feature Descriptions ........................7 Operation ............................9 Accessories & Replacement Parts ....................13 Specifications ..........................14 Contact Info ............................17 Document Revisions Revision Description Date Author... -
Page 3: Safety Info
Electrical Codes must be followed and, if necessary, must be inspected by a Local or State Inspector. • All servicing of MultiDyne equipment must be performed at the factory by a MultiDyne trained service technician or engineer. • Throughout this manual, several Warnings and Cautions and Notes may be presented to alert the user to important safety or operating information. - Page 4 • Connect the unit only to a power source with the specified voltage rating. • Unless otherwise stated in the Installation Instructions, and in adherence to local Electrical Codes. MultiDyne® Equipment should only be plugged into a standard 15-amp dedicated circuit. P a g e...
-
Page 5: Laser Safety Information
Laser Safety Information This unit is classified as a CLASS 1 LASER PRO15-ampccording to EN60825-1 (EU) and FDA 21CFR 1040.10 (USA). Class 1 laser products are considered safe and do not result in biological hazard if used according to these instructions. Warning –... -
Page 6: Overview
OVERVIEW 1. Overview The SilverBullet 12G is a device designed to extend the reach of SDI (Serial Digital Interface) signals over long distances using single-mode fiber optic cables. At 11.88 Gbps, coax-only devices are typically limited to 50m runs, compared to the 10km distance fiber transmission is capable of. It provides a reliable and efficient solution for transmitting SDI signals while minimizing signal degradation and maintaining high-quality video transmission. -
Page 7: Feature Descriptions
FEATURE DESCRIPTIONS 2. Feature Descriptions 2.1 Transmitter 1. BNC Connector 2. ST/UPC Connector 3. Status LEDs 4. Mini-XLR Locking Power Connector 2.1.1 TX Block Diagram 2.1.2 Wavelengths A 2-digit code on the bottom label indicates the laser wavelength. Example: “13” for 1310nm CWDM Code Wave Code Wave... - Page 8 FEATURE DESCRIPTIONS 2.2 Receiver BNC Connector ST/UPC Connector Status LEDs mini-XLR Locking Power Connector 2.2.1 RX Block Diagram P a g e...
-
Page 9: Operation
OPERATION 3. Operation 3.1 Transmitter Connect coax and fiber to unit before powering up. When a valid signal is present and the unit is powered up, the LEDs will function as shown: “Status” Arrow Green Yellow High BNC Signal Present (non-SMPTE Rate), no BNC SMPTE Signal Present temp Power... - Page 10 OPERATION 3.2 Receiver Connect coax and fiber to unit before powering up. When a valid signal is present and the unit is powered up, the LEDs will function as shown: “Status” Arrow Green Yellow High Fiber Signal Present (non-SMPTE Rate), no Fiber SMPTE Signal Present temp Power...
- Page 11 OPERATION 3.2.1 Optical Power Meter The smart optical power meter gives information based on the measured light levels according to the data rate, i.e., the LED color ranges are data-dependent. “Green” is good, “yellow” is near failure, and “red” is out of range. The operational range for 12G-SDI is narrower than it is, for example, 3G-SDI.
- Page 12 OPERATION 3.3 Maintaining Clean Fiber Cleaning an ST/UPC fiber connector properly is crucial to maintain optimal performance and prevent signal loss. Cleaning is recommended if the optical level is low. Here's a step-by-step procedure to clean an ST/UPC fiber connector: 1.
-
Page 13: Accessories & Replacement Parts
ACCESSORIES & REPLACEMENT PARTS 4. Accessories & Replacement Parts 4.1 Carrying Case Part Number Description SB2-CASE Ruggedized, weather-proof carrying case, 2 SilverBullets with Power Supply Tray 4.2 Cables Part Number Description CA-BNCM-BNCM-6 BNC male to BNC male adapter cable, six inches CA-BNCM-HDBNCM-6 BNC male to HDBNC male adapter cable, six inches MiniXLR 4 PIN FEMALE TO USB-A 5V, 2A accessory power cable... -
Page 14: Specifications
SPECIFICATIONS 5. Specifications 5.1. Unit Dimensions & Weight SB2-12G-TX and (WxHxD) 80.7mm x 19.1mm x 20.1mm (3.18 x 0.75 x 0.79 in.), 53 grams (0.11 lbs) 5.2. Video Input/Output Impedance 75Ω 800mV (SMPTE) Amplitude 2500mV Digital 3G: 200m Coax EQ: 12G: 70m Jitter (Color bars) <... - Page 15 SPECIFICATIONS 5.3. Electro-Optical TX Launch Power (Avg.) -3 dBm (0.5mW) ≤ 3G: -18 dBm RX Sensitivity (Avg.) 12G: -14 dBm 3G 15dB Optical Budget (typ.) 12G 11dB Fiber Type Singlemode Fiber Polish Ultra-physical contact [UPC] Fiber Connectors Optical Power Meter +/- 2dB Accuracy Operational Temperature...
- Page 16 SPECIFICATIONS Power Connector Amphenol AG4M SMPTE Compliance S297 Standards (Optical) 5.4 Power SB2-12G-TX-xx-ST SB2-12G-RX-ST 5.4.1 Power Connector Pinout 16 | P a g e...
-
Page 17: Contact Info
CONTACT INFO Contact Info Contact support@multidyne.com 17 | P a g e...
