SGS CWDZ22CY Installation Instructions

Installation instructions
CWDZ22CY split type temperature transmitter

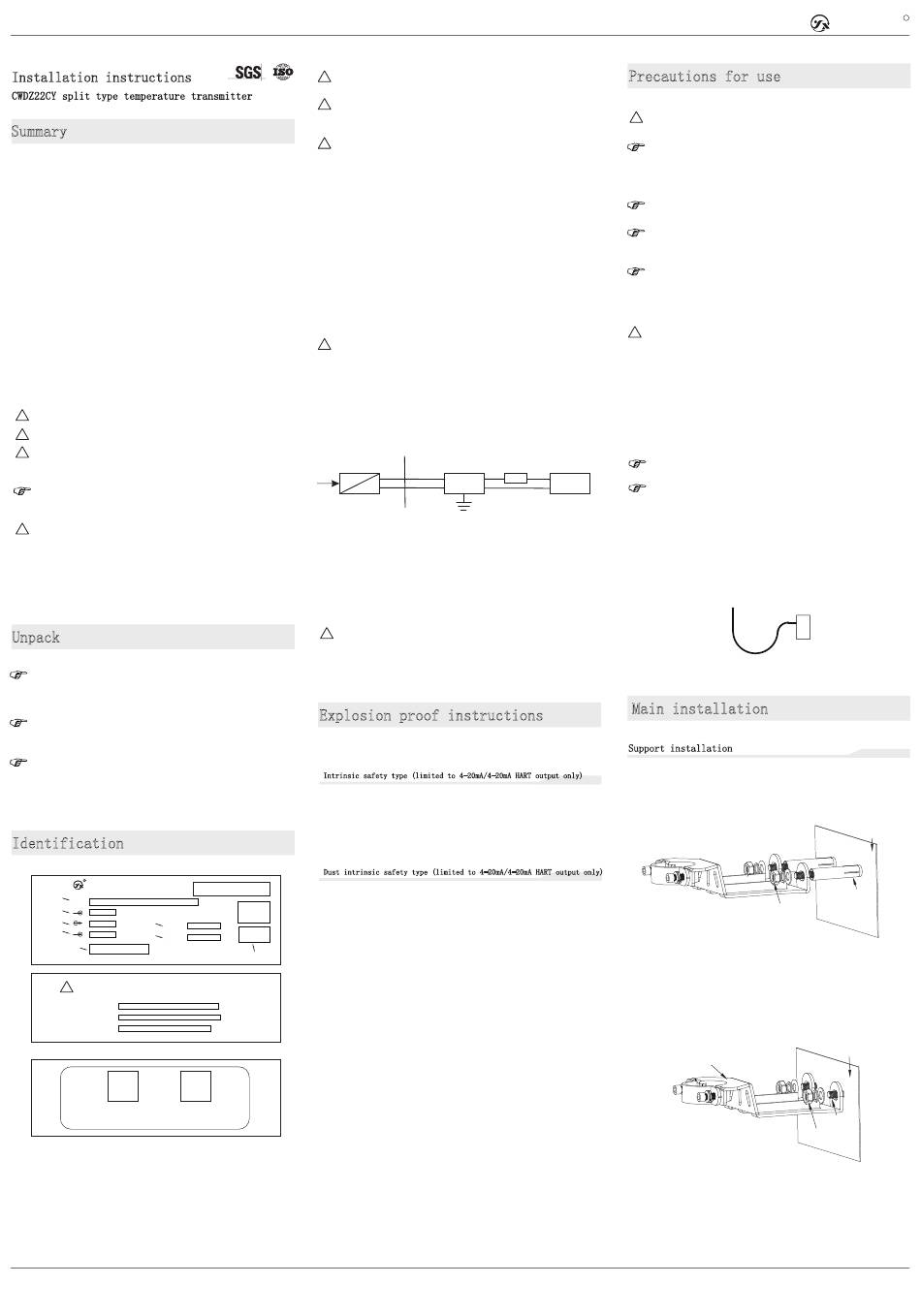

Summary
Safety guidance
These installation instructions contain important information on how
to use the transmitter correctly. The transmitter installer shall
carefully read the installation instructions before operating the
transmitter. In case of further understanding or special problems,
which are not described in detail in this operation manual, please
contact our company to obtain necessary information.
Please pay attention to the warning signs on the instructions!
Operators must strictly follow the safety instructions in the
installation instructions. In addition, occupational safety rules,
accident prevention guidelines, national installation standards and
engineering specifications must be observed.
Please keep this instruction properly and store it in a convenient
place near the transmitter.
The copyright of these installation instructions is protected. The
installation instructions of this version are written according to
the functions that can be realized by the corresponding product
during printing, and describe the product functions and operation
steps as detailed and complete as possible. If you find mistakes, you
are welcome to criticize and correct them. The company is not
responsible for the possible wrong description and possible
consequences.
– reserve the right to modify the technical parameters –
Icon description
Danger! – A dangerous situation that could result in death or
ÿ
serious injury.
Warning! – A potentially hazardous situation that could result
ÿ
in death or serious injury.
ÿ Be careful! – A potentially hazardous situation that may
result in minor injury.
ÿ Reminder! – A potentially hazardous situation that may cause
personal injury.
Tips! – Tips and information to ensure trouble free operation
of the equipment.
User
ÿ Warning! These installation instructions are for technicians.
Limitation of liability
If the transmitter is damaged due to non-compliance with the
operation and installation instructions, improper use, self
modification and destruction, the company will not be liable for
compensation and will not provide warranty service.
Unpack
a) After unpacking, check whether the documents and accessories
are complete according to the packing list.
Packing documents: one copy of installation instructions.
One product certificate.
A warranty card.
b) When receiving the product, please check whether the package
is intact and check the transmitter type
Whether the number and specification are consistent with the products
you choose.
c) Observe whether the transmitter is damaged due to transportation
for proper use good at handling.
d) The user is expected to keep the "warranty card" properly and
do not lose it, otherwise it cannot be returned to the factory free
maintenance!
Identification
temperature transmitter
î
model
model:
range
ÿ
output accuracy
ÿ
accuracy
power
protect
supply ÿ
protect
authentication
Warning: Hot line operation is strictly prohibited!
ÿ
It is forbidden to disassemble under pressure!
ÿ
Executive standards
ÿ
Manufacturer
ÿ
Tel
Download product materials Scan to pay attention
to the star instrument
WebÿHttp://WWW.star-sensor.com
Our company reserves the right to modify product specifications and materials.
ÿ danger!
The transmitter casing must be effectively grounded.
ÿ
Warning!
When the internal components of the transmitter are damaged and need
to be repaired or replaced, they need to be returned to the factory
for replacement or repair.
ÿ danger!
To avoid the risk of explosion, the following rules must be followed:
-Ensure that the entire circuit is in an equipotential protection
state regardless of whether it is in an explosion hazardous area or
not.
-If there is a possibility of lightning stroke or overvoltage damage,
lightning protection measures must be taken to prevent overvoltage.
-It is necessary to avoid excessive dust deposition (exceeding 5mm) on
the surface of the transmitter or being completely covered by dust.
-The intrinsic safety explosion-proof system must be combined with
associated equipment that has passed explosion-proof certification
before it can be used in explosion-proof gas environments. The system
wiring must comply with the operating instructions for both the
transmitter and the associated equipment, and the wiring terminals
must not be connected incorrectly.
-Maintenance can only be carried out after confirming that there are
no combustible gases present at the installation site.
-The connecting cable between this product and its associated
equipment should be a shielded cable with insulation sheath, and its
shielding layer should be grounded in a safe place.
ÿ danger!
Intrinsically Safe Transmitters
-Safety barriers must be equipped to be used in hazardous areas with
explosive mixtures. The safety barrier should comply with the
provisions of GB3836.4-2010 "Electrical Equipment for Explosive Gas
Atmospheres - Part 4: Intrinsically Safe Type" i ", and have undergone
explosion-proof testing by relevant explosion-proof departments and
obtained an explosion-proof certificate. Installation should be
carried out according to the requirements of its user manual. The
system wiring is shown in the figure.
ExiaaCT6
Hazardous
Locations
P P
-Ensure that the connection between each intrinsically safe
transmitter complies with the intrinsically safe requirements at the
same time. The operator must ensure the intrinsic safety of the entire
system (installation of each intrinsically safe component).
-For the sake of safety, intrinsically safe circuits and non
intrinsically safe circuits shall be distinguished, and the wiring of
intrinsically safe circuits shall be separated from that of other
electrical circuits. The power transformer supplying power to the
safety barrier shall meet the requirements of Article 8.1 of
GB3836.4-2010 standard.
Warning!
ÿ
Please follow the relevant national regulations for the parts not
mentioned in the precautions for use of explosion-proof transmitter
and the parts with incomplete instructions.
Explosion proof instructions
Intrinsic safety type (limited to 4-20mA/4-20mA HART output only)
Complies with the standard GB/T 3836.1-2021, GB/T
3836.2-2021,GB/T 3836.31-2021,GB/T 4208-2017
Explosion proof mark: Ex tb IIIC T80 # Db
Explosion proof certificate number: CCRI 22.1623XG
Dust intrinsic safety type (limited to 4-20mA/4-20mA HART output only)
Explosion proof parameters
(Explosion proof type only)
Compliant with the standard GB/T3836.1-2021 GB/T3836.4-2021
Wiring
diagram
Explosion proof mark: Ex ia IIIC T85 # Da
ÿ
Intrinsic safety parameters: Ui:D28.0V, Ii:93mA,Ci=50nF,Hi=uH,Pi:0.65W2
ÿ
Associated device parameters: UofUi IofIi PofPi Co=Cc+Ci Lo=Lc+Li Uo1
Product No
Io, Po, Co, Lo are safety barrier parameters, Cc, Lc are distribution
parameters of connecting cables.
Explosion proof certificate number: CMExC22.41001XG
[Exia]aCT6
Safe place
+
+
RL
Safety
ÿ
ÿ
I
barrier
Precautions for use
ÿ Warning!
Equipment installation must be carried out without power supply.
If the transmitter is installed in harsh environments and may
encounter dangerous damage such as lightning strikes or overvoltage,
we recommend that users provide lightning protection and overvoltage
protection between the distribution box or power supply and the
transmitter.
Sensors should have good contact with the measured medium or
object as much as possible to ensure good thermal conductivity.
Install in a stable environment, avoid direct sunlight, stay away
from windows and air conditioning, heating and other equipment, and
avoid facing windows or doors directly.
The transmitter and wires should be kept away from places with
high voltage and severe electromagnetic interference, and should be
kept away from high-power interference equipment as much as possible
to avoid inaccurate measurements, such as frequency converters, motors,
etc.
ÿ Warning!
It is prohibited to measure media that are incompatible with the
material in contact with the transmitter.
! No modifications or changes can be made on the device.2
! Handle with care and do not throw it away at will. Please do not
use brute force when installing this transmitter.
! This product belongs to weak current equipment and must be wired
separately from strong current cables. It should comply with the
relevant national wiring standards (GB/T50312-2016) for wiring.
Ensure that the power supply voltage meets the transmitter's
Power Supply power supply requirements.
24V D C
If the pipeline pressure or flow rate exceeds the range that the
protective pipe can withstand, it needs to be customized separately.
ÿTo prevent liquid from flowing along the cable and causing water
accumulation at the waterproof joint or entering the junction box,
a U-shaped ring should be configured between the wiring box and the
transmitter as shown in the diagram, with the bottom of the U-shape
lower than the transmitter, and sufficient length of cable should be
reserved for maintenance and replacement.
Main installation
Support installation
-Wall installation
It can be directly installed on the wall. It is recommended to use M8
expansion bolts. The installation method is shown in the following figure:
Note 1: The mounting bracket (ZJ03) shall be purchased separately.
Note 2: The expansion bolts shall be purchased by yourself.
-Metal plate installation
It can be directly installed on the metal plate. It is recommended to
use M8 screws for installation, as shown in the following figure:
Mounting bracket
Note 1: The mounting bracket (ZJ03) shall be purchased separately.
Note 2: M8 screws need to be purchased by yourself.
R
Star Meter
T
Wall installation
Expansion screws
Lock nut
Sheet metal
M8 screw
Lock nut
