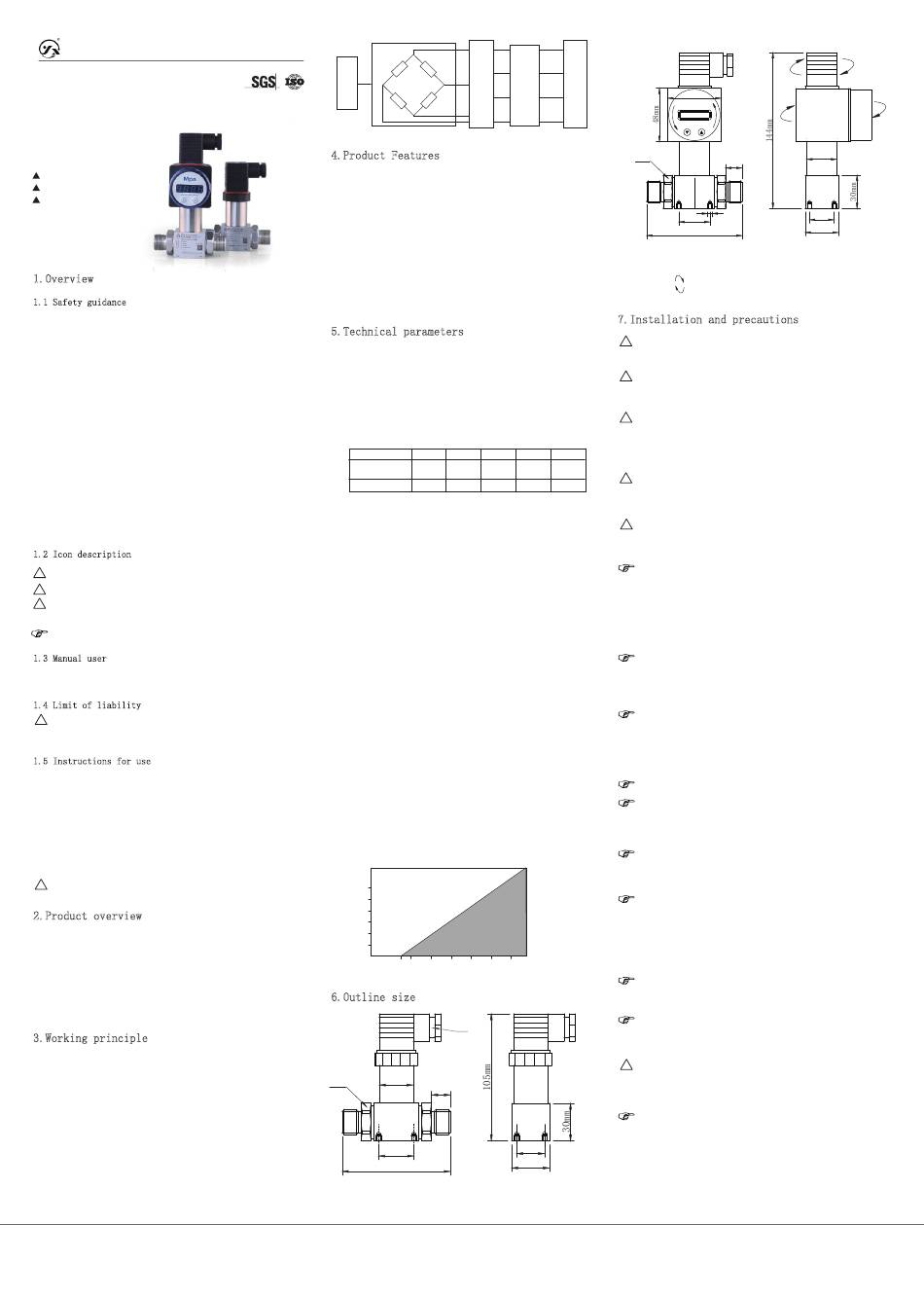

SGS CCY15 Instruction Manual

An instruction manual
CCY15 Differential Pressure Transmitter
Typical applications
construction machinery
Energy industry
Water treatment, etc.
1.Overview
1.1 Safety guidance
This operational manual contains important information on how to use the
transmitter correctly. The installation personnel of the transmitter should
read this manual carefully before operation. In case of further explanation
or special questions, which cannot be addressed in this manual, please
contact our company for assistance on necessary information.
Please pay attention to the warning signs on the manual! Do not use
crystallized or solidified measure medium, to avoid damaging of the sensor.
The operator must strictly follow the safety instructions and user's
manual during operation. Furthermore, the operator should comply with the
occupational safety rules, the accident prevention guidelines, the national
standards and engineering specifications as well.
Please keep this manual in a safe place near the transmitter for easy
access.
The copyright of this operational manual is protected. This version of
operational manual was edited according to the functions of corresponding
products, the product functions and operation procedures are described as
complete as possible. If there is any error, please don't hesitate to
contact us. The company is not responsible, in regard of any fault
description or its possible consequences.
–The right to modify the technical parameters is retained–
1.2 Icon description
！
Danger! - Hazard that may result in death or serious injury.
！
Warning!- Potential hazard that may result in death orserious injury.
！ Cautious!-Potential hazard that may cause minor injury.
！ Reminder!-Potential hazard that may result in personal injury.
Tips!-Tips and information for smooth operation of the equipment.
1.3 Manual user
Warning! This manual is suitable for technicians.
1.4 Limit of liability
！
The company will not be held responsible nor provide any warranty
service, in case of transmitter damages caused by failure to follow the
instruction manual, inappropriate use, self-modification or destruction.
1.5 Instructions for use
Differential Pressure Transmitter CCY15 Series Suitable for
Differential Use in Liquid or Gas and Process Industries
Pressure measurement. Operators are responsible for checking whether the
equipment is suitable for application. If you have any questions, please
contact our sales department to ensure the transmitter
Correct application. Our company will not bear the influence caused by
improper selection.Any liability.
The purchased model is suitable for certain gas or liquid medium as
described in the measurement samples. The user must ensure the
compatibility of contact media and transmitter.
！
Warning!
Inappropriate use may lead to danger!
2.Product overview
CCY15 series differential pressure transmitter adopts compact structure,
high static pressure value, stability and reliability. The temperature
compensation of zero point and sensitivity in wide temperature range is
carried out by laser resistance adjustment technology after computer
automatic test. It has strong anti-interference, overload and impact
resistance, small temperature drift, high stability and high measurement
accuracy. Therefore, the product can be applied to various occasions for
differential pressure measurement, including harsh corrosive medium
environment. It is an ideal differential pressure measuring instrument in
the field of industrial automation.
3.Working principle
The pressure sensors diffuses a wheatstone electric bridge on
mono-crystalline silicon, and stressed by the measuring media (liquid or
gas)to cause change of the bridge wall resistance value(piezoresistive
effect). In result, a differential voltage signal will be generated, which
converts the signal corresponding to the range into standard analog
signal(as shown in Figure 3-1)or digital signal.
STAR METER
24-hour service hotline：400-600-4496
星仪传感器
STAR METER
Pressure
source Sensor
4.Product Features
a) Using diaphragm isolation technology
b) integrated chip, wide range of supplied voltage
c)Static pressure upper limit - unilateral - high up to 25 times
differential pressure range
d) Frequency Interception Design, Strong Anti-jamming Ability and
Lightning Protection
e) Current Limiting, Voltage Limiting and Reverse Connection
Protection (Current Limiting Output)
f) High accuracy, good stability, fast response and shock
resistance
5.Technical parameters
Measuring media : Liquid or gas(compatible with contact media)
Overall material: Diaphragm 316L stainless(contacted)
Process connection 304 stainless(contacted)
Casing
Seal component
Display case ABS engineering plastic(digital tube display)
Hessman connector ABS engineering plastic
Range range :
Rated range（MPa） 0.035
0～0.01
Differential
to
pressure range（MPa）
0～0.035
Unilateral maximum
0.175
static overpressure（MPa）
Pressure mode: differential pressure
Output signal: 4～20mA、RS485（Standard Modbus-RTU Protocol）
（0～10VDC、0～5VDC、1～5VDC）
Supply voltage: 12～36VDC
15～36VDC routine(with display or output 0-10VDC)
Accuracy class : 0.25% FS (ratio of differential pressure range to
rated range ≤ 1:2.5)
0.5% FS (ratio of differential pressure range to rated
range ＞ 1:2.5)
Table Head Display Accuracy 0.5% FS, Digital Tube (LED) Display
Working conditions: contact media temperature -40～85℃
Ambient temperature -40～85℃
Ambient humidity 0%～95%RH（no condensation,no condensing）
Temperature compensation: -10～70℃
Seismic performance : 10g(20...2000Hz)
Response frequency : Analog signal output≤500Hz、
Digital signal output≤5Hz
Stability : ±0.1%FS/year
temperature drift: ±0.01%FS/℃（Temperature Compensation Range）
Overall weight : No display≈420g display≈500g
Protection level: IP65（No display）IP54（display）
Note: The above protection level refers to the
levelachieved after the electrical connection is complete.
Power range: Current type≤0.02Us(W)
Voltage type≤0.008Us（W）
Digital type≤0.015Us(W)
Note: Us = supply voltage
Load characteristics : Current-mode load≤{（Us-7.5）÷0.02
（Us=Power supply voltage）}ΩVoltage type load≥100kΩ
Loading resisitance
RL（Ω）
1200
1000
800
600
400
200
7. 5 10 15 20
6.Outline size
∅
27mm
S=27
28mm
85mm
Figure 6-1 no display
Note: Total length of 485 signal output plus 33mm
Output
analog
Signal
Customer
quantity
processing
collecting
or
circuit
device
digital
signal
Figure 3-1
304 stainless
Nitrile rubber(contacted)
0.1 0.25 1 2.5
0～0.02 0～0.05 0～0.2 0～0.5
to to to to
0～0.1 0～0.25 0～1 0～2.5
0.5 0.75 3 5
routine
（4～20）mA DC
Working zone
Us（VDC）
25 30 36 Working volt
Figure5-1
PG9
15mm
22mm
30mm
1
48mm
SENSORS
S=27
15mm
M4*4
28mm
85mm
Figure 6-2 display
Note: Total length of 485 signal output plus 33mm
Note: 360°rotation is available where marked
7.Installation and precautions
！
Warning!
a)
Installed without pressure nor power supply.
Warning!
！
b)
Transmitter should be installed by technician who read and
understood this operational manual.
Danger!
！
c)
The transmitter uses diffused silicon oil-filled core, which may
cause explosions if in-properly handled. Do not measure oxygen for sake
of he safety.
Danger!
！
d)
This product is not explosion-proof, using in explosive area may
cause serious injury and significant loss.
Warning!
！
e)
It is prohibited to measure media that is not compatible with
the transmitter.
f)
Please check if the package is in good order when receiving
the product, confirm the transmitter model and specifications.
! g)
No modification or change can be made to the device.
! h)
Handle with care, do not throw, do not force during
installation of transmitter.
i)
In order to ensure the safe and reliable operation of the
transmitter, it is recommended to install a three-valve group between the
measured point and the transmitter to ensure that the measured medium is
slowly and uniformly applied to the positive and negative pressure
chambers of the differential pressure transmitter.
j)
When installing, it is recommended to keep the pressure
interface at both ends horizontal so as to reduce the influence of the
installation position on the transmitter. If the size of the interface
does not match the size of the field interface, the self-made
conversion joint can be connected.
k)
It is recommended to install at minor temperature gradient variations zone.
l)
It is recommended to adopt lightning protection and over
voltage protection facility between power distribution box or power
supply and the transmitter, for the fact that there will be danger if
the transmitter is installed in a harsh area.
m)
While measuring steam or other high temperature media, please
ensure the media temperature is not higher than the maximum work
temperature of transmitter. If necessary, it is required to install a
cooling device.
n)
Install a pressure cutoff valve between the transmitter and
media, to inspect and avoid interference with measurement accuracy
caused by pressure port clogging.
! o)
This product is a light current device, it must be laid
separately from high current cables during wiring, and comply with
relevant national wiring standard (GB/T50312-2016）.
p)
Ensure that the power supply voltage meets the requirement
of the transmitter. And make sure the maximum voltage of the pressure
source is within the range of the transmitter.
q)
Increase pressure and reduce pressure very slowly during the
pressure measurement, to avoid instantaneous high voltage or low
voltage.
Warning!
！
r)
Make sure the pressure source and power are disconnected
before disassembling the transmitter, to avoid accidents in result of
media ejection.
s)
Do not disassemble during usage, and do not touch the diaphragm,
to avoid damage of the product.
version number20.8.28
Executive standard GB/T28474.1-2012
