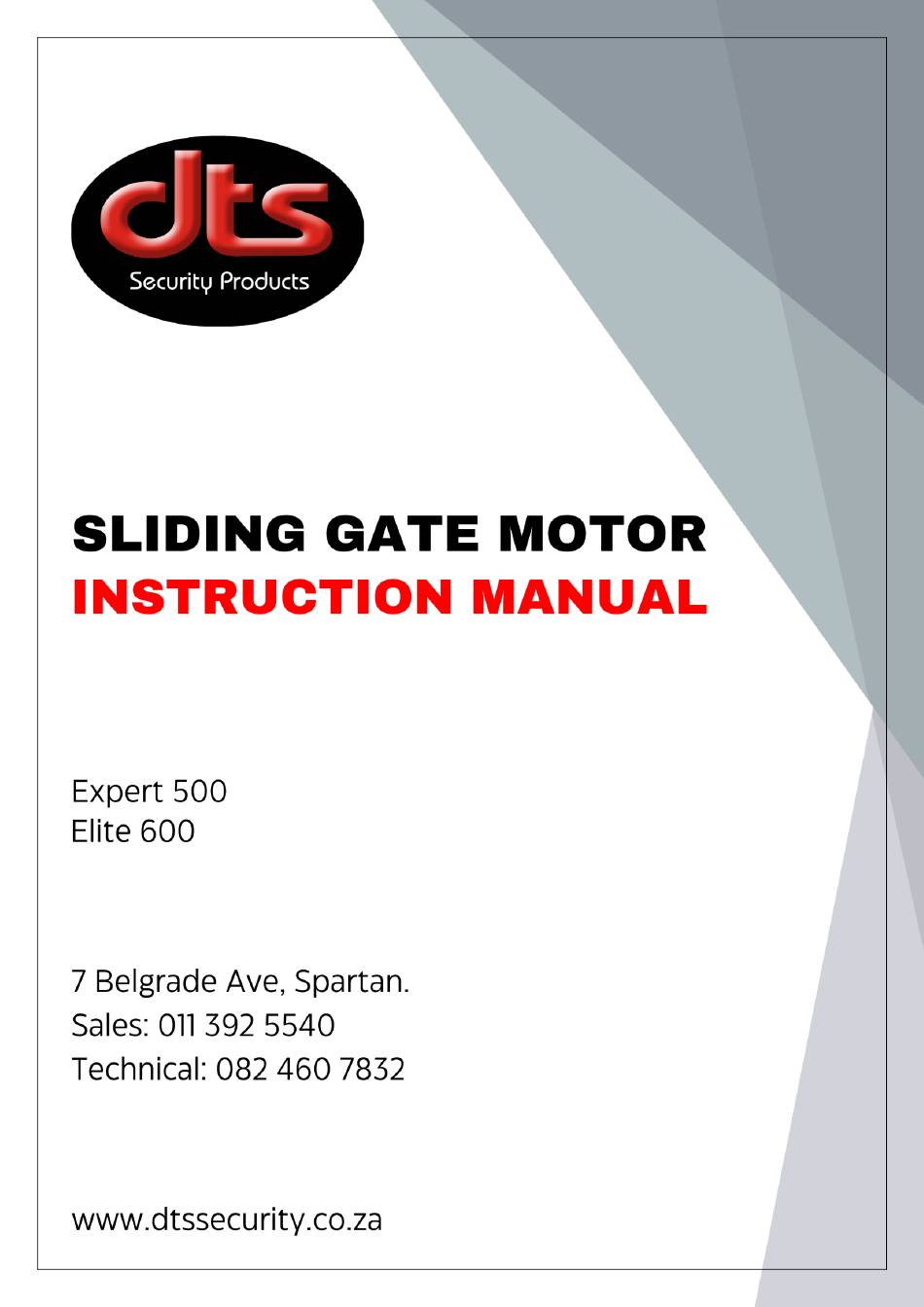

- Page 1 SLIDING GATE MOTOR INSTALLATION MANUAL Expert 500 / Elite 600 DTS SECURITY P.O.BOX 3399 EDENVALE 1610 7 Belgrade, Ave, Spartan. Sales: +27 11 392 5540 DTS Expert 500/Elite 600 Technical: +27 82 460 7832 www.dtssecurity.co.za...
-
Page 2: Technical Specifications
11. Ensure all authorized gate users understand associated hazards by communicating safety instructions. 12. Regularly check the function of the obstruction detection system and safety devices. 13. DTS Security Products will not be held liable for any damages resulting from misuse or use of the product for unintended purposes. - Page 3 1. Assemble the base plate by fastening the M10x30 Hex set screws into the base plate from the bottom up and tightening it into position – all new gate motors supplied by DTS will be provided with the base plate already fixed.
-
Page 4: Rack Mounting Instructions
GEARBOX MOUNTING INSTRUCTIONS (ALL MODELS) 1. Fit gearbox over mounting bolts protruding from base plate. 2. Slide gate fully open and closed, ensuring pinion gear has approximately 5mm clearance to gate at all times. 3. Fasten gearbox down firmly to base plate using M10 washers and nuts. How to override the gate motor for manual operation 1. - Page 5 ON BOARD RECEIVER PROGRAMMING Only compatible with DTS TX Octo remotes. (The override lever must be closed for programming transmitters). PROGRAMMING A TRANSMITTER PROGRAMMING A TRANSMITTER FOR (TX) FOR FULL OPEN OPERATION – PEDESTRIAN OPERATION – PED GATE (Version 1.3) (Version 1.3)
- Page 6 DTS EXPERT 500 / ELITE 600 ELECTRONICS Features: 1. Standard mode. 2. Easy motor direction change. 3. Auto close facility. (Infra-red beams must be fitted if auto close is activated). 3.a Party mode. (Auto close override) 4. Condominium / Free exit loop facility.
- Page 7 6. Slowdown (Dipswitch 6) With the dipswitch selected ON, the gate will have a long close and open controlled slowdown distance of 1000mm, and with the dipswitch OFF, the close and open controlled slowdown distance will be 500mm. NOTE—(A 1000 mm slowdown distance is recommended if the limit is continuously being overrun). The slowdown distance can be programmed (between 500mm and 1000mm) by selecting dipswitch 1 and 6 to the ON position.
-
Page 8: Power Connections
POWER CONNECTIONS Low voltage (OBT) (25 VA) transformer – 220V at the gate. (Expert 500 has a 500m/Amp fuse) (Connect also for 16VAC plug-in transformer) Connect 220V AC wires to the input side of the 500/16volt AC transformer (Live/Earth/Neutral) connector on the side of the transformer, then connect the two output wires (red) to the 16VAC connectors on the controller card. - Page 9 COURTESY LIGHT OUTPUT (Will stay on for 3 minutes after a trigger is received) Please note that the Amps usage on the courtesy lights must not exceed 10 Amps. (If this facility is not being used, it can be used as a tamper alarm facility; see page 9). DO NOT CONNECT 220V DIRECTLY TO PCB UNDER ANY CIRCUMSTANCES.
- Page 10 PROGRAMMING 1 – Run Time (Calibrating) Setup (With total power up, AC and DC, on PCB) Unlock and open the override lever on the gearbox. Open the gate manually, approximately 1 metre. Close and lock the override lever on the gearbox. (PCB should beep 1-5 beeps pending on load pot setting) ...
- Page 11 Load setting To adjust the load, turn the provided load pot to determine the load setting (Minimum, anticlockwise & Maximum, clockwise). The control card will beep, 1 minimum to 5 maximum beeps on next trigger before movement. LIST OF AUDIO INDICATIONS AND WARNINGS. One continuous beep - PCB is damage, replace PCB.
- Page 12 PCB Control card. NB – When connecting intercoms to the control card (IT and CMN), please ensure that your intercom trigger output is potential free (ZERO voltage). If not, a gate relay module must be fitted. Please ensure that the auxiliaries connected to the 12-volt auxiliary output does not exceed 500 m/Amps in total.
-
Page 13: Troubleshooting
TROUBLESHOOTING: FAULTS CAUSES ACTION When pressing the remote Transmitter battery flat. Replace transmitter battery. transmitter or manual push button the gate operator will not Transmitter or manual push button Check with supplier. respond at all. is physically damaged. Transmitter has not been Follow the receiver setup programmed into the receiver instructions. - Page 14 The gate opens but will not The primary supply has failed, and Check the household main supply, close. the unit is running on battery the transformer or PSU and all reserve with the condominium/loop related cabling. option selected and it has reached its low battery limit.
- Page 15 The unit gives two beeps and The pedestrian (PT) mode on the Check equipment /cabling attached opens partially and stops, gives PCB is being triggered. to the pedestrian (PT) on the PCB two beeps and then closes. input. A transmitter code has been Delete the transmitter and re- programmed incorrectly into the program the transmitter into the...
-
Page 16: Manufacturer's Warranty
All warranty claims must be accompanied by the original invoice. The liability of DTS Security Products and / or their distributors is limited as herein set out. DTS Security Products and / or their distributors will not be liable for consequential, incident damage or injury howsoever...
