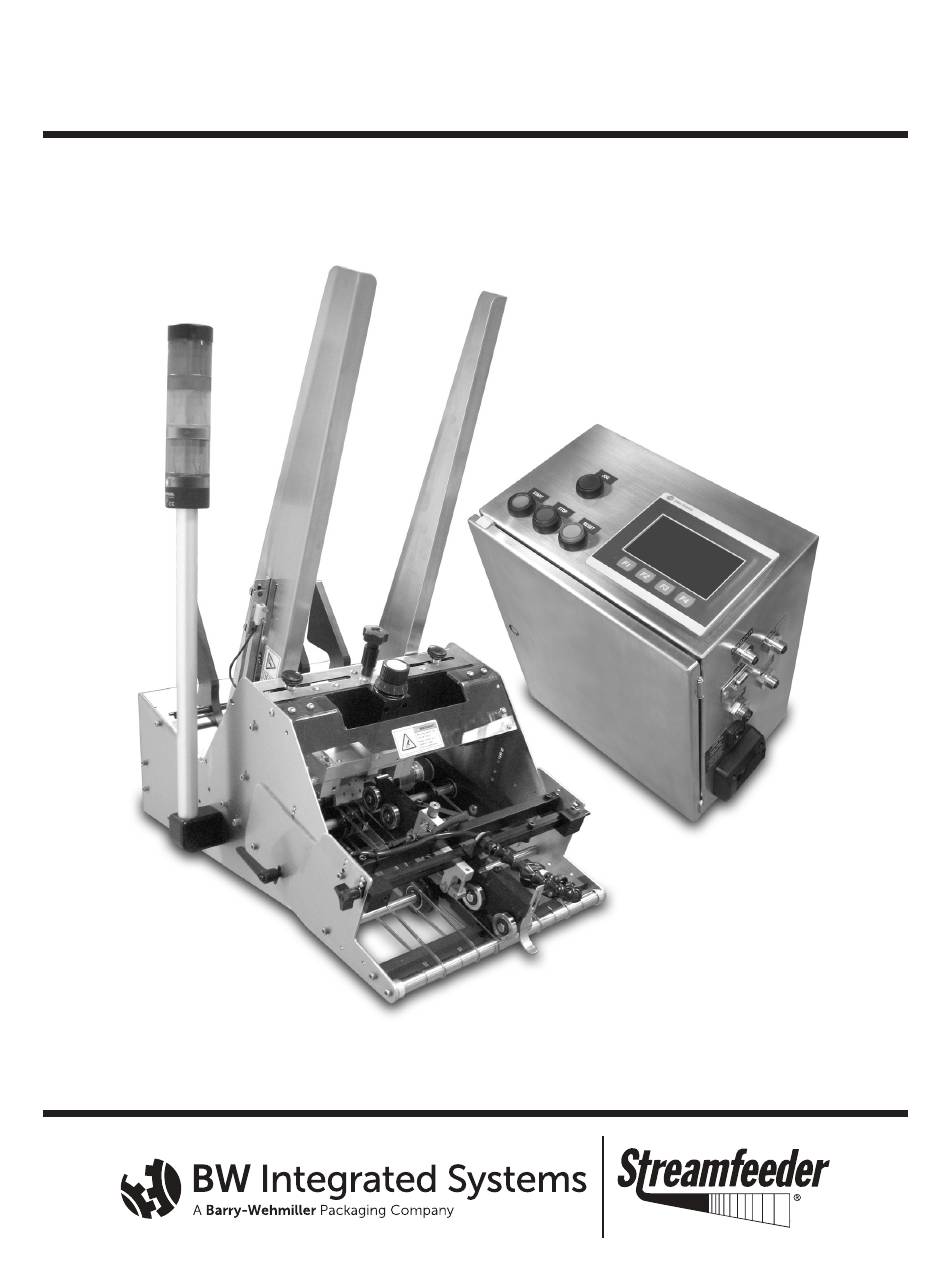

  • Page 1 P-1250 Manual Shown as EX Configuration...
  • Page 2 © 2019 Streamfeeder - BW Integrated Systems. All rights reserved. No part of this publication may be reproduced, photocopied, stored on a retrieval system, or transmitted without the express written consent of Thiele Technologies, Inc. - Streamfeeder. Streamfeeder - BW Integrated Systems 315 27th Avenue NE Minneapolis, MN 55418 USA Tel:...

  • Page 3: Table Of Contents

    Contents Before You Begin .................ii Message Conventions ..........................ii Safety ................................. iii Specifications ..................iv Section 1: About the Machine ............1 Section 2: Preparing for Operation ..........14 Section 3: How to Operate ............24 Section 4: Operational Troubleshooting ........25 Section 5: Inspection and Care ...........27 Section 6: Wedge Applications ...........35 Section 7:...

  • Page 4: Before You Begin

    Before You Begin Message Conventions DANGER signifies an action or specific equipment area that can result in serious injury or death if proper precautions are not taken. WARNING signifies an action or specific equipment area that can result in personal injury if proper precautions are not taken. CAUTION signifies an action or specific equipment area that can result in equipment damage if proper precautions are not taken.

  • Page 5: Safety

    Safety Danger To insure proper machine operation make sure that all the safety de- vices are installed properly and functioning. If the feeder has the me- dia sensor on the side guides insure that these are properly installed. Do not attempt to defeat a safety interlock or safety feature. Equipment interior contains incoming 115 or 230VAC electrical power.

  • Page 6: Specifications

    Specifications Maximum Product Size.... 12 W x 14 L in (30 x 357 mm) Minimum Material Size.... 2.0 in. W x 2.5 in. L (1 mm x 64 mm) Min/Max Product Thickness..003 in to 1.0 in. (.076 mm - 25.4 mm) Belt Speed........
  • Page 7 P-1250 M anual...

  • Page 8: About The Machine

    About the Machine Features The P-1250 is designed for reliability, flexibility, and ease of use. All parts required for setup, loading, feeding, and easy operator con- trol are combined into one compact unit. Review the diagram below to become familiar with names and loca- tions of feeder parts and adjustments.
  • Page 9 Main Assemblies Feature Descriptions Feature Description Gate assembly and adjustment Mounted on a gate plate directly above the feed belts, this device provides a curvature to help preshingle stacked product. Adjustment knob allows you to set downward pressure. When properly adjusted, a one-thickness gap is created to help singulate and eject product.

  • Page 10: Control Panel Components

    Control Panel Components Feature Description AC power cordset connector Cordset plugs into this IEC320 connector to provide feeder with power from 115-VAC or 230-VAC outlet. Power On/Off Toggles AC power On or Off. Encoder Communications port (COMM) This 9-pin connector is used to either receive control/data signals from a computer, or send control/data signals to a computer.
  • Page 11 Control Interface Components The control interface consists of a HMI display which allows you to not only control the operation of the P-1250, but it also allows you to monitor the status of the job being run. Feature Description When pressed, advances the feed and discharge belts. Used during setup and to clear feeding errors.

  • Page 12: Run Screen

    Control Interface (continued) MAIN MENU On power up this screen is displayed. The buttons when pressed open up the designated screen. RUN SCREEN In the upper left the machine status is displayed. Any faults prevent- ing the machine to operate will be shown: Suspended, Staging, Run- ning, Time Out Fault, Stopped, Preact Count Too Large, Continuous Mode, Self Trigger Mode, Double Product Detected, Miss Fault, Low Product, Barcode Error, Guard Switch Open.

  • Page 13: Advanced Settings

    Control Interface (continued) ADVANCED SETTINGS Enable Miss Fault: When enabled a trigger coming before the last batch is complete increments the Miss Count. Enable Pause: When enabled stops the feeder on a Miss Fault. Consecutive Count: Enter the number off consecutive misses al- lowed before the fault is activated.
  • Page 14 Control Interface (continued) PREACT AND SELF TRIGGER SETUP Enable Preact Deceleration: When enabled the feeder begins to decelerate/accelerate to the entered speed after the running batch reaches the entered count. If a value higher than or equal to the cur- rent batch count set point is entered the preact fault is displayed.
  • Page 15 Control Interface (continued) SKIP FLIGHT AND SPEED FOLLOWING Enable Speed Follow: When enabled the speed of the feeder belts is determined by encoder counts from an encoder driven by a con- veyor. Speed adjust is from 1 to 100, at a setting of 50 the feeder advances approximately 9 ½...

  • Page 16: Serial Communications

    Control Interface (continued) SERIAL COMMUNICATIONS Baud rate is fixed and there is only 1 com port as of the current design. When bar code reading is designed in we can then decide whether it will always have its own port or if it can be selectable to use the existing com port and disable to command functions.
  • Page 17 Control Interface (continued) AUTO TIMING Enable Dropper: When enabled the Ready output turns on when a batch is ready in the dropper. The trigger input opens the dropper and when the dropper open time is done a new batch is fed into the dropper.
  • Page 18 Control Interface (continued) DIAGNOSTICS When viewing this screen the feeder is disabled. The input indicators turn green when the input for the corresponding actuator turns the PLC input on. The Press to turn on buttons activate the associated output function when pressed.
  • Page 19 Control Interface (continued) REPORTS Total Misses: When Miss Fault is enabled the total number of misses are tracked by this counter. Pressing Reset clears the count to zero. Total Doubles: When Double Fault is enabled the total number of double faults are tracked by this counter. Pressing Reset clears the count to zero.
  • Page 20 General The control interface provides you with several different options for monitoring status, entering configuration parameters, and cycling the feeder. The Run Display is a real-time reporting tool containing information Run Display Defined on the status of the feeder, such as run speed, number of batches fed for a particular job, and the batch size.

  • Page 21: Preparing For Operation

    Preparing for Operation Once the feeder is installed, you are ready to prepare the machine for operation. You must perform several adjustments with the prod- uct you are going to be feeding and do a test run with this product When performing initial adjustments prior to verify that it is set correctly before going on-line.
  • Page 22 STEP 1: Procedure To adjust the gate assembly for proper gap: Gate Assembly Adjustment 1. Slide a single sheet of test product under the gate assembly. (continued) It may be necessary to pull up on the adjustment knob to allow the piece to be inserted.
  • Page 23 STEP 1: To adjust the gate for effective material skew control, follow these Gate Assembly steps: Adjustment (continued) 1. Repeat drag test detailed on previous page. 2. Test the piece for uneven side-to-side drag. Grasp with two hands and slide it front-to-back under the gate assembly. A proper adjustment allows for equal drag on the left and right sides of the piece of material.
  • Page 24 Changing From Review The feeder is shipped to you with a high-tension spring in the gate as- Factory Set sembly. Certain types of product may demand that you change the gate High-Tension to assembly from a high-tension setting to a low-tension setting (for ex- ample, irregular shaped product).
  • Page 25 STEP 2: Review The side guides hold the stack of product being fed and guide the Side Guides Setting product through the feeder in a straight line of movement. You can adjust the side guides to accommodate different sizes of product. Objective Adjust the side guides so the product stack maintains uniformity from A good “rule-of-thumb”...
  • Page 26 STEP 3: Review The back wedge provides proper lift to the product to help keep it off Back Wedge the table top and feed belts, and it creates the force necessary to push Adjustment product against the gate assembly. By adjusting it back and forth from the gate assembly or pivoting side to side, you can create the lift and force necessary to preshingle product against the curvature of the gate assembly.
  • Page 27 STEP 3: Back Wedge Adjustment (continued) Objective Adjust the back wedge for proper support of the product off the table top, without creating any pinch or stress points. Procedure To adjust the back wedge for initial proper positioning, follow these steps: 1.
  • Page 28 STEP 3: Back Wedge Adjustment (continued) 4. Move the back wedge forward and backward until the bottom sheet is not touching the table top. A good starting point is to Moving the back wedge too far forward to the measure about 5/8 in. (16 mm) from the bottom sheet to front gate assembly can create a pinch point between edge of table top.
  • Page 29 STEP 4: Review The hold-down assembly consists of several floating rollers which rest Hold-Down Setting on top of the product as it exits the gate assembly area. The assembly applies pressure to the product, giving the discharge belt the proper amount of contact and friction needed to pull product away from the gate assembly area.
  • Page 30 STEP 6: Now that you have made all the necessary adjustments for operation, it is recommended that you verify the singulation and separation of Manual Test to Verify product through the gate assembly area. Before you power-up and run your machine with a full hopper, manually feed several sheets of product through the gate assembly area.

  • Page 31: How To Operate

    How to Operate Operational Successful power-up and operation of the feeder is assured if you ap- ply each of following sets of procedures where needed: Sequences • Loading product • Quick setup/cycle sequence • Accessing the menus for setup • Starting a cycle •...

  • Page 32: Operational Troubleshooting

    Operational Troubleshooting This table is intended to provide you with quick solutions to the more common day-to-day problems you may encounter. For additional troubleshooting information, refer to the Technical Troubleshooting section. Problem Cause Solution No AC power to 1. On/Off switch in "Off" (or "O" position). Move switch to "On"...
  • Page 33 Operational Troubleshooting (continued) Problem Cause Solution Reduce weight. Test again. 1. Excessive weight in hopper. Feed belt(s) not tracking on rollers Rotate gate adjustment 1/8 turn to 2. Excessive down pressure on gate as- increase gap and manually test. Review sembly.

  • Page 34: Inspection And Care

    Inspection and Care Please read this Section to learn how to: When performing initial adjustments prior to operation, always make sure you turn Off • Visually inspect your machine to detect part prob- the main power switch, open the discharge lems which may require adjustment or replacement.
  • Page 35 Visual Inspection (continued) Checking for Timing and Drive Belt Wear Check for visual signs of: Drive • Fraying. Replace as required. belt Timing belt • Missing teeth. Replace as required. • Cracking. Replace as required. Ensuring Proper Feed and Discharge Belt Tracking Check for visual sign of: Feed •...
  • Page 36 Visual Inspection Checking for Gate Assembly Wear (continued) Check for visual signs of wear: • Bar gate: Bar material begins to flatten excessively. • Standard O-ring or advancing O-ring (if applicable): Flat areas along the O-rings. See “Preventive Care” to follow. Advancing O-Ring Gate Optional Bar Gate II Optional Standard O-Ring Gate...
  • Page 37 Visual Inspection Replacing Worn Bar Material To replace a worn bar material: (continued) 1. Turn Off feeder and remove power cord from outlet. 2. Remove gate assembly from gate plate. Optional Bar Gate 3. Remove plate (two screws). 4. Use a pliers to grip and remove bar material. 5.
  • Page 38 Visual Inspection (continued) Powered Rotating Gate: Adjusting Worn Powered Rotating Gate O-Rings To adjust worn O-rings on Powered Rotating gate: 1. Turn Off feeder and remove power cord from outlet. 2. Remove gate assembly from gate plate. 6. Reinstall gate assembly and restore power. P-1250 M anual...

  • Page 39: Preventive Care

    Preventive Care Cleaning Feed and Discharge Belts To clean feed and discharge belts: Use only isopropyl alcohol (98% concentration). Other solvents will cause belts to wear 1. Turn Off feeder and remove power cord from outlet. prematurely, and even total breakdown of 2.
  • Page 40 Preventive Care Cleaning Gate Assembly Use only isopropyl alcohol (98% concentration). Do not use any (continued) other types of solvents. They will cause premature wear of the belts, or even total breakdown of the material. To clean gate assemblies: 1. Turn Off feeder and remove power cord from outlet. 2.
  • Page 41 Preventive Care (continued) Cleaning Photo Sensors To clean the photo sensor lenses: 1. Turn Off feeder and remove power cord from outlet. 2. Open the discharge safety shield (to access sheet-detect sen- sor). Do not use any solvents or cleaning agents 3.

  • Page 42: Wedge Applications

    Wedge Applications There is a variety of wedges that may be utilized for feeding various materials of differing properties. A wedge may be used either alone or in combination with another wedge depending upon the size and/or properties of the material that is being fed. The following will help to identify which wedge to use for a specific material.
  • Page 43 Wedge Applications (continued) Part Number Description/Setup Example Material Usage 63311017 (Optional) Small Triangle (4 inches wide) Light to medium weight prod- ucts from 3 to 6 inches in length such as Z-fold and C-fold letters, business reply cards, and small booklets.
  • Page 44 Wedge Applications (continued) Part Number Description/Setup Example Material Usage 63311350 (Optional) Large Articulating Roller Light to heavy weight products from 6 to 17 inches in length such as large envelopes, flat sheets, card stock, and corrugated. 63311026 (Optional) Single "S" Light to heavy weight products from 4 to 14 inches in length such as envelopes, card stock, and...
  • Page 45 P-1250 M anual...

  • Page 46: Mechanical Components

    7 Mechanical Components BASE AND PAINTED SIDE PLATES Assembly # : 311-1518 P-1250 M anual...

  • Page 47: Part Number Description

    BASE AND PAINTED SIDE PLATES Assembly # : 311-1518 ITEM QTY. PART NUMBER DESCRIPTION 904690 TF-1250/3700 BASE 904706 TF PAINTED SIDE 904692 TF-1250 TOP COVER 904693 TF-1250 BACK COVER 904694 TF SIDE BRACKET 595-0003 5.00” LONG RAIL.SLDPRT 904705 SERVO MOTOR MOUNT 311-1494 ASSY BELT TENSIONER 102916B06...
  • Page 48 BASE AND STAINLESS STEEL SIDE PLATES Assembly # : 311-1449 P-1250 M anual...
  • Page 49 BASE AND STAINLESS STEEL SIDE PLATES Assembly # : 311-1449 ITEM QTY. PART NUMBER DESCRIPTION 904690 TF-1250/3700 BASE 904691 TF SIDE 904692 TF-1250 TOP COVER 904693 TF-1250 BACK COVER 904694 TF SIDE BRACKET 595-0003 5.00” LONG RAIL.SLDPRT 904705 SERVO MOTOR MOUNT 311-1494 ASSY BELT TENSIONER 102916B06...
  • Page 50 WIDE BELT VACUUM ASSIST CARRIAGE - 1250 Assembly # : 311-1488 P-1250 M anual...
  • Page 51 WIDE BELT VACUUM ASSIST CARRIAGE - 1250 Assembly # : 311-1488 ITEM QTY. PART NUMBER DESCRIPTION 43555147 IDLER SHAFT 23560202 RIGHT SIDE 23560203 LEFT SIDE CARRIAGE 44841056 VACUUM CARRIAGE SHAFT 901296 SHAFT, VACUUM BLOCK 904825 DRIVE SHAFT SERVO DRIVE 906743 BELT, FEED TAN GROOVED 1W 44947037 VACUUM BELT...
  • Page 52 EXTENDED, ADJUSTABLE DISCHARGE - 1250 Assembly # : 311-1452 P-1250 M anual...
  • Page 53 EXTENDED, ADJUSTABLE DISCHARGE - 1250 Assembly # : 311-1452 ITEM QTY. PART NUMBER DESCRIPTION 904841 SHAFT DISCHARGE 44846050 HOLDER, R4 BEARING 44852098 BELT TENSION SHAFT 51330007 BLOCK, HOLD DOWN SUPPORT 51330010 SHAFT, LOWER 51330014 PULLEY, O-RING 51330012 BELT, O-RING 23560106 1-5/8 CROWN PULLEY W\SET SCREW 51330001 BELT, DISCHARGE...
  • Page 54 HOLD DOWN FOR EXTENDED DISCHARGE - 1250 Assembly # : 14380008 P-1250 M anual...
  • Page 55 HOLD DOWN FOR EXTENDED DISCHARGE - 1250 Assembly # : 14380008 ITEM QTY. PART NUMBER DESCRIPTION 51330006 BLOCK, HOLD DOWN 51385032 BAR, HOLD DOWN 51277052 SHAFT, HOLD DOWN 51312003 PIN, SPRING 1/8 IN 51328001 SPRING, HOLD DOWN 23500095 BEARING BALL R6 .375 BORE 51277087 COLLAR, DISCH ROLLER 51438018...
  • Page 56 GUARD ASSEMBLY FOR EXTENDED DISCHARGE - 1250 Assembly # : 311-1512 P-1250 M anual...
  • Page 57 GUARD ASSEMBLY FOR EXTENDED DISCHARGE - 1250 Assembly # : 311-1512 ITEM QTY. PART NUMBER DESCRIPTION 44803001 COVER PROTECTIVE TOP 53500609 LABEL, WARN INJURY 2.7 X 1.4 44649010 KEY, SAFETY INTERLOCK 44909023 BLOCK, HINGE COVER 44640011 SHAFT, MTG, COVER 23500079 MOUNT, CABLE ADHESIVE C TYPE 64911009 ASSY, SWITCH SAFETY INTERLOCK...
  • Page 58 SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1539 P-1250 M anual...
  • Page 59 SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1539 ITEM QTY. PART NUMBER DESCRIPTION 904841 SHAFT DISCHARGE 23500094 BEARING BALL R8 .500 BORE 43555047 IDLER SHAFT 904904 PULLEY 17T X 5MM PT X .5 BORE 23560088 BELT, DISCHARGE CLEAR 51438009 SHAFT, IDLEDSCH ST1450, ST1250 23511105 1-5/8 CROWN PULLEY...
  • Page 60 HOLD DOWN FOR SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1454 P-1250 M anual...
  • Page 61 HOLD DOWN FOR SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1454 ITEM QTY. PART NUMBER DESCRIPTION 51438005 BAR. SUPPRT DD HLDDWN 51438007 BRACKET, LH DD ST1250 51438006 BRACKET, RH DD ST1250 63011051 ASSY, HLDDWN NO ADJ 102937B05 SHCSS SST 10-32 X .75 102937B03 SHCSS SST 10-32 X .50 P-1250 M...
  • Page 62 GUARD ASSEMBLY FOR SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1455 P-1250 M anual...
  • Page 63 GUARD ASSEMBLY FOR SHORT STANDARD DISCHARGE - 1250 Assembly # : 311-1455 ITEM QTY. PART NUMBER DESCRIPTION 904963 COVER SHORT DISCHARGE TOP 53500609 LABEL, WARN INJURY 2.7 X 1.4 44649010 KEY, SAFETY INTERLOCK 44909023 BLOCK, HINGE COVER 44640011 SHAFT, MTG, COVER 44640009 RUBBER SPACER BRACKET 43555068...
  • Page 64 14” VACUUM TRANSPORT 12”W Assembly # : 311-1554 P-1250 M anual...
  • Page 65 14” VACUUM TRANSPORT 12”W Assembly # : 311-1554 ITEM QTY. PART NO. DESCRIPTION ITEM QTY. PART NO. DESCRIPTION 44450004 RIGHT NOSE EXTENSION 102688B03 SHCS BLACK OXIDE 10-32 X .50 44450003 LEFT NOSE EXTENSION 102708B03 BHCS BLACK OXIDE 10-32 44450066 SHAFT, ADJUSTABLE X .50 23511105 1-5/8 CROWN PULLEY...

  • Page 66: Vertical Discharge

    VERTICAL DISCHARGE 12” Assembly # : 311-1555 P-1250 M anual...
  • Page 67 VERTICAL DISCHARGE 12” Assembly # : 311-1555 ITEM QTY. PART NO. DESCRIPTION ITEM QTY. PART NO. DESCRIPTION 43560213 PLATE, VERTICAL DIS- 904707 SNAP RING EXTERNAL SSTL CHARGE 43555260 SHAFT, ROLLER TRANS- 905084 SNAP RING EXTERNAL SSTL PORT 43555259 SHAFT, VERTICAL DIS- 103011B03 SSSCPPT SST 10-32 X .25 CHARGE 102957B02 BHCS SST 10-32 X .38...
  • Page 68 VERTICAL DISCHARGE PLATE 12” Assembly # : 311-1557 P-1250 M anual...
  • Page 69 VERTICAL DISCHARGE PLATE 12” Assembly # : 311-1557 ITEM QTY. PART NUMBER DESCRIPTION 905086 PLATE DEFLECTOR 43560213 PLATE, VERTICAL DISCHARGE 43555260 SHAFT, ROLLER TRANSPORT 23500032 HOLDER, R8 BEARING CUP 44630050 SHAFT, IDLER VERT DISCHARGE 41855059 CROWN PULLEY HUB 41855065 VERTICLE DISCHARGE 23511105 1-5/8 CROWN PULLEY 23500094...
  • Page 70 U-CARD CARRIAGE Assembly # : 311-1558 P-1250 M anual...
  • Page 71 U-CARD CARRIAGE Assembly # : 311-1558 ITEM QTY. PART NO. DESCRIPTION ITEM QTY. PART NO. DESCRIPTION 901913 BLOCK, CARRIAGE SUP- 44681020 SSSNYLTIP 10-32 X .75 PORT 44681021 THUMB KNOB W/10-32 905090 BAR CROSS INSERT 901201 CROWN PULLY VACUUM 102914B02 FHCS SST 8-32 X .38 23500094 BEARING BALL R8 .500 102634B02 FHCS BLACK OXIDE 6-32...
  • Page 72 HOPPER - ONE KNOB - CURVED STANDARD (12”) Assembly # : 64011004 P-1250 M anual...
  • Page 73 HOPPER - ONE KNOB - CURVED STANDARD (12”) Assembly # : 64011004 ITEM QTY. PART NUMBER DESCRIPTION 44640004 PLATE, SOLID GATE 44646002 BLOCK, SIDE GUIDE 44646001 BLOCK, SIDE GUIDE ADJUSTING 44646004 BLOCK, ADJUSTMENT REFERENCE 44646010 RACK 44646005 SHAFT, PINION ADJUSTMENT 44646006 GUIDE, RAIL SIDE 44646015...
  • Page 74 HOPPER - ONE KNOB - CURVED ROTATING GATE (12”) Assembly # : 13261104 P-1250 M anual...
  • Page 75 HOPPER - ONE KNOB - CURVED ROTATING GATE (12”) Assembly # : 13261104 ITEM QTY. PART NUMBER DESCRIPTION 44640004 PLATE, SOLID GATE 44646002 BLOCK, SIDE GUIDE 44646001 BLOCK, SIDE GUIDE ADJUSTING 44646010 RACK 44646005 SHAFT, PINION ADJUSTMENT 44646006 GUIDE, RAIL SIDE 44646015 SPACER, LOWER 44646016...
  • Page 76 1424 STAINLESS STEEL SIDE GUIDE KIT CUR Assembly # : 64011017 P-1250 M anual...
  • Page 77 1424 STAINLESS STEEL SIDE GUIDE KIT CUR Assembly # : 64011017 ITEM QTY. PART NUMBER DESCRIPTION 44640017 SIDE GUIDE, NARROW 44640018 GUIDE RIGHT 1424 53500609 LABEL, WARN INJURY 2.7 X 1.4 44600001 GUARD, REAR ACCORDION 102916B02 FHCS SSTL 10-32 X .38 P-1250 M anual...
  • Page 78 2624 STAINLESS STEEL SIDE GUIDE KIT CUR Assembly # : 64011002 P-1250 M anual...
  • Page 79 2624 STAINLESS STEEL SIDE GUIDE KIT CUR Assembly # : 64011002 ITEM QTY. PART NUMBER DESCRIPTION 44640002 STANDARD LEFT 44640003 STANDARD RIGHT 53500609 LABEL, WARN INJURY 2.7 X 1.4 44600001 GUARD, REAR ACCORDION 102916B03 FHCS SSTL 10-32 X .50 P-1250 M anual...
  • Page 80 1424 STAINLESS STEEL SIDE GUIDE KIT FOR LOW STACK OPTION CUR Assembly # : 311-1534 P-1250 M anual...
  • Page 81 1424 STAINLESS STEEL SIDE GUIDE KIT FOR LOW STACK OPTION CUR Assembly # : 311-1534 ITEM QTY. PART NUMBER DESCRIPTION 44600001 GUARD, REAR ACCORDION 44640017 SIDE GUIDE, NARROW 44640022 SIDE GUIDE, LS NARROW RIGHT 53500609 LABEL, WARN INJURY 2.7 X 1.4 102916B03 FHCS SSTL 10-32 X .50 P-1250 M...
  • Page 82 2624 STAINLESS STEEL SIDE GUIDE KIT FOR LOW STACK OPTION CUR Assembly # : 311-1538 P-1250 M anual...
  • Page 83 2624 STAINLESS STEEL SIDE GUIDE KIT FOR LOW STACK OPTION CUR Assembly # : 311-1538 ITEM QTY. PART NUMBER DESCRIPTION 44640002 STANDARD LEFT 44640020 SIDE GUIDE, RH LOW STACK 53500609 LABEL, WARN INJURY 2.7 X 1.4 44600001 GUARD, REAR ACCORDION 102916B03 FHCS SSTL 10-32 X .50 P-1250 M...
  • Page 84 424 SIDE GUIDE NARROWING KIT CUR Assembly # : 64011024 P-1250 M anual...
  • Page 85 424 SIDE GUIDE NARROWING KIT CUR Assembly # : 64011024 ITEM QTY. PART NUMBER DESCRIPTION 44640026 SHALLOW RIGHT SIDE 44640025 SHALLOW LEFT SIDE 44640024 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03 SSSCPPT BLACK OXIDE 10-32 X .25 102916B03 FHCS SSTL 10-32 X .50 P-1250 M...
  • Page 86 624 SIDE GUIDE NARROWING KIT CUR Assembly # : 64011023 P-1250 M anual...
  • Page 87 624 SIDE GUIDE NARROWING KIT CUR Assembly # : 64011023 ITEM QTY. PART NUMBER DESCRIPTION 44640027 GUIDE, RIGHT NARROWNG 624 SIDE 44640028 GUIDE, LEFT NARROWING 624 SIDE 44640023 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03 SSSCPPT BLACK OXIDE 10-32 X .25 102916B03...
  • Page 88 424 SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 311-0339 P-1250 M anual...
  • Page 89 424 SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 311-0339 ITEM QTY. PART NUMBER DESCRIPTION 901229 SIDE GUIDE NARROW 44640025 SHALLOW LEFT SIDE 44640024 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03 SSSCPPT 10-32 X .25 102916B03 FHCS SSTL 10-32 X .50...
  • Page 90 624 SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 64011034 P-1250 M anual...
  • Page 91 624 SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 64011034 ITEM QTY. PART NUMBER DESCRIPTION 44640034 OBS GUDE RH LOW STCK NAR 624 44640028 GUIDE, LEFT NARROWING 624 SIDE 44640023 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03...
  • Page 92 ADVANCING O-RING GATE (SDO) Assembly # : 87211001 P-1250 M anual...
  • Page 93 ADVANCING O-RING GATE (SDO) Assembly # : 87211001 ITEM QTY. PART NUMBER DESCRIPTION 44657008 BELT INDEXER SHAFT 44657002 O-RING TAKE UP ROLLER 44657009 BELT INDEXER 44872002 PLATE SIDE ADJUSTOR 44872004 CYLINDER, GATE 44657007 HANDLE STUDDED 44657010 BELT INDEXER SPACER 44657005 BELT INDEXER BRACKET 44657003 PINCH ROLL CAM...
  • Page 94 ADVANCING O-RING GATE (HDO) Assembly # : 87211007 P-1250 M anual...
  • Page 95 ADVANCING O-RING GATE (HDO) Assembly # : 87211007 ITEM QTY. PART NUMBER DESCRIPTION 44657008 BELT INDEXER SHAFT 44657002 O-RING TAKE UP ROLLER 44657009 BELT INDEXER 44872002 PLATE SIDE ADJUSTOR 44872004 CYLINDER, GATE 44657007 HANDLE STUDDED 44657010 BELT INDEXER SPACER 44657005 BELT INDEXER BRACKET 44657003 PINCH ROLL CAM...
  • Page 96 STANDARD O-RING GATE (SDO) Assembly # : 13511872 P-1250 M anual...
  • Page 97 STANDARD O-RING GATE (SDO) Assembly # : 13511872 ITEM QTY. PART NUMBER DESCRIPTION 51101001 GATE CYLINDER 23500089 O-RING, STANDARD GATE 44872005 SCREW ADJUSTMENT 44872003 ROLLER 15000001 GATE LIFT SHAFT MOUNT 23560084 GATE LIFT SHAFT 23500083 GATE COMPRESSION SPRING 23500019 CATE SPRING 23511037 ASSY, KNB GAT CYLNDR ADJSTMNT 44872007...
  • Page 98 STANDARD O-RING GATE (HDO) Assembly # : 13511104 P-1250 M anual...
  • Page 99 STANDARD O-RING GATE (HDO) Assembly # : 13511104 ITEM QTY. PART NUMBER DESCRIPTION 51101001 GATE CYLINDER 23500104 O RING, STANDARD 44872005 SCREW ADJUSTMENT 44872003 ROLLER 15000001 GATE LIFT SHAFT MOUNT 23560084 GATE LIFT SHAFT 23500083 GATE COMPRESSION SPRING 23500019 CATE SPRING 23500037 ADJ KNOB SLEEVE 23500077...
  • Page 100 BAR GATE Assembly # : 15011872 P-1250 M anual...
  • Page 101 BAR GATE Assembly # : 15011872 ITEM QTY. PART NUMBER DESCRIPTION 44996008 CYLINDER, HORIZON BAR 15000001 GATE LIFT SHAFT MOUNT 23500240 O RING, GATE SLEEVE 23500083 GATE COMPRESSION SPRING 23560084 GATE LIFT SHAFT 23500019 CATE SPRING 23500077 1” THUMB SCREW 23500084 GATE ADJUSTMENT 23500037...
  • Page 102 POWERED ROTATING GATE (SDO) Assembly # : 13261101 P-1250 M anual...
  • Page 103 POWERED ROTATING GATE (SDO) Assembly # : 13261101 ITEM QTY. PART NUMBER DESCRIPTION 51326007 ROLLER SUPPORT ARM 51326003 ROLLER SUPPORT ARM 44874028 SWITCH MOUNT 44874061 3MM SPUR GEAR 20T 44874062 6MM SPUR GEAR 44874063 SPUR GEAR 30T HUBLESS 51277082 MOUNTING FLANGE KNOB 51326001 ROLLER 51326002...
  • Page 104 ONE KNOB - STRAIGHT (12”) Assembly # : 311-1533 P-1250 M anual...
  • Page 105 ONE KNOB - STRAIGHT (12”) Assembly # : 311-1533 ITEM QTY. PART NUMBER DESCRIPTION 44909001 PLATE, GATE STR ST850 44646002 BLOCK, SIDE GUIDE 44646001 BLOCK, SIDE GUIDE ADJUSTING 44646004 BLOCK, ADJUSTMENT REFERENCE 44646010 RACK 44646005 SHAFT, PINION ADJUSTMENT 44646006 GUIDE, RAIL SIDE 44646003 BAR, LOWER GATE 44646012...
  • Page 106 424 STR SIDE GUIDE NARROWING KIT Assembly # : 311-1495 P-1250 M anual...
  • Page 107 424 STR SIDE GUIDE NARROWING KIT Assembly # : 311-1495 ITEM QTY. PART NUMBER DESCRIPTION 904850 SIDE GUIDE NARRWNG ST. 904584 SHALLOW LEFT SIDE 44640024 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03 SSSCPPT BLACK OXIDE 10-32 X .25 102916B03 FHCS SSTL 10-32 X .50 P-1250 M...
  • Page 108 ADJUSTABLE PRE-GATE KIT Assembly # : 63011806 P-1250 M anual...
  • Page 109 ADJUSTABLE PRE-GATE KIT Assembly # : 63011806 COMING SOON P-1250 M anual...
  • Page 110 424 STR SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 311-1409 P-1250 M anual...
  • Page 111 424 STR SIDE GUIDE NARROWING KIT FOR LOW STACK Assembly # : 311-1409 ITEM QTY. PART NUMBER DESCRIPTION 904585 SIDE GUIDE NARROW 904584 SHALLOW LEFT SIDE 44640024 WIDE MOUNTING BLOCK 44681021 THUMB KNOB W/10-32 INSERT 44681020 SSSNYLTIP 10-32 X .75 102732B03 SSSCPPT BLACK OXIDE 10-32 X .25 102916B03...
  • Page 112 ADVANCING O-RING GATE STR (SDO) Assembly # : 90911003 P-1250 M anual...
  • Page 113 ADVANCING O-RING GATE STR (SDO) Assembly # : 90911003 ITEM QTY. PART NUMBER DESCRIPTION 44657008 BELT INDEXER SHAFT 44657002 O-RING TAKE UP ROLLER 44872002 PLATE SIDE ADJUSTOR 44872004 CYLINDER, GATE 44657007 HANDLE STUDDED 44657005 BELT INDEXER BRACKET 44657003 PINCH ROLL CAM 44872003 ROLLER 44872005...
  • Page 114 PNP DIFFUSE REFLECTIVE SHEET SENSOR ASSEMBLY (12”) Assembly # : 13301101 P-1250 M anual...
  • Page 115 PNP DIFFUSE REFLECTIVE SHEET SENSOR ASSEMBLY (12”) Assembly # : 13301101 ITEM QTY. PART NUMBER DESCRIPTION 44640014 BRACKET, SENSOR STABILIZER 44649011 SENSOR, PNP DIFFUS 44640015 MOUNTING BRACKET 44640016 COLLAR, LOCLINE 1/4 MOUNTING 44608041 LOCLINE ADJUSTABLE 1/4 44608046 NUT, HEX 1/8 NPT 44608042 LOCKLINE NPT CONNECTOR 1/4 X 1/8 102760B09...
  • Page 116 PNP FIBER OPTIC SHEET SENSOR ASSEMBLY (12”) Assembly # : 63011082 P-1250 M anual...
  • Page 117 PNP FIBER OPTIC SHEET SENSOR ASSEMBLY (12”) Assembly # : 63011082 ITEM QTY. PART NUMBER DESCRIPTION 44450030 CLAMP MATERIAL SUPPORT 44608041 HOSE ADJ 1/4 44608042 LOCLINE NPT CONNECTOR 44608046 NUT HEX 1/8 NPT 44640015 SENSOR MOUNTING BRACKET 44640016 COLLAR, LOCLINE 1/4 MOUNT 44649012 CONNECTOR 3 PIN 44649013...
  • Page 118 PNP DIFFUSE REFLECTIVE TRIGGER SENSOR ASSEMBLY Assembly # : 611-0393 P-1250 M anual...
  • Page 119 PNP DIFFUSE REFLECTIVE TRIGGER SENSOR ASSEMBLY Assembly # : 611-0393 ITEM QTY. PART NUMBER DESCRIPTION 44846052 BRACKET SENSOR MOUNT 44640016 COLLAR, LOCLINE 1/4 MOUNTING 44608041 LOCLINE ADJUSTABLE 1/4 44608042 LOCKLINE NPT CONNECTOR 1/4 X 1/8 102683B05 SHCS BLACK OXIDE 6-32 X .75 103240B02 FLAT WASHER ZINC STEEL #6 53500038...
  • Page 120 TRIANGLE 8” WEDGE Assembly # : 17451105 P-1250 M anual...
  • Page 121 TRIANGLE 8” WEDGE Assembly # : 17451105 ITEM QTY. PART NUMBER DESCRIPTION 0001 51745008 PLATE, WEDGE BASE 0002 51745062 BLOCK, WEDGE 0003 44633018 SHAFT, WEDGE GUIDE 0004 44759076 SHAFT, WEDGE SUPPORT 0005 43560212 WEDGE, MATERIAL SUPPORT 0006 44963102 KNOB, 5 LOBE 0007 44633016 T-NUT, ROUND...
  • Page 122 NARROW EXTENDED WEDGE Assembly # : 63311212 P-1250 M anual...
  • Page 123 NARROW EXTENDED WEDGE Assembly # : 63311212 COMING SOON P-1250 M anual...
  • Page 124 SINGLE S WEDGE Assembly # : 311-1523 P-1250 M anual...
  • Page 125 SINGLE S WEDGE Assembly # : 311-1523 ITEM QTY. PART NUMBER DESCRIPTION 44633010 ROLLER WEDGE SHAFT 44633016 ROUND T-NUT 44633024 ROLLER WEDGE 43555098 RATCHET HANDLE 10-32 X .75 110110B07 DOWEL PIN 1/2 X 3.00 SSTL 44633025 S WEDGE 44963102 KNOB, 5 LOBE WITH 10-32 THREADED INSERT 51745008 PLATE, WEDGE BASE 51745062...
  • Page 126 DOUBLE S - 8” WEDGE Assembly # : 311-1468 P-1250 M anual...
  • Page 127 DOUBLE S - 8” WEDGE Assembly # : 311-1468 ITEM QTY. PART NUMBER DESCRIPTION 44633010 ROLLER WEDGE SHAFT 44633016 ROUND T-NUT 44633024 ROLLER WEDGE 43555098 RATCHET HANDLE 10-32 X .75 44633026 BLOCK MOUNTING 23560147 SHAFT, IDLER 44633025 S WEDGE 903818 THREADED ROUND STANDOFF 10-32 X 1/4 LG.
  • Page 128 LOW PROFILE WITH R4 SUPPORT 8” WEDGE Assembly # : 311-1242 P-1250 M anual...
  • Page 129 LOW PROFILE WITH R4 SUPPORT 8” WEDGE Assembly # : 311-1242 ITEM QTY. PART NUMBER DESCRIPTION 44633014 WEDGE BLOCK 44633018 WEDGE GUIDE SHAFT 44963102 KNOB, 5 LOBE WITH 10-32 THREADED INSERT 44633016 ROUND T-NUT 904022 LOW PROFILE LONG WEDGE 33500020 BELT TENSION 23500095 BEARING BALL R6 .375 BORE...
  • Page 130 ARTICULATING ROLLER 9” WEDGE Assembly # : 311-1524 P-1250 M anual...
  • Page 131 ARTICULATING ROLLER 9” WEDGE Assembly # : 311-1524 ITEM QTY. PART NUMBER DESCRIPTION 23560147 SHAFT, IDLER 23500094 BEARING BALL R8 .500 BORE 43555098 RATCHET HANDLE 10-32 X .75 44340012 ROLLER WEDGE WHEEL 44633024 ROLLER WEDGE 44340017 O-RING 7/16 103274B05 SNAP RING EXTERNAL STEEL .50 44633010 ROLLER WEDGE SHAFT 44633016...
  • Page 132 LOAD COMPENSATING 3” WEDGE Assembly # : 63311130 P-1250 M anual...
  • Page 133 LOAD COMPENSATING 3” WEDGE Assembly # : 63311130 COMING SOON P-1250 M anual...
  • Page 134 LOAD COMPENSATING 11” WEDGE Assembly # : 311-1109 P-1250 M anual...
  • Page 135 LOAD COMPENSATING 11” WEDGE Assembly # : 311-1109 ITEM QTY. PART NUMBER DESCRIPTION 23500130 WEDGE 44633012 WEDGE, SUPPRT BLOCK 903504 WEDGE, BASE COMPENSATING 44633014 WEDGE BLOCK 903505 SHAFT, RND .250 X 11.00 44633033 KNOB, 3 ARM 44633016 ROUND T-NUT 23500134 SPRING, CMPRS 1/4 X 1 103274B02 SNAP RING EXTERNAL STEEL .25...
  • Page 136 2-TIER TRIANGLE WEDGE Assembly # : 311-1474 P-1250 M anual...

  • Page 137: Part Number Description

    2-TIER TRIANGLE WEDGE Assembly # : 311-1474 ITEM QTY. PART NUMBER DESCRIPTION 904905 PLATE T WEDGE BASE 51745062 BLOCK, WEDGE 51631084 SHAFT, WEDGE GUIDE 51631097 SHAFT, WEDGE SUPPORT 44963102 KNOB, 5 LOBE WITH 10-32 THREADED INSERT 44633016 ROUND T-NUT 904760 CURVED WEDGE TALL 102732B11 SSSCPPT BLACK OXIDE 10-32 X 1.00...
  • Page 138 TOWER LAMP 1250 Assembly # : 611-0486 P-1250 M anual...
  • Page 139 TOWER LAMP 1250 Assembly # : 611-0486 ITEM QTY. PART NUMBER DESCRIPTION 44649039 BRACKET, TOWER LAMP 904961 TWR LMP UNASM R/A/G 24VDC LED 102732B04 SSSCPPT BLACK OXIDE 10-32 X .31 102708B02 BHCS BLACK OXIDE 10-32 X .38 12” 44649108 SHEATHING, WIRE #3 BLACK 30”...
  • Page 140 QUICKSET DOUBLE DETECT, SHORT DISCHARGE 1250 Assembly # : 311-1542 P-1250 M anual...
  • Page 141 QUICKSET DOUBLE DETECT, SHORT DISCHARGE 1250 Assembly # : 311-1542 ITEM QTY. PART NUMBER DESCRIPTION 14380009 ASSY, QUICKSET DD 14380005 ASSY, HARNESS QUICKSET DD 611-0094 ASSY, CBLEXTENQCKST 900459 MANUAL, QUICKSET DBLDETECT P-1250 M anual...
  • Page 142 QUICKSET DOUBLE DETECT, EXTENDED DISCHARGE 1250 Assembly # : 311-1472 P-1250 M anual...
  • Page 143 QUICKSET DOUBLE DETECT, EXTENDED DISCHARGE 1250 Assembly # : 311-1472 ITEM QTY. PART NUMBER DESCRIPTION 14380009 ASSY, QUICKSET DD 51438016 BAR, CROSS EXT DISCHARGE 14380005 ASSY, HARNESS QUICKSET DD 611-0094 ASSY, CBLEXTENQCKST 900459 MANUAL, QUICKSET DBLDETECT 102688B07 SHCS BLACK OXIDE 10-32 X 1.00 102937B02 SHCSS SST 10-32 X .38 P-1250 M...
  • Page 144 PNEUMATIC DROPPER Assembly # : 311-1559 P-1250 M anual...
  • Page 145 PNEUMATIC DROPPER Assembly # : 311-1559 ITEM QTY. PART NUMBER DESCRIPTION 611-0309 ASSY, PNEUMATIC CABINET 311-1090 ASSY, DROPPER CYLINDER 12X12 905095 SIDE PLATE, DROPPER 171644TTI GUARD, DROPPER 905097 GUARD, BACK 171656TTI COVER, DROPPER GUARD 44841002 HANDLE, PULL 171671TTI BRACKET, LID SENSOR 903261 DROPPER SIDE FOOT BRACKET 903263...
  • Page 146 BATCH TRAY Assembly # : 311-1541 P-1250 M anual...
  • Page 147 BATCH TRAY Assembly # : 311-1541 ITEM QTY. PART NUMBER DESCRIPTION 51277115 RULER 904973 CATCH TRAY BASE MOUNT 171014TTI BACK STOP 171026TTI SIDE GUIDE, LONG 171165TTI MAGNET, SIDE GUIDE 44681021 THUMB KNOB W/10-32 INSERT 102938B05 SHCS SSL 1/4-20 X .50 904934 BATCH TRAY LARGE BACK STOP 903167...
  • Page 148 DOCKING BRACKET Assembly # : 14581117 P-1250 M anual...
  • Page 149 DOCKING BRACKET Assembly # : 14581117 ITEM QTY. PART NUMBER DESCRIPTION 51458077 DOCKING BRACKET 51458079 DOCKING BRACKET ROD 51458075 DOCKING BRACKET PLATE 51458078 DOCKING BRACKET 51458076 DOCKING BRACKET MOUNT 51458157 SET SCREW, 5/16-18 NC 1 3/4 LG 44947019 KNOB, 5 LOBE WITH 5/16-18 THREADED INSERT 44681021 KNOB 44681020...
  • Page 150 DOCKING BRACKET Assembly # : 311-0925 P-1250 M anual...
  • Page 151 DOCKING BRACKET Assembly # : 311-0925 ITEM QTY. PART NUMBER DESCRIPTION 51458077 DOCKING BRACKET 51458079 DOCKING BRACKET ROD 902865 DOCKING BRACKET PLATE 51458078 DOCKING BRACKET 51458076 DOCKING BRACKET MOUNT 51458157 SET SCREW, 5/16-18 NC 1 3/4 LG 44947019 KNOB, 5 LOBE WITH 5/16-18 THREADED INSERT 44681021 THUMB KNOB W/10-32 INSERT 44681020...
  • Page 152 EZ ADJUST STAND, SHORT W/STD. BASE Assembly # : 23511340 P-1250 M anual...
  • Page 153 EZ ADJUST STAND, SHORT W/STD. BASE Assembly # : 23511340 ITEM QTY. PART NUMBER DESCRIPTION 51265003 LOW PROFILE STAND 36011043 ASSY, 11 IN UPRIGHT ADJ 44360037 ASSY, WELDMENT 36011013 LEVELER, ADJUSTABLE W/NUT 51299013 CASTER, WHEEL 2 INCH 44360018 NAME PLATE 43555097 RATCHET HANDLE 10-32 X .50 44360048...
  • Page 154 EZ ADJUST STAND, TALL W/STD. BASE Assembly # : 43511360 P-1250 M anual...
  • Page 155 EZ ADJUST STAND, TALL W/STD. BASE Assembly # : 43511360 ITEM QTY. PART NUMBER DESCRIPTION 51265003 LOW PROFILE STAND 44360042 ASSY, 22 IN UPRIGHT ADJ 44360037 ASSY, WELDMENT 36011013 LEVELER, ADJUSTABLE W/NUT 51299013 CASTER, WHEEL 2 INCH 44360018 NAME PLATE 44360048 NUT, CAP PUSH 1/2 103110B10...
  • Page 156 EZ ADJUST STAND, SHORT W/WIDE BASE Assembly # : 311-0939 P-1250 M anual...
  • Page 157 EZ ADJUST STAND, SHORT W/WIDE BASE Assembly # : 311-0939 ITEM QTY. PART NUMBER DESCRIPTION 902911 LOW PROFILE STAND 20” WIDE 36011043 ASSY, 11 IN UPRIGHT ADJ 44360037 ASSY, WELDMENT 36011013 LEVELER, ADJUSTABLE W/NUT 51299013 CASTER, WHEEL 2 INCH 44360048 NUT, CAP PUSH 1/2 103110B10 NUT, HEX 3/8-16NC...
  • Page 158 EZ ADJUST STAND, TALL W/WIDE BASE Assembly # : 311-0940 P-1250 M anual...
  • Page 159 EZ ADJUST STAND, TALL W/WIDE BASE Assembly # : 311-0940 ITEM QTY. PART NUMBER DESCRIPTION 902911 LOW PROFILE STAND 20” WIDE 44360042 ASSY, 22 IN UPRIGHT ADJ 44360037 ASSY, WELDMENT 36011013 LEVELER, ADJUSTABLE W/NUT 51299013 CASTER, WHEEL 2 INCH 44360048 NUT, CAP PUSH 1/2 103110B10 NUT, HEX 3/8-16NC...
  • Page 160 HEAVY DUTY ADJUST STAND, 29” Assembly # : 51021001 P-1250 M anual...
  • Page 161 HEAVY DUTY ADJUST STAND, 29” Assembly # : 51021001 ITEM QTY. PART NUMBER DESCRIPTION 51021003 18 X 26 BASE 51021004 CRANK MOUNT WLDMT 51021002 SLEEVE WLDMT 51021017 SLIDE BLOCK 51021012 FRONT WELD 51021009 HORIZONTAL MOUNTING 44920027 WHEEL CASTER 51021025 LEVELING MOUNT 43555098 RATCHET HANDLE 10-32 X .75 102689B03...
  • Page 162 HEAVY DUTY ADJUST STAND, 39” Assembly # : 51021034 P-1250 M anual...
  • Page 163 HEAVY DUTY ADJUST STAND, 39” Assembly # : 51021034 ITEM QTY. PART NUMBER DESCRIPTION 51021003 18 X 26 BASE 51021030 CRANK MOUNT WELDMENT 39” 51021002 SLEEVE WLDMT 51021017 SLIDE BLOCK 51021012 FRONT WELD 51021009 HORIZONTAL MOUNTING 44920027 WHEEL CASTER 51021025 LEVELING MOUNT 903784 RATCHET HANDLE 10-32 X 1.00...
  • Page 164 HEAVY DUTY 39” ADJUSTABLE STAND W/23 X 33 BASE Assembly # : 51021035 S C H S 1 / 4 - 2 0 U N C 3 / 4 " R E Q ) S H C S 1 / 4 - 2 0 U N C 1 / 2 "...
  • Page 165 HEAVY DUTY 39” ADJUSTABLE STAND W/23 X 33 BASE Assembly # : 51021035 ITEM QTY. PART NUMBER DESCRIPTION SCHS 1/4-20UNC X 3/4” SCHS 1/4-20UNC X 1/2” 51021009 HORIZONTAL MOUNTING PLATE 51021012 FRONT GUSSET BHCS 1/4-20UNC X 3/4” 51021002 SLEEVE WELDMENT 1T12F33K LEVER ADJUST 10-32UNC FHSCS 1/4-20UNC X 1/2”...
  • Page 166 HEAVY DUTY 29” ADJUSTABLE STAND W/23 X 33 BASE Assembly # : 51021023 P-1250 M anual...
  • Page 167 HEAVY DUTY 29” ADJUSTABLE STAND W/23 X 33 BASE Assembly # : 51021023 ITEM QTY. PART NUMBER DESCRIPTION 51021020 23 X 33 BASE FRAME WLDT (XT 2400) 51021004 CRANK MOUNT WLDMT 51021002 SLEEVE WLDMT 51021017 SLIDE BLOCK 51021009 HORIZONTAL MOUNTING 51021012 FRONT WELD 44920027...

  • Page 168: Electrical Components

    Electrical Components F i l t e r e d A C I n p u t / S w i t c h M o d u l e S w i t c h M o d u l e : 6 3 0 - 1 1 - 0 0 7 G r o u n d W i r e...
  • Page 169 S D - 1 0 1 S e r v o M o to r D r iv e C N 5 C N 6 C N 3 C N 8 C N 1 2 4 9 D r i v e R e s e t ( R E D ) 2 4 9 2 4 5...
  • Page 170 P-1250 M anual...
  • Page 171 P-1250 M anual...
  • Page 172 P-1250 M anual...
  • Page 173 P-1250 M anual...
  • Page 174 P-1250 M anual...
  • Page 175 P-1250 M anual...
  • Page 176 P-1250 M anual...
  • Page 177 P-1250 M anual...
  • Page 178 P-1250 M anual...

  • Page 179: I/O Cable Wiring

    I/O Cable Wiring External I/O Cable Wiring Table External I/O Cable - Part Number 903389 Pin # Wire Color Function Device Voltage Violet Fault Output Dry Contact Max 230V 3A White Fault Output Dry Contact Max 230V 3A Done Output Dry Contact Max 230V 3A Grey...
  • Page 180 P-1250 M anual...
  • Page 181 P-1250 M anual...

  • Page 182: U-Card Former Set-Up

    I/O Quick-Look Reference Guide - Sourcing Module Description This output is asserted if there is a signal present at the Double input. Miss is as- serted anytime there are two consecutive flight/trigger signals before the cycle has Double/Miss Output finished. Double and Miss are menu selectable. Miss has an adjustable time period of 20 - 999 ms.
  • Page 183 I/O Quick-Look Reference Guide - Sinking Module Description This output is asserted if there is a signal present at the Double input. Miss is as- serted anytime there are two consecutive flight/trigger signals before the cycle has Double/Miss Output finished. Double and Miss are menu selectable. Miss has an adjustable time period of 20 - 999 ms.
  • Page 184 Relay Rack and Module Reference Diagrams P-1250 M anual...
  • Page 185 I/O Cable Wiring External I/O Cable Wiring Table Pin # Wire Color Function Module # Module Type Brown Miss/Double Output (-) ODC5 Miss/Double Output (+) 5-60VDC Orange +12 VDC Supply (150ma. max) - Yellow Busy/Done Output (-) ODC5 Green Busy/DoneOutput (+) 5-60VDC Blue Ready Output (-)
  • Page 186 315 27th Avenue NE · Minneapolis, MN 55418 · USA Tel: (763) 502-0000 · Fax: (763) 502-0100 Email: service@streamfeeder.com Web: www.streamfeeder.com © 2019 Streamfeeder - BW Integrated Systems Printed in the USA.

Table of Contents
