Summary of Contents for Minuit Une IVL Dice

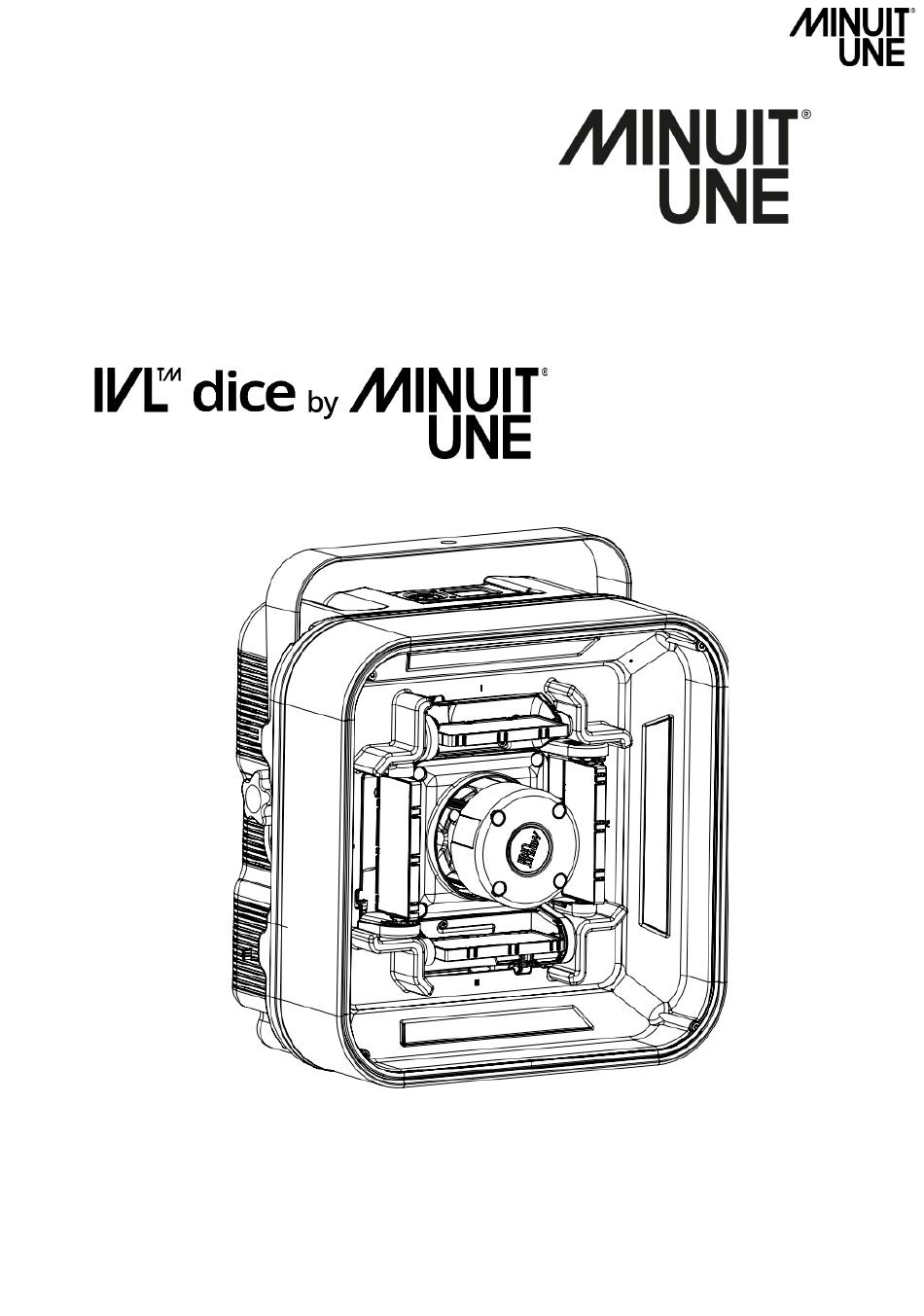

- Page 1 USER MANUAL Endless excitements in a compact housing. IVL™Dice User Manual AB...
- Page 2 Minuit Une, IVL LIGHTING, IVL Dice are registered trademarks of ARTEFFECT SAS.
-
Page 3: Table Of Contents
Content IVL Dice and Base Dimensions ......................4 Risk Levels and Alert Symbols ......................... 6 Vital Precautions ............................7 General Safety Information ........................8 Intended use ............................. 9 Labelling diagram ...........................10 Before using the product ........................13 Overview ..............................14 Front View ............................... 14 Bottom View ............................ -
Page 4: Ivl Dice And Base Dimensions
Dimensions IVL Dice and Base Dimensions All dimensions are given in millimetres. IVL™Dice User Manual AB... -
Page 5: Important Safety Information
15. Changes or modifications not expressly approved by Minuit Une could void the user's authority to operate the equipment. -
Page 6: Risk Levels And Alert Symbols
Risk Levels and Alert Symbols Safety warnings, safety alert symbols, and signal words in these instructions indicate different risk levels DANGER indicates an imminent hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury. -
Page 7: Vital Precautions
Any person in charge of servicing this product shall have read and understood all safety information and procedures in this user manual, and in the IVL Dice’s service manual. To obtain information about service training, service manual or about the closest training service center in your area, please contact Minuit Une. -
Page 8: General Safety Information
General Safety Information WARNING! Humidity, Condensation and Moisture. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not use the product for 2h when it was exposed to big temperature differences as condensed moisture may damage the product electrically when switched Never expose the product to dripping water or water splashes. -
Page 9: Intended Use
Note that the national and local recommendations, regulations, standards and codes of practice in laser show are different from a country to another. Please contact your provider or Minuit Une’s legal service if you have any inquiries. tended use NOTICE This product is intended for indoor use only. -
Page 10: Labelling Diagram
Labelling diagram IVL™Dice User Manual AB... - Page 11 1: Serial number label 2: MAIN MANUFACTURER LABEL IVL™Dice User Manual AB...
- Page 12 Whether above a stage or a dance floor, the IVL Dice is very easy to install at multiple points and in various configurations. An IVL Dice installation creates strong geometric shapes, structuring your space in ways similar to larger setups, but without the need for extensive volume, structure and quantity.
-
Page 13: Before Using The Product
Before using the product 1. Read the “Important Safety Information” on page 5 before doing anything with the product. 2. Unpack and ensure that there is no transportation damage before using the product. Do not attempt to operate a damaged product. 3. -
Page 14: Overview
Overview Front View Bottom View IVL™Dice User Manual AB... -
Page 15: Side View
Side View Fixture menu and connectors Menu buttons A rotative knob allows you to navigate in the menu and selects by clicking. Display The LCD Display shows fixture and menu information. Indicator LEDs safety indicator (red, left from display) Lights up when the scanning speed reach 330Hz. -
Page 16: Transportation Requirement
Damages caused by inadequate transportation are not covered by the product warranty. Always transport IVL dice with manufacturer packaging or appropriate flight case Appropriate flight case must never hold the product by applying pressure on the yoke or on the handle (indicated in red below) Yoke and handle must always remain free. -
Page 17: Installation
Installation WARNING! Always read the “Important Safety Information” on page5 before installing or operating the product. The installation of this product must be validated by a qualified technician before it is operated. When suspended above ground, the product must be secured with a secondary attachment to prevent injury or damage by falls if the primary attachment fails. -
Page 18: Mounting The Product On A Rigging Structure
Mounting the Product on a Rigging Structure The product can be fastened on a rigging structure using a clamp. Always use a clamp that is approved for the weight of the product Always use closed-type rigging clamp The clamp must be securely fix to the adjustable mounting yoke using M12 screw, with minimal length 24mm, grade 8.8 steel minimum and fastened with self-locking nut. - Page 19 Safety cable After fastening the product on a rigging structure, always secure the product with a secondary attachment in case of the rigging clamp fails. Only use an approved safety cable that has been rated for the weight of the product. Pass the safety cable through the adjustable mounting yoke and secure it to the rigging structure: Safety cable Choosing the orientation:...
-
Page 20: Ac Power
Connect only the same fixtures into an interconnected chain. If you wish to connect IVL Dice products to power in a linked chain, you must obtain a AWG14 power input cable and AWG14 throughout cables. -
Page 21: Control Data Link
DMX data input and output. A single daisy chain can consist of up to 8 IVL dice. The total number of products in one 512- channel DMX universe is limited by the number of DMX channels required by the products. -
Page 22: Fixture Menu
Fixture Menu The control knob next to the screen allow you to navigate in the menu. Standby screen If screen is black, press the knob to reach the standby screen You can see on this standby screen: The dmx mode (mode 1) •... -
Page 23: Dmx Address
Dmx address In Dmx address you can update the dmx address of the product: To Select the dmx address you want, select each digit by turning the knob and click on it to pass to the next digit. Service menu Clicking on service in the main menu will open the service menu: Calibration In calibration you will find procedure to re-calibrate the product:... - Page 24 DMX viewer In dmx viewer you can display all the realtime dmx data receive by the product: Temperatures In temperatures menu you will be able to track the laser temperature and the mother board temperature. On the left in white you have the live temperature. On the right in yellow you have the maximal reccorded temparture for this module Life time In life time menu you can track life time of the different modules...
-
Page 25: Screen Menu
About… menu In about you can display: software information • maximal laser temperature recorded since day 1 • Life time of the product • Screen menu In screen menu, you can revert the screen menu. Reset menu Clicking on reset allow you to do a manual reset of the product IVL™Dice User Manual AB... -
Page 26: Effect And Quick Start Show Files
With 4 90° aperture tilt, 2 dimmers per tilt, 2 RGB parameters per tilt. Complemented by a shutter, a set up of IVL Dice never ceases to amaze. The IVL Photon's QuickStart Showfiles will allow you to save valuable time when working with and programming the fixtures, providing you with a plug-and-play solution. -
Page 27: Maintenance
Maintenance CAUTION Always disconnect the product from AC power before doing maintenance on it. Always maintenance the product in a well-lit area where there is no risk of injury from falling parts, tools or other materials. For Maintenance, the unit shall not be disassembled or opened. Cleaning Excessive dust, smoke fluid, and particle degrades performance, causes overheating and will damage the product. -
Page 28: Dmx Protocol
DMX Protocol Default Mode Mode Function Sub-Function Percent Value Value Remarks Value 0 > 9 0 > 23 Reset Motor 10 > 14 24 >36 Reset Source 15 > 20 37 > 51 FULL Reset 21 > 25 52 > 64 Control 100% ON –... - Page 29 Dimmer 1A Close > Open 0 > 100 0 > 255 Dimmer 1B Close > Open 0 > 100 0 > 255 RED 1A 0 > FF 0 > 100 0 > 255 100% RED 1B 0 > FF 0 > 100 0 >...
-
Page 30: Specification
Specification Measurements and weight All dimensions are given in millimetres. Dimensions of the housing: 384 x 384 x 238 mm³ Total dimensions of the fixture (adjustable yoke included): 384 x 433 x 238 mm³ Weight: 10,6kg Housing / Construction Modular conception: conception subdivided into modules, which can be independently and quickly replaced. - Page 31 Electronical gobos: 9 e-gobos RGB control: independent RGB control per tilt Dimmer control: independent dimmer control per tilt Strobe: control over the frequency of the pulse and the duration of the pulse Beam Control (e-gobos) Number of beams: 1 to 256 Control: intuitive gobo like system Gobo type: number of beams Gobo size: width of the beam...
