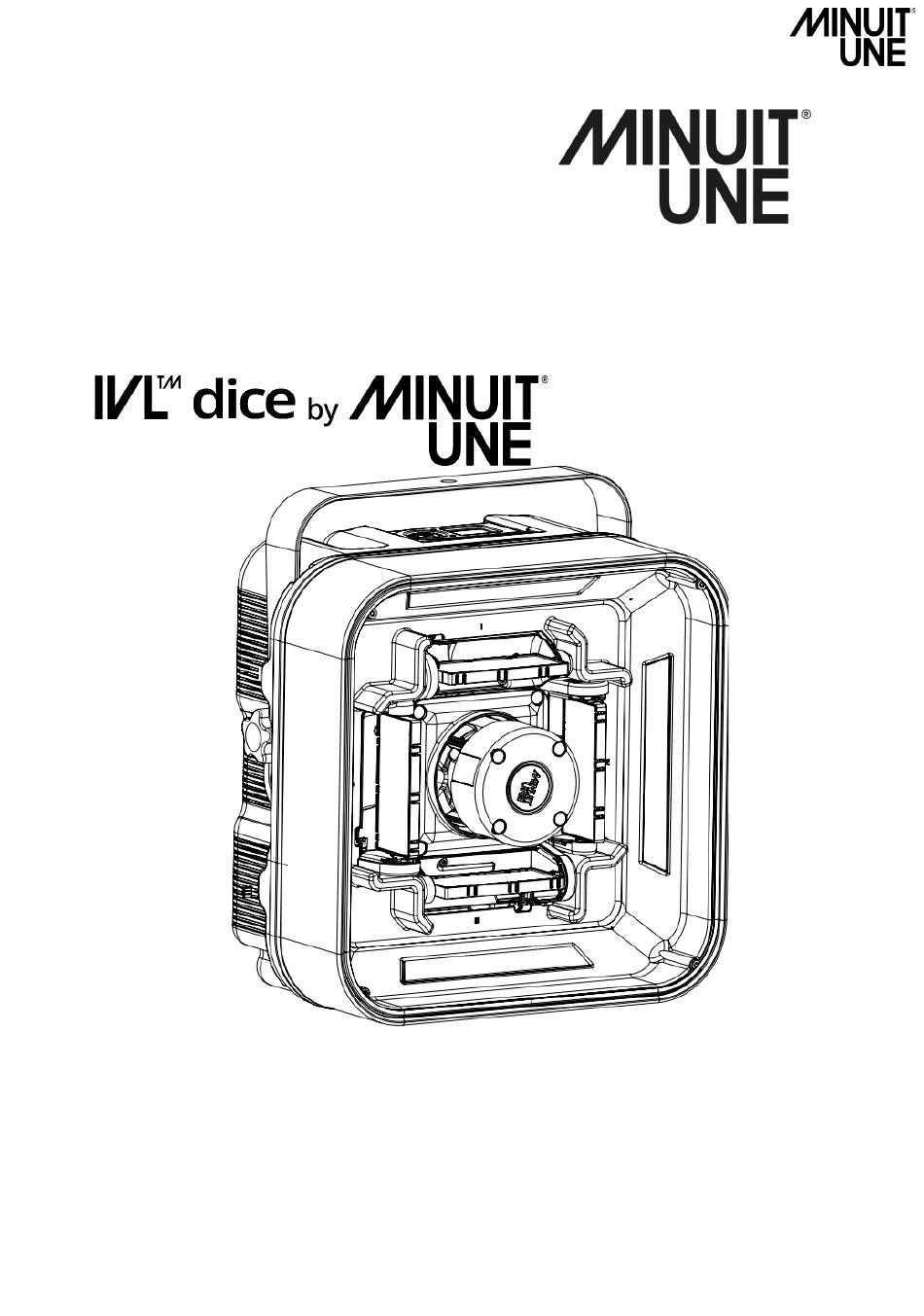

SERIVCE MANUAL
Endless excitements in a compact
housing.
IVL™dice Service Manual-AA
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVL dice and is the answer not in the manual?

Questions and answers

Related Manuals for Minuit Une IVL dice

Summary of Contents for Minuit Une IVL dice

  • Page 1 SERIVCE MANUAL Endless excitements in a compact housing. IVL™dice Service Manual-AA...
  • Page 2 Minuit Une, IVL LIGHTING, IVL Dice are registered trademarks of ARTEFFECT SAS.

  • Page 3: Table Of Contents

    1: Serial number label ........................12 2: MAIN MANUFACTURER LABEL ......................... 13 Before using the product Dimensions ........................... 14 IVL dice and Base Dimensions ......................14 Overview ............................15 Front View .............................15 Bottom View ............................15 Side View ...............................16 Spare Part list: ............................17 Tools, equipment, and accessories ....................20...
  • Page 4 REP 3: REPLACING _______________________________________________________________________________________________________34 DICE-POWER-SUPPLY-ASSEMBLY(MT1-002789) _______________________________________________________________________________34 REP 4: REPLACING _______________________________________________________________________________________________________36 DICE-TRANSPARENT-COVER(MT1-001645) ___________________________________________________________________________________36 REP 5: REPLACING ________________________________________________________________________________________________________38 MASK-MIRROR-AND-FROST-ASSEMBLY ( MT1-002639) _________________________________________________________________________38 REP 6: REPLACING ________________________________________________________________________________________________________41 DICE-INTERNAL-TOP-COVER(MT1-002325) ___________________________________________________________________________________41 REP 7: REPLACING ________________________________________________________________________________________________________45 LATERAL-BELT-ACTUATOR-ASSEMBLY(MT1-000935) ___________________________________________________________________________45 REP 8: ADRESSING LATERAL-BELT-ACTUATOR-ASSEMBLY(MT1-000935) ___________________________________________________________49 REP 9: REPLACING ________________________________________________________________________________________________________51 DICE-CENTRAL-TOWER-ASSEMBLY(MT1-002787) ______________________________________________________________________________51 REP 10: REPLACING _______________________________________________________________________________________________________56 DICE-YOKE (MT1-002354) __________________________________________________________________________________________________56...

  • Page 5: Important Safety Information

    Important Safety Information This service Manual contains instruction about how to service Minuit Une’s IVL dice product. Service work must comply with local regulations and accepted codes of good practice. Any person in charge of servicing this product shall have receive a service training by Minuit Une and/or by an official training center recognized by Minuit Une.

  • Page 6: Risk Levels And Alert Symbols

    Changes or modifications not expressly approved by Minuit Une could void the user's authority to operate the equipment.

  • Page 7: Vital Precautions

    Any person in charge of servicing this product shall have read and understood all safety information and procedures in this user manual, and in the IVL Dice’s service manual. To obtain information about service training, service manual or about the closest training service center in your area, please contact Minuit Une.
  • Page 8 General Safety Information WARNING! Humidity, Condensation and Moisture. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not use the product for 2h when it was exposed to big temperature differences as condensed moisture may damage the product electrically when switched Never expose the product to dripping water or water splashes.

  • Page 9: General Safety Information

    Note that the national and local recommendations, regulations, standards and codes of practice in laser show are different from a country to another. Please contact your provider or Minuit Une’s legal service if you have any inquiries. Intended use NOTICE This product is intended for indoor use only.

  • Page 10: Important Laser Information

    Important Laser Information Procedures that could allow access to Class 4 levels of radiation include the following: All the procedure which can be done by opening the product: REP1:REPLACING DICE-BOTTOM-HOUSING-AND-INSERTS (MT1-002461) ● REP2:REPLACING MOTHER-PCB-ASSEMBLY(MT1-000139) ● REP3:REPLACING DICE-POWER-SUPPLY-ASSEMBLY (MT1-002789) ● REP4:REPLACING DICE-TRANSPARENT-COVER(MT1-001645) ●...

  • Page 11: Labelling Diagram

    Labelling diagram IVL™dice Service Manual-AA...

  • Page 12: 1: Serial Number Label

    1: Serial number label 2: MAIN MANUFACTURER LABEL IVL™dice Service Manual-AA...

  • Page 13: Before Using The Product

    Before using the product 1. Read the “Important Safety Information” on page Erreur ! Signet non défini. before doing anything with the product. 2. Unpack and ensure that there is no transportation damage before using the product. Do not attempt to operate a damaged product. 3.

  • Page 14: Dimensions

    Dimensions IVL dice and Base Dimensions All dimensions are given in millimeters. IVL™dice Service Manual-AA...

  • Page 15: Overview

    Overview Front View Bottom View IVL™dice Service Manual-AA...

  • Page 16: Side View

    Side View IVL™dice Service Manual-AA...

  • Page 17: Spare Part List

    Spare Part list: PART NUMBER DESCRIPTION IMAGE SECTION REP 7: MT1-001057 MAIN-HOUSING-LATERAL-SEAL MT1-001037 CONNECTOR-SEAL REP 7: REP 7: MT1-001699 SCREW-M4-8-TORX MT1-002789 DICE-POWER-SUPPLY-ASSEMBLY REP 3: REP 2,8,9 : MT1-000139 MOTHER-PCB-ASSEMBLY SOF 1 ,2 : MT1-000614 CENTRAL-TOWER-SEAL REP 9: MT1-002508 SCREW-M6-40-TORX REP 2: MT1-000656 SCREW-M3-20-TORX REP 6:...
  • Page 18 MT1-003031 SCREW-M8-16-TORX-ROUNDED REP 10: MT1-003032 CONTACT-WASHER-M8-L REP 10: MT1-002288 SCREW-M6-20-TORX REP 3: MT1-003029 SCREW-M6-35-TORX REP 3: MT1-002543 SCREW-M6-30-TORX 4,5,6,7,8,9: MT1-002639 MASK-MIRROR-AND-FROST-ASSEMBLY CAL 1,2: TEST 1: CLE 2: REP 11 : MT1-001921 H2-2-HARNESS-FAN CLE 5 : REP 11 : FINGER-GUARD MT1-002404 CLE 5 : REP 4,7,8: CAL 1,2,3:...
  • Page 19 REP 9: CAL 1: MT1-002787 DICE-CENTRAL-TOWER-ASSEMBLY TEST 1,4: CLE 3: MT1-001361 CENTRAL-CONNECTOR-MASK CAL 1: MT1-001173 SCREW-M3-35-HEX REP 6: MT1-001600 CENTRAL-TOP-TOWER-SCREW-MASK CAL 1: MT1-002408 M4-40-FLAT-HEAD-TORX REP 11: MT1-000534 SIMPLIFIED-SCREW-MASK REP 9: MT1-001094 SCREW-M4-16-TORX MT1-002696 QUARTER-TURN-TORX-T30-SCREW-3 REP 1,5 : MT1-001090 QUARTER-TURN-SEALED-RECEPTACLE REP 5: MT1-002360 DICE-HOUSING-SEAL IVL™dice Service Manual-AA...

  • Page 20: Tools, Equipment, And Accessories

    Tools, equipment, and accessories Here are the different tools, equipment, and accessories necessary to service the IVL dice. All these tools and accessories are not provided by Minuit Une. Tool/Equipment/ Image Section accessory Removable bit / Torx REP 8: screwdriver T10...
  • Page 21 Neutral pH glass cleaner REP 4 : (alcohol and ammonia- CLE 1,2 : free). Cotton swab CLE 2,3,45 : Isopropyl alcohol CLE 2,3,4 : Dish soap CLE 5: All-purpose cleaner CLE 5: IVL™dice Service Manual-AA...

  • Page 22: Fixture Menu And Connectors

    Fixture menu and connectors. Menu buttons A rotative knob allows you to navigate in the menu and selects by clicking. Display The LCD Display shows fixture and menu information. Indicator LEDs safety indicator (red, left from display) Lights up when the scanning speed reach 330Hz.
  • Page 23 Tools/Equipment: TrueCon1 cable Screen : IVL dice Menu Description Image Standby screen On this standby screen it can be observed: Screen 1 •The DMX mode (mode 1) •The DMX address (address 1) •The laser temperature (which is fix to 25°).
  • Page 24 DMX address To update DMX address of the product: Screen 4 Select digit by turning the knob and click on it to pass to the next digit. Service menu Clicking on maintenance in the main Screen 5 menu will open the maintenance/service menu: Calibration In calibration procedures to re-calibrate...
  • Page 25 DMX viewer All the real-time dmx data received by Screen 8 the product is displayed: Temperature In temperatures menu the temperature if the laser and the mother board can be tracked. left white the, live Screen 9 temperature. On the right in yellow, the maximal reccorded temparture for this module Lifetime The life time of the different modules...

  • Page 26: Maintenance

    When contacting our customer service, please fill the Service Return Form which is available in annex of this service manual or in the download section of the Minuit Une website and attach photo and/or video to explain the problem.

  • Page 27: Product Is Not Emiting Light Output

    PRODUCT IS NOT EMITING LIGHT OUTPUT IVL™dice Service Manual-AA...

  • Page 28: Product Is Emitting Unusual/Abnormal Light

    PRODUCT IS EMITTING UNUSUAL/ABNORMAL LIGHT IVL™dice Service Manual-AA...

  • Page 29: Tilt Problem

    TILT PROBLEM IVL™dice Service Manual-AA...

  • Page 30: Service Operation

    SERVICE OPERATION REPLACING SPARE PARTS OPERATION IVL™dice Service Manual-AA...

  • Page 31: Rep 1: Replacing

    Tools/Equipment : TORX T30 SCREWDRIVER REP 1: REPLACING DICE-BOTTOM-HOUSING-AND- INSERTS (MT1-002461) Instructions Diagram Unscrew the 4 QUARTER-TURN- TORX-T30-SCREW-3 (MT1-002696) like shown on the photo by a quarter turn. IVL™dice Service Manual-AA...

  • Page 32: Rep 2: Replacing

    Lift the back panel DICE- BOTTOM-HOUSING-AND-INSERTS and remove it. (MT1-002461) Rotate the DICE-YOKE (MT1-002354) to remove the MT1-002461 necessary. When putting it back in place, make sure the cables are well positioned and not get stuck under the cover. Tools/Equipment: TORX T30 screwdriver REP 2: REPLACING MOTHER-PCB-ASSEMBLY...
  • Page 33 <1> <1> Gently unplug all the connectors from Back view MOTHER-PCB-ASSEMBLY(MT1-000139) <2> <2> When plugging them back, be careful with their direction and coded pin following the opposite diagram. <1> When fixing the MT1-000139 back in its place, make sure that it is resting on its fixation point and centering pin (A) and that no cables are squeezed underneath.

  • Page 34: Rep 3: Replacing

    Tools/Equipment TORX T30 screwdriver REP 3: REPLACING DICE-POWER-SUPPLY-ASSEMBLY (MT1-002789) Instructions Diagram <1> Remove the DICE-BOTTOM-HOUSING- AND-INSERTS( MT1-002461) (REP 1:). <2> Gently unplug the 2 connectors from the DICE-POWER-SUPPLY-ASSEMBLY . Be careful with their (MT1-002789) direction. <2> <1> Unscrew the SCREW-M6-20-TORX (MT1- like shown in the diagram.
  • Page 35 MT1-002789 <3> When fixing the back in MT1-002789 its place, make sure that it is resting on its fixation points and centering pins (A&B) and that the 2 connectors are plugged. Tight the screws with a torque of 2 Nm. IVL™dice Service Manual-AA...

  • Page 36: Rep 4: Replacing

    - TORX T20 screwdriver Tools/Equipment - A microfiber cloth - A non-alcoholic glass cleaner REP 4: REPLACING DICE-TRANSPARENT-COVER (MT1-001645) Instructions Diagram <2> <1> Remove DICE-BOTTOM- HOUSING-AND-INSERTS( MT1-002461) (REP 1:). <2> Unscrew the 4 SCREW-M4-8-FLAT- HEAD-TORX (MT1-003041) . <1> Gently lift DICE <1>...
  • Page 37 Position back the with MT1-001645 DICE-GLOBE-SEAL(MT-002314) (A) onto the assembly. Make sure to align the joints of the MT1-002639 and the MT-002314 (A) Pay attention to the assembly direction; the drilled holes are positioned facing upwards. <1> <1> Screw the 4 SCREW-M4-8-FLAT- ) back.

  • Page 38: Rep 5: Replacing

    Tools/Equipment TORX T30 screwdriver REP 5: REPLACING MASK-MIRROR-AND-FROST- ASSEMBLY ( MT1-002639) Instructions Diagram <1> First, remove the DICE- BOTTOM-HOUSING-AND- INSERTS( MT1-002461) (REP 1:). <2> <2> On the back surface, unscrew in the 4 quarter- turn screws MT1-002696 embedded in the housing , where 'MASK- MT1-001659 MIRROR' (A) is engraved.
  • Page 39 Lift the MASK-MIRROR-AND- FROST-ASSEMBLY MT1- 002639) Put attention to the DICE- HOUSING-SEAL( MT1- 002360) (A) that surrounds MT1-002639 To put the back, MT1-002639 attention fixation points centering pins (A&B) indicating the assembly direction. <3> IVL™dice Service Manual-AA...
  • Page 40 Carefully assemble MT1-002639 firmly. When putting back the MT1-002639 be careful not crush DICE- HOUSING-SEAL (MT1-002360 (A) and ensure that the 4 quarter-turn MT1-002696 screws properly tightened against the piece MT1-002639 . Caution when screwing the MT1-002639 back; it may give the impression of being held by the quarter-turn...

  • Page 41: Rep 6: Replacing

    -TORX T15 screwdriver Tools/Equipment -2.5 mm Flat head screwdriver REP 6: REPLACING DICE-INTERNAL-TOP-COVER (MT1-002325) Instructions Diagram <1> Remove the DICE-BOTTOM- HOUSING-AND-INSERTS( MT1- 002461) (REP 1:). <2> Remove the MASK-MIRROR- AND-FROST-ASSEMBLY (MT1- 002639) (REP 5:). <3> <3> With the help of a flat head screwdriver unclip the 4 SCREW- on the...
  • Page 42 Unscrew the 4 SCREW-M3-20- TORX (MT1-000656). Lift DICE-INTERNAL-TOP- COVER(MT1-002325) attention to the seal. IVL™dice Service Manual-AA...
  • Page 43 <1> <1> To put the back, MT1-002325 pay attention to the centering pins (A and B, A one large cylinder and B one small) indicating assembly direction . <2> <2> The centering pins also found in the main housing ). Make sure that MT1-001659 MT1-002325 is resting on its fixation point and centering...
  • Page 44 <1>, X4 <1> Screw the 4 SCREW-M3-20- back. TORX (MT1-000656) Tight the screws with a torque of 0,6 <2> Clip the 4 SCREW-MASK (MT1- into the grooves of the 001600) MT1-002325. <2> IVL™dice Service Manual-AA...

  • Page 45: Rep 7: Replacing

    Tools/Equipment TORX T20 screwdriver REP 7: REPLACING LATERAL-BELT-ACTUATOR-ASSEMBLY (MT1-000935) Instructions Diagram <1> Remove DICE-BOTTOM- HOUSING-AND-INSERTS(MT1-002461) (REP 1:). <2> Remove the MASK-MIRROR-AND- INSERTS-FROST-ASSEMBLY (MT1-002639) (REP 5:) <3> Remove DICE-INTERNAL-TOP- COVER(MT1-002325) (REP 6:). <4> Gently unplug the HARNESS-DI- of the Tilt module TILT(MT1-002695) from the back of the fixture, like shown in the diagram.
  • Page 46 <1> Unscrew the 3 SCREW-M4-8- using a TORX(MT1-001699) TORX T20 screwdriver. <2> Lift the MT1-000935. <1> <1> Make sure that the MAIN- HOUSING-LATERAL-SEAL(MT1-001057) (A) which is shown in the image stays in its place on the fixture’s body, under the MT1-000935 <2>...
  • Page 47 <1> With the help of the centering pins (A) found on and in MT1-001057 , position the MT1-000935 MT1- back. 000935 <1> <2> When fixing back the MT1-000935 in its place, make sure that MAIN- HOUSING-LATERAL-SEAL(MT1-001057) in its place and the MT1-000935 well positioned on its resting points and centering pin.
  • Page 48 <1> <1> Plug back the connector MT1- , be careful of the direction 002695 (A) and of the seal (B) MT1-001037 <2> An arrow (C) is here to indicate you the direction (A) of the connector (arrow=red wire). <2> <3> After assembling the fixture back, you must do a full SW update (See section SOF 1: and SOF 2: ) and a tilt calibration (see section...

  • Page 49: Rep 8: Adressing Lateral-Belt-Actuator-Assembly(Mt1-000935)

    Tools/Equipment TORX T10 screwdriver REP 8: ADRESSING LATERAL-BELT-ACTUATOR-ASSEMBLY (MT1-000935) Instructions Diagram Tilt #1 To change a tilt module MT1- , the new module must be 000935 addressed correctly. For example, if MT1-000935 #2 Tilt #2 being replaced, the new MT1- should addressed 000935...
  • Page 50 <1> On the , identify a MT1-000935 slot where a can be DIP-SWITCH observed , which will be used for the addressing procedure. <2> In some versions, the MT1-000935 slot for addressing is not present. In <2> that case, it is necessary to open the and remove the PCB to MT1-000935 assign address.

  • Page 51: Rep 9: Replacing

    REP 9: Tools/Equipment TORX T20 screwdriver REPLACING DICE-CENTRAL-TOWER-ASSEMBLY (MT1-002787) Instructions Diagram <1> Remove DICE-BOTTOM- HOUSING-AND-INSERTS (MT1-002461) (REP 1:). <2> Remove MOTHER-PCB- ASSEMBLY(MT1-000139) (REP 1:). <3> Unplug the two terminals (A) from HARNESS-DI-TOWER(MT1- that is connected to the 002691) MT1-000139 <4> Remove the MASK-MIRROR-AND- FROST-ASSEMBLY (MT1-002629) (REP 5:).
  • Page 52 <1> Carefully (A) pull the MT1- while passing the 002787 MT1-002691 harness (B) through the hole in <1> DICE-MAIN-HOUSING-AND- at the same INSERTS (MT1-001659) time. <2> Use blunt tool(screwdriver E.g.) to help push the seal around the harness( MT1-002691) necessary. <2>...
  • Page 53 Assembly procedure: <1> When putting the MT1-002787 <1>, back in position, make sure to pass <2> the connectors first, to put harness B) in its place. MT1-002691 ( <2> Place central tower module on top paying MT1-002787 attention to the collimator (C). <1>, Back view <3>...
  • Page 54 <4> Once both harness ( MT1- <4> connectors have passed 002691) through the hole. Support the Tower against the (MT1-002787) MT1- , using the centering pin (E) 001659 at the base of it, to position it correctly. <5> The centering pin (E) is also found in the main housing ( MT1- 001659...
  • Page 55 <1> <1> After well positioning the MT1- with the help of its fixation 002787 pins, screw it back. be careful not to twist or crush the cables and position back the seal (A). Tight the screws with a torque of 1.2 Nm. <1>...

  • Page 56: Rep 10: Replacing

    Tools/Equipment : TORX T40 SCREWDRIVER Diagram REP 10: REPLACING DICE-YOKE (MT1-002354) Instructions Diagram <1> <1> Place the product on the DICE-TRANSPARENT-COVER (MT1- on a soft surface to 001645) avoid scratching the cover. 10.1 <2> <2> Make sure the DICE-YOKE is horizontal to the (MT1-002354) surface.
  • Page 57 <1>, X2 <1> Loosen the SQUARE-NECK- slightly on the 2 sides of BOLT DICE-YOKE (MT1-002354) 10.2 <2> The goal is to ensure that the screws SQUARE-NECK-BOLT- (A) with the M8-16 (MT1-002422) (MT1- KNOB-M8-THREADED-HOLE <2>, X2 ) (B) are no longer 002425 pressing against the surface of FRICTION-PLATE-AND-HOOP-...
  • Page 58 <1> Unscrew the 2 MT1-003031 SCREW-M8-16-TORX . 10.3 Make sure not to lose the MT1- 003032-CONTACT-WASHER-M8-L (A) <1> Put the DICE-YOKE (MT1- vertical to the surface. 002354) <2> Gently separate apart the two arms of the DICE-YOKE and carefully remove it from 10.4 the fixture.
  • Page 59 <2> <3> Make sure not to lose the MT1-002423-YOKE-SPACER <3> when removing the DICE- YOKE IVL™dice Service Manual-AA...
  • Page 60 <1> Unscrew completely the KNOB-M8-THREADED-HOLE ( MT1- B) and retrieve 002425) A) on MT1-002423-YOKE-SPACER ( 10.5 the 2 sides of the DICE-YOKE (MT1-002354) IVL™dice Service Manual-AA...
  • Page 61 Assembly Procedure: <1> <1> Screw the 2 KNOB-M8- THREADED-HOLE ( MT1-002425) with the 2 screws SQUARE- on the square hole NECK-BOLT of the new DICE-YOKE ( MT1- 002354 Do not screw the 2 SQUARE-NECK- BOLT (A) completely, or they will block when assembling the yoke back.
  • Page 62 <4> The is slightly DICE-YOKE wider; it does not fit directly onto <4> the spacers. Tighten the 2 KNOB- M8-THREADED-HOLE (MT1-002425) A) on each side of the yoke (first one, and then the other), until the B) is in YOKE-SPACER ( hole C).
  • Page 63 <5> Once the 2 YOKE-SPACER ( are in the hole DICE-YOKE <5> Position DICE-YOKE horizontally. <6> Finally screw the 2 MT1- back <6> 003031 SCREW-M8-16-TORX Do not forget to put the MT1-003032- CONTACT-WASHER-M8-L (D) before. IVL™dice Service Manual-AA...

  • Page 64: Rep 11: Replacing

    Tools/Equipment : TORX T20 SCREWDRIVER REP 11: REPLACING H2-2-HARNESS-FAN (MT1-001921) Instructions Diagram If the fan filter and the fan are not cleaned regularly, airflow could be obstructed and will cause overheating. Wait for the product to cool down before performing this operation. <1>...
  • Page 65 Unscrew the 4 screws M4-40- 11.2 FLAT-HEAD-TORX (MT1-002408). Retrieve FINGER- 11.3 GUARD(MT1-002404) (A). IVL™dice Service Manual-AA...
  • Page 66 Disconnect the H2-2-HARNESS- and remove it. FAN(MT1-001921) 11.4 Pay attention to the direction of the fan blades and the connector when putting it back. <1> Connect back paying attention to its direction. the H2-2-HARNESS-FAN(MT1-001921) <2> Position the back to its position. H2-2-HARNESS-FAN(MT1-001921) 11.5 <3>...

  • Page 67: Calibration

    CALIBRATION -6 mm Alen wrench. Tools/Equipment: -TrueCon1 cable. CAL 1: SET UP PLATE CALIBRATION Do not wear bracelets, rings, smartwatches, or reflective objects during this procedure. Procedure purpose Level the laser light plan . Instructions Diagram <1> Remove the DICE-TRANSPARENT- COVER ( MT1-001645) (REP 4:) <2>...
  • Page 68 <1> Plug the power cable and turn the fixture ON. <1> <2> After the fixture’s reset with your hand, place ALL the Tilts (MT1- horizontally, with the frosted 000935) side (A) facing upwards. <2> Press the knob near the screen panel of the fixture and go to Service>...
  • Page 69 Target The goal is to position the laser plane as much as possible below the upper edge(green dotted line) of the four MIRROR-MASK-FROST (MT1-002638) of the MT1-002639. Tip: Use a white paper sheet to enhance visibility of the beam. IVL™dice Service Manual-AA...
  • Page 70 Calibration procedure: <1>, X4 * Do every operation clockwise to perform this calibration. <1> On the top of the tower( MT1- , screw and unscrew the pair 002787) of screws A or B in front (MT1-001173) Target Target of the (Previously placed MT1-000935 Leveling...
  • Page 71 <4> Once the laser's plan is calibrated and projecting flatness in all the 4 frosted surfaces( MT1-002638 <4>, X4 of the main housing ( MT1-002639) verify the adjustment of the screws to ensure the (MT1-001173) screws aren’t loose. Gently tighten them if needed, being careful not to alter the calibration.
  • Page 72 <1> Check one last time that each screw is well flattened (MT1-001173) tightened at the end of the adjustment and put back the MT1- on the tower 001600 (MT1-002787). <1>, X4 Make sure they are firmly clipped in. It's important to tighten these screws well.

  • Page 73: Cal 2

    Tools/Equipment: TrueCon1 cable CAL 2: TILT CALIBRATION Procedure purpose Ensure that each LATERAL-BELT-ACTUATOR-ASSEMBLY(MT1-000935) has the same angle and position origin. Instructions Diagram <2> <1> Make sure that the DICE- TRANSPARENT-COVER (MT1-001645) is in place. <2> Plug the power cable and turn the fixture ON.
  • Page 74 <1> Calibration procedure: <1> Once the calibration has started, Tilt #1 (A) (MT1-000935) will face its mirror side in front Rest of the Tilts Frost side of the light source, while all the other Tilts (B) will be facing the source with their frost side.
  • Page 75 <4> Make sure that the beam Target NOK Target NOK in not too low . Too low Too low. <4> Target NOK Target NOK Too High Too High It touches the It touches the <5> Transparent cover. Transparent cover. <5> Make sure that the beam in not too High .
  • Page 76 <2>, <3> <1> Repeat previous calibration procedure 2.2 on all mirrors(if applicable). <2> calibration, the mirrors will return their defined <2>, <3> positions. <3> To verify that all 4 mirrors are properly calibrated, the beam should touch all four edges of the MASK-MIRROR-AND- without INSERTS(MT1-002639)

  • Page 77: Cal 3

    Tools/Equipment: TrueCon1 cable CAL 3: E-GOBO CALIBRATION Procedure purpose Calibrate the origin of the light plan. Instructions Diagram <1> Make sure that the DICE- <2> TRANSPARENT-COVER (MT1- is in place. 001645) <2> Plug the power cable and turn the fixture ON. <3>...
  • Page 78 <1> Once the calibration has Tilt #2 <1> started, beam will appear divided into two colors. Tilt Tilt Tilt #4 Tilt #2 <2> The junction of two <2> colors between Tilt and the (MT1-000935) #1 Guide Tilt will be (MT1-000935) #2 junction used as a guide for this Tilt...
  • Page 79 <4> Turn the knob until the <4> guide junction of the two colors is positioned on the Tilt target . Target guide junction Tilt Target Graphic image for a better guide understanding. junction IVL™dice Service Manual-AA...
  • Page 80 Tilt #2 <5> Make sure that the <5> junction of the colors is not too high or too low. Tilt Target Guide junction Too high Tilt #2 <5> Tilt Target Guide junction Too low Once the calibration is completed, click the knob, and then click on 'Save'. Please note that if you click on 'Return', the calibration will not be saved, and you will have to start the calibration process.

  • Page 81: Testing

    TESTING Tools/Equipment: TrueCon1 cable TEST 1: Test General Test purpose Test and verify the operation of the main actuators quickly and generally. Instructions Diagram <2> <1> Make sure that DICE- is in TRANSPARENT-COVER (MT1-001645) place. <2> Plug the power cable and turn the fixture ON.
  • Page 82 <1> Press the knob, The test screen 'Play TILT: 1' is displayed, it is used to test TILT 1. <1>,<2> Example for Tilt #1 Tilt sequence: a. Beginning in Frost side position. 315° outward b. 315° outward rotation. rotation. c. 45° inward rotation. 45°...
  • Page 83 <1> <1> The test screen 'Check Tilt' is to verify that after testing the four Tilts . They will be set to (MT1-000935) position 0 to verify that they are calibrated and that their original position has not been modified (due to mechanical failure part...
  • Page 84 <1> The test screen 'Test Laser' is now <1> displayed, it is used to test the laser’s RGB colors. Tilt #1 <2> <2> Click the knob, gobos are tested from 1 to 256. Check that the dotted lines are well- defined and that the beam does not tremble.

  • Page 85: Test 2

    Tilts change by placing their frosted side in front of the light source like step 1.4 in this same procedure. Afterwards, the sequence is repeated. Tools/Equipment: TrueCon1 cable TEST 2: Test Laser Test purpose Test and verify the operation of the laser module (Gobo and colorimetry). Instructions Diagram <2>...
  • Page 86 Tilt #1 The mirrors will pivot to project the laser onto the DICE-TRANSPARENT-COVER . A square pattern will (MT1-001645) appear, composed colors: white/violet, blue, red, and green. Check: The 4 colors appear clearly and are distinct (no blending). Check: The green colors must Tip:...

  • Page 87: Test 3

    Tools/Equipment: TrueCon1 cable TEST 3: Test Tilt Test purpose Test and verify the operation of the laser module (Gobo and colorimetry). Instructions Diagram <2> <1> Make sure that DICE- is in TRANSPARENT-COVER (MT1-001645) place. <2> Plug the power cable and turn the fixture ON.
  • Page 88 Test Tilt sequence: a. Beginning in 0 position Smooth movement b. 360° inward rotation. a., d., e., h., j. c. 270° outward rotation, Frost side upwards (A). d. 90° inward rotation, c., f., g., i. 0 position. e. 90° inward rotation, Frost side upwards (A).

  • Page 89: Test 4

    Tools/Equipment: TrueCon1 cable TEST 4: Test Tower Test purpose Test the functionality of the DICE-CENTRAL-TOWER-ASSEMBLY(MT1- 002787) by verifying the sensor reading and the central motor’s speed. Instructions Diagram <2> <1> Make sure that the DICE-TRANSPARENT- is in place. COVER (MT1-001645) <2>...
  • Page 90 -Top sensor should have a reading of 128 The square indicator must be green if it is red the sensor is not having a good reading and, it can result in an abnormal gobo projection. If an anomaly is detected, please contact the Minuit Une team for technical assistance. IVL™dice Service Manual-AA...

  • Page 91: Software Update

    *Software update is required after replacing a module to ensure compatibility with the systems. Instructions Diagram <1> Contact the Minuit Une technical team to obtain the files for the latest available software version. <2> Place the files shared by the team on an empty SD card.
  • Page 92 <3> The screen lights up and should display the ‘UPGRADE DMX’ screen. If <2> not, turn it off and repeat the previous operation. <3> <1> On the UPGRADE DMX screen, select "Program." If the screen displays ERROR: No SD Card, check if the SD card is inserted in the correct orientation or properly seated.

  • Page 93: Sof 2

    <2> <2> Connect the PowerCon cable (turn on the product). <3> As soon as the Minuit Une logo appears on the screen, press the knob without releasing it. while keeping the knob pressed. A green LED (A) will blink.
  • Page 94 <1> <1>After DMX and Modules Update verify if the software is well updated. In the main menu go to About…: The software version is shown: Software VX.X <2>Then press again to have de <2> software version of the modules. The software version is shown: TEC VX.X Ana.

  • Page 95: Cleaning

    CLEANING Excessive dust, smoke fluid, and particle degrades performance, causes overheating, and will damage the product. This product is intended to be use in haze environment for maximizing effect. The use of good haze machine with neutral fluid like MDG ATMe is recommended to maximize lifetime of the product. On the contrary the use of oilbased smoke machine is to avoid and will cause damage to the product on long term.
  • Page 96 <1> Clean both sides, internal and external of the DICE-TRANSPARENT- on a soft support COVER (MT1-001645) with a very gentle movement. Always clean the DICE-TRANSPARENT- with: COVER(MT1-001645) A. A soft and lint-free wipe. B. A standard PH neutral glass cleaner without alcohol can be used to clean the grease left by the smoke machine fluid.

  • Page 97: Cle 2

    - A microfiber cloth. CLE 2: Tools/Equipment: - A non-alcoholic glass LATERAL-BELT-ACTUATOR-ASSEMBLY cleaner. (MT1-000935) MASK-MIRROR-AND-FROST- ASSEMBLY (MT1-002639) Instructions Diagram <1> Remove DICE TRANSPARENT-COVER(MT1-001645) (REP 4:). <2> Clean the MT1-000935 mirror and (B) frost side with a soft wipe and / or standard glass cleaner.
  • Page 98 With a (A) soft cotton swab soaked with glass cleaner, clean the two diodes. It is important to prevent particles from obstructing these diodes and keep them clean, as this could affect the sensor's reading. These diodes are responsible for detecting whether the MT1-000935 is on the mirror side or the frost side.

  • Page 99: Cle 3

    - Cotton swab. Tools/Equipment: - Microfiber cloth. - Isopropyl alcohol. CLE 3: DICE-CENTRAL-TOWER-ASSEMBLY (MT1-002787) Instructions Diagram <1> Gently clean the Scanning <1> Mirror and the glass with a soft cotton swab-soaked (A) with iso alcohol (B) and / or drag a soft lens tissue or microfiber cloth (C) on the mirror.

  • Page 100: Cle 4

    - Microfiber cloth. Tools/Equipment: - Isopropyl alcohol. CLE 4: FIBER-LASER-COLLIMATOR (MT1-002474) Instructions Diagram <1> Gently clean collimator’s lens (A) with a microfiber cloth (B) soaked with iso alcohol . <2> Softly dry the collimator’s lens previously cleaned surface with a no wet clean cloth to avoid leaving streaks.

  • Page 101: Cle 5

    -Cotton swab. -Micro fiber cloth. Tools/Equipment: -Dish soap. CLE 5: -Warm water. Ventilation system -All-purpose cleaner. FILTER-COVER( MT1-002406), FILTER(MT1-002405), FAN( MT1-001921) and HEATSINK. Instructions Diagram If the fan filter and the fan are not cleaned regularly, airflow could be obstructed and will cause overheating which will degrade performance...
  • Page 102 <1> <1> clean <2> as well FILTER(MT1-002405) as the FILTER-COVER (MT1- wash them with 002406), warm water and dish soap. Let them dry completely before putting it back. <2> The can also MT1-002406 <3> cleaned with microfiber cloth and all- purpose cleaner.
  • Page 103 <1> Unscrew the FAN ( MT1- <1> <1> to clean de blades 001921 ) both sides with microfiber cloth or cotton swab and an all-purpose- cleaner. <2> If the fan’s connector has been disconnected to clean it easily, pay attention to connect position back <2>...
  • Page 104 <1> Use a cotton swab to remove an accumulation of greasy dust trapped in the slots (A) of the DICE- BOTTOM-HOUSING-AND- INSERTS( MT1-002461). <2> Clean the ( MT1-002461) with a wet microfiber cloth and let it dry. <2> <1> IVL™dice Service Manual-AA...

  • Page 105: Dmx Protocol

    DMX Protocol Default Mode Mode Function Sub-Function Percent Value Value Remarks Value 0 > 9 0 > 23 Reset Motor 10 > 14 24 >36 Reset Source 15 > 20 37 > 51 FULL Reset 21 > 25 52 > 64 Control 100% ON –...
  • Page 106 Dimmer 1B Close > Open 0 > 100 0 > 255 RED 1A 0 > FF 0 > 100 0 > 255 100% RED 1B 0 > FF 0 > 100 0 > 255 100% GREEN 1A 0 > FF 0 >...

  • Page 107: Specification

    Specification Measurements and weight All dimensions are given in millimetres. Dimensions of the housing: 384 x 384 x 238 mm³ Total dimensions of the fixture (adjustable yoke included): 384 x 433 x 238 mm³ Weight: 10,6kg Housing / Construction Modular conception: conception subdivided into modules, which can be independently and quickly replaced.
  • Page 108 Update: by micro-SD card Electronical gobos: 9 e-gobos RGB control: independent RGB control per tilt Dimmer control: independent dimmer control per tilt Strobe: control over the frequency of the pulse and the duration of the pulse Beam Control (e-gobos) Number of beams: 1 to 256 Control: intuitive gobo like system Gobo type: number of beams Gobo size: width of the beam...

  • Page 109: Service Return Form

    Service Return Form Your contact Company : ……………………………………………………………………………………………… First Name ……………………… Last Name …………..………………………………………. Addressee .……………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………………………… …………………………… Country …………………………………… City …………………………...……………………… Telephone…………………… Email ………………………………………………………… Your product Model:............Serial Number :........ Buying date:…………………………… Invoice number:……………………………………… Failure Reference (reference in the Troubleshooting ) ……………………………………………………...
  • Page 110 0) In case of failure, please first contact Minuit Une to find a solution 1) If necessary and asked by Minuit Une, send back the defective part correctly packed with this sheet correctly filled 2) Return fees are at your charge.
