MBa62xx
User's Manual
MBa62xx UM 0101
18.03.2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBa62xx and is the answer not in the manual?

Questions and answers

Related Manuals for TQ-Systems MBa62xx

Summary of Contents for TQ-Systems MBa62xx

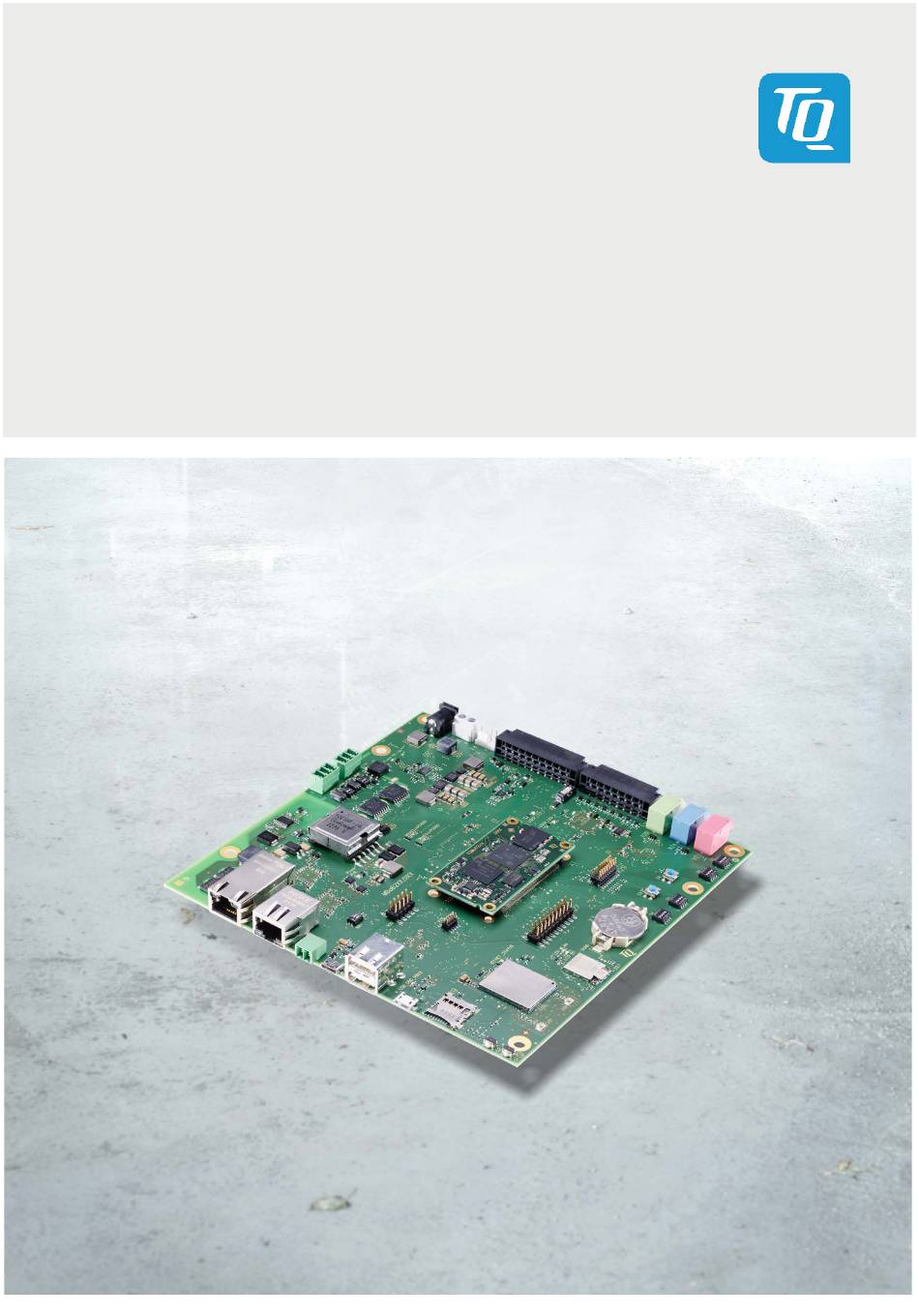

  • Page 1 MBa62xx User's Manual MBa62xx UM 0101 18.03.2025...

  • Page 2: Table Of Contents

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page i TABLE OF CONTENTS ABOUT THIS MANUAL ....................................1 Copyright and licence expenses ................................1 Registered trademarks ....................................1 Disclaimer ........................................1 Intended Use ........................................ 1 Imprint ..........................................2 Tips on safety ........................................
  • Page 3 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page ii Protection against external effects ..............................45 Reliability and service life..................................45 ENVIRONMENT PROTECTION ................................46 RoHS ..........................................46 ® WEEE .......................................... 46 ® REACH ........................................46 EuP ..........................................46 Statement on California Proposition 65 ............................
  • Page 4 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page iii TABLE DIRECTORY Table 1: Terms and Conventions ..................................2 Table 2: Overview interfaces..................................... 5 Table 3: Overview diagnose and user’s interfaces ............................. 6 Table 4: I2C1 slave address mapping of the TQMa62xx module ......................8 Table 5: Reset signals ......................................
  • Page 5 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page iv FIGURE DIRECTORY Figure 1: Block diagram TQMa62xx – TQMa62xxL-ADAP – MBa62xx ....................4 Figure 2: Block diagram MBa62xx..................................4 Figure 3: Block diagram TQMa62xx.................................. 7 Figure 4: Block diagram I C bus of the TQMa62xx module........................
  • Page 6 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page v REVISION HISTORY Rev. Date Name Pos. Modification 0100 29.04.2024 M. Kreuzer All First issue Chapter moved 0101 18.03.2025 M. Kreuzer 4.1.1 Connector source added Chapter add...

  • Page 7: About This Manual

    Important Notice: Before using the Starterkit MBa62xx or parts of the schematics of the MBa62xx, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. TQ-Systems GmbH makes no other warranties including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose.

  • Page 8: Imprint

    Violation of this guideline may result in damage / destruction of the MBa62xx and be dangerous to your health.

  • Page 9: Naming Of Signals

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 3 Proper ESD handling The electronic components of your TQ-product are sensitive to electrostatic discharge (ESD). Always wear antistatic clothing, use ESD-safe tools, packing materials etc., and operate your TQ- product in an ESD-safe environment.

  • Page 10: Brief Description

    BRIEF DESCRIPTION The MBa62xx is designed as a carrier board for the TQMa62xx and TQMa62xxL All TQMa62xx interfaces are available on the MBa62xx. The AM62x CPU characteristics can be evaluated, and therefore the software development for a TQMa62xx project can be started immediately.

  • Page 11: Functionality

    In addition to the standard communication interfaces like USB, Ethernet, RS485 etc. all other available signals of the TQMa62xx are routed to standard headers. The following interfaces / functions and user's interfaces are provided on the MBa62xx: Table 2: Overview interfaces Interface Qty.
  • Page 12 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 6 Table 3: Overview diagnose and user’s interfaces Interface Qty. Component Remark Input supply 24 V – Power IN LED blue USB debug interface LED yellow GPIO-LED LED green / red...

  • Page 13: Electronics

    The TQMa62xx boot behaviour can be customised. To use the LGA module TQMa62xxL on the MBa62xx an additional adapter board, TQMa62xxL-ADAP, is required. The adapter board serves as an intermediate board which passes the signals from the LGA pads directly to the connectors.

  • Page 14: I 2 C Address Mapping

    The accessible I C buses depend on the pin multiplexing. Only the I2C1 bus is used by the module on the MBa62xx. On the TQMa62xx or TQMa62xxL the I2C0 bus is permanently provided for its I2C devices. The following devices are connected on the...

  • Page 15: Reset Structure

    The main supply of the MBa62xx is VIN via connector X5 (Type: CUI INC PJ-102BH) or X6 (Type: Lumberg KRM02), optionally the MBa62xx can be supplied as a powered device via Power Over Ethernet (X14) by a suitable switch (PSE).
  • Page 16 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 10 Figure 6: Position X5 and X6 On the MBa62xx there is a two part supply: • 5V supply Permanently activated as soon as the MBa62xx is supplied Module supply / Reset button / LED •...
  • Page 17 The overvoltage limitation is 31.1 V to 34.4 V. The mainboard MBa62xx, including TQMa62xx, consumes 86 W under full load (all supply voltages are loaded with maximum current, e.g. by connecting external modules to the pin headers). The power supply used must be selected accordingly. In most...
  • Page 18 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 12 Attention: Overload The internal voltages (3.3 V, 1.8 V) provided at the starter kit pin headers are not additionally protected. Technically, an overload of the fuse is therefore possible. The resulting total current consumption of the MBa62xx should be observed.

  • Page 19: Communication Interfaces

    The TQMa62xx executes the power sequencing independently and returns a PGOOD signal for the MBa62xx. • As soon as the PGOOD signal is present, the MBa62xx performs the power sequencing independently. The used switching regulators / LDOs are controlled by EN and PGOOD signals.

  • Page 20: Usb Interface

    4.2.2 USB interface 4.2.2.1 USB OTG The MBa62xx provides a USB2.0 OTG interface. The USB2.0 interface also serves as boot source (see also chapter 4.3.5). • Protection circuit for USB0_VBUS according to Reference Manual (1). • 5V power switch depending on the USB ID (GPIO) pin.

  • Page 21: Usb Hub

    USB Hub The MBa62xx also provides a 4-port USB host via USB1 of the CPU. This results in a double socket (X11) for the use of USB host (e.g. USB stick) as well as the use of the IoT radio module and the LVDS display.

  • Page 22: Ethernet Interface

    Position USB, X11 4.2.3 Ethernet interface There are two Ethernet interfaces on the MBa62xx. The PHY DP83867ISRZGZ from TI is used for all interfaces. The PHY supports IEEE 802.3 10BASE-Te,100BASE-TX, and 1000BASE-T. The following interfaces are used: • RGMII1 at connector X14 With additional PoE+ function to supply the mainboard •...

  • Page 23: Lvds

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 17 Figure 17: Position of X14 and X15 4.2.4 LVDS The OLDI interface (OLDI0) of the TQMa62xx is provided with the two single-link Open LVDS Display Interface (4 lanes + 1 clock per channel) on the MBa62xx at connector X21 and X22.
  • Page 24 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 18 The selection of the connectors (Type: Hirose DF19G-30P-1H(52) and Hirose DF19G-20P-1H(52)) and the pin assignment correspond to the TQ-specific specifications for the uniform design of the interface, which ensures the connection of dedicated LVDS displays.

  • Page 25: Mipi-Csi

    Position X21 and X22 4.2.5 MIPI-CSI The Camera Serial Interface (CSI) of the TQMa62xx and TQMa62xxL is available with 4 lanes on the MBa62xx at connector X20. Figure 20: Block diagram MIPI-CSI interface The selection of the connector (Type: TE 5177986-2) and the pin assignment correspond to the TQ-specific specifications for the uniform design of the interface which enables the connection of the TQ camera adapter.
  • Page 26 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 20 Table 9: MIPI-CSI pinout X20 Signal Type Level Note DGND Ground DGND MIPI_CSI0_EN 1.8 V CSI-Enable, Pull-down on MBa62xx Not connected MIPI_CSI0_RST# 1.8 V Reset, Pull-down on MBa62xx...

  • Page 27: Can

    Position X20 4.2.6 Two CAN interfaces are implemented on MBa62xx according to the ISO 11898 standard. The signals are each provided on a 3-pin socket X12 and X13 (Type: Phoenix Contact MCV 1,5/ 3-G-3,5). Both interfaces are galvanically isolated with an isolation voltage of 1 kV, but not from each other.
  • Page 28 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 22 The following tables show the pin assignment of the CAN connectors and the DIP switch for the 120 Ω CAN signal termination: Table 10: CAN0 pinout (X12)

  • Page 29: Rs485

    Page 23 4.2.7 RS485 On the MBa62xx a RS485 interface on connector X8 (Type: Phoenix Contact MC1,5/2-G-3,5) with automatic direction switching is realized, which allows the use of Profibus. The direction switching is done via GPIO. Figure 24: Block diagram RS485...

  • Page 30: Iot Radio Module + Sim Card

    Position WLAN module and antenna sockets ANT1 and ANT2 4.2.9 IoT radio module + SIM card Quectel's BG95-M4 IoT radio module provides NB-IoT and GNSS functionality on the MBa62xx: • LTE: CAT M1 (max. 588 DL / 1119 UL), CAT NB2 (max. 127 DL / 158.5 UL) •...
  • Page 31 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 25 Figure 28: Block diagram IoT radio module Figure 29: Position IoT radio module + u.FL + Micro-SIM card port...

  • Page 32: Sd Card

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 26 4.2.10 SD card On the MBa62xx a SDIO (MMC1) interface of the CPU is implemented for a SD card connection (connector X9): • MMC1 interface with 4 bit bus width •...

  • Page 33: Pru

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 27 4.2.11 To use a part of the PRU interface from the TQMa62xx, signals of the PR0 Interface were led to the pin header X27. The IO logic of the interface is 1.8V.

  • Page 34: Audio

    Position of JTAG, X29 Audio The MBa62xx provides one microphone, line-in and line-out interface each. The signals can be tapped via 3.5 mm jack sockets, which are provided by an audio code via SAI and I2C interfaces by the TQMa62xx.

  • Page 35: Analog Frontend

    Line-out n.p. n.p. Default option Analog Frontend For the processing of analog inputs, an 8-channel analog frontend is available on the MBa62xx at connector X30 (Type: Phoenix DMC 1,5/ 8-G1F-3,5-LR P20THR). • 24 V compatible • Data rates: 7.5 SPS - 288 kSPS, Simultaneous 50 Hz / 60 Hz line rejection, ENOB: 17-bit at 72 kSPS •...
  • Page 36 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 30 The following tables show the pin assignment of the Analog Frontend at X30: Table 16: Pinout X30 Signal Note AI1P Can be used for current measurement with AI1N by changing the placement...
  • Page 37 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 31 Measurement options: • Standard circuit for voltage and current measurement: Figure 37: Analogue interface voltage-current measurement • Standard voltage measurement: Figure 38: Analogue interface voltage...
  • Page 38 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 32 • RTD measurement (resistance thermometer). AFE can provide current source: Figure 39: Analogue interface RTD measurement • TC measurement (thermocouple) via differential measurement: Figure 40: Analogue interface TC measurement...

  • Page 39: Digital Ios

    Page 33 4.4.1 Digital IOs The MBa62xx provides four digital inputs and outputs each, which are 24 V compatible, at connector X16. • The digital outputs are switched via high-side switches. The input voltage V_24V_IN or an external voltage V_24V_HSS_IN (default) can be switched.

  • Page 40: Headers X26, X27, X28

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 34 Figure 42: Position X16 A suitable mating connector for X16 is the DFMC 1,5/10-STF-3,5 from Phoenix. 4.4.2 Headers X26, X27, X28 Control signals, GPIOs or factory test signals are routed to pin headers as follows: •...
  • Page 41 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 35 Table 18: Pinout header X26 Signal Note TQMa62xx_HARD_RST# V_1V8 MCU_PORz PORz_OUT MCU_RESETz MCU_RESETSTATz RESET_REQz RESETSTATz TQ_EEPROM_WC# Data EEPROM (Do not connect) DGND Table 19: Pinout header X27...

  • Page 42: Diagnosis- And User Interfaces

    5 V Input of X2 Blue WLAN Active SPB228_LED_WLAN# Green Wireless mobile active SPB228_LED_BT# Green V117 Analog Frontend Status GPIO9_AFE Green 4.5.2 Navigation button A navigation button (user button) is available to the user on the MBa62xx. Figure 44: Position of navigation buttons S11...

  • Page 43: Reset Buttons

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 37 4.5.3 Reset buttons Two reset buttons are available to the user on the MBa62xx. Table 22: Reset buttons Reference Description Control signal PMIC Push-Button monitor input TQMa62xx_PWRBT#...
  • Page 44 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 38 The boot source is selected via the corresponding boot strap pins which can be set via DIP switches. The following table shows the settings of the DIP switch configuration.

  • Page 45: Software

    Depending on the application, the power consumption of the CPU makes it necessary to ensure a cooling of the CPU. For this a 4-pin connector X4 (Type: Molex 47053-1000) is provided on the MBa62xx for a standard fan. For more information, please refer to the TQMa62xx User’s Manual.

  • Page 46: Mba62Xx Assembly

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 40 MBa62xx assembly Figure 49: MBa62xx, component placement top...
  • Page 47 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 41 Figure 50: MBa62xx, component placement bottom...

  • Page 48: Label Placement

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 42 Label placement Figure 51: Label placement Table 25: Labels Name Note TQ Serial number and article description...

  • Page 49: Safety Requirements And Protective Regulations

    Page 43 SAFETY REQUIREMENTS AND PROTECTIVE REGULATIONS The MBa62xx was developed according to the requirements of electromagnetic compatibility (EMC). Depending on the target system, anti-interference measures may still be necessary to guarantee the adherence to the limits for the overall system.
  • Page 50 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 44 • Incorrect operation • Improper handling • Use of force • Normal wear and tear...

  • Page 51: Climatic And Operational Conditions

    Protection against external effects Protection class IP00 was defined for the MBa62xx. There is no protection against foreign objects, touch or humidity. Reliability and service life No detailed MTBF calculation has been done for the MBa62xx.

  • Page 52: Environment Protection

    By environmentally friendly processes, production equipment and products, we contribute to the protection of our environment. To be able to reuse the MBa62xx, it is produced in such a way (a modular construction) that it can be easily repaired and disassembled. The energy consumption of this subassembly is minimised by suitable measures. The MBa62xx is delivered in reusable packaging.

  • Page 53: Other Entries

    By environmentally friendly processes, production equipment and products, we contribute to the protection of our environment. To be able to reuse the MBa62xx, it is produced in such a way, that it can be easily repaired and disassembled. The energy consumption of this subassembly is minimised by suitable measures. Due to the fact that at the moment there is still no technical equivalent alternative for printed circuit boards with bromine-containing flame protection (FR-4 material), such printed circuit boards are still used.

  • Page 54: Appendix

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 48 APPENDIX 10.1 Acronyms and definitions The following acronyms and abbreviations are used in this document. Table 27: Acronyms Acronym Meaning Analog/Digital Converter BIOS Basic Input/Output System Board Support Package...
  • Page 55 User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 49 Table 27: Acronyms (continued) Acronym Meaning n.c. Not Connected Not-Or Not Placed On-The-Go Printed Circuit Board PCIe Peripheral Component Interconnect express PCMCIA People Can’t Memorize Computer Industry Acronyms...

  • Page 56: References

    User's Manual l MBa62xx UM 0101 l © 2025, TQ-Systems GmbH Page 50 10.2 References Table 28: Further applicable documents Name Rev. / Date Company AM62x Processors Silicon Revision 1.0 A / Nov. 2022 Texas Instruments Technical Reference Manual AM62x Sitara Processors Datasheet A / Nov.
  • Page 57 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld Info@TQ-Group TQ-Group...
