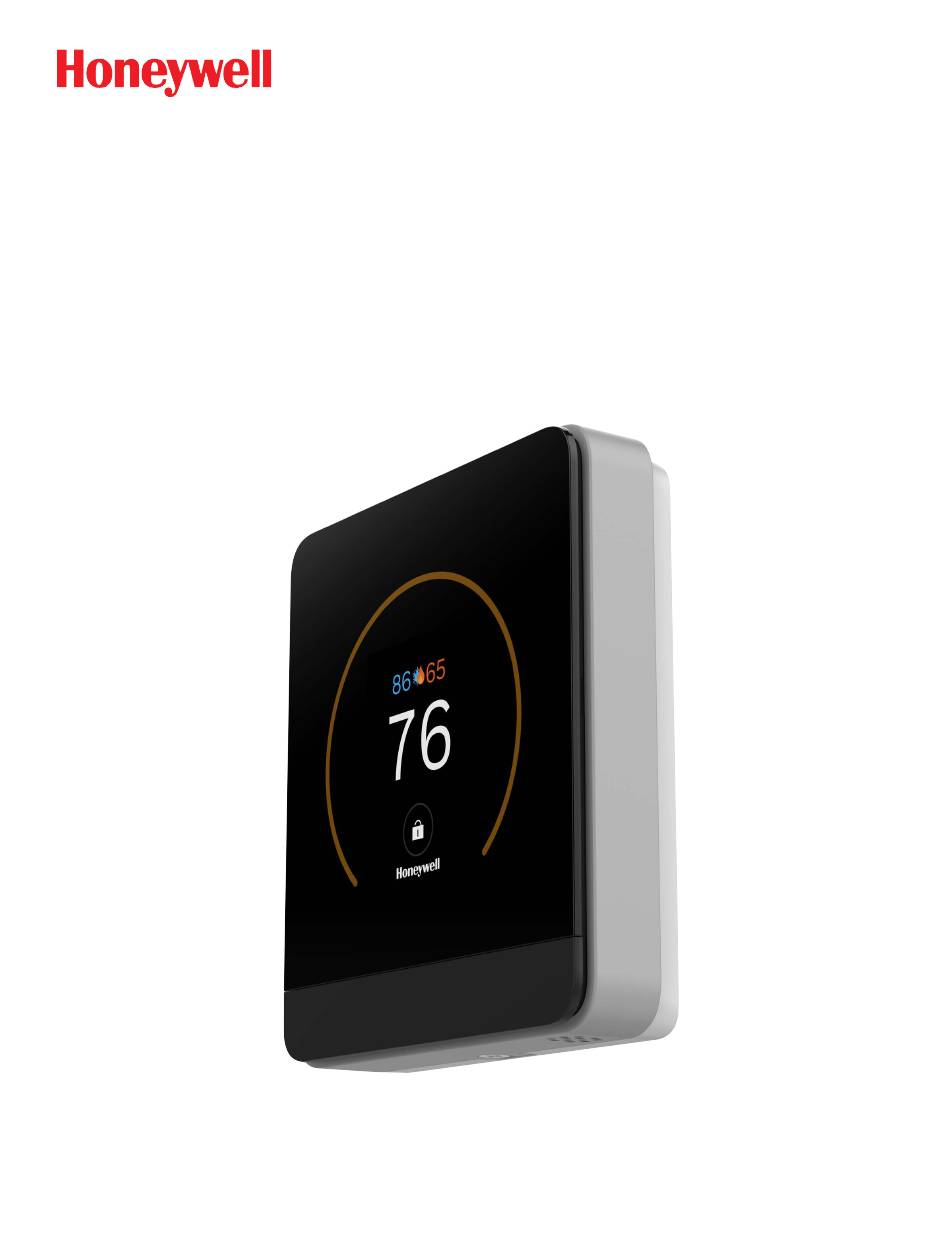

TC300 Thermostats
Modbus Integration Guide
® U.S. Registered Trademark
Copyright © 2025 Honeywell Inc. • All Rights Reserved
31-00670-04 | Rev. 06-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Honeywell TC300

Summary of Contents for Honeywell TC300

  • Page 1 TC300 Thermostats Modbus Integration Guide ® U.S. Registered Trademark Copyright © 2025 Honeywell Inc. • All Rights Reserved 31-00670-04 | Rev. 06-25...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Declaration ............................5 Waste Electrical and Electronic Equipment (WEEE) ..........5 FCC Part 15 compliant ......................5 Regulation (EC) No 1907/2006 ..................6 Important Safety Information and Installation Precautions........6 Chapter 1 - Introduction .................. 9 Scope of the document ......................9 Reference documents......................
  • Page 4 TC300 THERMOSTATS MODBUS INTEGRATION GUIDE Fan configuration........................35 Fan speed by operating mode..................35 IO configuration........................38 Chapter 4 - Common configuration............41 Device............................42 Equipment ..........................44 General ............................48 Setpoints...........................48 Residential Setpoints......................50 Fixed Setpoints........................51 Indoor temperature limits....................52 IO assignment ........................53 IO status............................57 Internet weather info ......................58 Multi-sensor settings ......................58...

  • Page 5: Declaration

    In no event is Honeywell liable to anyone for any direct, special, or consequential damages. The information and specifications in this document are subject to change without notice.

  • Page 6: Regulation (Ec) No 1907/2006

    TC300 thermostats Mounting Instructions (31- 00642) are to be observed. • TC300 thermostats may be installed and mounted only by authorized and trained personnel. • It is recommended that devices be kept at room temperature for at least 24 hours before applying power.
  • Page 7 TC300 thermostats are independently mounted electronic control system with fixed wiring. TC300 thermostats are used for the purpose of building HVAC control and is suitable for use only in non-safety controls for installation on or in appliances. TC300 Thermostats Modbus Integration Guide...
  • Page 8 TC300 Thermostats Modbus Integration Guide...

  • Page 9: Chapter 1 - Introduction

    Objects and the properties of the thermostat that help engineers to integrate and configure the settings via a Modbus tool. Reference documents • TC300 Commercial Thermostats User Guide (31-00644) • TC300 Commercial Thermostats Datasheet (31-00645) • TC300 Commercial Thermostats Mounting Instructions (31-00642) •...

  • Page 10: Terms, Acronyms, And Abbreviations

    Terms, Acronyms, and Abbreviations Table 1 Terms, Acronyms, and Abbreviations Term, Acronym, Abbreviation Definition Universal Input Universal Input/Output Digital Output Configuration Building Automation System Network Input Network Output Network Configuration Terms, Acronyms, and Abbreviations...

  • Page 11: Configuring Modbus Connection

    Configuring Modbus connection The Modbus network can be configured while setting up the thermostat. Refer to the TC300 commercial thermostats user guide - 31-00644 or follow the steps below. To connect thermostat via Modbus 1. Swipe left from the Home screen.
  • Page 12 TC300 thermostats start to detect there is data communication from Modbus master. If there is no right baud rate matched during this 5 minutes, TC300 thermostats will work as the last-detected baud rate, or default to 19200 bps.
  • Page 13 Parity: None/Even/odd (Default: Even) • Notes: — Both Modbus word order and Byte order are big-endian. — The value of float type data stored in Modbus is an integer value of the real value enlarged by 1/scale, so it is equal to the true value divided by the value of the scale.
  • Page 14 Configuring Modbus connection...

  • Page 15: Chapter 2 - Terminal Input And Network Output

    CHAPTER TERMINAL INPUT AND NETWORK OUTPUT Topics covered Sensor objects Heating, cooling, and fan status Alerts objects Other thermostat parameters Sylk sensor Schedule...

  • Page 16: Sensor Objects

    Sensor objects Table 2 Sensor objects *Note: Supported only in TC3XXB models Register Count = 1 Access = Read Memory Type = Volatile Register Name Range Default Scaling Description Address Type Close = 0 6501 ChangeoverSwitch Discrete 2-Pipe changeover switch Input Open = 1 status...
  • Page 17 Table 3 Heating, cooling, and fan status (Continued) *Note: Supported only in TC3XXB models Register Count=1 Access = Read Memory Type = Volatile Register Name Range Scaling Description Address Type 6004 Cooling Valve (ON/Off) Discrete Off = 0 Cooling on/off valve output status Input On = 1 6005...

  • Page 18: Alerts Objects

    Alerts objects Table 4 Alert objects *Note: Supported only in TC3XXB models Register Count = 1 Memory Type = Volatile Scaling = 1 Register Name Access Range Description Address Type Inactive = 0 7002 Proof of Air Discrete Read Supply fan status mismatch alarm Flow Alarm Input Active = 1...
  • Page 19 Table 4 Alert objects (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Memory Type = Volatile Scaling = 1 Register Name Access Range Description Address Type Humidity Input Read BIT0 = Inactive High Priority: Sensor BIT1 = High 1.
  • Page 20 Table 4 Alert objects (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Memory Type = Volatile Scaling = 1 Register Name Access Range Description Address Type Outdoor Air Input Read Inactive = 1 High priority: Outdoor air sensor Medium = 2 Temp Sensor failure.
  • Page 21 Table 4 Alert objects (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Memory Type = Volatile Scaling = 1 Register Name Access Range Description Address Type 2942 Room Temp Holding Read/ BIT0 = shutdown all digital BIT 0 False - Don't shut down all Trend Config Write outputs On off...

  • Page 22: Other Thermostat Parameters

    Other thermostat parameters Table 5 Other thermostat parameters *Note: Supported only in TC3XXB models Access = Read Memory Type = Volatile Register Register Name Range Scaling Description Address Type Count 7067 Customized1Digi Discrete Off = 0 Customized1 sensor talOutput Input On = 1 digital output Customized1Volt...
  • Page 23 Table 5 Other thermostat parameters (Continued) *Note: Supported only in TC3XXB models Access = Read Memory Type = Volatile Register Register Name Range Scaling Description Address Type Count Effective Input Commercial Effective occupancy Occupancy State Occupied = 1 state Unoccupied = 2 Bypass = 3 Standyby = 4 NoOverride = 5...
  • Page 24 Table 5 Other thermostat parameters (Continued) *Note: Supported only in TC3XXB models Access = Read Memory Type = Volatile Register Register Name Range Scaling Description Address Type Count Effective Input CoolMode = 1 Effective Temperature Temperature ReheatMode = 2 Mode Mode HeatMode = 3 EmergencyHeat = 4*...
  • Page 25 Table 5 Other thermostat parameters (Continued) *Note: Supported only in TC3XXB models Access = Read Memory Type = Volatile Register Register Name Range Scaling Description Address Type Count Current Schedule Input Commercial Current Schedule State Occupied = 1 to Network Unoccupied = 2 Bypass = 3 Standyby = 4...
  • Page 26 Table 5 Other thermostat parameters (Continued) *Note: Supported only in TC3XXB models Access = Read Memory Type = Volatile Register Register Name Range Scaling Description Address Type Count Terminal Load Input -200 to 200 % Common terminal load Output output for heating and cooling.

  • Page 27: Sylk Sensor

    Sylk sensor Table 6 Sylk sensor Register Type = Input Register Count = 1 Access = Read Memory Type = Volatile Reg Address Name Range Scaling Description Sylk2Temp -40 to 150°F 0.01 °F TR40-H-CO2: Temperature (-40 to 65°C) (May also use models TR40, TR40-H, TR40-CO2, TR40-H-CO2) Sylk2Hum 0 to 100RH%...
  • Page 28 Table 7 Schedule Register Type = Input Register Count = 1 Access = Read/Write Memory Type = Volatile Scaling = 1 Reg Address Name Range Description Commercial Residential Schedule Time To Next 1 to 11520 minutes Time to next schedule state 5072 Schedule Vacation System Off=0...

  • Page 29: Chapter 3 - Application Configuration

    CHAPTER APPLICATION CONFIGURATION Topics covered Aux heat configuration Compressor Cooling and Heating advanced settings Hum Config Dehumidification Fan configuration Fan speed by operating mode IO configuration...

  • Page 30: Aux Heat Configuration

    Aux heat configuration Table 8 Aux heat configuration Register Count = 1 Memory Type = Non Volatile Access = Read/Write Register Name Range Scaling Description Address Type Off = 0 5039 Auxiliary Heat Coil Auxiliary heat enable Enable On = 1 (Default 0) Peripheral = 1 2903...

  • Page 31: Compressor

    Compressor Table 9 Compressor *Note: Supported only in TC3XXB models Register Count = 1 Memory Type = Non Volatile Access = Read/Write Register Name Range Scaling Description Address Type 2954* Compressor Delay Holding 15 to 120 seconds Compressor delay time value. (Default 90 seconds) 3051* Compressor OAT...
  • Page 32 Table 10 Cooling and Heating advanced settings (Continued) *Note: Supported only in TC3XXB models Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3058* Heating Min On 0 to 300 seconds 120 seconds 1 second...
  • Page 33 Table 10 Cooling and Heating advanced settings (Continued) *Note: Supported only in TC3XXB models Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3051* EnableCompres Disable = 0 Enable compressor outdoor sorOATLockout Enable = 1...

  • Page 34: Hum Config

    Hum Config Table 11 Hum config *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Scaling Description Address Type Off = 0 5056* Humidification Enable Coil Humidification enable. On = 1 (Default 0) 2062*...

  • Page 35: Fan Configuration

    Fan configuration Table 13 Fan configuration Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 2012 Fan Type SingleSpeed = 1 Fan can be configured as TwoSpeed = 2 single speed, 2 speed or as a ThreeSpeed = 3 variable speed fan.
  • Page 36 Table 14 Fan speed by operating mode (Continued) *Note: Supported only in TC3XXB models Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3762 Residential Fan Speed Fixed = 1 User can select Auto Control = 2...
  • Page 37 Table 14 Fan speed by operating mode (Continued) *Note: Supported only in TC3XXB models Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3570 Variable Speed Fan Vent 0 to 100 % 0.01% Variable speed...

  • Page 38: Io Configuration

    IO configuration Table 15 IO configuration *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type NormallyOpen = 0 4031 Occupancy Coil Occupancy sensor sensor type NormallyClosed = 1 input characteristics...
  • Page 39 Table 15 IO configuration *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 2905 Pipe sensor type Holding NTC10K Type II = 1 Pipe sensor type NTC10K Type III = 2 NTC20K = 3...
  • Page 40 Table 15 IO configuration *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 2746 Customized2Volt Holding 1 to 10 0.01 Customized2 ageMaxInput maximum voltage input for the sensor.

  • Page 41: Chapter 4 - Common Configuration

    CHAPTER COMMON CONFIGURATION Topics covered Device Equipment General Setpoints Residential Setpoints Fixed Setpoints Indoor temperature limits IO assignment IO status Multi-sensor settings Occupancy setpoints Special functions Service mode Discharge air control Sylk calibration offsets Sensor fault settings Sylk sensor configuration User permission Operating settings...

  • Page 42: Device

    Device Table 16 Device Scaling = 1 Register Memory Name Access Range Description Address Type Count Type Not Configured = 0 5500 Device Coil Read/ Device Configured Write Volatile Configured = 1 configured (Default 0) BIT1 = Time 3408 Display Options Holding Read/ Display options...
  • Page 43 Table 16 Device (Continued) Scaling = 1 Register Memory Name Access Range Description Address Type Count Type 3823 Custom Brand Holding Read/ Custom brand Name Write Volatile name configuration 3865 Residential Holding Read/ Residential Custom Event Write Volatile schedule Name custom event name configuration...

  • Page 44: Equipment

    Equipment Table 17 Equipment *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type FanCoil = 1 2007* Equipment Type Holding Equipment Conventional = 2 type.
  • Page 45 Table 17 Equipment (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 2575 Fan Coil Type Holding 4 PipeDualCoil = 1 Fan coil type 4PipeSingleCoil = 2 2PipeSingleCoil = 3 2576...
  • Page 46 Table 17 Equipment (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 4453* FanCoilHtgFloatingS Coil Disable = 0 4 pipe dual Enable = 1 yncEn coil floating heating sync...
  • Page 47 Table 17 Equipment (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 5037 Six-way Valve Output Coil 0-10V = 0 6-way valve 2-10V = 1 type 5038...

  • Page 48: General

    12 Hour = 0 Time format Format 24 Hour = 1 2505 Brand Type Holding Honeywell = 1 Vendor ID and vendor name will be Alerton = 2 changed when modify brand type. None = 3 Custom = 4 English = 1...
  • Page 49 Table 19 Setpoints (Continued) Register Count = 1 Register Memory Name Access Range Scaling Description Address Type Type Commercial Setpoint Status Input Read Volatile When the setpoint is Occupied = 1 adjusted by user, Unoccupied = 2 no_setpointsts Bypass = 3 shifts to Standyby = 4 ‘Temporary’.

  • Page 50: Residential Setpoints

    Residential Setpoints Table 20 Residential Setpoints Register Count = 1 Register Memory Name Access Range Scaling Description Address Type Type 2758 Residential Wake Holding Read/ 40 to 90 °F 0.01 °F User can set the Heat Setpoint Write Volatile (5 to 32 °C) residential heat (Default 68) setpoint in wake...

  • Page 51: Fixed Setpoints

    Table 20 Residential Setpoints (Continued) Register Count = 1 Register Memory Name Access Range Scaling Description Address Type Type 2769 Residential Holding Read/ 50 to 99 °F 0.01 °F User can set the Vacation Cool Write Volatile (10 to 37 °C) residential cool Setpoint (Default 82)

  • Page 52: Indoor Temperature Limits

    Indoor temperature limits Table 22 Indoor temperature limits Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 0.01°F Name Range Default Description Address 3254 IndoorTempHighLimit 90 to 150 °F 90 °F Space temperature alarm high limit (33 to 65°C) (32.2 °C)

  • Page 53: Io Assignment

    IO assignment Table 23 IO assignment Note: *Supported in TC3XXB models, not in TC3XXC models. Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Reg Address Name Range Default Description 2026 UIO1 None = 1...
  • Page 54 Table 23 IO assignment (Continued) Note: *Supported in TC3XXB models, not in TC3XXC models. Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Reg Address Name Range Default Description 2904 UIO3 None = 1 None = 1...
  • Page 55 Table 23 IO assignment (Continued) Note: *Supported in TC3XXB models, not in TC3XXC models. Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Reg Address Name Range Default Description 2029 None = 1 None = 1 HeatingFloatingClose = 7*...
  • Page 56 Table 23 IO assignment (Continued) Note: *Supported in TC3XXB models, not in TC3XXC models. Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Reg Address Name Range Default Description 2031 None = 1 None = 1 CoolingFloatingClose = 8*...

  • Page 57: Io Status

    IO status Table 24 IO status Register Count = 1 Access = Read/Write Memory Type = Volatile Register Reg Address Name Range Scaling Description Type UIO3 Output Input -40 to 260 0.01 Universal output shared to network. UIO1 Output Input -40 to 260 0.01 Universal output shared to...

  • Page 58: Internet Weather Info

    Table 24 IO status (Continued) Register Count = 1 Access = Read/Write Memory Type = Volatile Register Reg Address Name Range Scaling Description Type 3505 DO3 Output Holding enum {OFF = The user can set the output state Modbus Input 0, ON = of DO3 through Modbus 1,Invalid=327...
  • Page 59 Table 26 Multi-sensor settings (Continued) Register Count=1 Access=Read/Write Memory Type=Non Volatile Register Type=Holding Name Range Default Scaling Description Address 3034 Address 2 Temp Weight 0 to 10 0.01 A weighted average allows individual sensors to have more influence on the average calculation.

  • Page 60: Occupancy Setpoints

    Occupancy setpoints Table 27 Occupancy setpoints Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 0.01 Reg Address Name Range Default Description 3007 Occupied Heat Setpoint 40 to 99 °F 68°F Occupied heating setpoint (5 to 37 °C) (20°C)
  • Page 61 Table 28 Special functions (Continued) Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 2945 CoolTime Out Holding 1 to 4 hours 0.01 When heating/ hour cooling keep working for timeout time check whether pipe temperature meet...

  • Page 62: Service Mode

    Service mode Table 29 Service mode *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Volatile Register Name Range Default Scaling Description Address Type NoOverride = 0 4006 SeviceModeEn Coil Service mode network Service = 1 input to felicitate installer during...
  • Page 63 Table 29 Service mode (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Volatile Register Name Range Default Scaling Description Address Type 5045 ServiceChangeOver Coil Off = 0 Changeover valve status On = 1 when service mode is enabled.

  • Page 64: Discharge Air Control

    Discharge air control Table 30 Discharge air control Register Count = 1 Access = Read/Write Memory Type = Non Volatile Register Name Range Default Scaling Description Address Type 3623 Discharge Air Holding 75 to 180 °F 85 °F 0.01°F Discharge air control Heat Setpoint (24 to 82 °C) (29.4 °C)
  • Page 65 Table 31 Sylk calibration offsets (Continued) Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3100 Sylk Addr.2 CO2 Offset -100 to 0.01 TR40_2 CO2 calibration 100ppm offset Δ...

  • Page 66: Sensor Fault Settings

    Sensor fault settings Table 32 Sensor fault settings *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Register Name Range Default Description Address Type Disable = 0 4159 Occupancy Sensor Fail Coil Occupancy sensor fail...

  • Page 67: Sylk Sensor Configuration

    Sylk sensor configuration Table 33 Sylk sensor configuration Register Count = 1 Access = Read/Write Memory Type = Non Volatile Scaling = 1 Register Name Range Default Description Address Type 3732 Sylk Addr.2 Sensor Holding TR40 = 1 Sylk bus addr-2 device type Type TR50 = 2 2085...

  • Page 68: Operating Settings

    Table 34 User permission (Continued) Register Type = Holding Register Count = 1 Access = Read/Write Memory Type = Non Volatile Name Range Default Scaling Description Address 3406 Visitor Permission None 0xffff Visitor Permission. 0xFFFF indicates 0b11111111111111111. Enabling a bit in the range enables corresponding permission.

  • Page 69: Chapter 5 - Network Inputs & Outputs

    CHAPTER NETWORK INPUTS & OUTPUTS Topics covered Network Network inputs...

  • Page 70: Network

    Network Table 36 Network Register Count = 1 Access = Read/Write Memory Type = Volatile Register Name Range Default Scaling Description Address Type WIFI RSSI Input WiFi RSSI (Received Signal (Applicable only to Strength TC320B-G/ Indicator) value. TC320C-G thermostats) Network...

  • Page 71: Network Inputs

    Network inputs Table 37 Network inputs *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Volatile Range Default Scaling Description Register Name Address Type Commercial Residential 2801 Current Holding Occupied = 1 Wake = 1 Current schedule Schedule Unoccupied = 2...
  • Page 72 Table 37 Network inputs (Continued) *Note: Supported only in TC3XXB models Register Count = 1 Access = Read/Write Memory Type = Volatile Range Default Scaling Description Register Name Address Type Commercial Residential 2080 SpaceRH Holding 0 to 100 RH% 0.01% Space humidity network input 2104...
  • Page 74 ™ Honeywell | Building Automation 715 Peachtree Street, N.E., Atlanta, GA 30308, United States. ® U.S. Registered Trademark © 2024 Honeywell International Inc. Buildings.honeywell.com 31-00670-04 | Rev. 06-25...
