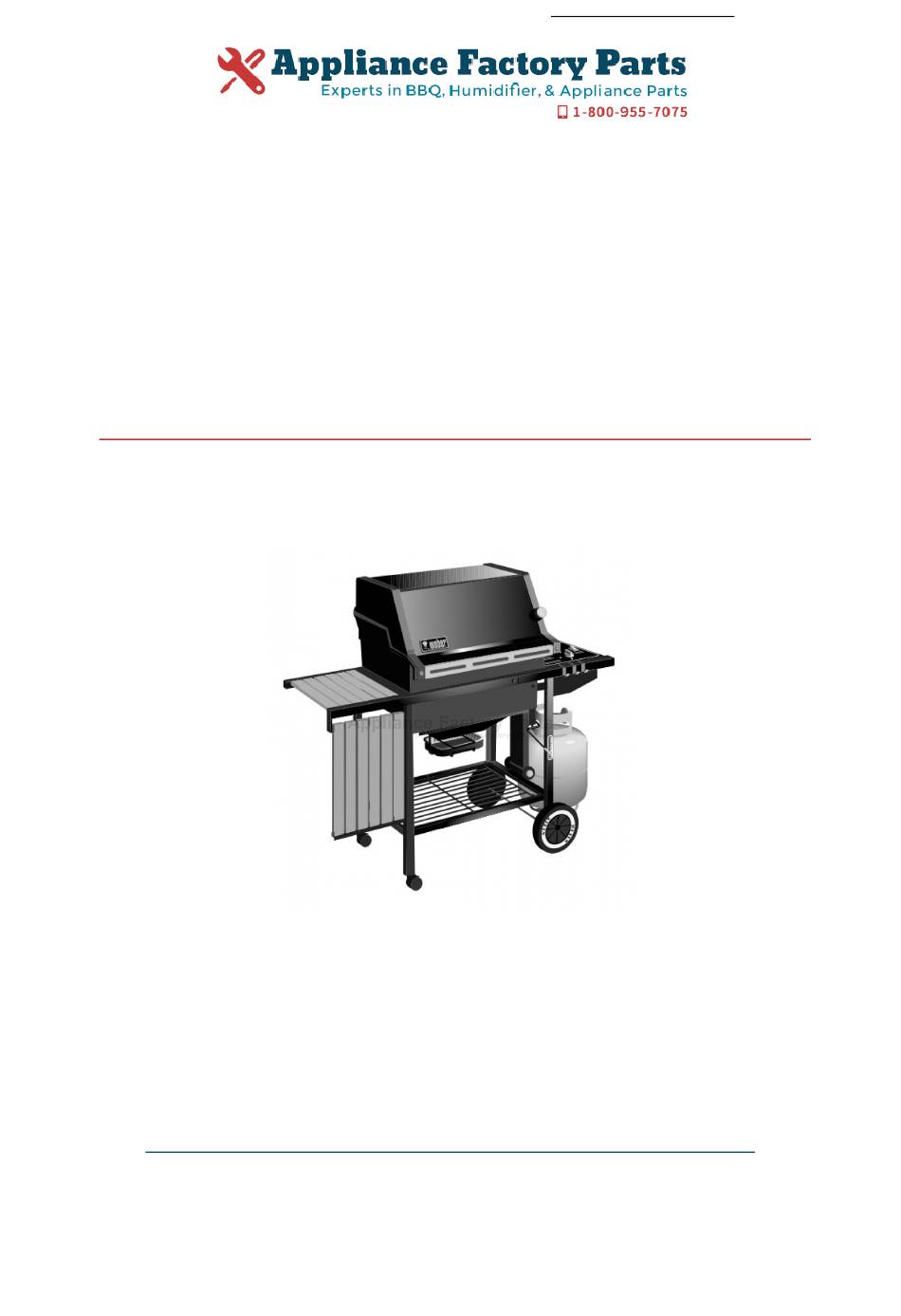

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Weber 21000 Owner's Manual Shop genuine replacement parts for Weber 21000 Find Your Weber Grill Parts - Select From 2037 Models -------- Manual continues below part list --------...
  • Page 2 Available Replacement Parts for Weber 21000 20428 BURNER TUBE GRP GOLD/PLAT IGNITER KIT GEN/SPI/PLAT 00 9813 Flavorizer Bars for Genesis 65570 HOSE&REG LP 10.5WC QCC1 21" 7106 GRILL COVER, After Market Cover...

  • Page 3: For Your Safety

    Serial Number Please use this number in registering your warranty and any correspondence with the factory. GENESIS ® 1000 Series LP Gas Barbecue Owner’s Manual ® National PROPANEGAS Association WARNING: Follow all leak check procedures FOR YOUR SAFETY carefully in this manual prior to barbecue 1.

  • Page 4: Warnings

    Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before using. See instructions in this manual for correct procedures.

  • Page 5: Warranty & Patents

    There are no other express warrants except as warrants to the ORIGINAL PURCHASER of this set forth herein and any applicable implied Weber Gas Barbecue that it will be free of warranties of merchantability and fitness are defects in material and workmanship from the...

  • Page 6: Patents And Trademarks

    , Genesis, Flavorizer and Crossover are registered U.S. trademarks; Perma-Mount, Gas Catcher, FlameCheck, Steam-N-Chips, Spider Stopper, and Warm-Up are U.S. trademarks of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266. U.S.A. Genesis Gas Barbecues are covered under the following patent nos.: U.S.A. #4,677,964;...

  • Page 7: Table Of Contents

    Rapid read thermometer for precision cooking IMPORTANT NEW FEATURES: measures grill temperature, and can be removed and Your Weber Gas Barbecue is equipped with a new and inserted into the food. improved LP tank connection, that has additional d) Heavy gauge steel Flavorizer Bars distribute heat safety features.

  • Page 8: General Instructions

    The Weber Gas Barbecue is portable so you can easily stored outdoors in a well-ventilated space. change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if LP tanks must be stored outdoors in a well-ventilated you move.

  • Page 9: Assembly

    While we give much attention to our products, Bottom tray unfortunately an occasional error may occur. If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-800-446-1071 to receive immediate assistance. Have your owner’s manual and serial number of the barbecue available for reference.
  • Page 10 Left frame Five long Flavorizer Bars Eight short Flavorizer Bars Right frame Tank panel assembly Wheel frame Front panel Caster frame Catch pan holder Two frame connectors Catch pan Work table Two drip pans Swing table assembly Manifold bracket Support rod Thermometer Axle Two wheels...
  • Page 11 Check contents of hardware packs Two plastic buttons (actual size) Three burner control knobs 1/4-20 keps nut Three tool holders Two 1/4-20 wing nuts (actual size) Five tubing plugs (two are spares) Fourteen 1/4 inch nylon washers Support rod holder Two hair pin cotters Swing table end bracket Two wheel hubcaps...

  • Page 12: Assemble Wheels

    Tap on one hubcap. boxes) to protect the finish during frame assembly. Put one wheel on the axle, WEBER side toward the Lay the leg pieces as shown so the leg tabs point up. hubcap. Slide the axle through the frame. Add the other Figure 2.

  • Page 13: Continue Frame Assembly

    Step 4 Step 5 Continue frame assembly Complete frame assembly You will need: caster frame, wheel frame, four 1/4-20 x 1/2 You will need: partial frame assembly, two frame inch bolts, four nylon washers and a 7/16 inch wrench. connectors, four 1/4-20 x 2 inch bolts, four nylon washers and a 7/16 inch wrench.

  • Page 14: Insert Casters

    Step 6 Step 7 Insert casters Add front panel You will need: frame assembly and two casters. You will need: front panel and two plastic buttons. Push the casters firmly into the inserts in the ends of the Turn frame assembly right side up. caster legs.
  • Page 15 Step 8 Your Weber Gas Barbecue burner assembly has been factory assembled, pressure and flame tested. As a safety Add cooking box precaution we recommend you check the burner alignment: You will need: frame assembly, cooking box (assembly), a) Do the valves fit into the ends of the burners? 1/4-20 x 2 inch bolt, 1/4 inch nylon washer, 1/4-20 keps nut, Figure 9 (a).
  • Page 16 Step 9 Step 10 Install manifold bracket Install tank panel assembly You will need: manifold bracket You will need: tank panel assembly, 1/4-20 x 1 1/4 inch bolt, 1/4-20 hex nut, nylon washer and a 7/16 inch wrench. Hook the bracket onto the manifold at the center burner valve.

  • Page 17: Install Igniter

    Step 11 Step 12 Add fuel scale assembly Install igniter You will need: fuel scale assembly, two 1/4-20 wing nuts Note - The igniter wires are already attached to the Gas and two nylon washers. Catcher Ignition Chamber and the igniter. This was done to factory test the ignition system.
  • Page 18 If the tank manufacturer has not resolved the issue to valve.) One series of tanks mounts with the valve facing your satisfaction, then call Weber-Stephen Products Co., front. The other tanks mount with the valve facing away Customer Service Center.
  • Page 19 Step 15 Route the hose so it will not interfere with the scale indicator rod. Check that all burner valves are off The hose and regulator are connected in the following You will need: one burner control knob. manner: Valves are shipped in the OFF position, but you should Slide back the collar of the quick disconnect on the tank check to be sure.
  • Page 20 The burners have been flame Service. tested. As a safety precaution you should recheck all fittings for leaks before using your Weber Gas Barbecue. When leak checks are complete, turn gas supply OFF at Shipping and handling may have loosened or damaged a the source and rinse connections with water.

  • Page 21: Install Flavorizer Bars And Cooking Grates

    Step 18 Step 19 Install the bottom tray Install Flavorizer Bars and Cooking Grates You will need: bottom tray, catch pan holder, catch pan and You will need: five long Flavorizer Bars, eight short one drip pan. Flavorizer Bars and two cooking grates. Set the long Flavorizer Bars side to side in the lower position, then set the short Flavorizer Bars front to back in the upper position in the cooking box.

  • Page 22: Install Lid

    Step 20 Step 21 Install Lid Add tool holders, control panel and burner control knobs You will need: lid, two hinge pins and two hair pin cotters. You will need: three tool holders, control panel, two Set the lid in place. Align the hinges at the rear of the Phillips screws/washers, a Phillips screwdriver, and three barbecue.
  • Page 23 Step 22 Insert one end of the hinge rod into the hole in the frame. Figure 29 (a). Install swing table Insert the other end into the hole in the swing table end You will need: swing table assembly, support rod, support bracket.
  • Page 24 Insert one end of the Weber Warm-Up Basket into the hole in the right end of the lid and the other end into the slot in the left end of the lid. Figure 30 (a).

  • Page 25: Operating Instructions

    4) Turn the tank on by turning the tank valve found to be damaged in any way, do not use the counterclockwise. barbecue. Replace using only Weber authorized replacement manifold assembly. Order from Weber- WARNING: Do not lean over open barbecue. Keep Stephen Products Co., Customer Service Center or...

  • Page 26: Manual Lighting

    Manual Lighting 4) Turn the tank on by turning the tank valve counterclockwise. DANGER 5) Strike a match and put the flame into the matchlight Failure to open lid while igniting the hole in the front of the cooking box. barbecue, or not waiting 5 minutes to WARNING: Do not lean over open barbecue.

  • Page 27: Cooking

    The control settings High (H), Medium (M), Low gas leaks and any obstructions in the burner tubes (L), or Off (O) are described in your Weber cookbook. The before using. (See Sections "General and Annual cookbook uses these notations to describe the settings of Maintenance.")

  • Page 28: Refilling The Lp Tank

    Refilling the LP tank Connecting the filled LP tank WARNING: Make sure that the LP tank valve is We recommend that you refill before the scale indicator closed. Close by turning clockwise. reaches "E". Note - If you run out of fuel, check the indicator setting DANGER and/or adjust the fuel scale indicator setting with the scale Do not use an open flame to check for gas...
  • Page 29 Figure 5 (a). Push the male fitting of the If leak does not stop, turn off the gas and contact regulator into the quick disconnect, and maintain Weber-Stephen Customer Service. Do not use the pressure. Slide the collar closed. Figure 5 (b). If it does barbecue.

  • Page 30: Safe Handling Tips For Lp Gas

    The LP tank and connections supplied with your Liquid Propane (LP) gas is a petroleum product as are Weber Gas Barbecue have been designed and tested gasoline and natural gas. LP gas is a gas at regular to meet government, American Gas Association and temperatures and pressures.

  • Page 31: Annual Maintenance

    Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows there is a leak. Inspection and Cleaning of the Weber Spider Note - Since some leak test solutions, including soap and Stopper Guards...

  • Page 32: General Maintenance

    Weber Spider Stopper Guards for the correct air and gas mixture. The correct flame Your Weber Gas Barbecue, as well as any outdoor gas pattern is shown in Figure 11. appliance, is a target for spiders and other insects. They Tips occasionally yellowish can nest in the venturi section of the burner tubes.
  • Page 33 d) Unlatch the Spider Stopper Guards and remove. g) Lift and twist the burner assembly slightly, to separate Figure 14. the crossover tube from the burners. Figure 17. Remove the burners from the cooking box. Crossover tube Figure 14 Figure 17 e) Remove the manifold bracket and unscrew the two h) To reinstall the burners, reverse steps c) through g).

  • Page 34: Crossover Ignition System Operations

    Figure 19 CAUTION: If the Spider Stopper Guards do not fit Figure 20 tightly, contact Weber-Stephen Customer Service. Check that the Crossover Ignition button pushes the WARNING: After reinstalling the gas lines, they igniter (button) down, and returns to the up position.

  • Page 35: Troubleshooting

    Check adjustment of fuel scale. Fuel scale must be adjusted with Fuel scale shows that there is gas in the LP an empty tank. tank, but tank is empty. If problems cannot be corrected by using these methods, please contact Weber-Stephen Customer Service.
  • Page 36 13-14 61-62 10,14...

  • Page 37: Parts Listing

    If a part is Parts can be ordered directly from Weber-Stephen missing, do not go back to the store. Call the Weber Products Company by phone or mail. Customer Service Center toll free 1-800-446-1071 to receive immediate assistance.
  • Page 38 INAL HANKS hank you for choosing a Weber Barbecue. Our family here at Weber has worked hard to produce the highest quality products for your satisfaction. While we give much attention to our products, an occasional error may occur. Our knowledgeable Customer Service staff is prepared to help you with any problems with parts or assembly.
