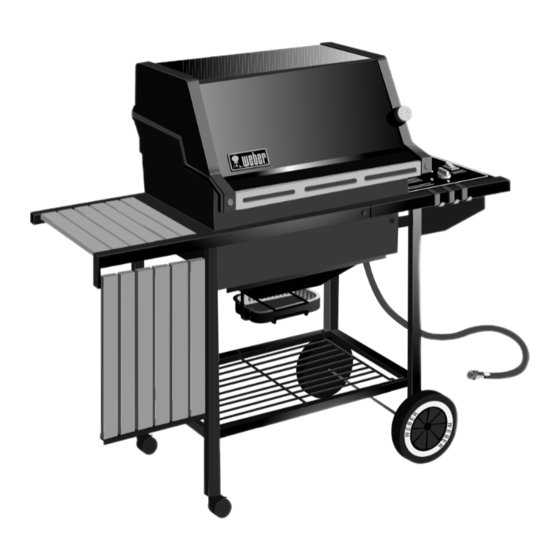

GENESIS
Natural Gas Barbecue
Owner's Manual
®
WARNING: Follow all leak check procedures
carefully in this manual prior to barbecue
operation. Do this even if barbecue was
dealer assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
1000 Series
®
Get other manuals https://www.bkmanuals.com
Serial Number
Please use this number in registering your warranty and
any correspondence with the factory.
WARNING: Do not try to light this appliance
without reading "Lighting" instructions
section of this manual.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
98613
10/97

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENESIS 1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber GENESIS 1000 Series

Summary of Contents for Weber GENESIS 1000 Series

  • Page 1 Serial Number Please use this number in registering your warranty and any correspondence with the factory. GENESIS 1000 Series ® Natural Gas Barbecue Owner’s Manual ® WARNING: Do not try to light this appliance WARNING: Follow all leak check procedures without reading "Lighting"...

  • Page 2: Warnings

    Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before using. See instructions in this manual for correct procedures.

  • Page 3: Warranty & Patents

    There are no other express warrants except as warrants to the ORIGINAL PURCHASER of this set forth herein and any applicable implied Weber Gas Barbecue that it will be free of warranties of merchantability and fitness are defects in material and workmanship from the...
  • Page 4 , Genesis, Flavorizer and Crossover are registered U.S. trademarks; Perma-Mount, Gas Catcher, FlameCheck, Steam-N-Chips, Spider Stopper, and Warm-Up are U.S. trademarks of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266. U.S.A. Genesis Gas Barbecues are covered under the following patent nos.: U.S.A. #4,677,964;...

  • Page 5: Table Of Contents

    Troubleshooting..........29 Parts Listing .............. 31 FEATURES: a) Convenient tables and racks. e) Weber Warm-Up Basket for additional cooking or warming space. b) Heavy gauge porcelain-on-steel lid seals in heat. Separate burners for temperature control. c) Rapid read thermometer for precision cooking...

  • Page 6: General Instructions

    The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if Operating area you move.

  • Page 7: Assembly

    While we give much attention to our products, Two cooking grates unfortunately an occasional error may occur. If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-800-446-1071 to receive immediate assistance. Have your owner ’s manual and serial number of the barbecue available for reference.
  • Page 8 Left frame Five long Flavorizer Bars Eight short Flavorizer Bars Right frame Front panel Wheel frame Catch pan holder Caster frame Catch pan Two frame connectors Two drip pans Work table Manifold bracket Swing table assembly Thermometer Support rod Two wheels Axle Two casters Accessory rack...
  • Page 9 Check contents of hardware packs Two plastic buttons (actual size) Three burner control knobs 1/4-20 keps nut Three tool holders Eleven 1/4 inch nylon washers Five tubing plugs (two are spares) Two hair pin cotters Support rod holder Two wheel hubcaps Swing table end bracket Two Phillips screws/washers Two hinge pins...
  • Page 10 Tap on one hubcap. Put one wheel on the axle, WEBER side toward the Lay the leg pieces as shown so the leg tabs point up. hubcap. Slide the axle through the frame. Add the other Figure 2.
  • Page 11 Step 4 Step 5 Continue frame assembly Complete frame assembly You will need: caster frame, wheel frame, four 1/4-20 x 1/2 You will need: partial frame assembly, two frame connectors, inch bolts, four nylon washers and a 7/16 inch wrench. four 1/4-20 x 2 inch bolts, four nylon washers and a 7/16 inch wrench.
  • Page 12 Step 6 Step 7 Insert casters Add front panel You will need: frame assembly and two casters. You will need: front panel and two plastic buttons. Push the casters firmly into the inserts in the ends of the Turn frame assembly right side up. caster legs.
  • Page 13 Step 8 Your Weber Gas Barbecue burner assembly has been factory assembled, pressure and flame tested. As a safety Add cooking box precaution we recommend you check the burner alignment: You will need: frame assembly, cooking box assembly, a) Do the valves fit into the ends of the burners? 1/4-20 x 2 inch bolt, nylon washer, 1/4-20 keps nut, pliers Figure 9 (a).
  • Page 14 Step 9 Step 10 Install manifold bracket Install igniter You will need: manifold bracket Note - The igniter wires are already attached to the Gas Catcher Ignition Chamber and the igniter. This was done to Hook the bracket onto the manifold at the center burner factory test the ignition system.
  • Page 15 Step 11 Typical natural gas supply installation. Figure 12. Gas supply Install gas supply Inside wall General Specifications for Piping Note - Contact your local municipality for building Outside wall codes regulating outdoor gas barbecue installations. In absence of Local Codes, you must conform to the Shut off latest edition of ANSI Z223.1.
  • Page 16 Step 12 Step 13 Check that all burner valves are off Connect flexible hose to manifold You will need: one burner control knob. You will need: the 12 foot natural gas supply hose and a 3/4 inch wrench. Valves are shipped in the OFF position, but you should check to be sure.
  • Page 17 When leak checks are complete, turn gas supply OFF at tested. As a safety precaution you should recheck all the source and rinse connections with water. fittings for leaks before using your Weber Gas Barbecue. Shipping and handling may have loosened or damaged a gas fitting.
  • Page 18 Step 15 Step 16 Install the bottom tray Install Flavorizer Bars and Cooking Grates You will need: bottom tray, catch pan holder, catch pan and You will need: five long Flavorizer Bars, eight short one drip pan. Flavorizer Bars and two cooking grates. Set the long Flavorizer Bars side to side in the lower position, then set the short Flavorizer Bars front to back in the upper position in the cooking box.
  • Page 19 Step 17 Step 18 Install Lid Add tool holders, control panel and burner control knobs You will need: lid, two hinge pins and two hair pin cotters. You will need: three tool holders, control panel, two Set the lid in place. Align the hinges at the rear of the Phillips screws/washers, a Phillips screwdriver, and three barbecue.
  • Page 20 Step 19 Insert one end of the hinge rod into the hole in the frame. Figure 25 (a). Install swing table Insert the other end into the hole in the swing table end You will need: swing table assembly, support rod, support bracket.
  • Page 21 Insert one end of the Weber Warm-Up Basket into the hole in the right end of the lid and the other end into the slot in the left end of the lid. Figure 26 (a).

  • Page 22: Operating Instructions

    7) After the FRONT burner is lit you can turn on the other found to be damaged in any way, do not use the burners. barbecue. Replace using only Weber authorized Note - Always light the FRONT burner first. The other replacement hose. Order from Weber-Stephen Products burners ignite from the FRONT burner.
  • Page 23 Manual Lighting WARNING: If the burner does not light, turn the Front burner control knob to OFF and wait 5 minutes to let DANGER the gas clear before you try again or try to light with a Failure to open lid while igniting the match.

  • Page 24: Cooking

    The control settings High (H), Medium (M), Low supply MUST BE DISCONNECTED. (L), or Off (O) are described in your Weber cookbook. The After a period of storage and/or nonuse the Weber cookbook uses these notations to describe the settings of the FRONT, CENTER, and BACK burners.

  • Page 25: Annual Maintenance

    Figure 3 Note - Since some leak test solutions, including soap and Inspection and Cleaning of the Weber Spider water, may be slightly corrosive, all connections should be Stopper Guards rinsed with water after checking for leaks.

  • Page 26: General Maintenance

    Weber Spider Stopper Guards for the correct air and gas mixture. The correct flame pattern is shown in Figure 6. Your Weber Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They Tips occasionally yellowish can nest in the venturi section of the burner tubes.
  • Page 27 d) Unlatch the Spider Stopper Guards and remove. CAUTION: The burner openings must be positioned Figure 9. properly over the valve orifices. Figure 13a. Check proper assembly before fastening manifold in place. Figure 13b. Valve Figure 9 Burner e) Remove the manifold bracket and unscrew the two wing nuts that hold the manifold to the cooking box.
  • Page 28 Check to see if the igniter is loose in the frame. Tighten if necessary; see Step “Install igniter” for correct procedure. If the Crossover Ignition System still fails to light, See Section "Manual Lighting", and contact Weber-Stephen Customer Service. Get other manuals https://www.bkmanuals.com...

  • Page 29: Troubleshooting

    (Resembles paint peeling.) seeing is baked on grease that has turned to carbon and is flaking off. THIS IS NOT A DEFECT. If problems cannot be corrected by using these methods, please contact Weber-Stephen Customer Service. Get other manuals https://www.bkmanuals.com...
  • Page 30 13-14 49-53 10,14 Get other manuals https://www.bkmanuals.com...

  • Page 31: Parts Listing

    All items are single quantities unless otherwise unfortunately an occasional error may occur. If a part is specified. missing, do not go back to the store. Call the Weber Parts can be ordered directly from Weber-Stephen Customer Service Center toll free 1-800-446-1071 to Products Company by phone or mail.
  • Page 32 INAL HANKS hank you for choosing a Weber Barbecue. Our family here at Weber has worked hard to produce the highest quality products for your satisfaction. While we give much attention to our products, an occasional error may occur. Our knowledgeable Customer Service staff is prepared to help you with any problems with parts or assembly.
