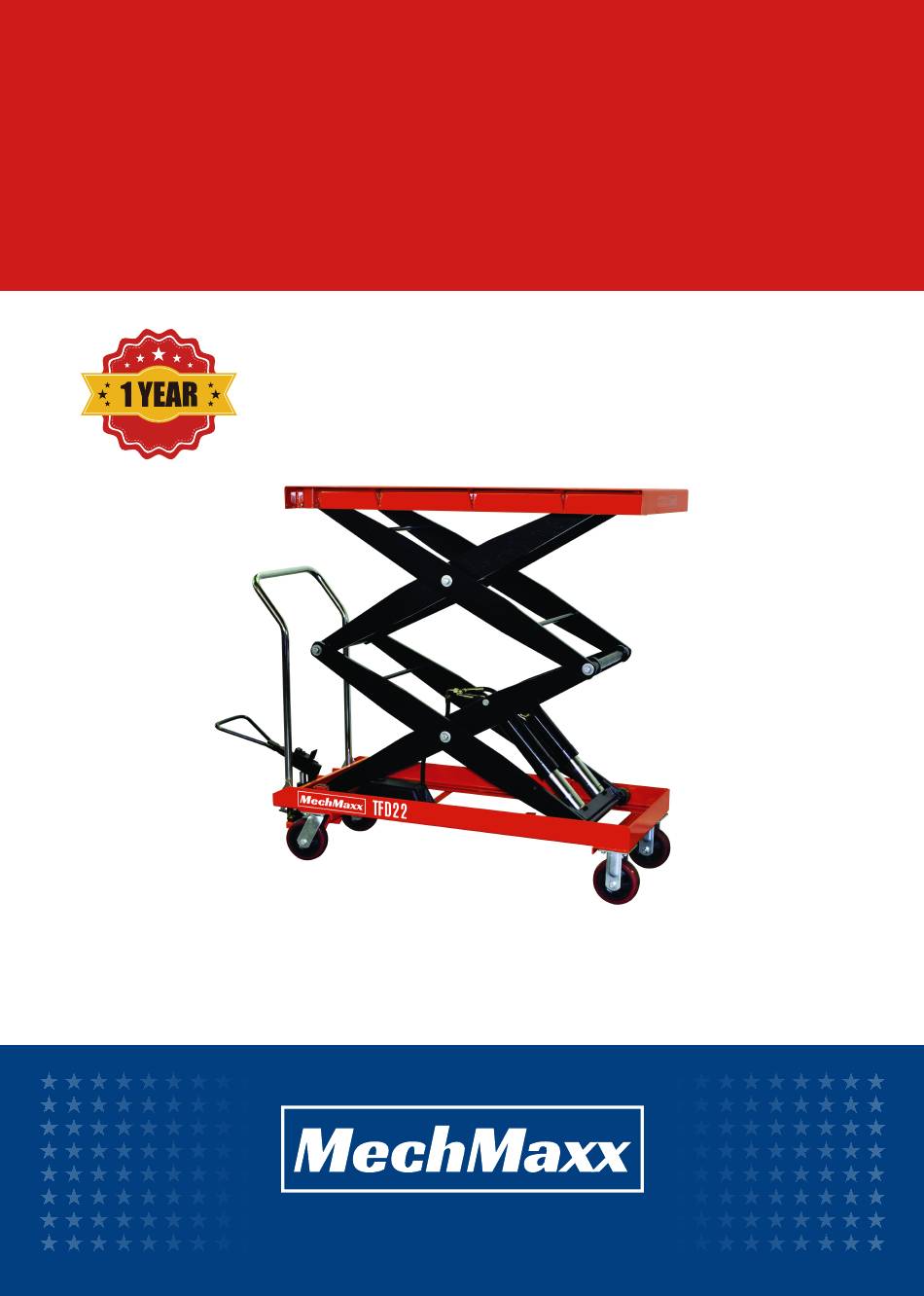

- Page 1 TFD22 TWO SPEED HYDRAULIC TABLE TRUCK WARRANTY Operator’s Manual www. mechmaxx.com...
-
Page 3: Brief Instruction
⑦ Pull release lever slowly to allow load to descend in a controlled manner. ⑧ Keep hands and feet clear of table when lowering load. ⑨ Failure to comply with the above warnings may result in personal injury and/or property damage. www. mechmaxx.com TWO SPEED HYDRAULIC TABLE TRUCK... -
Page 4: Basic Data
TWO SPEED HYDRAULIC TABLE TRUCK BASIC DATA Model TFD22 Load Capacity (lbs) 2204.6 Table Size L×W (insh) 47.2×24 66.9 Maximum Height (insh) Minmum Height (insh) 19.7 Total Length (insh) Total Height (insh) 39.4 Net Weight (lbs) 529.1 Packing Dimensions (insh) 55.1×24.4×20.4... - Page 5 TWO SPEED HYDRAULIC TABLE TRUCK HYDRAUKIC LIFT TABLE ASSEMBLY www. mechmaxx.com ASSEMBLY...
- Page 6 Frame Seat C-ing HexCap Bolt Shaft Shaft Cover Down Link Assembly Cover Link Seat Wheel Hex Cap Bolt Hex Cap Nut Fixing Seat Semicircle Screw Flat Washer Spring Washer Spring Washer Flat Washer Hex Cap Nut Protect Cover www. mechmaxx.com ASSEMBLY...
- Page 7 Lock Pin Spring Pin 5×16 Shaft(3) Discharge Block Shaft(4) Hex Cap Screw Foot Pedal C-Ring 7 Flat Washer O-Ring Air Breather Top Rod Spring Air Breather Fix Screw Post Valve Block Hex Cap Screw Post M6 Washer Cylinder www. mechmaxx.com ASSEMBLY...
