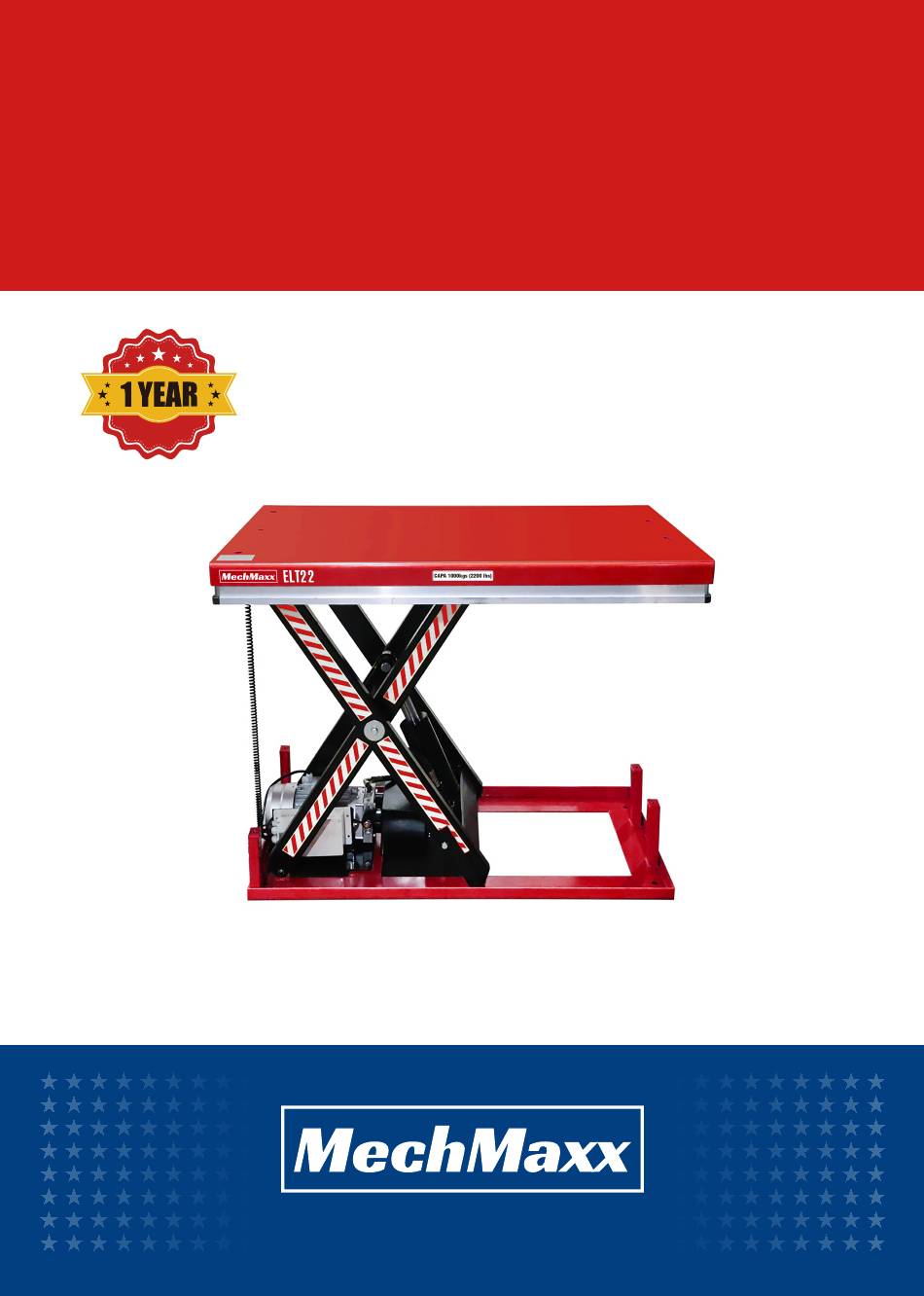

- Page 1 LOW PROFILE ELT22 ELT44 LIFT TABLE ELT88 WARRANTY Operator’s Manual www. mechmaxx.com...
- Page 3 LOW PROFILE LIFT TABLE TABLE OF CONTENTS BASIC DATA SAFETY PRECAUTIONS SAFETY INSTALLATION DAILY INSPECTION OPERATING THE LIFT TABLE HYDRAULIC CRCUIT & ELECTRIC PRINCIPE DIAGRAM SERVICE INSTRUCTIONS GREASING POINTS TROUBLE SHOOTING LOW PROFILE LIFT TABLE ASSEMBLY www. mechmaxx.com TABLE OF CONTENTS...
-
Page 4: Basic Data
LOW PROFILE LIFT TABLE BASIC DATA Model ELT22 ELT44 ELT88 Capacity(lbs) 2200 4400 8800 Lowest Height (insh) Max. Lift Height (insh) 39.4 41.3 43.3 Table Dimensions (insh) 32.3×51.2 33.5×51.2 47.2×66.9 Approx. Lifting Time while 20~25 16~22 30~40 Loaded Rate Capacity(sec) Net Weight (lbs) 352.7... -
Page 5: Safety Precautions
▲ It is forbidden to operate the lift table even if there ▲ The lift table is not waterproof and should be used in is small structure distortion. a dry environment. ▲ Do not use in an explosive or flammable place. www. mechmaxx.com SAFETY PRECAUTIONS... -
Page 6: Daily Inspection
▲ If aluminum guard strikes an object while the table lowers, stop operation and check the lift table. After the fixed arm end making sure no any abnormality, strike the Up button slightly and then the electric system will function as before. www. mechmaxx.com SAFETY PRECAUTIONS... - Page 7 Fig. 1 Hydraulic circuit Description Specification Marks Power Transformer 25W (120V-24V) Fuse RT14-20 (6A) Connect CJX2-1201/24V Hydraulic Power Pack 120V/1.5kw Ground Wire SQ1-2 Control Switch-down TZ-8104 Control Switch-up Fuse-down AC24V Emergency Button Button-up Button-down Fig. 2 ELECTRIC PRINCIPLE DIAGRAM www. mechmaxx.com SAFETY PRECAUTIONS...
-
Page 8: Greasing Points
When greasing the bearing the lift table must not be loaded! When determining oil levels, bear in mind that the tank contains the greatest amount when the lift table is in its lowest position, Hydraulic oil must be treated as dangerous waste! www. mechmaxx.com SAFETY PRECAUTIONS... -
Page 9: Troubleshooting
▲ Check and replace packing table lowers eylinder ▲ Fill enough oil Table cannot reach the ▲ Oil not enough ▲ Check and repair limit switch. If hightest position ▲ Limit switch damaged necessary, replace it Cylinder www. mechmaxx.com SAFETY PRECAUTIONS... - Page 10 LOW PROFILE LIFT TABLE LOW PROFILE LIFT TABLE ASSEMBLY ELT22 www. mechmaxx.com ASSEMBLY...
- Page 11 Safe Valve Assembly Install Board O-ring 10×1.9 Hex Cap Screw M8x20 High Pressure Oil Pipe Spring Washer No Oil Bearing Flat Washer Upper Scissor Pin Frame Seat Flat Washer 8 Spring Washer 8 Hex Cap Bolt M8×20 www. mechmaxx.com ASSEMBLY...
- Page 12 LOW PROFILE LIFT TABLE ELT44/ELT88 www. mechmaxx.com ASSEMBLY...
- Page 13 Batter Switch Cover O-ring 10×1.9 Button Switch High Pressure Oil Pipe Install Board T-joint Hex Cap Screw M8x20 Long Hight Pressure Oil Pipe Spring Washer No Oil Bearing Flat Washer Upper Scissor Pin Frame Seat Flat Washer 8 www. mechmaxx.com ASSEMBLY...
