The LZO Wall Mount Background Support System
consists of parts as shown here:
(2 or 4) 3 position Support Brackets Hooks
(3, 4, 5 or 6) Sets of plastic pole ends
(3, 4, 5 or 6) Sets of adjustable chains
(3, 4, 5 or 6) Sets of 2 section aluminum poles
The installation of this system requires a minimum of
2 individuals and a licensed professional is
recommended.
MPORTANT NOT CE: Proper Friction Adjust is
required to prevent background roll-out.
Over tightening the friction adjust will cause
problems and will DAMAGE the chain drive. We
will not be responsible for damaged chain drives
resulting from improperly adjusted Friction Adjust.
Step 1: Mount the bracket hooks
Carefully mark your wall to locate the bracket hook
mounting holes. The bracket hooks should be mounted a
minimum of 6 inches off the ceiling.
The bracket mounting hole spacing should be:
123 inches, +/- 1 inch. for 10 foot poles
75 inches, +/- 1 inch. for 6 foot poles
s the weight supported by this system is heavy, it is
recommended to either BOLT into framing or fasten into a
solid wall structure like plywood or concrete block.
Plywood can be screwed into the wall studs providing an
ideal structure for mounting the brackets with wood screws.
When attempting to mount on drywall or wallboard, please
contact a hardware vendor or licensed contractor to
procure appropriate fasteners for very heavy loads.

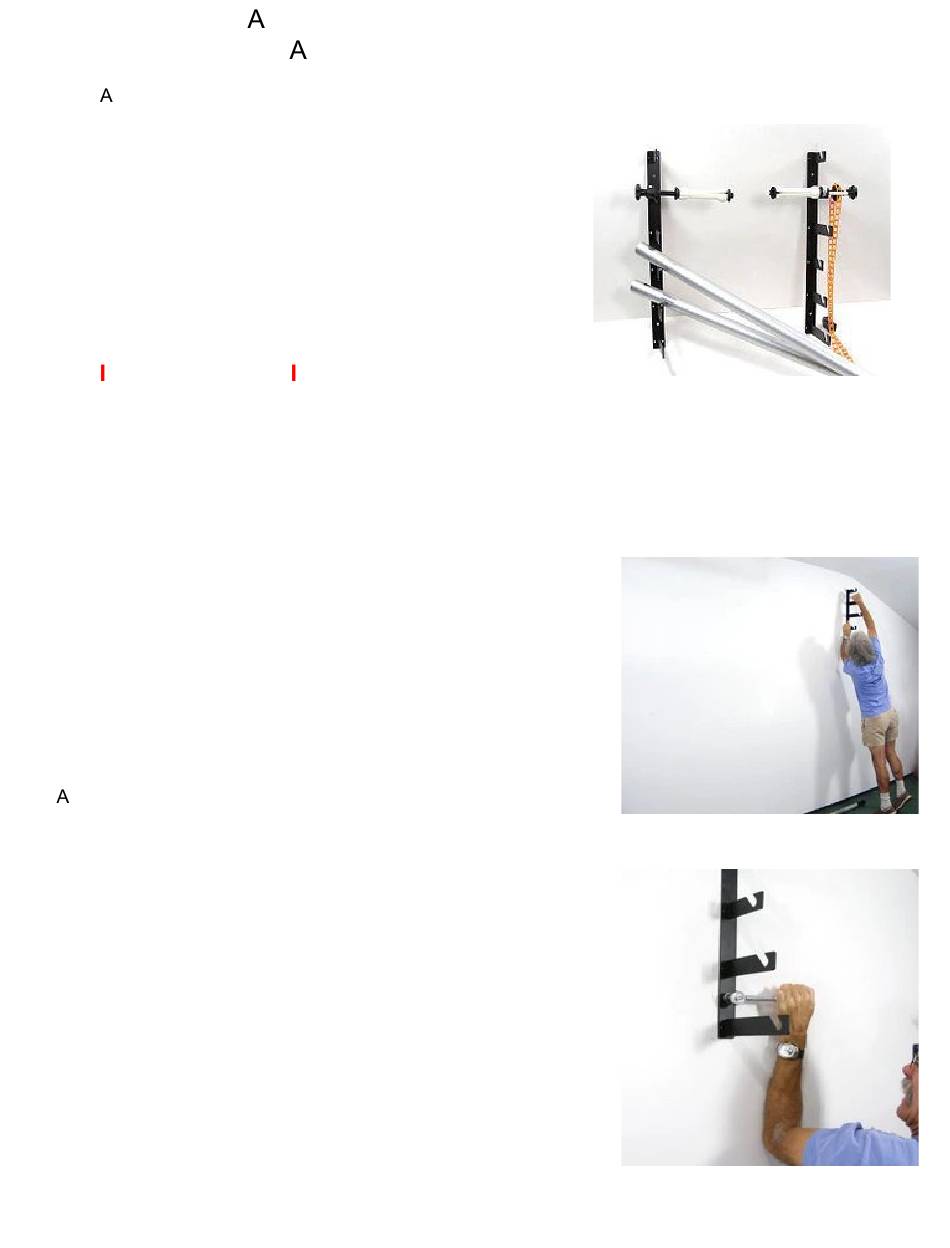

Here a licensed contractor is shown lag bolting the bracket
to framing studs.
You will be installing 4 of the 3 position hook sets with 4,5
and 6 poll background support systems
LZO Wall Mount Background Support
ssembly and Installation guide
