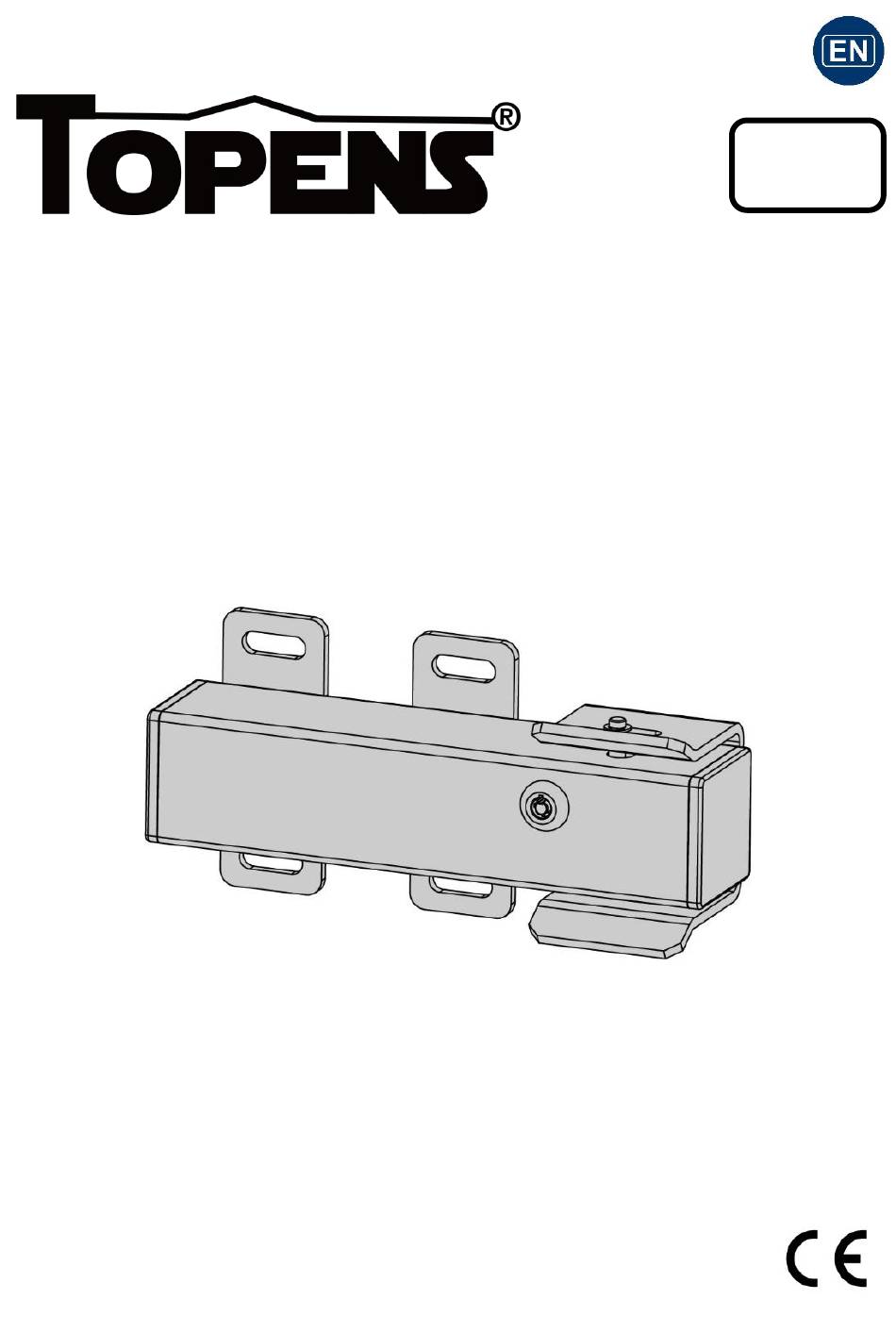

- Page 1 ET24 Electric Gate Lock User Manual Protect What Matters Most ! C030426 VER250605...
-
Page 2: Important Notes
The electric gate lock is designed to provide secure and reliable locking for swing gate systems. It operates automatically with the gate opener - locking after the gate closed and unlocking before it opens - eliminating the need for manual operation. The system includes a main lock unit, a lock receiver, and a set of keys for manual use in case of a... -
Page 3: Parts List
1 PARTS LIST A - Lock with a 5m (16.4 feet) Power Cable B - Lock Receiver C - Lock Keys (for Manual Release) 2 SPEFICICATIONS AND DIMENSIONS Rated Voltage 24VDC±1V Operating Current 2.5A 3 Sec Pulse to Open Lock Working Temperature -20℃... -
Page 4: Before You Begin
3 BEFORE YOU BEGIN Before installing the electric gate lock, ensure that the gate is level, moves freely on its hinges, and does not bind or drag against the ground. Verify the smooth operation of the lock tongue using the lock key, ensuring that the receiver pin inserts easily into the lock slot. - Page 5 Turn off the power supply to the gate opener before STEP 1: starting the installation. Disengage the clutch of the gate opener using the manual STEP 2: release key to enable manual swinging of the gate during lock installation. With the gate in the fully closed position, determine the best location for the lock and lock receiver.
- Page 7 Notes: In a dual gate installation, the gate equipped with the Master Arm is referred to as the Master Gate, while the gate with the Slave Arm is referred to as the Slave Gate. The master gate opens first and closes last.
- Page 9 (Examples of Gate Lock Mounting for Pull-to-Open Installations)
- Page 10 5 WIRING THE GATE LOCK Connect the lock’s power cables directly to the “LOCK” terminal on the control board of your TOPENS swing gate opener, disregarding wire polarity. Notes: The distance between the gate lock and the control board should not exceed 15m (50 feet), as greater distances may affect gate operation.
