MADECO

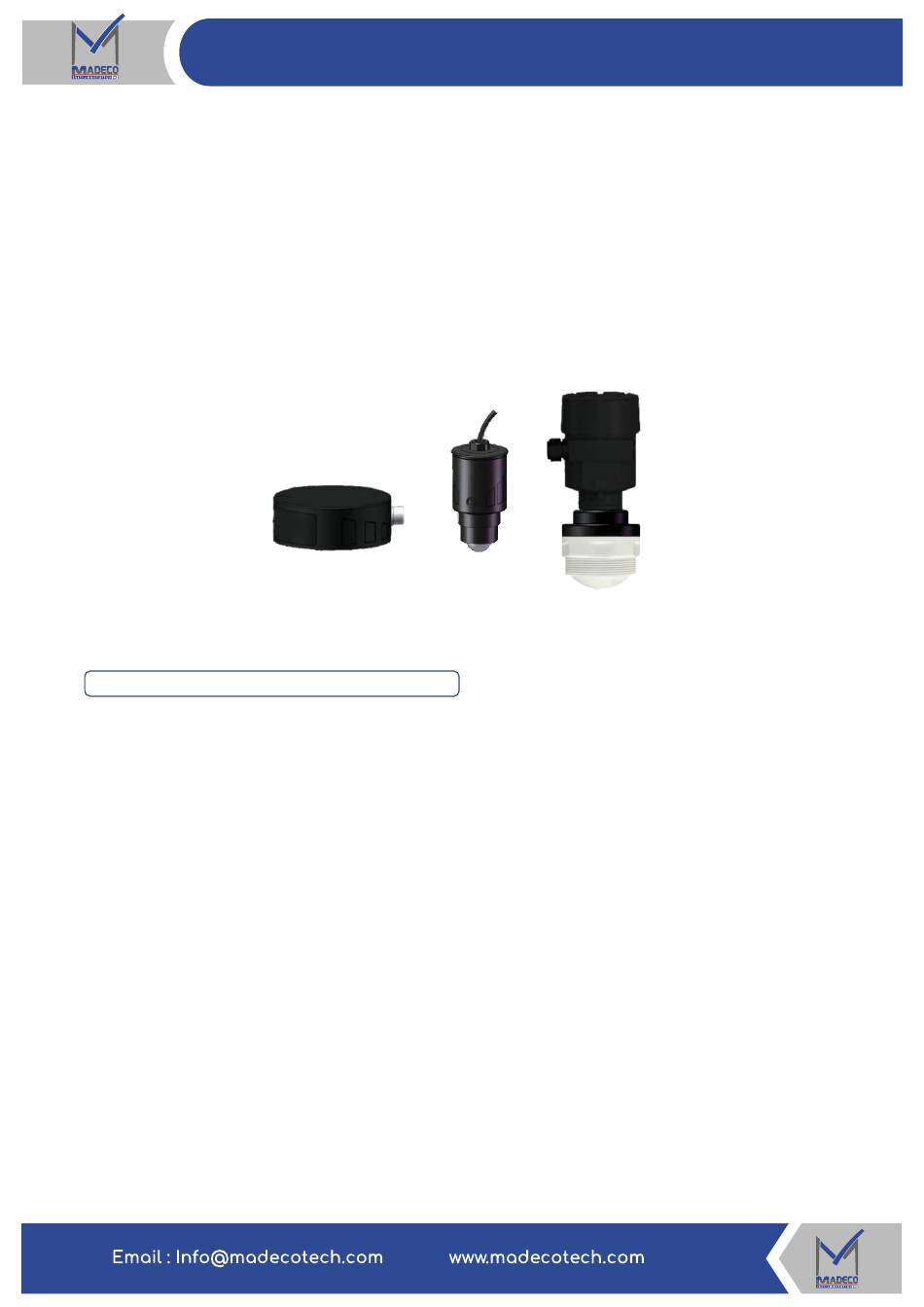

MADECO Smart Radar Water Level Meter
Operating Instruction
Model : MDRA9
Chapter 1 Product Overview
1.1 Introduction
80G radar water level gauge is a high-precision radar water level measuring instrument. It uses 80G
millimeter radar waves as the carrier signal. Based on the leading patented sensor technology and
microsecond time resolution, it achieves millimeter-level measurement accuracy, and the measurement
results are more accurate and stable. Radar sensors are highly robust against any natural sources of
interference such as noise, dust, color, direct or scattered light.
1.2 Principle
The high-frequency radar pulse wave emits narrow microwave pulses, which are transmitted downward
through the antenna. After the microwave pulses touch the surface of the measured medium, they are reflected
back (ie, echo pulses), and are received again by the antenna system and transmitted to the electronic circuit
part. Automatically convert to water level signal. (Because microwaves travel so fast, the time it takes for the
microwaves to reach the target and reflect back to the receiver is almost instantaneous.)
Canada
Advertisement
Table of Contents
Related Manuals for MADECO MDRA9
Summary of Contents for MADECO MDRA9
-
Page 1: Chapter 1 Product Overview
MADECO Canada MADECO Smart Radar Water Level Meter Operating Instruction Model : MDRA9 Chapter 1 Product Overview 1.1 Introduction 80G radar water level gauge is a high-precision radar water level measuring instrument. It uses 80G millimeter radar waves as the carrier signal. Based on the leading patented sensor technology and microsecond time resolution, it achieves millimeter-level measurement accuracy, and the measurement results are more accurate and stable. - Page 2 MADECO Canada A: Low adjustment 100% B: Range setting C: high level adjustment D:Distance E: Blind zone range H: water level height R: measurement reference point The reference plane for the measurement is the end of the antenna Figure 1 Water level measurement...
-
Page 3: Chapter 2 Instrument Introduction
MADECO Canada Chapter 2 Instrument Introduction Product features: stable performance, with angle measuring function, with level, simple installation, high precision, strong anti-interference ability, small and light, can be used for serial debugging, low power consumption, small beam angle. Applications: urban road and bridge water monitoring, reservoirs, rivers, hydropower stations, geological disasters, debris flow monitoring, irrigation canal water level monitoring. -
Page 4: Chapter 3 Installation
MADECO Canada Chapter 3 Installation Please note the following to ensure that the meter can be installed correctly: 1. Please reserve enough space for installation; 2. Please avoid strong vibration installation occasions; 3. Avoid obstacles during installation; 4. The highest water level shall not enter the measurement blind area. - Page 5 MADECO Canada MDRA92 Irrigation Canal Water Level Height Measurement Solar panel Water levelmeter Cont rol box Figure4 MDRA93 Reservoir height measurement Solar pan e l Water level meter 智能雷达水位计 型号:PWRD81H 编号：13018888 工作温度：-40℃~70℃ 输出电流：RS485 供 防护等级：IP68 电：26V DC Control box Figure5...
- Page 6 MADECO Canada 3.2 False echo storage If there are obstacles in the area radiated by the emitted acoustic beam, such as steps on the well wall, it will cause interference and lead to measurement errors. If it is affected, a new false echo needs to be created to remove interference for measurement.
-
Page 7: Chapter 4 Electrical Connection
MADECO Canada Comparison before and after zero-point echo zero echo Zero point without echo Before processing After processing Figure 8 Zero echo processing Chapter 4 Electrical Connection 4.1 Power supply/communication Power supply: 6~30V DC Communication: RS485/Modbus communication protocol 4.2 Installation of connecting cable See technical data on page 7 for details Note: The five-core cable is generally used for wiring. -
Page 8: Safety Instructions
MADECO Canada 4.4 Safety Instructions All electrical connection work must be carried out under the condition of power failure, please follow the instructions in the instrument manual! Follow local electrical installation regulations. Follow local health and safety regulations for personnel. All operations on the electrical components of the instrument must be done by formally trained professionals. -
Page 9: Chapter 6 Debugging
MADECO Canada Chapter 6 Debugging 6.1 Serial Communication Ddebugging Hardware interface: RS485 Communication protocol: Modbus Baud rate: 9600 (adjustable) Data format: 8N1 (adjustable) Check CRC16: Polynomial A001 6.1.1 Information frame format and description 1. The command format of the host consists of slave address, function code, register start address, number of read points and The composition of the CRC code is shown in Table 1. - Page 10 MADECO Canada...
- Page 11 MADECO Canada 6.1.4 Communication protocol example Commands sent by the host when reading the water level and distance under different station number addresses: Station No. Function Code Starting Address Reading Points Check Code Significance 0000 0001 840A Read the empty height, in cm...
-
Page 12: Chapter7 Structural Dimensions (Unit: Mm)
MADECO Canada Parameter setting interface: Adjust various parameters of the instrument and perform multi-point calibration, as shown in Figure 11. Figure 12 Parameter setting interface Chapter7 Structural Dimensions (Unit: mm) MDRA91 MDRA92 80G Radar Water Level Meter Model:MDRA91 Maximum range:35m Working temperature:-40~70℃... - Page 13 MADECO Canada MDRA93 Case Dimensions (Material: Plastic) ∅ 94 Radar Water level Meter Model: PWRD81H No.: 17003521 Range: 50m Operating temperature: - 40~70 ° C Output current: RS485 Power supply voltage: 30V DC Protection grade: IP68 Beijing Precision Wave Instrument Co.,Ltd.
-
Page 14: Chapter 8 Linear Graphs
MADECO Canada Chapter 8 Linear Graphs Beam angle Accuracy MDRA91 8° ±2mm -2mm 0.1m -3mm 0.2m(blind area) Beam angle Accuracy MDRA91 8° ±2mm -2mm 0.1m -3mm 0.2m(blind area) Beam angle Accuracy MDRA92 6° ±2mm ----------------------- -2mm ----------------------- 0.1m -3mm 0.01m(blind area) -
Page 15: Chapter 9 Transportation
MADECO Canada Beam angle Accuracy MDRA93 3° ±3mm -3mm 0.1m -5mm 0. 1 m(blind area) Beam angle Accuracy MDRA93 3° ±3mm -3mm 120m 0.1m -5mm 0. 1 m(blind area) Chapter 9 Transportation and Storage In addition to the requirements of JB/T 9329, the transportation and storage conditions of the water level meter should also meet the following requirements: 1.
