Phase Perfect - Quick Start Guide
®
Mounting the Phase Perfect
1. Attach the mounting brackets to back of unit with supplied
hardware.
2. Mount the unit to a solid, non-flammable surface capable
of supporting the weight of the unit, using the mounting
brackets provided with the unit.
3. Ensure air intake and exhaust openings are not obstructed.
If mounted in a small room or cabinet, ensure temperature
will remain below the unit rating.
Note: 18" (450mm) clearance below and 6" (150mm) around
required for ventilation.
Connect Wiring
1. Remove the cover, or open the door, by gently lifting and
pulling forward after removing the screws on each side and
front of the unit.
2. Route cables through the supplied openings in the bottom
of the enclosure, using appropriate conduit or strain relief
devices.
Notes: Continuous metal conduit should be used for all power
cables to reduce radiated electromagnetic interference (EMI).
3. Properly ground the phase converter according to local
electrical code. Connect the ground lug to the branch
circuit or service ground conductor.

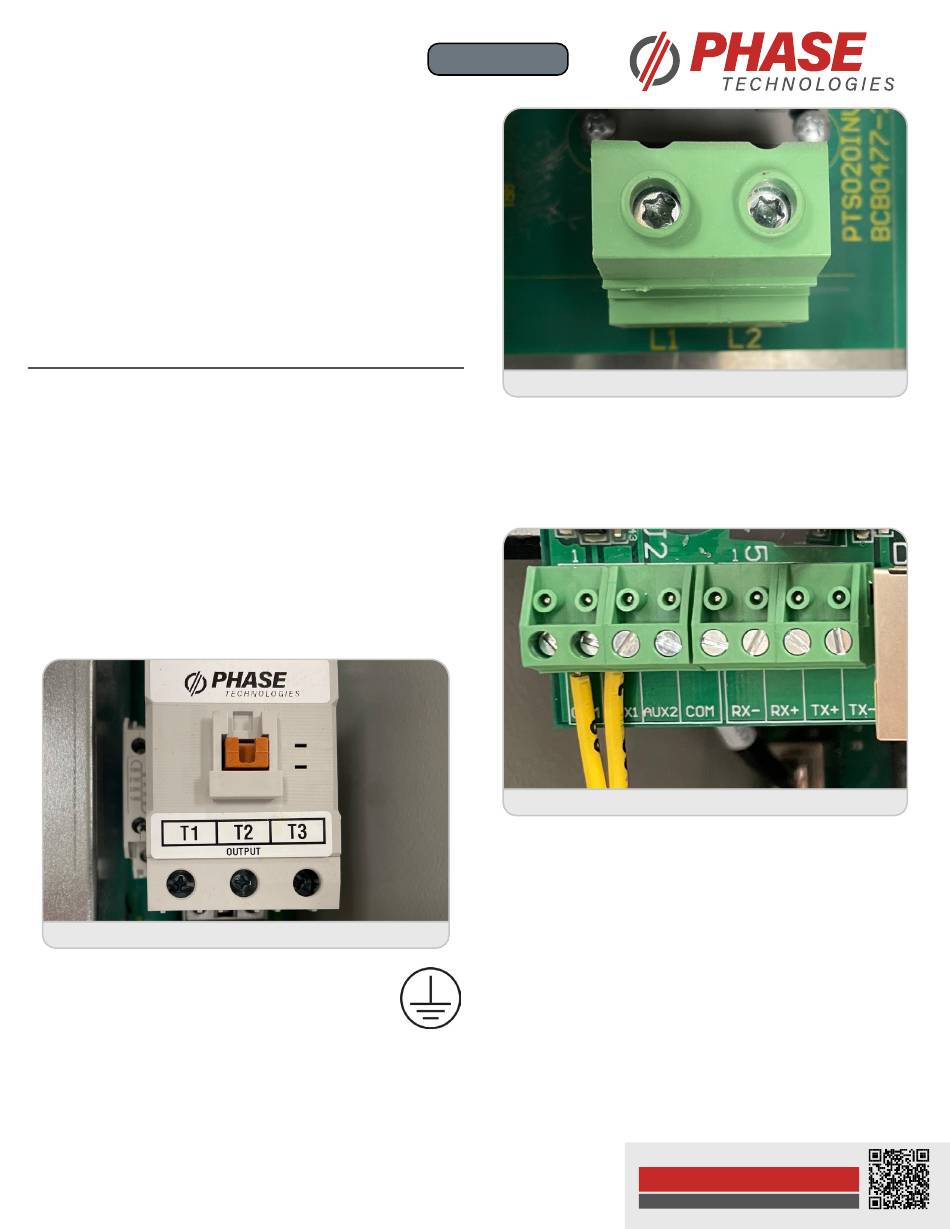

T1, T2, T3 output terminal & ground terminal
4. Install the 3 load side conductors into the output
terminals labeled T1, T2, and T3. Connect the
load side ground conductor into the grounding
terminal.
Note: T3 is the manufactured leg.
5. Connect the line side input leads into the terminals labeled
L1 and L2.
Installation
®
L1 & L2 input terminals
6. To add an external run/stop switch, remove the orange
jumper wire and connect the switch to AUX1 and COM
terminals.
Caution: No voltage may be introduced on these terminals.
Dry contact only.
AUX1 & COM connected to external switch
Powering up the Phase Perfect
1. Close the door or replace the cover and reinstall previously
removed screws.
2. Turn on the line side breaker and verify screen turns on.
Note: Once the unit is fully energized the internal contactor
will pull in. Once this occurs a light high frequency sound of
switching electronics noise will be emitted, and is normal.
Note: Output is in high-leg delta configuration. Line to line
voltage will match input voltage, line to ground will be higher on
T3 than T1/ T2.
Visit Our Website For More Info
Phase Perfect - Support Docs.
Quick Start - Phase Perfect v1.0_05292025
®
