Summary of Contents for Firestone Airide Air Command 2922

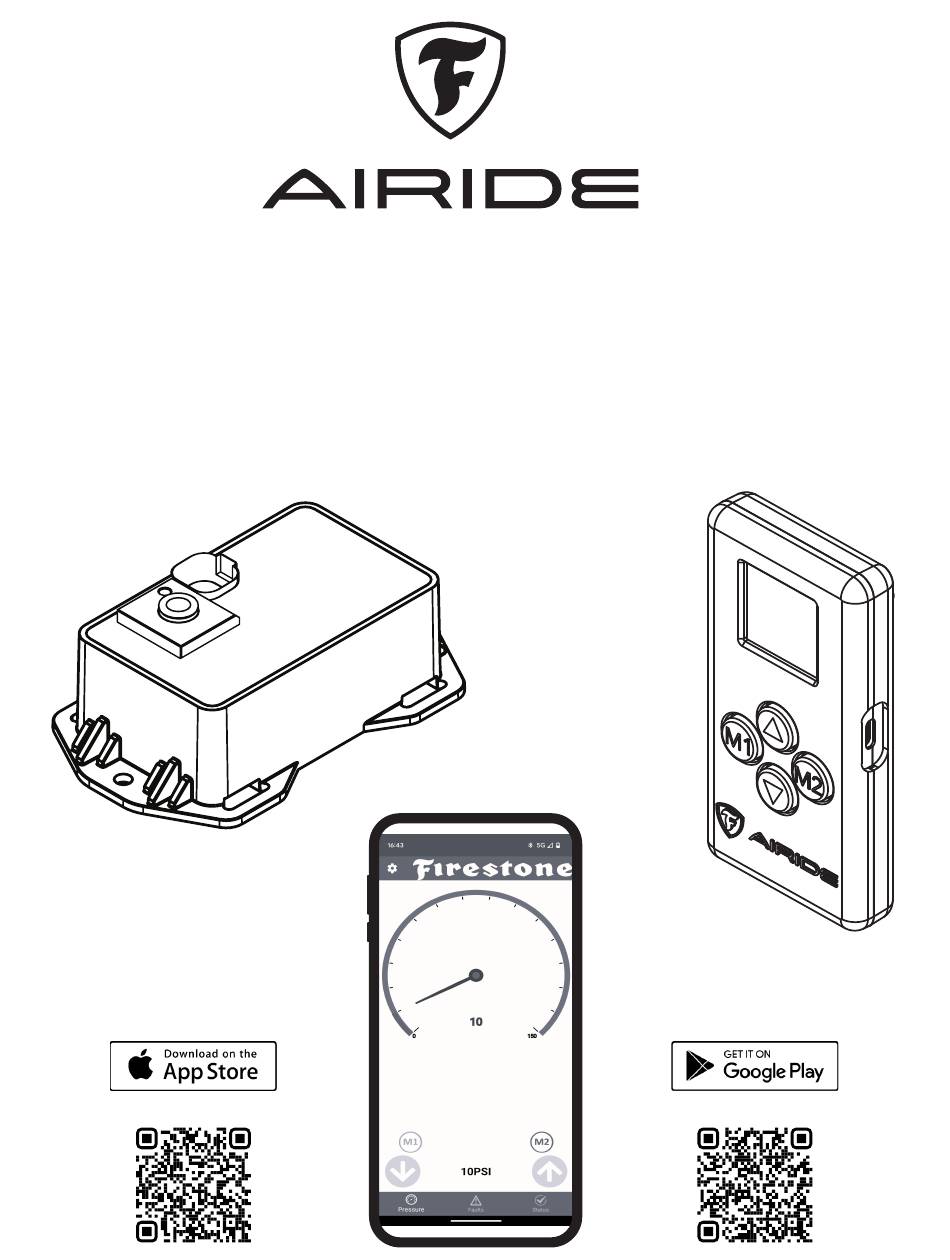

- Page 1 2922 firestoneairide.com INSTALLATION INSTRUCTIONS 09-24...
- Page 2 (front to rear). This will vary, depending on the load, location of the load, condition of the existing suspension, and personal preference. ONCE INSTALLED SUCCESSFULLY, FOLLOW THE PRESSURE REQUIREMENTS FOR THE AIR SPRINGS. FOR FIRESTONE, GENERALLY: COIL-RITE RIDE-RITE firestoneairide.com...
- Page 3 PARTS Compare the parts below to your kit. Assure you have all pieces, and organize them for an easier installation. MAIN KIT CONTENTS AIR COMPRESSOR x 1 WIRE HARNESS x 1 ECU AIR LINE TUBE AIR COMMAND SINGLE REMOTE (18 FEET) A24-760-2642 COMPRESSOR AND ECU MOUNTING KIT SINGLE PATH MOUNTING KIT The parts list for this kit is in the Mounting Kit...
- Page 4 CONTENTS AND OVERVIEW PLANNING THE AIR FILTER PAGE INSTALL 3055 1/8 NPT PUSH-TO-CONNECT STRAIGHT FITTING AIR LINE TUBE PREPARE THE AIR AIR FITTING PAGE COMPRESSOR 9523 AIR RED (+) COMPRESSOR DRILL HOLES FOR PAGE AIR COMPRESSOR Create AND ECU loop in Air Tubing.
-
Page 5: Planning The Install
PLANNING THE INSTALL THESE PLANNING STEPS WILL HELP YOU SAVE TIME AND WILL MAKE THE INSTALLATION EASIER. DETERMINE THE MOUNTING LOCATION FOR THE AIR COMMAND KIT This Kit comes with a Mounting designed specifically for the provided Air Compressor and ECU. Refer to the Mounting Kit Manual attached at the end of the this Kit’s Manual for addtional instructions. - Page 6 PREPARE THE AIR COMPRESSOR NOTE: Air compressor can be mounted facing any direction. Install 1/8 NPT Push-to-Connect Straight Fitting on the Check Valve. Install Barbed Air Fitting in Inlet Port of the Compressor from Air Compressor Kit. 3055 1/8 NPT PUSH-TO-CONNECT STRAIGHT FITTING PRE-INSTALLED Tighten to engage two threads...
- Page 7 OPTIONAL - DRILL HOLES FOR AIR COMPRESSOR AND ECU IF YOU ARE USING THE SUPPLIED FIRESTONE AIR ACCESSORY MOUNTING KIT, SKIP THIS STEP AND REFER TO THE MOUNTING KIT’S INSTRUCTIONS AT THE END OF THIS MANUAL. STOP HERE AND SKIP THIS STEP IF USING THE PROVIDED MOUNTING KIT CHECK SURROUNDING AREA AND BACK SIDE OF MOUNTING LOCATION TO AVOID DRILLING INTO EXISTING LINES OR WIRING.
- Page 8 INSTALL THE AIR COMPRESSOR AND ECU x 10 DO NOT OVER TIGHTEN MOUNTING BOLTS AND NUTS ON THE AIR COMPRESSOR. TOO MUCH TORQUE CAN CRUSH THE BRASS INSERTS AND RUBBER ISOLATORS. Mount the Air Compressor Mount the ECU to the hole Mount the black ground wire to the hole locations on the locations on the provided...
- Page 9 INSTALL THE WIRE HARNESS Route the Wire Harness in the most The yellow wire is not used. Wrap or wire protected manner possible, and securely nut it to protect it from the environment. make all connections as shown. 9523 AIR RED (+) RED (+) COMPRESSOR...
- Page 10 INSTALL AIR LINE TUBES EXHAUST ALL AIR FROM THE SYSTEM PRIOR TO RELEASING AIR TUBES FROM AIR FITTINGS. Route the Air Tubing from 1/8 NPT Push-to-Connect Straight Fitting on the top of 3055 1/8 NPT PUSH-TO-CONNECT the Air Compressor to the STRAIGHT FITTING first 1/4"...
- Page 11 OPTIONAL INFLATION VALVE INSTALL IF USING THE OPTIONAL NO-DRILL INFLATION VALVE BRACKET, CHOOSE OPTION 1. IF DRILLING, CHOOSE OPTION 2. INFLATION VALVE MUST BE ACCESSIBLE BY AN AIR CHUCK. Secure the Air Inflation Select a protected location Install Inflation Valve Valve Bracket to a pro- to install the Inflation Valve, Assembly as shown.
- Page 12 Air Tube, as shown, contact an Authorized when securing it to the Firestone dealer to vehicle. purchase a new one. SECURE THE AIR FILTER IN A LOCATION THAT PROTECTS IT FROM MOISTURE AND DEBRIS, AND IS ABOVE THE LOOP IN THE AIR TUBING.
- Page 13 CONNECTING TO THE APP Download and install the Firestone Air Open the app. Once the app has Command app on a compatible iPhone established a Bluetooth connection on or Android device. startup, it will automatically link to the ECU. MAIN APP SCREEN...
- Page 14 AIR COMMAND SINGLE REMOTE QUICKSTART GUIDE ™ FUNCTIONS OF REMOTE BUTTONS Visor Clip Increase Pressure/ USB-C Move Up Set or Select Charging Memory 1/ Port Move Left Set or Select Memory 2/ Decrease Move Right Pressure/ Move Down/ Screen Exit HOME SCREEN LAYOUT Remaining Wireless...
- Page 15 AIR COMMAND SINGLE REMOTE QUICKSTART GUIDE ™ ACCESSIBILITY Hold down M1 and M2 to When the remote is off, Hold the up and down arrows access the passcode press any button to turn at the same time to access the entry screen.
- Page 16 TEST THE SYSTEM With the Air Command App and your air springs installed, you are ready to test the system. ™ Reattach the negative Use the Air Command App or ™ battery cable. Single Remote to inflate the Air Springs to 70 PSI. See Step 10 or 11 for details.
- Page 17 FIX AN AIR LEAK EXHAUST ALL AIR FROM THE SYSTEM PRIOR TO RELEASING AIR TUBES FROM AIR FITTINGS. Use the Air Command App or ™ Single Remote to deflate the Air Springs to 5 PSI. See Step 10 or 11 for details. LEAK AT AIR TUBING LEAK AT BASE OF AIR FITTING AND AIR FITTING...
- Page 18 NOTES firestoneairide.com...
- Page 19 2922 Installation Instructions...
- Page 20 There is a loop in the Air Tubing as shown to prevent water or debris from getting into the Air Compressor head and damaging it. Or, email us at rrtech@fsip.com. If emailing, please include photos to help us better diagnose and understand any problems you may be experiencing. CONNECT WITH US @firestoneairide FirestoneAiride Firestone Airide 09-24...
-
Page 21: Installation Instructions
2642 firestoneairide.com INSTALLATION INSTRUCTIONS 09-24... - Page 22 ! IMPORTANT PLEASE DON’T HURT YOURSELF, YOUR KIT OR YOUR VEHICLE. TAKE A MINUTE TO READ THIS IMPORTANT INFORMATION. DO NOT INSTALL IF THE TRUCK HAS BEEN LIFTED AND THE STOCK JOUNCE BUMPER SPACERS ARE NOT ON THE VEHICLE. This kit is to be used on a pickup truck only, and DOES NOT INCREASE YOUR VEHICLE’S MAXIMUM LOAD. SAFE INSTALLATION Please take all safety precautions during installation.
- Page 23 MOUNTING BRACKET AND AIR ACCESSORY INSTALLATION Mount the No-Drill Compressor Plate to the Align the Compressor Plate to the bottom Plate Channel Mounts shown below. of the slots in the Plate Channel Mount. Select a suitable location for installation on the vehicle frame rail. Take a tape measure to get a rough height of the frame rail.
- Page 24 INSTALL THE ECU Fasteners included in Air Command Kit DO NOT OVER TIGHTEN MOUNTING BOLTS AND NUTS ON THE ECU. TOO MUCH TORQUE CAN CRACK THE PLASTIC FEET ON THE ECU. Mount the ECU to the hole locations in the Compressor Plate using the supplied fasteners.
- Page 25 INSTALL THE AIR COMPRESSOR - USE FOR STANDARD DUTY AIR COMMAND KITS 2920 & 2922 Fasteners included in Air Command Kit DO NOT OVER TIGHTEN MOUNTING BOLTS AND NUTS ON THE AIR COMPRESSOR. TOO MUCH TORQUE CAN CRUSH THE BRASS INSERTS AND RUBBER ISOLATORS. Mount the Air Compressor to the hole It is recommended to face the outlet of the locations in the Compressor Plate using the...
- Page 26 MOUNTING TO THE VEHICLE - USE FOR STANDARD DUTY AIR COMMAND KITS 2920 & 2922 AIR ACCESSORY MOUNTING KIT CANNOT BE USED AS A GROUNDING LOCATION FOR THE AIR COMPRESSOR RECOMMENDED Install the compressor bracket assembly to the Follow Air Command Kit Continue following the Air vehicles frame rail, using instructions to run air line...
- Page 27 NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ 2642 Installation Instructions...
- Page 28 NEED INSTALLATION HELP? Email us at rrtech@fsip.com. Please include photos, kit number, and the year, make, and model of the vehicle to help us better diagnose and understand any problems you may be experiencing. CONNECT WITH US firestoneairide FirestoneAiride Firestone Airide 09-24...
