Giant AERYN 0 Datasheet

118

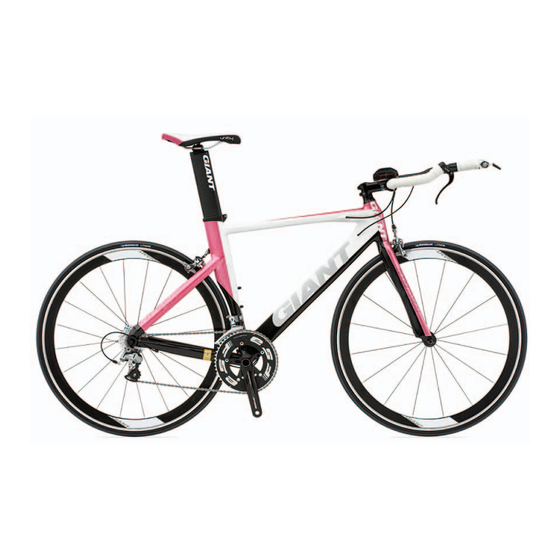

Aeryn 0
Specifications
SIZES XS,S,M
COLORS Pink/White/Black
ALUXX SL-Grade Aluminum,
FRAME
Aero Design
Advanced-Grade Composite,
FORK
Alloy Steerer
SHOCK N / A
Alloy base bar w/ Vision TriMax
HANDLEBAR
clip on, 31.8
STEM Giant Connect SL
SEATPOST Giant Trinity Alloy Aero
SADDLE Giant TRI Women's
PEDALS Not Included
SHIFTERS Shimano Dura-Ace, bar end
FRONT DERAILLEUR Shimano 105
REAR DERAILLEUR Shimano Ultegra 6700
BRAKES Shimano 105
BRAKE LEVERS Giant Trinity, alloy
CASSETTE Shimano 105 11x23, 10-speed
CHAIN Shimano 105
FSA Gossamer MegaExo Time Trial,
CRANKSET
42/53
BOTTOM BRACKET FSA MegaExo
RIMS Giant SL Aero 42mm
HUBS Formula Sealed Bearing, 16/20h
SPOKES SAPIM Race, 14/15g
TIRES Michelin Lithion 2, 700x23 Folding
EXTRAS Saddle Two bottle cage holder
Specifications and availability subject to change without notice.
A TRI' BIKE HAS TWO OBJECTIVES: MOTIVATE
YOU AND MAKE YOU FASTER. AERYN MAKES
TRAINING MORE FUN—WHICH IN TURN IMPROVES
YOUR TIME.
Frame Technology
Stiff enough to put your power straight to the pedals, balanced enough to keep you comfortable
during long training efforts, and aero' enough to shave seconds off your time—that's Aeryn. Made
with super-light ALUXX SL frame tubing, it's your new best friend against the clock or the competition.
Key Upgrades (over Aeryn 1)
— 10-speed Shimano 105 components
— Giant Connect SL stem, Vision clip-on
— FSA Gossamer MegaExo TT crankset
frame geometry
Actual Part Head Seat
Frame Size Number Angle Angle*
centimeters degrees degrees
XS 43.0 388752 72.0 78.0
S 46.5 388753 72.0 78.0
M 50.0 388754 72.5 78.0
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
Toptube** Headtube Chainstay Wheelbase
centimeters centimeters centimeters centimeters
50.5 11.5 39.0 97.1
51.5 12.5 39.0 98.2
53.5 14.0 39.0 100.0
Standover
Height***
inches
28.2
29.0
29.6
