Honorific customer:
Please cautiously read usage manual before use my plant product.
Moreover and specially notice:
The first: In the manual of whet knife and regulation, particularly notice the method that the front whets knife:
Wanting to slightly press to fix the knife emery wheel hand handle about a second can immediately, the most long can't
over 2 seconds, the hair of razor blade stabs to throw away then, otherwise the razor blade will change bluntness.
The second: This machine uses a front to specially request: Such as because the temperature is too low and put a
pole to encourage bore to add not enter oil, please with the oil gun aim at a route of travel slippery piece stalk φ 20
position A 、 B two with put a pole copper a set of the position add an engine oil and wait until to circulate invite half an
hour behind aim at to put a pole to encourage bore to encourage with the oil gun. Use a times four hour each time to
add engine oil, thank a cooperation!
1. Technology Parameter
Model:
WED-B250A-1
Cut-off journey:
155mm
220V 50Hz
Rated Voltage:
Net Weight:
48kg
Product size
535*475*690
Packing size
610*560*750
2. Framework Diagram for the Product

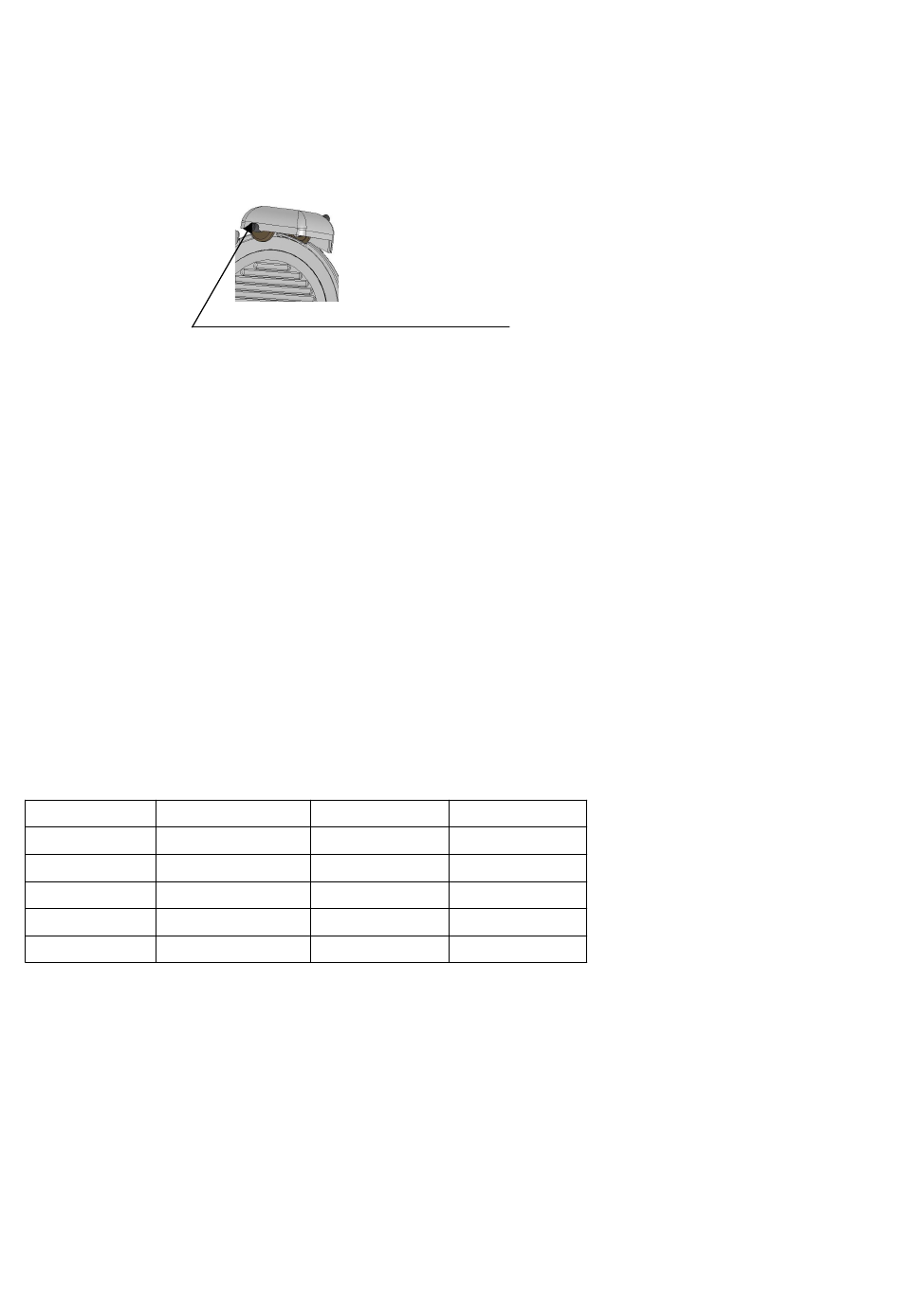

Fix the knife emery wheel hand handle
Function
Slice Thickness:
Blade Diameter:
Power:
Gross weight
Fully automatic
0-17mm
Φ250 mm
240W+430W
59.5kg
1
