Meat Slicer Use Manual
ROVSUN
10 inch Commercial Electric Automatic Meat Slicer
Thanks for your purchase. Any questions please don't hesitate to contact us, we will handle
all your problem ASAP. Your feedback is vital to us! And we will always try to do better.
For more details, please contact us by email via support@rovsun.com
(Write your seller's Order # on the subject of the email, so that we can find your order and
better assist your issue)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G66000121 and is the answer not in the manual?

Questions and answers

Summary of Contents for rovsun G66000121

  • Page 1 ASAP. Your feedback is vital to us! And we will always try to do better. For more details, please contact us by email via support@rovsun.com (Write your seller's Order # on the subject of the email, so that we can find your order and...
  • Page 2 Honorific customer: Please cautiously read usage manual before use my plant product. Moreover and specially notice: The first: In the manual of whet knife and regulation, particularly notice the method that the front whets knife: Wanting to slightly press to fix the knife emery wheel hand handle about a second can immediately, the most long can't over 2 seconds, the hair of razor blade stabs to throw away then, otherwise the razor blade will change bluntness.
  • Page 3: Table Of Contents

    This users’ manual provides this product’s detailed information of how to use, install, maintain and repair it for customers, ensuring that this product can be used in the best and most effective way. Please keep the users’ manual well and make sure that when you need to read it, you can find it out soon.

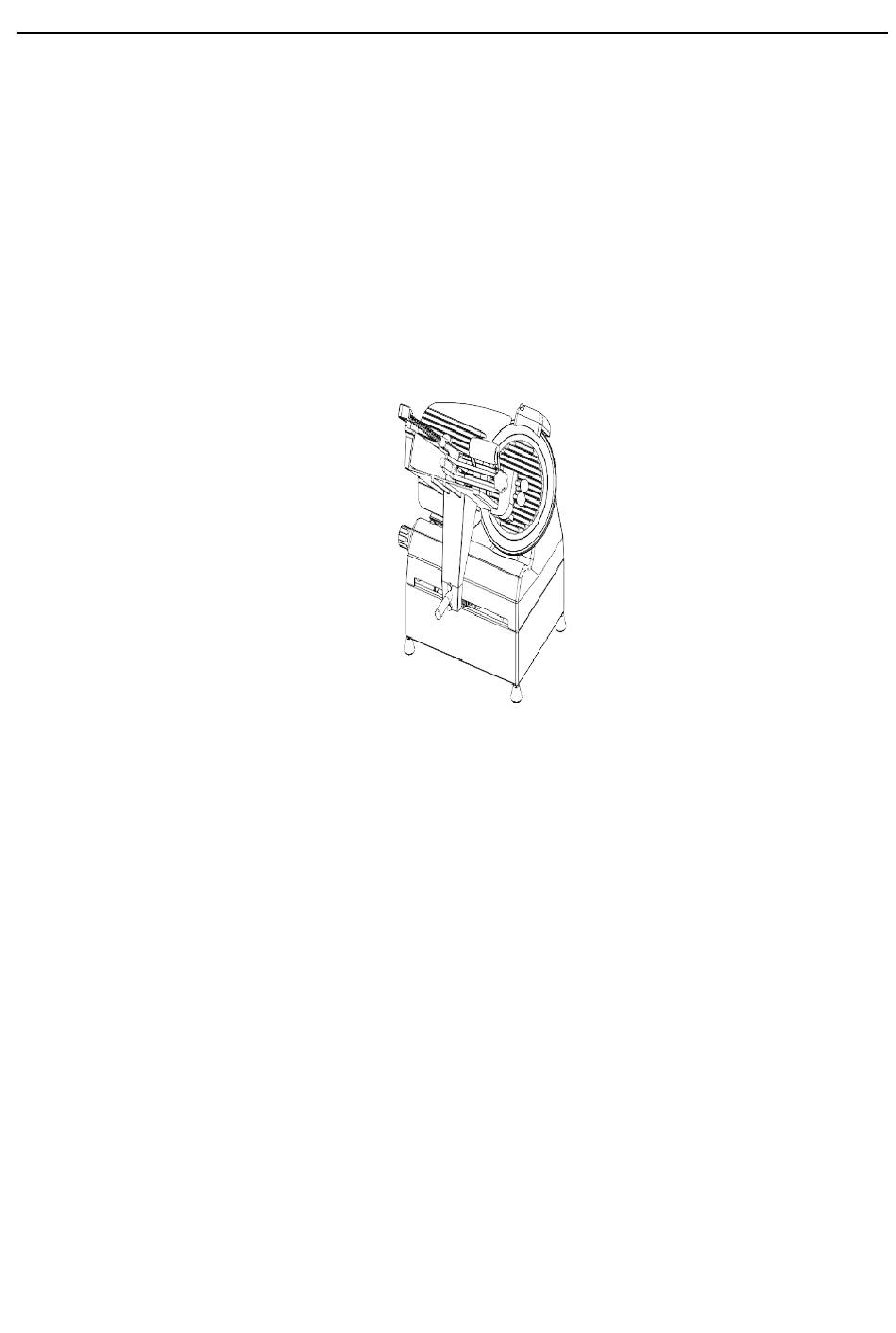

  • Page 4: Framework Diagram

    13. The poly V-belt adjust…………………………………………………….. …………17 14. Product guarantee…………………………………………………….. ………………18 1. Technology Parameter Characters: Fully automatic Cut-off journey: 150 mm Slice Thickness: 0-17 mm Blade Diameter: Φ250 mm Rated Voltage: 110V 60Hz Power: 240W+300W Net Weight: 47kg Gross Weight: 65.6kg 615×565×820m Product Size: Carton Size:...
  • Page 5: Characters Of This Product

    A. base of the meat slicer B. automatic body C. frame of the foot carrier D. food carrier F. thickness adjusting button guiding stick of the food pressing board G. slice motor switch H. blade motor switch I. food stopping board J.
  • Page 6: Sequence Of Operation

    thickness that choice need, will block the plank fixed position hand handle to adjust and block the plank contact again, the lock is tightly the form butterfly- shape nut M8 . 5). Put the meat or other food onto the food carrier at the degree about –5℃, and then use the movable food pressing board to press the food and push the food towards the food stopping board.
  • Page 7 a. Before you clean the meat slicer, you must cut off the electric power first, preventing to start the machine carelessly and cause hurts by the running slicing knife. b. Turn the thickness adjusting button back to the “0” scale. Do not use water to wash this product directly, do not use scour that be with high degree of acidity or alkalescency to clean the product, and do not use abrasive articles to wipe the surface of the product and the slicing knife.
  • Page 8 c. The lubricating to the slip axle of the food pressing board. ① se a piece of cloth to wipe the slip axle up. ② Add some edible oil to the slip axle, move the food pressing board up and down to let the edible oil full penetration, till the food pressing board can be moved agilely.
  • Page 9 Check whether there are any gaps between the grinding wheels and the slicing knife. (Diagram 1). (Special attention: when bring up the emery wheel cover, the point of a knife of the razor blade bare, please very careful, do not touch the point of a knife, in order to prevent accidental injury.) e.
  • Page 10: Notice And Safety Rules

    I. clean the product again. 8. Notice and safety rules ※ If this product was broken or it caused an accident by being used incorrectly, the manufacturer will not take any responsibilities. ※ please do not uninstall or change any important parts of this product, such as the axle of the slicing knife and the electrical parts.
  • Page 11: Malfunction And Maintenance

    ※ Please don't touch the not operator machine or power line etc.. If this machine's outside wire or cable is broken, it should be changed by the manufacturer, manufacturer’s agents or someone who is qualified to do that. This is to avoid dangers.
  • Page 12 grinding wheel A. use it incorrectly A. please read the users’ manual for cannot grind the knife details (or the grinding wheel B. the angle of the grinding frame is B. adjust the base of the grinding wheel is broken) not correct.
  • Page 13: Breakdown Drawing

    or the product cannot B. the slicing knife has become blunt B. grind the slicing knife again (read the slice meat and other users’ manual for details) foods C. the food stopping board has C. uninstall the adjusting button and become loose tighten the adjusting copper set or change the adjusting button...
  • Page 16: Components List

    Components list 166 grinding axle of the grinding wheel 114 handle of the food pressing board φ10×73 120 hexagon socket set screws withflatpoint 167 grinding wheel φ40 M10×35 168 nut M6 122 bearing 625Z 169 axle elastic φ5 124 ball bearing 6000Z 170 pan head screws with cross recessed 125 axle of bearing φ10 M5×10...
  • Page 17 Components list...
  • Page 18 268 spring φ17.2×350 213 copper set 1412 269 Red ball head hand handle Sφ30 214 big pentagonal handle 291 switch 215 sliding part 296 spring washers φ8 217 hexagon socket set screws withflatpoint 301 whole frame of model 300 M6×25 302 food stopping board of model 300 220 aluminum flat cushion of small frame C 304 food pressing stick of model 300...
  • Page 19: Electrical Circuit Diagram

    Components list 358 guiding stick of the food pressing board 701 automatic body 480×380 φ14×428 702 base 370×360 359 slicing knife φ300-4 703 reducer 360 main axle of the slicing knife 300A 704 swing arm 361 belt pulley of razor blade of model 300A 705 hexagon socket cap screws M6×35 362 ball bearing 6205-2RS 706 spring washers φ12...
  • Page 20 The poly V-belt adjust When the poly V-belt has got loose, first and upward loosen the M6 nut A, then adjust the M6 nut B upwards, until the elasticity of the poly V-belt adjust to be suitable;If the poly V-belt is too tightly, the adjustment then is contrary. Postscript: The suppliers themselves undertake the following responsibilities: obey the requirements mentioned on the users' manual;...
  • Page 21 safety basic requirements of EC Standard; accord with relative regulations. Please kindly forgive us that we will not make a notice in addition once we have made some changes to this users' manual Product quality guarantee Product Name WED-B300A1-1 series meat slicer Customer's Address Customer's Name Tel:...
