Sealey RWH18 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
Familiarise yourself with the application and limitations of the hose reel, as well as the specific hazards.
p WARNING! Isolate the hose reel
3
Maintain the hose reel in good condition (use an authorised service agent).
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
3
Locate and fix the hose reel
3
cold. Ensure there is adequate lighting.
3
Keep extended hose away from heat, oil and sharp edges. Check hose for wear before each use, and ensure all connections are secure.
p WARNING! Always wear approved eye or face protection when operating the
3
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Keep children and unauthorised persons away from the working area.
3
DO NOT use the hose reel
3
DO NOT operate the hose reel
7
DO NOT direct water from the hose at yourself or others.
7
When not in use ensure the water supply is turned off. Disconnect from the supply and retract hose into case.
7
p WARNING! DO NOT dismantle the hose reel casing, or attempt to remove the screws on the sides. To do so may result in damage to the
3
appliance and/or personal injury and will invalidate the warranty. Internal maintenance, which will require the opening of the casing, must
only be undertaken by an authorised service agent.
2. INTRODUCTION & SPECIFICATION
The RWH18 has a hard wearing composite casing with retracting water hose reel which has ratchet and free-running operation, enabling easy
access to locations within the hose range. The reel comes complete with mounting brackets.
Check content with list below. If any items are damaged or missing contact your supplier.
Specification
Hose length . . . . . . . . . . . . . . . . . . . .18m
Hose bore . . . . . . . . . . . . . . . . . . . .13mm
Hose type . . . . . . . . . .Clear, braided PVC
Inlet . . . . . . . . . . . . . . . . . . . .3/8”BSP(F)
Weight - dry . . . . . . . . . . . . . . . . . . . .9kg
Weight - wet, hose retracted . . . . . .11.5kg
3. FITTING THE HOSE REEL
WARNING! Ensure the hose reel is disconnected from the supply. Do not position the hose in direct sun light or in areas
of extreme heat or cold.
p
3.1. Ensure the wall to which the hose reel is to be fixed is of sound construction and that the securing points will hold the working
strain of the hose when in use.

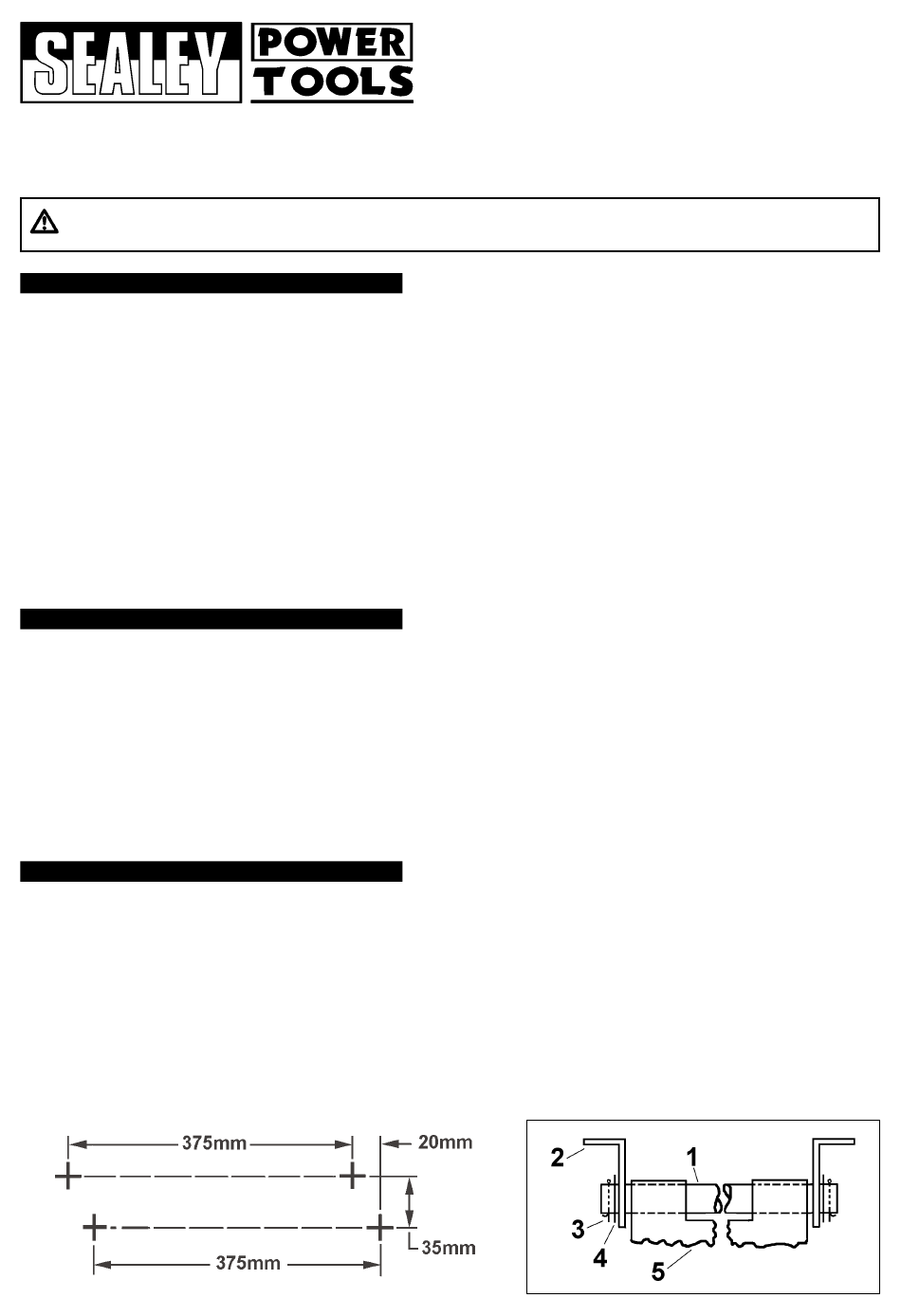

3.2. Mark out the mounting hole positions as shown in fig.1. Drill and plug the surface and screw mount the support brackets.
3.3. Fit washer and split pin (fig.2.4 & 3) to one end of support tube (fig.2.1). Feed support tube through one bracket (fig.2.2), through the
hose reel (fig.2.5) and through the second bracket. Secure with the second washer and split pin.
Note: When wall mounting, reel lifting handle must be uppermost.
3.4. Check to ensure that the main body will turn sufficiently to allow the hose to be extended without rubbing on either side of the housing.
3.5. Before use, check that all fixings are safe and secure, and that the hose extends and retracts smoothly.
IMPORTANT: If the reel is to be ceiling mounted it must be modified to ensure correct operation of the clamping/recoil
mechanism - contact your supplier.
p
fig. 1
from the water supply before changing accessories, servicing or performing any maintenance.
in a suitable working area. Do not position the hose in direct sun light, or in areas of extreme heat or
for any purpose other than that for which it is designed.
when you are tired, under the influence of alcohol, drugs or intoxicating medication.
INSTRUCTIONS FOR:
RETRACTABLE WATER HOSE REEL
RWH18
Model:
hose reel.
Content
• Reel & Hose Asm.
• Support Tube
• Screw x 4
• Mounting Bracket x 2
• Washer x 2
• Split Pin x 2
fig. 2
RWH18 - 0166 - (1) - 200700
