Sharp GX17 Service Manual page 110

GX17

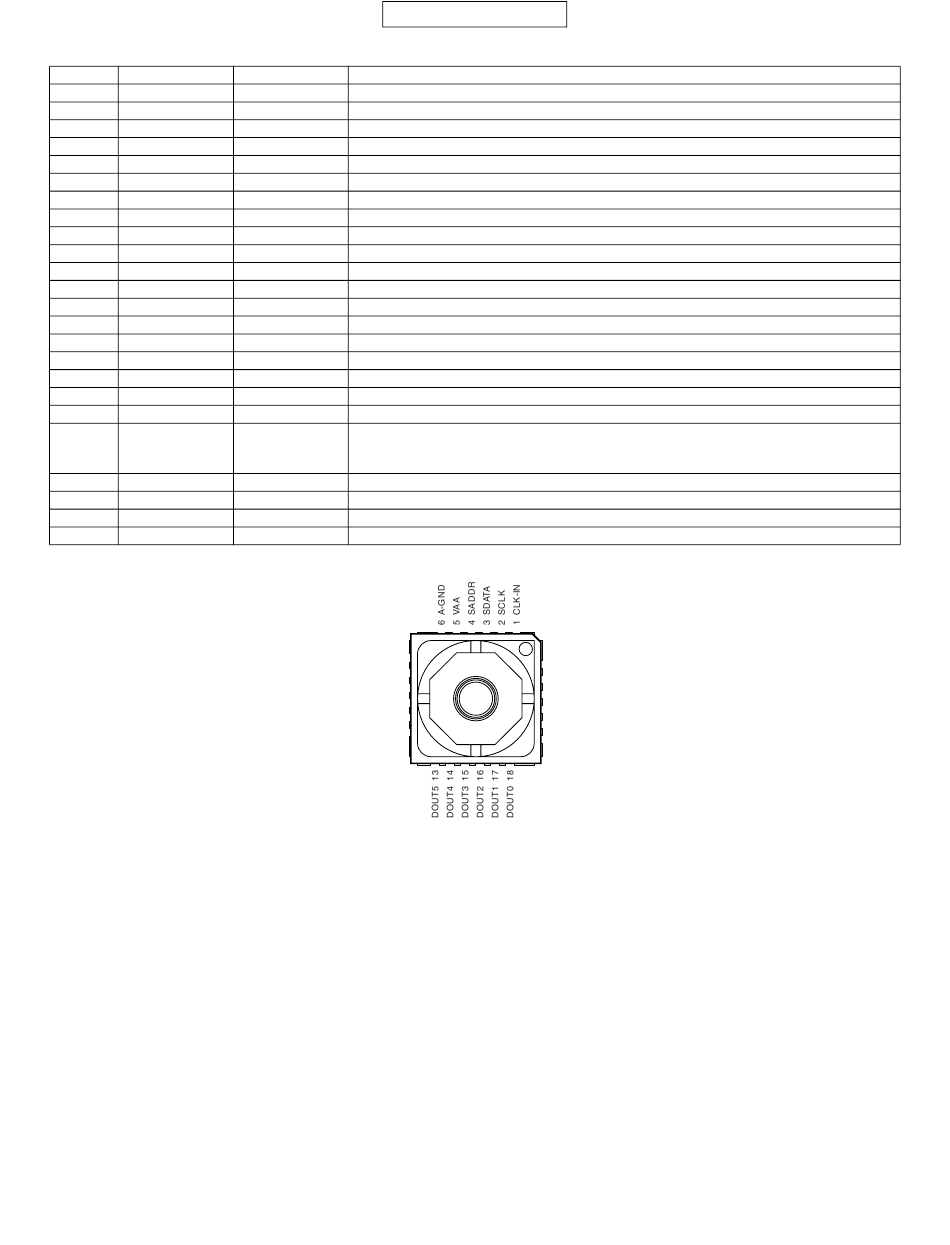

CA100 RUNTZA021AFPZ (FPDB0Z001A): CAMERA UNIT
Pin No. Terminal name
1 CLK-IN
2 SCLK
3 SDATA
4 SADDR
5 VAA
6 A-GND
7 RESET-B
8 STANDBY
9 D-GND
10 VDD
11 DOUT7
12 DOUT6
13 DOUT5
14 DOUT4
15 DOUT3
16 DOUT2
17 DOUT1
18 DOUT0
19 FLASH
20 PIXCLK
21 LINE-VALID
22 FRAME-VALID
23 VDD
24 D-GND
CONFIDENTIAL
Input/Output
Input Master clock into sensor. Default is 12 MHz (27 MHz maximum)
Input IIC Serial clock
Input/Output IIC Serial data I/O
Input Serial interface address select: Reg0xB8 when HIGH (default). Reg0x90 when LOW
Input Analogue power (2.8 V)
– Analogue earth
Input Asynchronous reset of sensor when LOW. All registers assume factory defaults
Input When HIGH disables the imager
– Digital earth
Input Digital power (2.8 V)
Output CCIR656/RGB data bit 7 (MSB)
Output CCIR656/RGB data bit 6
Output CCIR656/RGB data bit 5
Output CCIR656/RGB data bit 4
Output CCIR656/RGB data bit 3
Output CCIR656/RGB data bit 2
Output CCIR656/RGB data bit 1
Output CCIR656/RGB data bit 0
Output Flash strobe
Output Pixel clock out
Pixel data output are valid during rising edge of this clock
Frequency = Master Clock
Output Active HIGH during line of selectable valid pixel data (see Reg0x20 foroptions)
Output Active HIGH during frame of valid pixel data
Input Digital power (2.8 V)
– Digital earth
RESET-B 7
STANDBY 8
D-GND 9
VDD 10
DOUT7 11
DOUT6 12
Description of terminal
24 D-GND
23 VDD
22 FRAME-VALID
21 LINE-VALID
20 PIXCLK
19 FLASH
6 – 24
