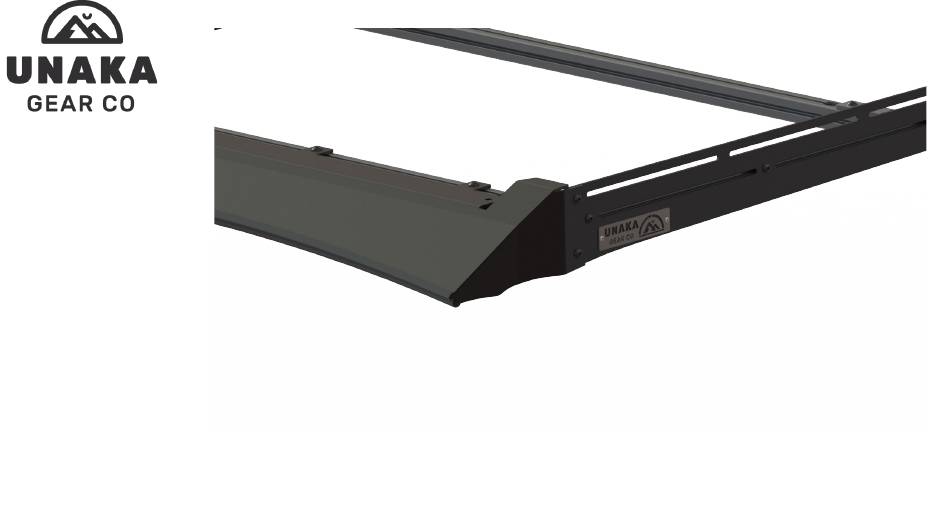

- Page 1 Installation Manual: SPRINTER V2 ROOF RACK, PREMIUM, W/ LIGHTBAR, 144 HR SKU: 1006-MK67-00 REV 1 Date: 5/27/2025 Manual Revision: 0...
-
Page 2: Installation Safety
Van Tech. This type of rail system is required by Mercedes to ensure you maintain your factory warranty while installing a roof rack. The Unaka washer plate that slides into the rails are 3-1/8” Long, x 7/8” wide x 1/16” thick and have been tested with the OEM rails and Van Tech rails. -
Page 3: Installation Overview
Installation Overview TOOLS NOT INCLUDED • Layout and identify all parts • Keep hardware separate; some pieces may be only slightly different and are not interchangeable • Failure to follow this step may result in extended delays in Torque Wrench (75 3/16”... - Page 4 Rack Components SIDE RAIL TAPPED SPLICE PLATE SOLAR PANEL TOP BRACKET CROSS BAR CONNECTOR 8020 INSIDE SPLICE PLATE [ITEM 7] {QTY. 2} [ITEM 1] {QTY. 16} [ITEM 3] {QTY. 10} [ITEM 2] {QTY. 4} RACK RAIL DOUBLE WASHER ROOF RACK ADAPTER BRACKET [ITEM 10] {QTY.
-
Page 5: Hardware Components
Hardware Components Keep hardware separate; some pieces may be only slightly different and are not interchangeable • DOUBLE T-NUT, 2" SPACING DOUBLE T-NUT T-SLOT NUT M7 x 0.36", SELF TAPPING SCREW 5/16-18 X 11/16" FLANGED SCREW [ITEM 4] {QTY. 10} [ITEM 5] {QTY. - Page 6 Pre-install Select Hardware ● Pre-install the hardware for each sub item as shown. ● Hardware should be loose so that the brackets or items can easily slide onto the 8020 channels in later steps. Qty 8 8020 Inside Splice Plate Assembly, 3” ●...
- Page 7 T-Nut General T-Nut Installation Tips Installation Potential Interferences ● Install T-nuts long side first and boss down ● If long side of T-nut faces outside, it will interfere with adjacent 8020 ● If long side of adjacent t-nuts face each other, they may interfere Repeat 5 X Cross Bar Initial Assembly:...
- Page 8 Wait Install Rack Brackets • ½” Socket & 2 x • (Premium and Standard racks) • Take 8020 adapter brackets with pre-installed hardware and slide Hardware loosely into factory roof channels to the positions shown in bottom graphic installed • Repeat for all brackets in both driver and passenger side channels •...
- Page 9 Wait Side Rail Assemblies • ½” Socket & 2 x • (Premium and Standard racks) 63.97” • Slide 8020 side rails onto rack brackets from the front and rear 63.97” • PRO TIP: If you encounter too much resistance to slide, loosen the t-nuts but do not fully unthread them 15 in-lbs •...
- Page 10 Wait Side Rail Positioning • ½” Socket & 2 x Roof • (Premium and Standard racks) Identification mark • Position front side rails so they are 123” from Leading edge of usable the center of the roof identification mark on factory roof track your van.
- Page 11 • 3/16 Allen 132 in-lbs Setting Side Rail Spacing & 2 x • ½” Wrench & Socket • Once cross bars are in place, center the rack on the van and set the side rail to side rail spacing so that the cross bars are snug, but can still be removed, or adjusted Center Rack on Van forward or backwards.
- Page 12 • 3/16 Allen 132 in-lbs Install Side Plates & 2 x • ½” Wrench & Socket Side 8020 plate • Hardware should be pre-installed in side plates T-Nuts • Slide the front plate onto the 8020 from the front of the rack. Installed Set the leading edge of the front plate to be flush with 8020 edge and snug up hardware.
- Page 13 • 3/16” Allen Final Install of Wind Fairing 132 in-lbs & 2 x • Lower wind fairing assembly down on the outside of the side plates • Insert and start the hardware to secure the wind fairing to the rack. Apply anti-seize to the bolts during this step.
- Page 14 Potential Interference / Adjustments Potential Interference • Depending on your layout, you may need to adjust the position of your rack brackets, splice plate, or cross bars to eliminate interferences • The inside splice plates should eliminate any issues with cross bar placements giving more flexibility.
- Page 15 Hardware kit: Top Mount Solar Panel • 7/16” Wrench & Socket 75.2 in-lbs Top Mount Solar Panel Bracket Install & 0 x Bracket Set of 4 w/8020 Hardware Top Mount Solar Panel Brackets • If the solar panel manufacturer recommends more brackets, follow their requirements •...
- Page 16 • 3/16” Allen 132 in-lbs Top Mount Solar Panel Bracket Install & 2 x Install the solar panel to your roof rack / cross bar • Cross bars should already be roughly positioned with t-nuts pre-installed • Hardware kit includes 9/16” and 5/8” Long BHCS which look nearly identical. Make sure Panel 1 you use the correct bolt for the correct application •...
- Page 17 200W Solar Panel Notes • This rack was designed to fit 200W and larger solar panels 200W Newpowa Panel: 55.28 Solar panel occupying same space as long as their max solar panel length is 55.28” long x 27.76 x 1.38 in as splice plate: Remove or relocate •...
- Page 18 Optional Flush Mount Solar Panels: Renogy 175W Solar Panel Example Flush Mount Solar Panel Brackets are not included with this rack kit and must be purchased separately. • If you are using smaller solar panels, you may choose to install them with flush mount solar panel brackets. This allows the solar panels to rest down inside of the cross bars / side rail profiles in a more traditional flush style.
