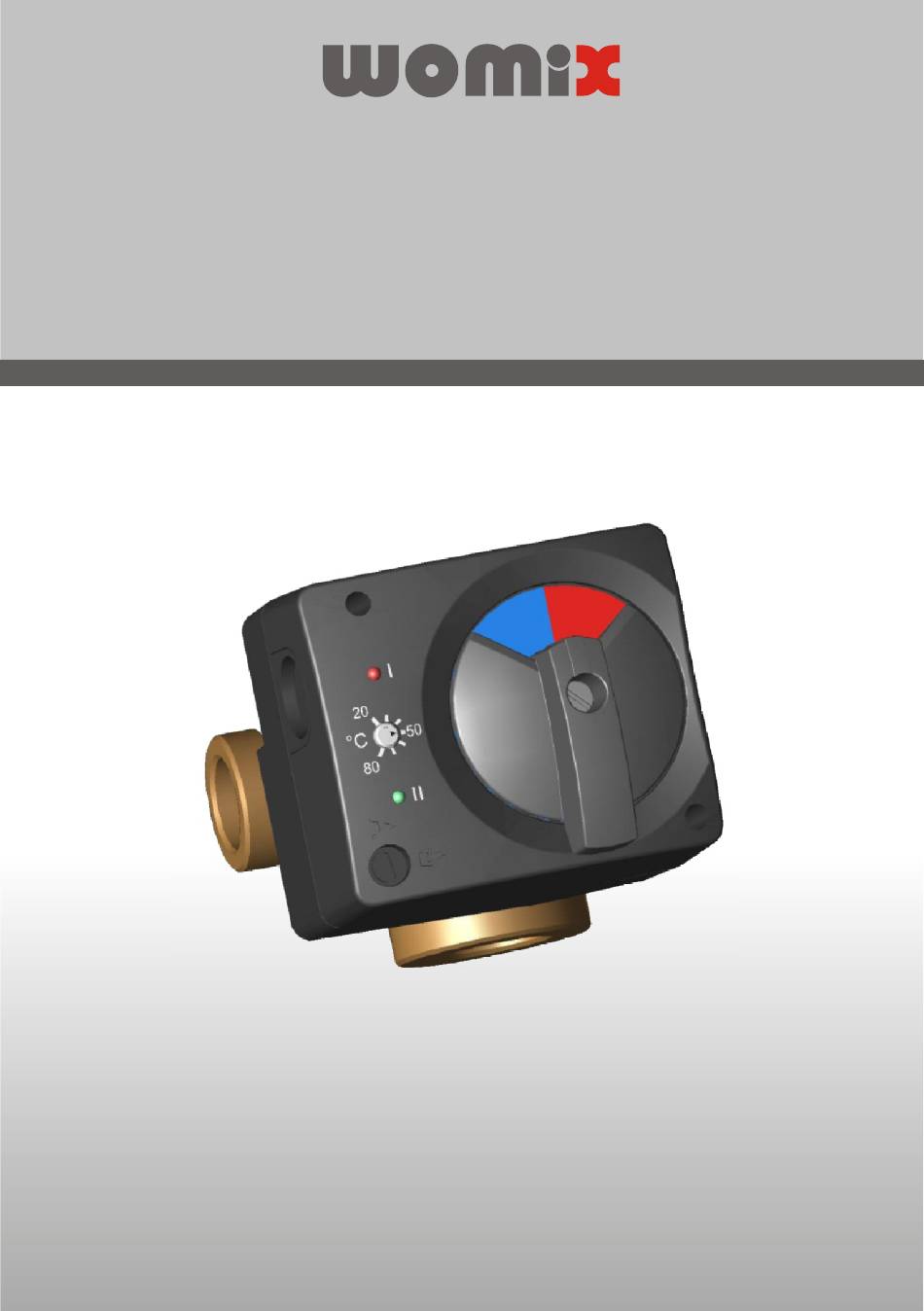

- Page 1 Motorregler (fixed-value controller) MP 10 CR OPERATING COMMISSIONING MANUAL...
-
Page 2: Table Of Contents
Attention! Only begin with mounting or installation work after you have read this operating and commissioning manual! It is absolutely necessary to make yourself familiar with the complete content. Index of contents 1. Product description ..........................2 1.1. Characteristics and functions ......................2 1.2. -
Page 3: Technical Data
Operating and commisioning maanual actuator MP 10 CR 1.2. Technical data Supply voltage 230 V AC 50 Hz, fix connection via two-core power cord with standardised european plug, cord length 2 m Power consumption 3,5 VA Sensor input NTC- temperature sensor, 8,2 k at + 25 °C, fix connected immersion sensor, cord length 1 m, immersion sleeve Ø6 mm x 43 mm... -
Page 4: Use As Intended
2. Use as intended The fixed-value controller is intended to activate a mixer. Another application is not permissible and is considered as inappropriate. The controller may only be installed and operated in: - dry, not explosive surrounding areas - closed rooms - rooms with a temperature between 0 °C and + 50 °C 3. -
Page 5: Transport And Storage
Operating and commisioning maanual actuator MP 10 CR 6. Transport and storage Prove carefully, if there are damages at the packaging or at the controller. Only transport the controller in the original packaging. The controller may be damaged, even if it falls down of a low height. - Page 6 Mixing valve Fixed-value controller Internal DIP-switch Central position 45 running direction 3-way / flow right 1 = ON blue red Factory setting CLOSE OPEN 3-way / flow left 1 = OFF blue OPEN CLOSE 4-way / flow right 1 = ON blue red Factory setting CLOSE...
-
Page 7: Mounting Of The Sensor (Immersion Sensor)
Operating and commisioning maanual actuator MP 10 CR 7.1. Mounting of the sensor (immersion sensor) While mounting the sensor pay attention to correct fit of the sensor and to good heat conductance. 7.2. Electrical connection Plug in the controller via two-core power cord and standardised european plug in power socket -230VAC... -
Page 8: Adjustment Of The Setpoint Value Temperature
9.1. Adjustment of the setpoint value temperature Adjustment of the setpoint value temperature at the front side of the controller with a screw driver. Adjustment range: + 20°C to + 80°C 9.2. LED displays (in automatic operation) The two LED´s (red and green) at the front side of the controller indicate signals from the electronic control to the actuator and indicate faults (see chapter 11. -
Page 9: Minimum Temperature Limit
Operating and commisioning maanual actuator MP 10 CR Adjust the DIP-switches before mounting the controller on the mixer! After the adjustment of the DIP-switches mount the housing cover correctly. 9.4. Minimum temperature limit At the minimum temperature limit the temperature setpoint value is limited to a value, that will not be undercut –... -
Page 10: Maintenance
10. Maintenance The controller is maintenance-free. You can occasionally clean it with a soft and dry cleaning cloth. Attention! No humidity may get inside the controller! - Never use solvent-containing cleaning materials! 11. Errors and troubleshooting Please check the following points, if your fixed-value controller does not operate successfully: 1. - Page 11 Operating and commisioning maanual actuator MP 10 CR Notes:...
- Page 12 Instrukcja monta¿u i obs³ugi si³ownika MP 10 CR z wbudowanym regulatorem sta³otemperaturowym Descriptions, performance information and illustrations in this manual are non-binding. Technical alterations reserved. Without explicit authorization of the manufacturer this manual is not allowed to be duplicated, distributed, altered, transferred and translated into another language or to be used otherwise.
