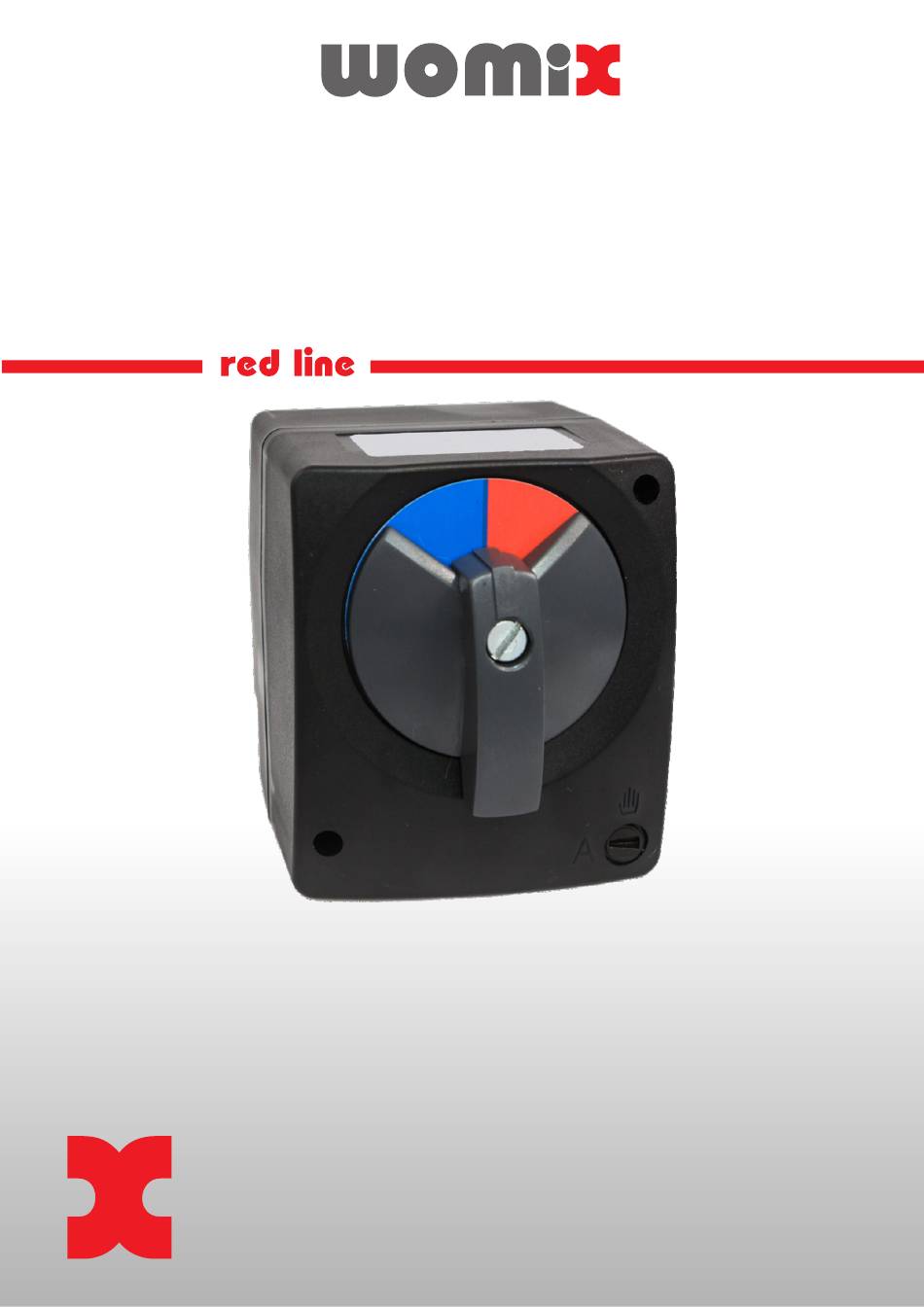

- Page 1 Mixing valve actuator MP 06, MP 10 Mounting and Operating Instructions WOMIX Ul. Elizy Orzeszkowej 11 89-200 Szubin tel./fax +48 52 382 44 50 fax +48 52 382 44 51 www.womix.com.pl e-mail: biuro@womix.com.pl...
- Page 2 Introduction Thank you for your trust in our company and for purchasing modern and functional actuator MP from WOMIX. This product will serve you for years and have a considerable impact on energy-efficient heating. The MP actuator MP series actuators are compact and solid design. Under the plastic housing are located: transmission with a maximum torque of 6 Nm actuator MP 06, 10 Nm actuator MP 10, a synchronous motor, two limit switches.
- Page 3 Dimesion: Connection diagram MP 06 AC 24 V AC 230 V - the neutral wire - number 4 - the phase wire - number 3 - the phase wire - number 2 Always connect the the neutral wire to terminal N. Terminal voltage causes a clockwise rotation of the actuator shaft.
