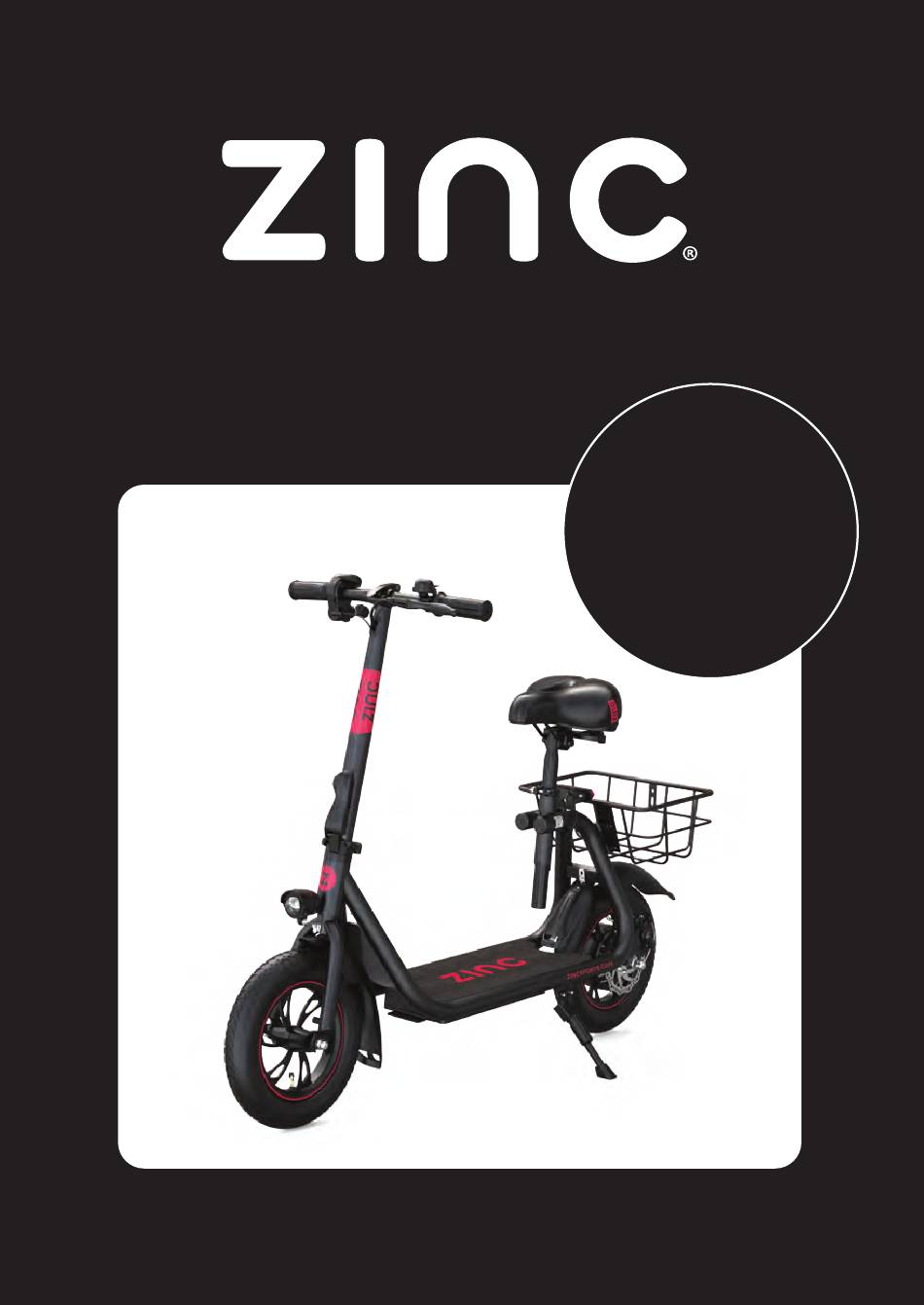

- Page 1 LIBERTY SEATED ELECTRIC SCOOTER WARRANTY So that your warranty is valid please register at www.zincsports.com within 30 days of receiving the product. OWNER MANUAL...
-
Page 3: Table Of Contents
Contents 1. Configuration & Packing Listing 2. Assembling the Scooter 3. Display functions 4. Using the battery 5. Precautions for Safe Riding 6. First use 7. Maintenance and care 8. Trouble Shooting 9. Parameters 10. Warranty NOTE: Manual illustrations are for reference only. Illustrations may not reflect the exact appearance of the actual product. -
Page 4: Configuration & Packing Listing
1. Configuration & Packing Listing Quick release LCD Display Bell Handle Throttle Brake Handle Saddle Quick Release Tail light Lock Lever Luggage Basket Front Lamp (Max. weight: 10kg) Rear Wheel Front Wheel Motor Kickstand Rear Disc Brake Charger Allen Key Owner Manual... -
Page 5: Assembling The Scooter
2. Assembling the Scooter Take the Folding E-Scooter out of its box, pull the lock lever on the steering column forward and fold the handlebar up. Then push the lock lever back again. Open the quick release in the middle of the handlebar and turn the handlebar to a position that’s comfortable for you. - Page 6 Open the quick release on the seat post mount on the frame and insert the seat post. Adjust the seat height to a comfortable position (the minimum insertion mark is not visible) and then close the quick release. Preparation Remove the 4 mounting screws for the luggage basket above the rear mudguard.
-
Page 7: Display Functions
3. Display functions Insert the key and twist it to start the E-scooter. Twist the key one more time to turn on the front light and rear light. When you press the brake handle, the motor wheel will stop and the rear light will flash. The Display shows the current battery power level. - Page 8 IMPORTANT NOTES ABOUT CHARGING If the green light on your charger does not turn RED when you plug it into your scooter, it could mean you have to check the cables to ensure you have a proper connection; or that your scooter is already fully charged. •...
- Page 9 BATTERY DISPOSAL Do not store the battery in temperatures above 50˚C or below -20˚C. CONTAINS SEALED LITHIUM-ION BATTERIES. BATTERIES MUST BE RECYCLED. Your Zinc product uses sealed lithium-ion batteries which must be recycled or disposed of in an environmentally sound manner. Do not dispose of a lithium-ion battery in a fire. The battery may explode or leak.
-
Page 10: Precautions For Safe Riding
5. Safety Warnings - Read before use For your safety, please read the safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. Not for riders under the age of 14. - Page 11 for a component has been exceeded, it may break suddenly, therefore risking causing injuries to the user. Cracks, scratches and discolouration in the areas subject to high stresses indicate that the component has exceeded its service life and should be replaced. 18.
-
Page 13: First Use
6. First use First steps • Use the throttle twist grip to accelerate. • You can use the rear disc brake to brake. Always • Turn the E-Scooter off after riding. • Charge the Folding E-Scooter. • To fold in, pull the locking lever on the handlebar. •... -
Page 14: Maintenance And Care
7. Maintenance and care • Before each ride, please make sure that all screws or self-locking fasteners and quick release clamps are tightened and that the handlebar’s locking lever is well engaged. • Make sure the tyre pressure is correct (see page 4)! •... - Page 15 Maintenance and care • Store your Folding E-Scooter in a dry and cool place. • A well-maintained battery can still provide good performance even after many kilometres. Charge the battery after each ride and avoid operating the battery on “empty”. Please note that the performance of the battery decreases continuously at low temperatures (see section on “Using the battery”...
- Page 16 Maintenance and care Tightening/loosening the brake cables: 1. To tighten or loosen a brake cable, you first need to loosen the lock nut on the brake lever in question. 2. Then turn the adjusting nut to tauten the brake cable (distan ce between the brake shoes and brake disc is reduced), or in the opposite direction to loosen it (distance between the brake shoes and brake disc increases).
-
Page 17: Trouble Shooting
It is important to use the correct spare parts for your particular model i.e. ZC09564 ZINC LIBERTY SEATED ELECTRIC SCOOTER, and that you purchase them directly from us. Visit our website WWW.ZINCSPORTS.COM and go to ‘Spare Parts’. -
Page 18: Parameters
9. Parameters Material Aluminium Maximum range approx. 30km/ 18.6mile* Maximum speed 25 km/h* Product weight 16kg Maximum load 100 kg Display Wheel size 12” pneumatic tyres at the front and rear Brakes Disk brake at the rear Product size 128 x 55 x 99cm Product size folded 128 x 40 x 55cm Charger... -
Page 19: Warranty
• You must be the original purchaser who bought the product from an authorised dealer, your warranty cannot be transferred. • You must report any defects to Zinc Sports within 30 days of discovery of said defect else the warranty will not be valid. - Page 20 Zinc Sports advice that you contact your insurance company to determine whether coverage is provided for the use of this scooter, or to take out a new policy.
