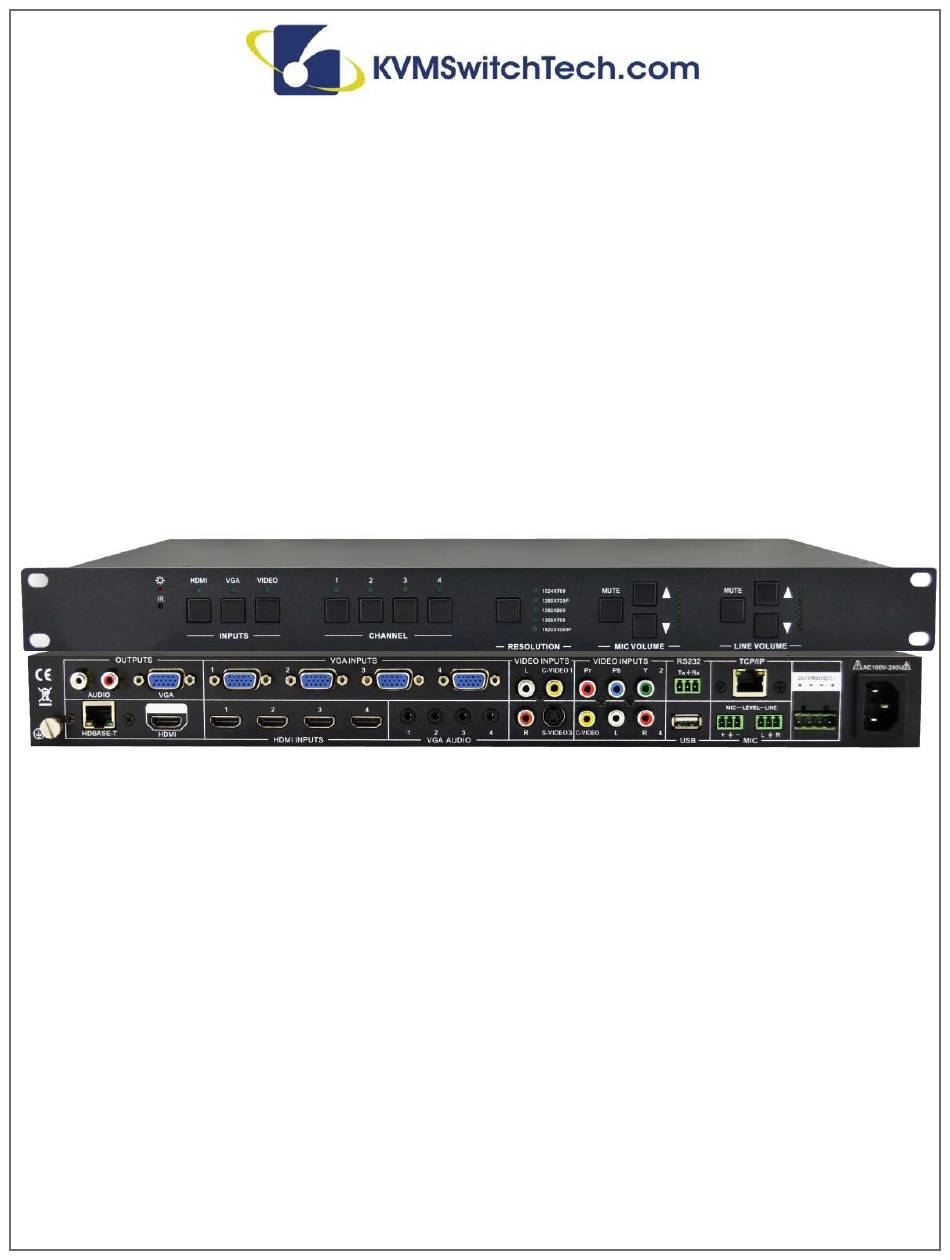

- Page 1 VMTX-12P-HDMI 12 Input Multi Format Video Switcher With HDBASE-T, VGA and HDMI Outputs INSTRUCTION MANUAL 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737 V.1.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONTENTS DISCLAIMERS The information in this manual has been carefully checked and Introduction & Contents ............1 is believed to be accurate. We assume no responsibility for any Features ................2 infringements of patents or other rights of third parties which may result from its use. -
Page 3: Package Contents
INTRODUCTION, CONTENTS, OPERATION NOTICE INTRODUCTION This is a manual for Presentation Scaler switcher VMTX-12P-HDMI. This manual is only for operating procedures, not for any maintenance or servicing. The functions described in this version were updated October 2011. Any changes of functions and parameters since then will be informed separately. Please refer to the dealers for the latest details. -
Page 4: Features
FEATURES FEATURES VMTX-12P-HDMIis a presentation scaler switcher with digital amplifi er, it is designed for multi-signal processing, signals of C-Video, S-Video, YPbPr, VGA and HDMI can be scaled to high-resolution HDMI & VGA format. It supports fi rmware updating via USB. 1. -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS Video Input Video Output Input 4 HDMI Output 1 HDMI 4 VGA 1 VGA 1 YPbPr 1 HDMI TP 2 C-Video 1 S-Video Input Connector HDMI female connector Output Connector HDMI female connector VGA(15 pin HD), female connector VGA(15 pin HD), female connector RCA female connector RJ-45 connector... -
Page 6: Front And Real Panel
FRONT AND REAR PANEL FRONT PANEL (1) Power indicator LED. It will display red when the unit is connected to power. (2) IR receive sensor for IR remote control. (3) Input Signal source type LED status. (4) Video signal source type selection buttons. VIDEO source type (HDMI, VGA, Component Composite and or S-Video.) (5) Signal source channel selection buttons. -
Page 7: Component Input
VIDEO/AUDIO DESCRIPTION Below are the detailed descriptions of inputs and outputs. COMPOSITE VIDEO AND S-VIDEO INPUT Supports PAL/SECAM/NTSC Changeable aspect ratio. (Full-screen, wide screen, 4:3) Color RGB adjustable COMPONENT INPUT Input Display Parameter Resolution Frame Frame Frame Frequency Frequency Frequency 720x480I 15.75 720x480P... -
Page 8: Hdmi Input
VIDEO/AUDIO DESCRIPTION CONT’D HDMI INPUT HDMI resolution support: Resolution Resolution 640×480@60 Hz 1024×768@70 Hz 640×480@72 Hz 1024×768@75 Hz 640×480@75 Hz 1280×1024@75 Hz 800×600@56 Hz 1280×720P 800×600@60 Hz 1360×768 800×600@72 Hz 1920×540 800×600@75 Hz 1920×1080I 1024×768@60 Hz 1920×1080P Digital embedded audio decoding. Changeable aspect ratio. -
Page 9: Picture Setting
OSD OPERATION (ON-SCREEN-DISPLAY) The VMTX-12P-HDMI provides a nice OSD operation menu, with various functions and language. The operation introduction is: PICTURE SETTING The fi rst icon from left of OSD menu is to set the picture parameters. It includes the pictures mode preset, color temperature, contrast, brightness, hue, saturation, sharpness, scale, VGA setting and Advance picture adjust. -
Page 10: System Setting
OSD OPERATION (ON-SCREEN-DISPLAY) CONT’D SYSTEM SETTING The Third icon from left of OSD menu is the System Setting. It includes the OSD language setting, audio listen only, and freeze output picture etc. Figure 3: OSD System Setting... -
Page 11: Remote Operation
IR REMOTE DESCRIPTION REMOTE OPERATION Source Select 12 Input Channels: 4 HDMI 4 VGA 2 Composite Video 1 S-Video 1 Component Menu/Volume Line Volume MUTE for line and MIC audio mute. Active when not in MENU Direction and OK, these buttons are available only in MENU mode. -
Page 12: Rs-232 Cable Pins Used
RS-232 CABLE PINS USED 1. Transmission Rate: 9600 bps 2. Data Format: 8 data bits, No parity , 1 start bit, and 1 stop bit 3. Flowing Control: None Also known as 9600,8,n,1... -
Page 13: Rs-232 Control Command Introduction
RS-232 CONTROL COMMAND INTRODUCTION Note: 1: The letter inside the bracket [ ] is the variable code, which is changeable. 2: The bracket [ ] is not part of the command. 3: Any dot “.” after the letters is part of the command. Example 1: Switch the Input 2 to the line out. - Page 14 RS-232 CONTROL COMMAND INTRODUCTION CONT’D Check the volume level LINE Volume: XX/MIC Volume: XX 0630% Check the input source Source: XXXXXX 0631% Check the output resolution Resolution: XXXXXXXX 0632% Check the image mode Picture Mode : XX 0633% Check the audio mode Sound Mode: XX 0634% Check the image aspec ratio...
-
Page 15: Tcp/Ip Controlling
The TCP/IP connection requires you either send comments manually or from a third-party controller. IP CONFIGURATION 1) Connect a computer to the TP port, set its IP to the same IP section as the default IP of VMTX-12P-HDMI (192.168.0.178). Same IP section but cannot be 192.168.0.178... - Page 16 Connection and Command Control 1) Connect a computer and VMTX-12P-HDMI to the same network. Open the NET software (or any other TCP/IP communication software) and create a connection, enter the IP address and port of VMTX-12P-HDMI (default IP: 192.168.0.178, port:4001): Figure 7: Connection and Command Control After successful connection;...
-
Page 17: Firmware Updating / System Diagram
3: Pressing the button “HDMI” on the front panel for 6 seconds or sending RS-232 command 0698% for updating, then press the button “OK” on the remote or send RS-232 command 0609% to confi rm update. The VMTX-12P-HDMI will capture the new fi rmware from USB fl ash disk. -
Page 18: Terms And Conditions Of Use
TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM SWITCH TECH, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
