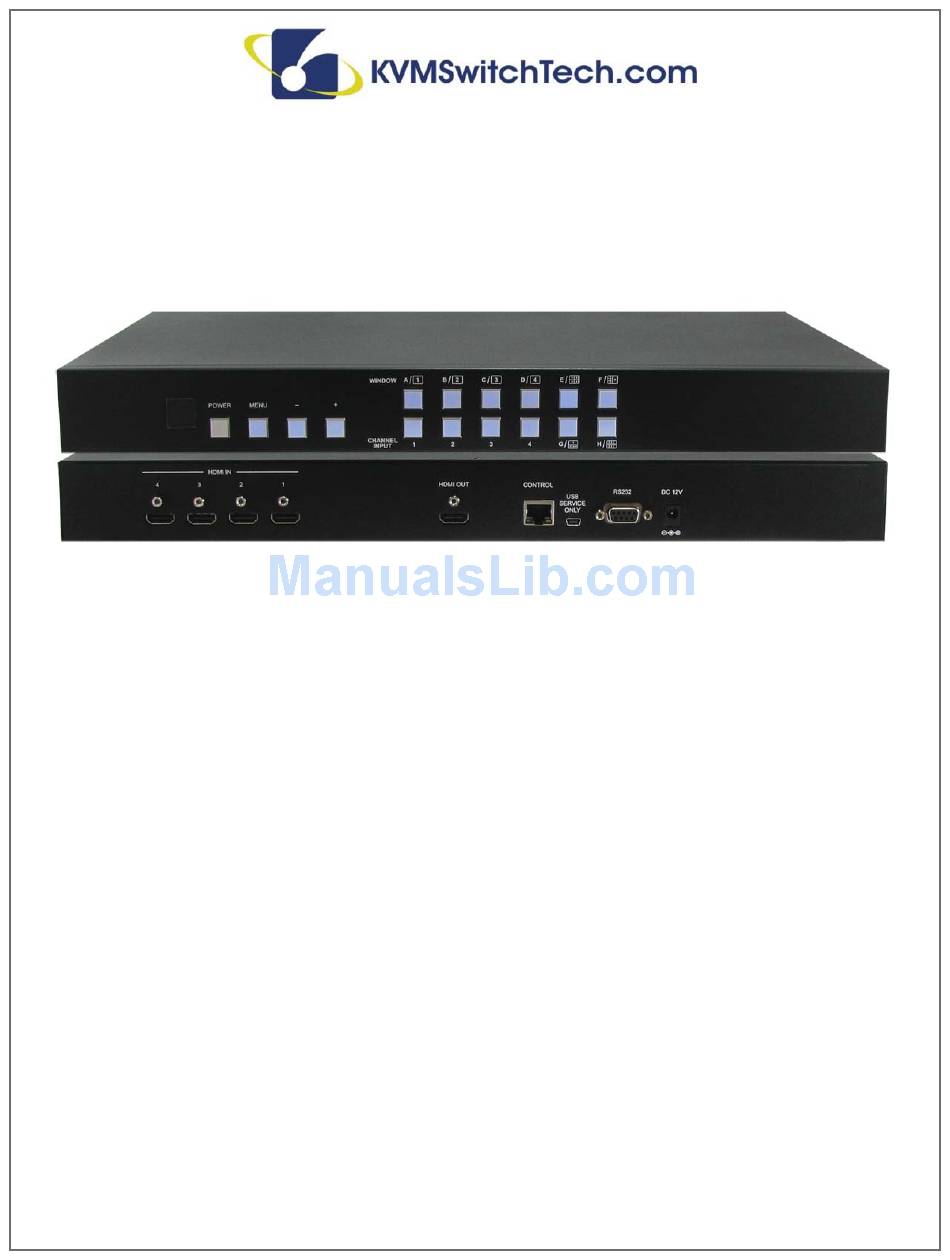

- Page 1 HDMI-PIP-4P 4 x 1 HDMI Seamless Quad PIP Scaler INSTRUCTION MANUAL 118 W. Streetsboro Street, Ste. 125 | Hudson, OH 44236 | Toll Free: (866) 865-7737 V.1.3...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS CONTENTS DISCLAIMERS The information in this manual has been carefully checked and Introduction & Contents ............1 is believed to be accurate. We assume no responsibility for any Features ................2 infringements of patents or other rights of third parties which may result from its use. -
Page 4: Features
FEATURES FEATURES • Seamless switching between channels and windows • Zoom and Shrink 4CH input image and/or overlay • Supports PIP, POP and multi-windows display • Supports OSD, RS-232 Remote and on-panel controls • Fade-In-Out, Chromakey, Mirror and Rotation (90˚ left & right and 180˚ up & down) functions •... -
Page 5: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS FRONT PANEL IR Window: Accept IR signal from the device’s remote control (included). POWER: Press this button to power on the device or set it to standby mode. MENU: Press this button to bring up the OSD menu on screen. ... -
Page 6: Remote Control
REMOTE CONTROL OUTPUT RESOLUTIONS Power: Press this button to switch on the device or press it again to set it to standby mode. Info: Press this button to show the device’s fi rmware version. Input CH 1~4: Press these buttons to rotate HDMI 1~4 input source on each channel to be displayed on screen ... -
Page 7: Rs-232 Protocols
RS-232 PROTOCOLS RS-232 PROTOCOLS Baud Rate: 115200bps HDMI-PIP-4P Remote Control Data Bit: 8 bits Assignment Assignment Parity: None Flow Control: None Stop Bit: 1 RS-232 COMMANDS Command Action Command Action POW000 POW000 MUT000 Mute Off POW001 POW001 MUT001 Mute On... -
Page 8: Osd Menu
OSD MENU OSD MENU Main Menu 1st Layer 2nd Layer 3rd Layer CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50) Brightness Adjust CH 4 0~100 (50) Value Reset Menu Exit CH 1 0~100 (50) CH 2 0~100 (50) CH 3 0~100 (50) - Page 9 OSD MENU OSD MENU Main Menu 1st Layer 2nd Layer 3rd Layer CH2 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred CH2 Hxxx Vxxx Channel 2 Horizontal Unit Select Horizontal Ten Position Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred...
- Page 10 OSD MENU OSD MENU Main Menu 1st Layer 2nd Layer 3rd Layer CH4 Wxxx Hxxx Width Unit Width Ten Size Width Hundred Height Unit Height Ten Height Hundred Position CH4 Hxxx Vxxx Channel 4 Horizontal Unit Select Horizontal Ten Horizontal Hundred Vertical Unit Vertical Ten Vertical Hundred...
- Page 11 OSD MENU OSD MENU Main Menu 1st Layer 2nd Layer 3rd Layer Mirror On/Off Fade In-Out On/Off Channel 3 Rotation R90/L90/ Convert Up-Side Down180/Off Window Reset Menu Exit Window Convert Mirror On/Off Fade In-Out On/Off Channel 4 Rotation R90/L90/ Convert Up-Side Down180/Off Window Reset Menu Exit...
-
Page 12: Connection And Installation
CONNECTION AND INSTALLATION... - Page 13 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER KVM SWITCH TECH, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
