Installation Manual
Installation Hardened FSOC PSPL-3000 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-PSPL-3000 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-PSPL-3000 to
3.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of
fiber handling, stripping, cleaning and splicing will be helpful.

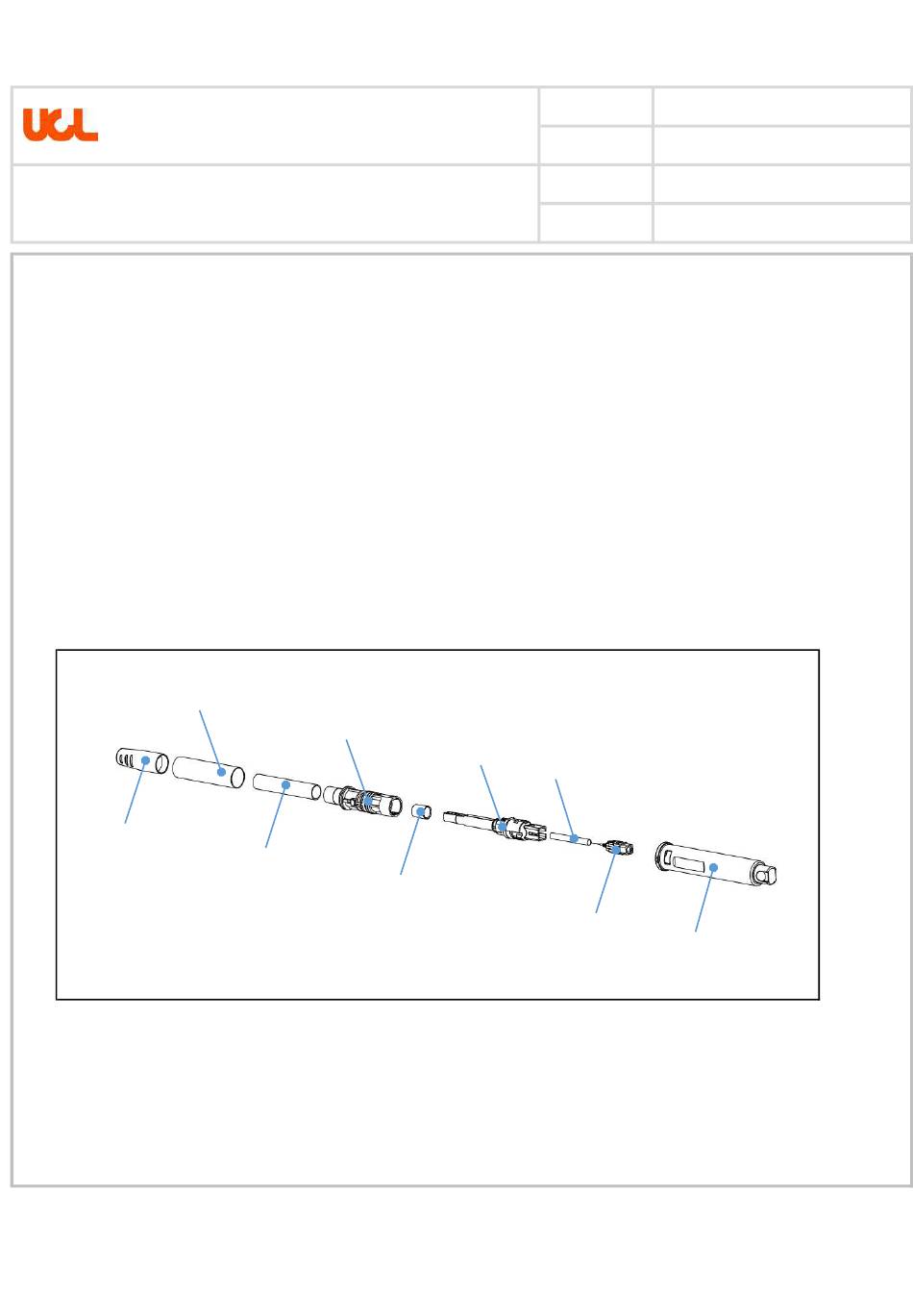

2. HFSOC- A2-SC/APC-PSPL-3000 Configuration
⑧ Protection Tube(B)
⑨ Boot
Form No: UCL001 Rev.01
No
Slack, Simple & Fast in FTTH Deployment
⑤ Housing Ass'y
⑦ Protection
④ Crimp Ring
Tube(A)
Installation
Guide #
Date of
Enactment
No. of
Revision
Page
③ Frame
② Sleeve
① Ferrule Ass'y
IG-HFSOC-SC-PSPL-3000-001
2023-10-17
01
1/12
⑥ Cover
UCLSwift Co., Ltd.
Advertisement
Related Manuals for UCL SWIFT HFSOC-A2-SC/APC-PSPL-3000
Summary of Contents for UCL SWIFT HFSOC-A2-SC/APC-PSPL-3000
- Page 1 4. KF4A-HDC(Fusion Splicer) Setting 5. Installation 1. General This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-PSPL-3000 to 3.0mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of fiber handling, stripping, cleaning and splicing will be helpful. 2. HFSOC- A2-SC/APC-PSPL-3000 Configuration ⑧...
- Page 2 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 2/12 Page 3. Installation Tools 3.1 Tools for Cable Preparation Fiber Stripper Crimper Kevlar Shears (CFS-3) (CRTL-CR-PSPL) (IDEAL 45-344)
- Page 3 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 3/12 Page 4.1 Splice Mode • G.657.A2 to G.657.A2 : Setting – 12. G657 A2B2 •...
- Page 4 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 4/12 Page 5.1.2 Place a mark on the cable jacket at 50 mm from the end. 50mm 5.1.3 Using the fiber stripper tool, remove the loose tube at the 50 mm mark, exposing of the aramid yarn.
- Page 5 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 5/12 Page 5.1.5 Insert the sleeve and place the 0.9mm fiber in the holder (SST-900L) as follows. [Caution] Sleeve 5.1.5b...
- Page 6 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 6/12 Page 5.2 Fusion Splicing (Include Stripping and Cleaving) 5.2.1 Stripping a. Turn on the power of stripper. b.
- Page 7 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 7/12 Page 5.2.2 Cleaving a. Clean the optical fiber using an alcohol-soaked fiber wipe. Open the cover of the cleaver and trash bin.
- Page 8 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 8/12 Page 5.2.3 Splicing a. Close the wind cover after ensuring that both holders are in place. When wind cover is closed, the splice will be executed automatically.
- Page 9 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 9/12 Page f. Open the heater cover. Locate the connector and sleeve area and place the sleeve within appropriate heating area.
- Page 10 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 10/12 Page 5.3.2 Crimp Ring Assembly : Insert the crimp ring and secure the frame using the crimper. (2 times). 5.3.2b 5.3.2a 5.3.2c...
- Page 11 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 11/12 Page 5.3.4 Protection Tube Assembly : Insert the protection tube(A) and protection tube(B) in the following order. protection tube (A) protection tube (B) : Fix the cable and housing kit using the HDC heater as follows.
- Page 12 Installation IG-HFSOC-SC-PSPL-3000-001 Slack, Simple & Fast in FTTH Deployment Guide # Date of Installation Manual 2023-10-17 Enactment No. of Revision Installation Hardened FSOC PSPL-3000 with KF4A-HDC 12/12 Page : Finally, place the boot in full contact with the rear of the housing body and install the cover on the connector.
