Installation Manual
Installation Hardened FSOC PSPL-4824 with KF4A-HDC
Contents
1. General
2. HFSOC-A2-SC/APC-PSPL-4824 Configuration
3. Assembly Tools
4. KF4A-HDC(Fusion Splicer) Setting
5. Installation
1. General
This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-PSPL-4824 to
4.8x2.4mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of
fiber handling, stripping, cleaning and splicing will be helpful.

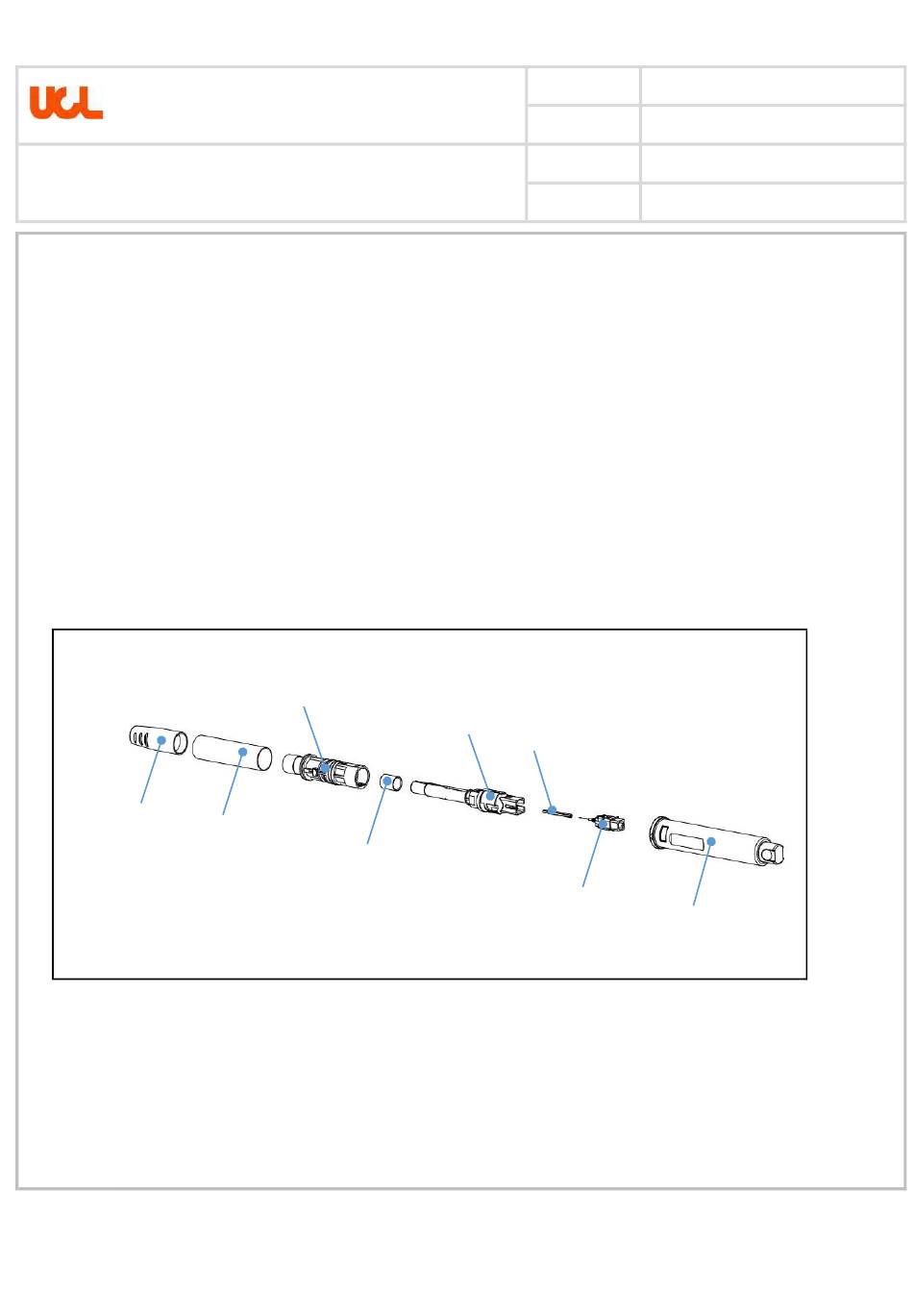

2. HFSOC- A2-SC/APC-PSPL-4824 Configuration
⑧ Boot
⑦ Protection Tube
Form No: UCL001 Rev.01
Slack, Simple & Fast in FTTH Deployment
⑤ Housing Ass'y
④ Crimp Ring
Installation
Guide #
Date of
Enactment
No. of
Revision
Page
③ Frame
② Sleeve
① Ferrule Ass'y
IG-HFSOC-SC-PSPL-4824-001
2023-11-24
01
1/12
⑥ Cover
UCLSwift Co., Ltd.
Advertisement
Related Manuals for UCL SWIFT HFSOC- A2-SC/APC-PSPL-4824
Summary of Contents for UCL SWIFT HFSOC- A2-SC/APC-PSPL-4824
- Page 1 This installation guide provides procedures for assembling for HFSOC-A2-SC/APC-PSPL-4824 to 4.8x2.4mm outdoor cable with KF4A-HDC All-In-One Fusion Splicer. A basic understanding of fiber handling, stripping, cleaning and splicing will be helpful. 2. HFSOC- A2-SC/APC-PSPL-4824 Configuration ⑤ Housing Ass’y ③ Frame ②...
- Page 2 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 2/12 3. Installation Tools 3.1 Tools for Cable Preparation Clamper Snipper Kevlar Shears Multi-Slitter (HT-5133F2) (Lobstar 6”/2706)
- Page 3 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 3/12 4.1 Splice Mode • G.657.A2 to G.657.A2 : Setting – 12. G657 A2B2 •...
- Page 4 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 4/12 5.1.2 Measure and mark 60 mm from end of cable using a ruler. 60mm 5.1.3 Separate and remove the outer jacket with the multi-slitter.
- Page 5 Installation No Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 5/12 5.1.5 Insert the sleeve and place the 0.9mm fiber in the holder (4824-900) as follows. [Caution] Sleeve 5.1.6b...
- Page 6 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 6/12 5.2 Fusion Splicing (Include Stripping and Cleaving) 5.2.1 Stripping a. Turn on the power of stripper. b.
- Page 7 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 7/12 5.2.2 Cleaving a. Clean the optical fiber using an alcohol-soaked fiber wipe. Open the cover of the cleaver and trash bin.
- Page 8 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 8/12 5.2.3 Splicing a. Close the wind cover after ensuring that both holders are in place. When wind cover is closed, the splice will be executed automatically.
- Page 9 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 9/12 f. Open the heater cover. Locate the connector and sleeve area and place the sleeve within appropriate heating area.
- Page 10 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 10/12 5.3.2 Crimp Ring Assembly : Insert the crimp ring and secure the frame using the crimper. (2 times). 5.3.2b 5.3.2a 5.3.2c...
- Page 11 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 11/12 5.3.4 Protection Tube Assembly : Insert the protection tube. 5.3.4a 5.3.4b : Fix the cable and housing kit using the HDC heater as follows. 5.3.4d 5.3.4c : After the heating time has elapsed, open the lid and use quick cooling spray...
- Page 12 Installation Slack, Simple & Fast in FTTH Deployment IG-HFSOC-SC-PSPL-4824-001 Guide # Date of Installation Manual 2023-11-24 Enactment No. of Revision Installation Hardened FSOC PSPL-4824 with KF4A-HDC Page 12/12 : Finally, place the boot in full contact with the rear of the housing body and install the cover on the connector.
