Summary of Contents for anko DP352

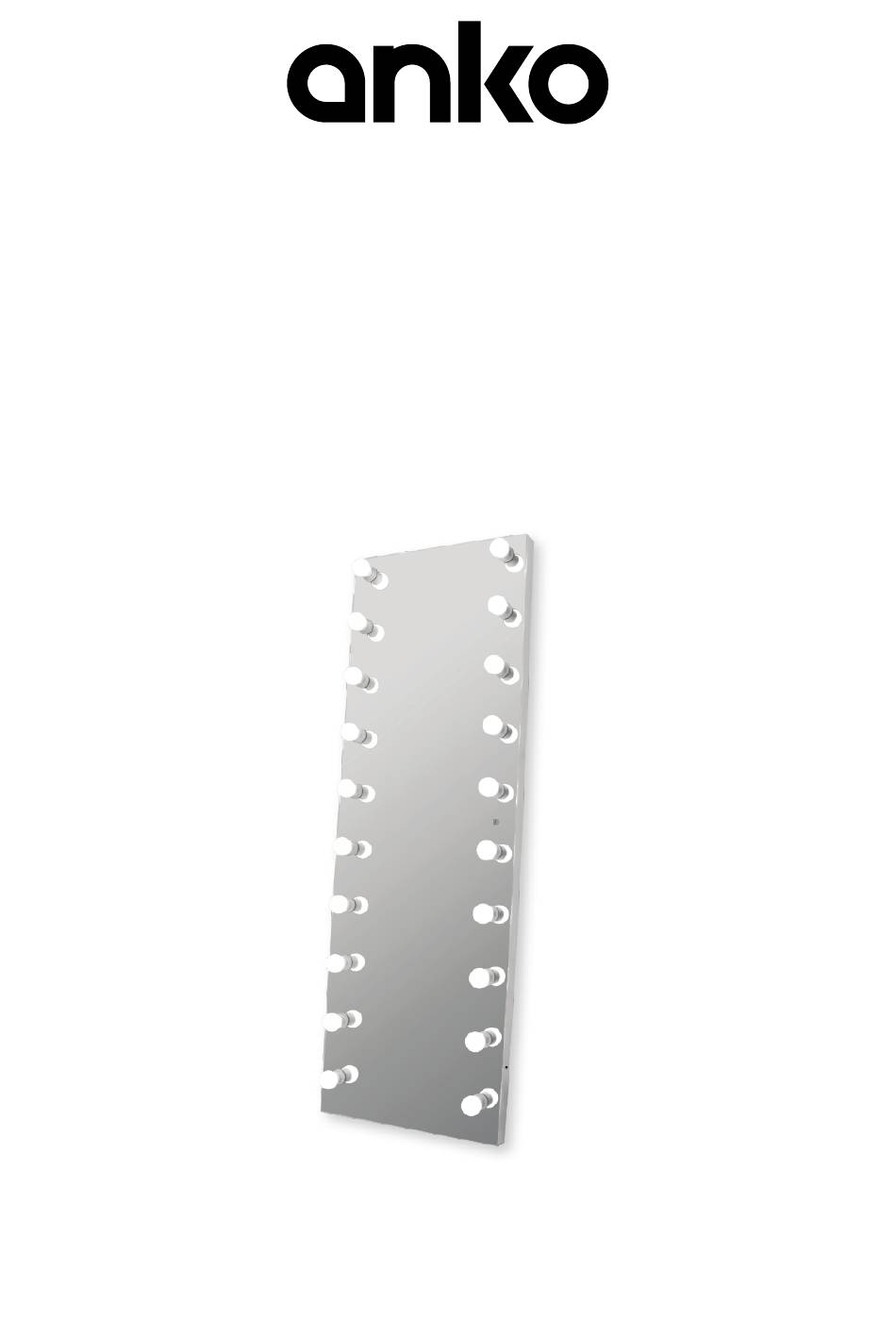

- Page 1 Full Length Hollywood Mirror For Household Use Only Model No.: DP352 Rev 4...
- Page 2 Page 2 of 16...
-
Page 3: Table Of Contents
Warnings .................. 4 Safety Directions ..............4 Components ................6 LED Light Globe Assembly ............ 7 Wall Mount Instructions ............7 Power Supply ................ 11 Using the Mirror Lights ............12 7.1 On / Off ................... 12 7.2 Light Type ................12 7.3 Dimmer Control .............. -
Page 4: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. - Page 5 DO NOT handle the power supply or mirror with wet hands. DO Keep power supply cable away from heated surfaces DO disconnect the power supply from the power supply when not in use, DO NOT hang items off the LED light globes. DO NOT attempt to modify this product in any way.
-
Page 6: Components
Components Mirror Power Supply - CW1203500AU LED Light Power in On / Off Switch, Light Type Selector, and 4 Wall Plugs & Screws for wall mounting dimmer control. Note: The specifications and/or components of this appliance are subject to change without prior notice Page 6 of 16... -
Page 7: Led Light Globe Assembly
LED Light Globe Assembly Remove an LED light globe from its box and insert it into the light socket • on the mirror. Rotate the LED light globe clockwise to screw the light in. Nip it up but do • not overtighten. - Page 8 Tools required: Tape Measure, Electric Drill, Philips Head Driver Bit for the electric drill, 3mm or 4mm drill bit, Pencil and a Philips hand screwdriver for screwing in the mounting screws. Find a suitable strong wall and your desired location for the mirror near a •...
- Page 9 If you are absolutely sure that behind the wall is clear of electrical wires, • water pipes etc., drill a pilot hole using the 3mm or 4mm drill bit through the wall in all four places. Note: although the wall plugs are self-drilling, meaning that they will drill their own hole through the plaster wall, it is better to pre-drill the holes first to ensure the wall plugs follow these pilot holes ensuring they are in the exact position required as, without the pilot hole, the wall anchor may...
- Page 10 Gently pick up the mirror and with the back of the mirror facing the wall, • align the four screw heads with the centre of all four slots in the back of the mirror frame, push the mirror flush against the wall and then lower the mirror so that it hooks over the screw heads.
-
Page 11: Power Supply
Power Supply Important: Only use with Power Supply Model: CW1203500AU (Output: 12Vd.c. 3.5A) Unravel the power supply cable. Plug in the small plug on the end of the power supply cable into the power jack located in the side of the mirror. Note: Depending on which way you have mounted the mirror, the power jack inlet may be on the left side of the mirror towards the top. -
Page 12: Using The Mirror Lights
Using the Mirror Lights 7.1 On / Off With the power supply cable plugged into the side of the mirror and the power supply plugged into the power point and switched on, press (touch) and release the On / Off Switch button on the mirror front side. Note: Depending on which way you have mounted the mirror, the On / Off Switch button may be on the left side of the mirror. -
Page 13: Dimmer Control
7.3 Dimmer Control The lights can be dimmed to your desired level whether the light type is set to Cool, Warm or Natural. To dim, first, turn the lights on, then Press (touch) and HOLD, the On / Off button. The lights will start to dim. -
Page 14: Cleaning The Mirror
8.3 Cleaning the Mirror Do not clean the mirror or other parts with petrol, solvents or any other flammable liquid. Do not clean with scouring pads, rough cloths or the like as the surface will be damaged. Use only a very soft dry cloth to gently wipe the mirror and other parts. Do Not submerge the mirror or other parts in liquid. -
Page 15: Warranty Against Defect
10 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where... - Page 16 Page 16 of 16...
