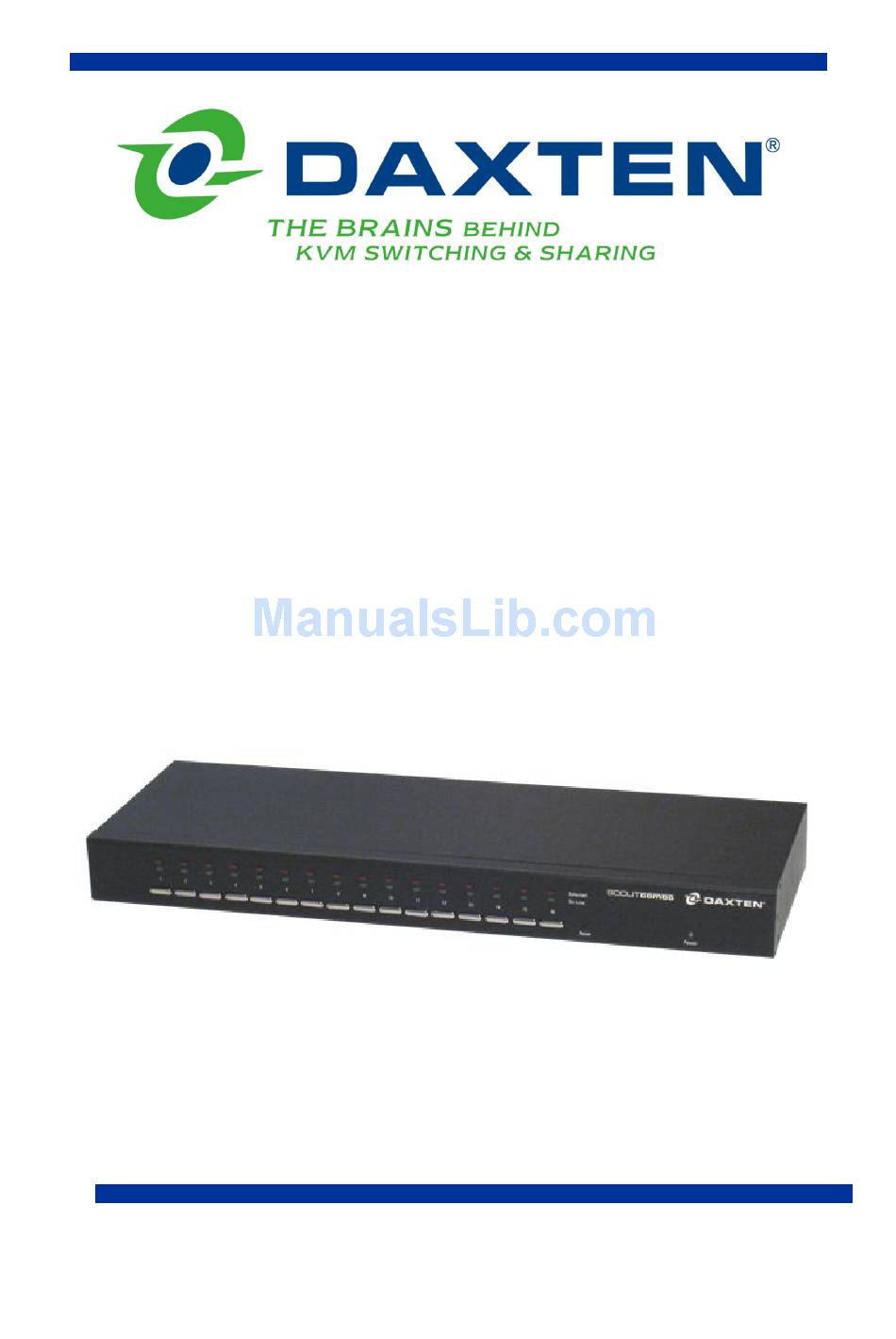

- Page 1 SCOUTcombo Installation guide...
-
Page 2: Specifications
1 set: USB A-type* 1 set: USB A-type* * USB HID devices only © Copyright 2007. All rights reserved. Daxten, the Daxten logo, SCOUTcombo and The Brains Behind KVM Switching and Sharing are trademarks of Daxten Industries. All other trademarks acknowledged. Revision 1.0... -
Page 3: Product Features
SCOUTcombo Introduction Thank you for purchasing the SCOUTcombo Switch. This product will ensure easy and accurate control over 8 to 16 Servers through a single console. The SCOUTcombo is compatible with USB style computers. The SCOUTcombo supports high resolutions of up to 2048 x 1536 without any deterioration of the image quality. -
Page 4: Keyboard Hot Key Commands
Keyboard Hot Key commands To send Hot Key commands to the SCOUTcombo switch, press and release Scroll Lock Scroll Lock within 5 seconds. Press a command key followed by Enter, for the desired effect. The following commands are supported: First Key Second Key Command Key Command Result... - Page 5 The Administrator OSD KVM Layer No – 1 or 3 Cascaded channel number. PC Name – User defined name (31 Characters) Page Up / Page Down indicator (16 Port unit only) PC Status a Buzzer On b Buzzer Off L Locked Port Computer Powered On Channel Scan Function On Current Channel Number...
- Page 6 Note: If you forget your password, then there is no way in which to disable the security and the switch will need to be returned to Daxten. F4: - Rename. Allows you to rename the PC / Server name shown on the OSD menu and channel banner.
- Page 7 F6: - Lock Port This blocks all access to the locked server. An “L” with be displayed in the Status column of the OSD menu. The port can be unlocked by selecting F6 from the OSD menu and keying in the password.
- Page 8 SUN Combo keys The SCOUTcombo can emulate some of the special SUN keys to perform special functions in the SUN Operating System environment. So when the SCOUTcombo is connected to a SUN computer, the switch emulates these SUN keys using a set of key combinations called Combo keys. See the table below.
-
Page 9: Service Information
Limited Warranty Daxten warrants to the end user that this product is and will be free from defects in materials and workmanship for a period of 24 months from the date of purchase. If during the warranty period the product should fail, the purchaser must promptly call Daxten for a RETURN MATERIALS AUTHORIZATION (RMA) number. - Page 10 Ireland Worldwide United Kingdom Bay 21 info.eu@daxten.com 5 Manhattan Business Park Free Zone West www.daxten.eu Westgate • Shannon, Co. Clare London W5 1UP info.ie@daxten.com info.uk@daxten.com www.daxten.ie www.daxten.co.uk info.us@daxten.com Tel: +353 (0) 61 23 4000 Tel: +44 (0) 20 8991 6200 www.daxten.us...
