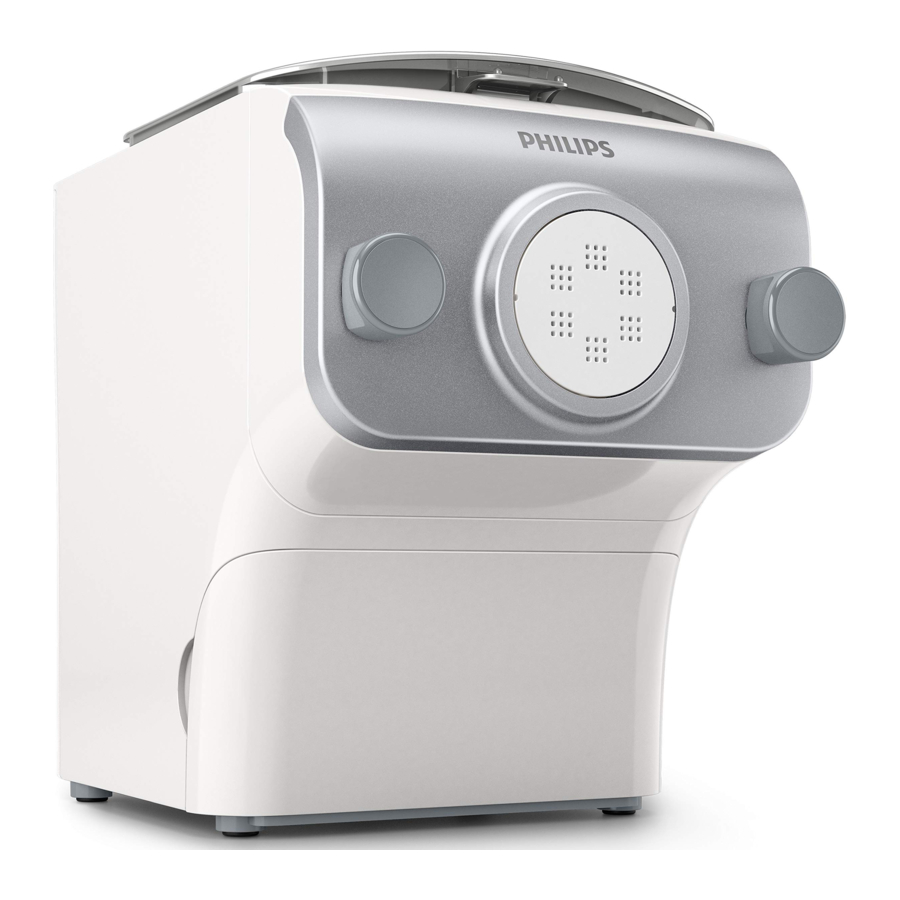

Philips HR2375, HR2378 Manual

Introduction

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Product overview

(Fig. 1)

1. Mixing chamber lid
2. Safety switch hole of the mixing chamber lid
3. Power cord
4. Disc holder safety switch
5. Main unit
6. Shaping disc storage
7. Water/flour cup
8. Cleaning brush
9. Pasta cutter
10. Front panel knobs
11. Front panel
12. Shaping disc
13. Disc holder
14. Disc holder safety switch lever
15. Mixing paddle
16. Mixing chamber

Control panel overview

(Fig. 2)

1. On/off button
2. Display
3. Start/pause button
4. Extrusion only button
5. Automatic button

Available Accessories

Shaping discs

Disassembling and cleaning before first use

1. Remove the mixing chamber lid. (Fig. 3)

2. Loosen the front panel control knobs. (Fig. 4)

   Note: The front panel is heavy. Take extra caution when removing it.
3. Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order. (Fig. 5)

4. Clean all detachable parts, and wipe them dry. (Fig. 6)


Assembling

1. Push the mixing chamber into the appliance. (Fig. 7)

2. Point the mixing paddle to the hole in the main unit. Insert the mixing paddle all the way into the main unit. (Fig. 8)

3. Attach the disc holder onto the appliance. (Fig. 9)

4. Put the shaping disc onto the disc holder, and make sure it is firmly fixed on the disc holder. (Fig. 10)

   Note: Make sure the inner cavity of the shaping disc and disc holder is properly fitted. (Fig. 11)

5. Attach the front panel to the main unit. (Fig. 12)

   Note:
   • Make sure the front panel is completely fastened before using the appliance.
   • The front panel is heavy. Take extra caution when assembling it.
6. Fasten the front panel control knobs. (Fig. 13)

   Note: If the front panel or the shaping disc is not properly assembled, a safety switch will prevent the appliance from working.
7. Close the mixing chamber lid. (Fig. 14)

   Note: If the mixing chamber lid is not properly installed, the safety switch will prevent the appliance from working.

Using the Pasta maker

Preparing the ingredients

Note: Use the supplied flour/water cup to measure flour and liquid.

Flour	Water	Water + Egg
1 cup of flour (~250 g/8.8 oz)
2 cups of flour (~500 g/17.6 oz)

1. Use a kitchen scale to measure the flour. (Fig. 15)

   Note: Refer to the table above or the recipe book for the correct ratios.
2. Remove the mixing chamber lid. (Fig. 3)
3. Pour the flour into the chamber. (Fig. 16)

   Note: Do not put less than 200 g/7 oz or more than 500 g/17.6 oz of flour in the chamber.
4. Measure the required amount of liquid according to the flour you have used. (Fig. 17)

   Note: Refer to the table above or the recipe book for the correct ratios.

Starting the pasta making program

1. Put the plug in the power socket. The appliance sounds once, and all indicators flash once. (Fig. 18)

2. Press the On/off button to switch on the appliance. (Fig. 19)

3. Press the Start/pause button to start the automatic pasta making program. (Fig. 20)

   Note: If the appliance is not in the automatic mode, press the Automatic button before pressing the Start/pause button.
4. After the mixing starts, slowly pour in the liquid along the entire length of the slot in the lid. (Fig. 21)

   Note: During dough mixing, do not add other ingredients after you have poured in the liquid. Otherwise, it will affect the result of the pasta texture.
5. After the pasta maker finishes mixing, it will beep once and start extruding pasta after a few seconds. Use the pasta cutter to cut the pasta into the length you need. (Fig. 22)

   Note: If the ratio of liquid and flour is not correct, the extrusion will not succeed. In this case, prepare the ingredients again.
6. After the pasta making is complete, if you notice some leftover dough inside the chamber, you can press the Extrusion only button, and then the Start/pause button to start extra extrusion. (Fig. 23)


Note

• The extra extrusion lasts for 3 minutes.
• The cooking time of the pasta varies depending on personal preferences, pasta shapes, and number of servings.

The pasta recipes provided in the recipe book have been tested for success. If you experiment with or use other pasta recipes, the flour and water/egg ratios will need to be adjusted. The pasta maker will not operate successfully if you do not adjust the new recipe accordingly.

Note

• To ensure the quality of the pasta, use gluten flour to make pasta. Follow the recommended proportion to add the ingredients.
• Seasonal changes and using ingredients from different regions may affect the flour/ water ratio. You may adjust based on the recommended proportion.
• When making egg pasta or vegetable pasta, make sure you whisk the egg mixture or vegetable juice evenly with the water before pouring into the chamber through the slot in the lid. When adding ingredients, make sure the ingredient is in a liquid form.
• See the recipe book provided for additional pasta recipe variations.

Cleaning

1. Disconnect the plug from the power outlet. (Fig. 24)

2. Remove the mixing chamber lid. (Fig. 3)
3. Loosen the front panel control knobs. (Fig. 4)
   Note: The front panel is heavy. Take extra caution when removing it.
4. Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order. (Fig. 5)
5. Use a dry cloth to clean flour residue on the main unit. (Fig. 25)

6. Clean the shaping disc with the supplied cleaning tool to remove the dough residues. After that, you can clean it with water. (Fig. 26)

   Note: For the spaghetti, thick spaghetti, angel hair and fettuccine shaping discs, let the discs air-dry 2 to 4 hours. Then use the corresponding cleaning tool to poke out the dough in the holes.
7. Clean all detachable parts, and wipe them dry. (Fig. 6)
8. Use a dry cloth to clean the control panel, and the exterior of the pasta maker. (Fig. 27)


Storage

1. Unplug the appliance and let it cool down.
   Note: Make sure all parts are clean and dry before storing.
2. You can store the shaping discs in the storage drawer. (Fig. 28)


Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support or in the U.S. or Canada only, call 1-866-309-8817 for assistance.

Warranty and service

One Year Limited Warranty

For customer support or to obtain warranty service, please visit our website www.philips.com/support.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put the motor unit in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the power cord. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surface, including the stove.
11. Do not attempt to defeat the cover interlock mechanism.
12. Never immerse the motor unit in water or any other liquid and do not rinse it under the tap. Use only a moist cloth to clean the motor unit.
13. Do not use the appliance if the plug, the mains cord or other parts are damaged or have visible cracks.
14. Unplug the appliance when not in use.
15. Do not put heavy objects on the appliance.
16. Do not move the appliance while it is operating.
17. Make sure to tighten the front panel knobs during assembly.
18. Make sure the appliance is not plugged in when assembling the appliance.
19. Pour in the liquid slowly through the water slot after the appliance starts mixing.
20. Do not put any ingredients that are 60°C / 140°F or above into the pasta maker, nor place the pasta maker in surroundings with high temperature (60°C / 140°F), for instance in a high temperature sterilization. This will damage the appliance.
21. Never pour water into the mixing chamber before you place the chamber lid onto the chamber.
22. Do not pour any liquids into the safety switch opening.
23. Do not select the extrusion only program before the dough is mixing complete. Otherwise, this will damage the pasta maker.
24. Do not use a scourer, caustic cleaner, or cleaners (for example, gasoline, alcohol, and propanol) to clean the appliance.
25. Clean the appliance after each use or the appliance might not operate properly.
26. Do nor insert any objects into the appliance.
27. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
28. Never reach into the mixing chamber when the appliance is plugged in.
29. To prevent a short circuit or an electric shock, do not pour water or any liquid onto the display.
30. Before you connect the appliance to the power, make sure that the voltage indicated on the bottom of the appliance corresponds to the local power voltage.
31. Before you insert the plug into the power outlet, make sure that the appliance is assembled correctly.
32. Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions in the manual.
33. Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
34. Do not use the appliance on an unstable or uneven surface.
35. Only use this appliance for its intended purpose as shown in the user manual.
36. Do not exceed the quantities and processing times indicated in the table.
37. To achieve the maximum of the appliance lifetime, we recommend stopping the device for 15 minutes, if it was used for 45 minutes continuously.
38. If you intend to use the appliance continuously, clean the shaping disc with the supplied cleaning tool each time after use. For cleaning ease, do not soak the shaping disc into the water directly.
39. Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
40. Do not put less than the minimum quantity or more than maximum quantity, mentioned in the table of flour in the chamber.

SAVE THESE INSTRUCTIONS

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.
