Installation and user manual
DENSITY 390 - 900 - 1500 - 2400

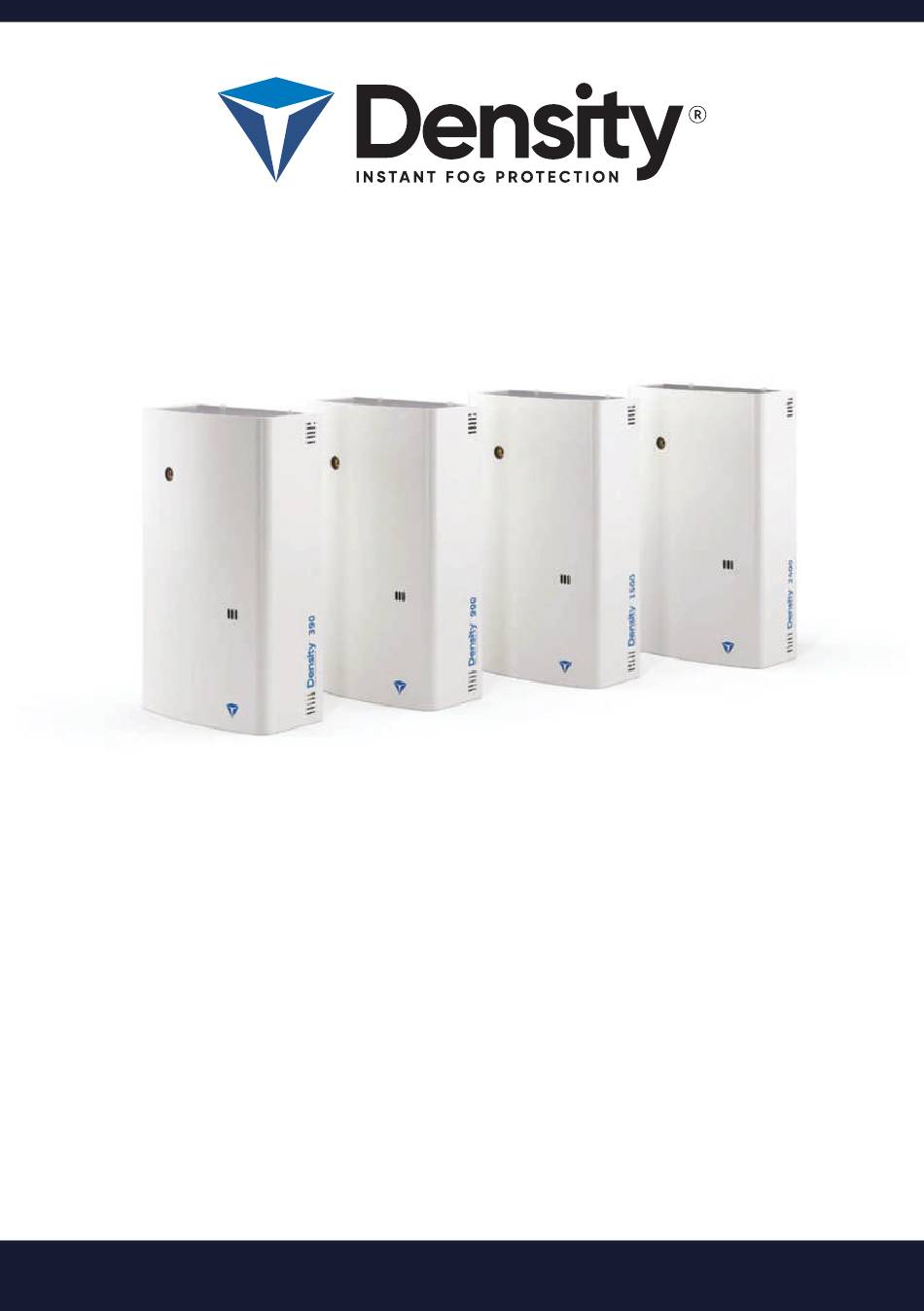

New generation of anti intrusion fogging systems designed to fit any customer request.
Four different models from 390 cubic meters to 2400 in same standard external dimensions.
Cenelec EN 50131-8:2019 certification available 4 inputs PIR 5 outputs.
Optional Remote monitoring and control with Active Cloud Lan board.
Solid state relay for heating safe control.
Version 2.5 October 2024
www.densityglobal.eu | support@densityglobal.eu
www.densityglobal.eu | support@densityglobal.eu
Advertisement
Table of Contents
Related Manuals for DENSITY 390
Summary of Contents for DENSITY 390
- Page 1 DENSITY 390 - 900 - 1500 - 2400 New generation of anti intrusion fogging systems designed to fit any customer request. Four different models from 390 cubic meters to 2400 in same standard external dimensions. Cenelec EN 50131-8:2019 certification available 4 inputs PIR 5 outputs.
-
Page 2: Table Of Contents
Summary Package content page 3 Prepare for Installation page 4 Recommendations page 5 Mounting page 6 Wiring page 7 Nozzle adjustment page 7 Backup battery page 8 Connections page 9 Examples Arm and Trig in Active security installation page 10 of connections - Inputs signals ARM, TRIG + IN 0 Verification Input in active security installation... -
Page 3: Package Content
WARNING! All DENSITY fogging systems should only be used with DENSITY-branded fluids. It is strictly forbidden to use any fluid not previously authorized in writing by DENSITY. 1. Package content Inside the box you find: - The Density Unit - 2 WARNING labels... -
Page 4: Prepare For Installation
2. Prepare for Installation Identification of main components: 1. Orientable nozzle 2. Anti-tampering tamper of the lid Unscrew the 4 side 3. Fog Storm pump fixing screws 4. Terminal block for control inputs of the lid and remove. 5. Terminal block relay outputs 6. -
Page 5: Recommendations
FLUID HORIZONTAL WALL INSTALLATION HORIZONTAL WALL INSTALLATION FLUID FLUID FLUID FLUID Maximum heights of installation of Density Fogging Systems ® The distances are between the nozzle end and the point of impact on the ground MODEL WALL INSTALLATION CEILING INSTALLATION... -
Page 6: Mounting
4. Mounting 1. Fixing holes 2. Hole f or the saf ety screw Distance between the holes in the wall. Fixing holes Hole of ref erence for the installation. Application of the screws on the wall. NOTE: During the installation on the wall first fix the 4 screws, and at the end the safety screw. -
Page 7: Wiring
3. Cable clamp for signal cables 4. Hole for mains power cable insertion NOTE: All cables from and to the Density fogging systems must be less than 30 meters long, except the RJ45 (IP/LAN network cable). 6. Nozzle adjustment Use a 14 mm wrench to loosen the nozzle nut. -
Page 8: Backup Battery
Battery is not included. Reference battery: FIAMM 12V 2 Ah model FG 20201 or equivalent. When the Density fogging system is accidentally powered on without the backup battery, ® after 1 minute it will report an Error (E7), the warning red LED will turn on and the FLT output is activated. -
Page 9: Connections
PIR sensor input: All density family device can prevent false activations controlling an optional local PIR positioned near the device. It means that to generate the shoot,PIR signal must be activated together with TRIG command is sent from the alarm panel. -
Page 10: Inputs Signals 9.2 Arm, Trig + In 0 Verification Input In Active Security Installation Page 11
9. Examples of connections - Inputs signals 9.1 Arm and Trig in Active security installation ACTION ACTION ACTION DAYTIME NIGHTIME IN ALARM COM 1 COM 2 COM 3 + 12V + 12V + 12V + 12V ARM + ARM - TRG + TRG - PRIMARY... - Page 11 9.2 ARM, TRIG + IN 0 Verification Input in active security installation If an additional verfication input is required before fog emition it is possible to activate the IN 0 Input . ACTION ACTION ACTION ACTION INALARM + DAYTIME NIGHTIME IN ALARM VERIFICATION COM 1...
-
Page 12: Arm, Trig, Pir Verification (Pir Input) In Active Security Installation
9.3 ARM, TRIG, PIR verification (PIR input) in Active Security Installation When the fogging system is armed, the TRG and PIR inputs must be active AT THE SAME TIME for the shooting to take place. ACTION IN ALARM + INPUT PIR ACTION IN ACTION IN ACTION IN... -
Page 13: Arm, Trig, Pir And Panic Button In Active Security Installation
9.4 ARM, TRIG, PIR and PANIC BUTTON in Active security installation The PANIC input is used for emergency immediate activation. The PANIC input DOES NOT take into account the status of the inputs ARM, TRG, IN 0 and PIR. The fogging system must in any case be in a HOT and READY state (fixed green LED on). -
Page 14: Optional Connection To The Fire Protection System
AUXC FIRE ALARM PIR + SYSTEM PIR - PIRC IMPORTANT! If the fire alarm system is ACTIVATED, this signal will disarm the Density fog generator, ® FIRETIME making it IMPOSSIBLE to shoot, until its deactivation. RESET BOOT IMPORTANT! DIPSWITCH 8 = OFF... -
Page 15: Examples Of Connections - Outputs Signals
10. Examples of connections - Outputs signals NO NC Selector EMPC On CPLUS board it is possible to connect up to 5 OUTPUTS signals: FLTC EMP = empty bag OR LOW FLUID RESERV FLT = Fault/ Maintenance required TMP = unit void-Tamper switch open FVL = Shoot in progress TMPC AUX = Optional output... -
Page 16: Dipswitch
11. Dipswitch On CPLUS electronic board there is a DIPSWITCH with 8 Options. Default functions: SW 1 OFF = FVL relay active for 30 seconds after the shooting ON = Active during all fog emission SW 2 OFF = Front LED active ON = Front LED disable SW 3 OFF = Buzzer Active ON = Buzzer mute... -
Page 17: Shooting Time Setting
The fogging system can be set to generate fog second by second, adapting it to the different volumes of the premises to be protected. Use the table below to find the correct setting according to the meters and the type of Density ®... -
Page 18: Fog Fluid Refill System
13. Fog fluid refill system The fluid bag refill fits easily into the compartment located on the side of the Density Fogging system. ® Connect metal connector to the pipe connected to the fluid PUMP. Fluid measurement system RESET FIRETIME IMPORTANT! When inserting a new refill or replacing... -
Page 19: Front Led's
Fixed red light = the refill is EMPTY or in reserve. Or there is another error (see list above). Fast flashing light = Density device did not detect any fluid (empty refill or incorrect connection). BUZZER: The internal buzzer will sound permanently for 5 minutes when it detects an error. -
Page 20: Final Test - Yearly Maintenance
1. Verify connection and all signals to and from the alarm system. 2. Verify unit has reached the correct temperature (green LED fix on). 3. Verify that arming the alarm panel the blue led on Density turnes ON. 4. Suggested time for shooting test 5 seconds. -
Page 21: Warnings
9. Before testing Density , remember to report it in advance to the firefighters in your area to avoid false alarms. ® 10. Remember to put warning labels reporting the installation of Density unit on the entrance windows. ® 11. Report installation to the firefighters in your area and to other institutions, if needed. -
Page 22: Maintenance Form
19. Maintenance form DATE BATTERY EXCHANGE BAG EXCHANGE SIGNATURE It is mandatory to fill out this table in accordance with the security rules... - Page 24 Version 1.2 - October 2024 www.densityglobal.eu | support@densityglobal.eu www.densityglobal.eu | support@densityglobal.eu...
