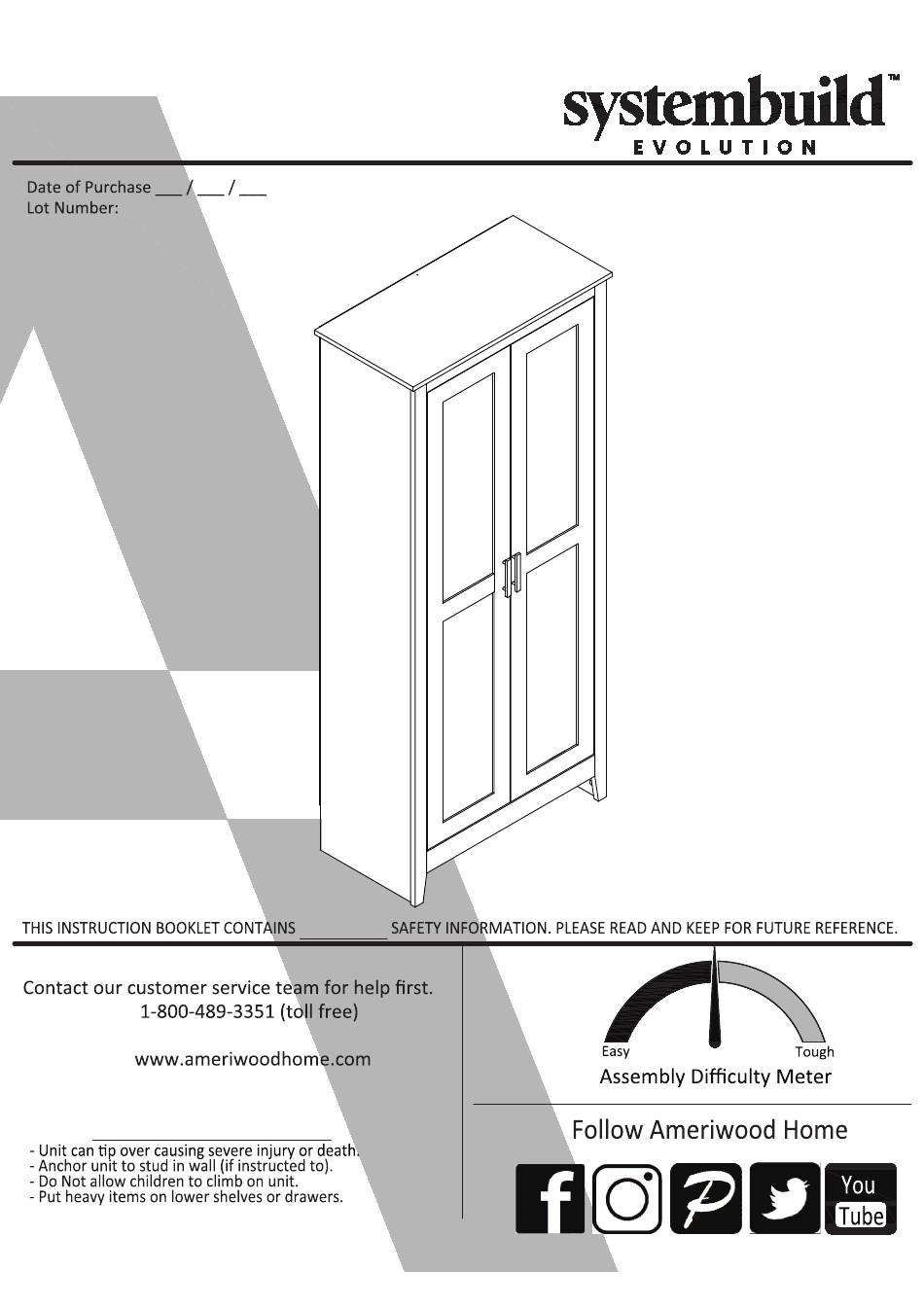

- Page 1 1021306COM FEDERAL WHITE 1021911COM SHADOW OAK 2 Door Storage Cabinet B341021XXXCOM00CS IMPORTANT Do Not Return This Product! Call: Visit: WARNING...
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Call us! 1-800-489-3351 Visit ameriwoodhome.com Helpful Hints 1 HOUR... - Page 3 Arrow to point towards end hole in edge of part End hole...
- Page 5 LEFT SIDE PANEL RIGHT SIDE PANEL FIXED SHELF QTY: 1 PC QTY: 1 PC QTY: 1 PC QTY: 1 PC BOTTOM TOP APRON LOWER APRON WOOD BLOCK ADJUSTABLE SHELF QTY: 1 PC QTY: 1 PC QTY: 1 PC QTY: 1 PC QTY: 2 PCS DOOR LEFT APRON...
- Page 7 1021306COM 1021911COM Quantity LABEL PART NAME (Federal White) (Shadow Oak) T1021306010CS T1021911010CS LEFT SIDE PANEL T1021306020CS T1021911020CS RIGHT SIDE PANEL T1021306030CS T1021911030CS FIXED SHELF T1021306040CS T1021911040CS ADJUSTABLE SHELF T1021306050CS T1021911050CS BOTTOM T1021306060CS T1021911060CS TOP APRON T1021306070CS T1021911070CS LOWER APRON T1021306080CS...
-
Page 8: Part List
Part List M4 x 22mm M8 x 20mm Ø8 x 30mm Ø3 x 12mm Ø15 x 10mm ×24 ×24 ×25 ×4 ×8 CAM LOCK SCREW CAM BOLT WOOD DOWEL BOLT Ø3 x 16mm Ø3 x 12mm Ø4.2 x 45mm 45 x 12 x 1mm ×4 ×30 ×5... - Page 9 Hardware Number Reference 1021306COM 1021911COM MODEL# (Federal White) (Shadow Oak) Hardware Number Reference#: 21021306COM0CS 21021911COM0CS...
- Page 10 ×4 ×3 ×5 1.1 Screw (2) into (A) as illustrated. 1.2 Attach (G) & (I) to (A) with (3) & (9) as illustrated.
- Page 11 ×6 ×4 ×2 2.1 Insert (3) into (F) as illustrated. 2.2 Attach (16) to (F) & (I) with (6) as illustrated.
- Page 12 ×10 ×12 ×6 3.1 Screw (2) into (L) & (M) as illustrated. 3.2 Attach (18) to (L) & (M) with (11) as illustrated.
- Page 14 ×10 ×6 5.1 Attach (L) to (B) with (1) as illustrated. 5.2 Attach (M) to (C) with (1) as illustrated. 5.3 Attach (H) to (F) with (1) as illustrated. 5.4 Use (13) to cover cam lock hole as illustrated.
-
Page 15: Finished Edge
×10 6.1 Attach (D), (F) to (B) & (C) with (1) as illustrated. FINISHED EDGE... - Page 16 ×4 ×4 7.1 Attach (A) to sub-assembly B/C/D/F from previous step with (1) as illustrated. 7.2 Use (13) to cover cam lock hole as illustrated.
- Page 17 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. ×30 8.1 Attach (N) to sub-assembly A/B/C/F from previous step with (8) as illustrated. Important: Assure that the unit is square. Distance from corner to corner must be equal as shown.
- Page 18 ×8 9.1 Insert the shelf supports (14) at the desired level and place the adjustable shelves (E)x2 onto the shelf supports. FINISHED EDGE...
- Page 19 ×4 ×8 ×4 ×12 ×2 10.1 Attach (J) to sub-assembly A/B/C/F from previous step with (11) as illustrated. 10.2 Attach (7) to (J) with (5) as illustrated. 10.3 Attach (15) to (J) with (4) as illustrated.
- Page 20 ×1 ×1 ×1 ×1 Wall Hole...
- Page 21 Loosen screw "A" and adjust door. Tighten screw "A". Afloje el tornillo "A" y ajuste la puerta. Apriete el tornillo "A". Desserrez la vis "A" et ajustez la porte. Serrer la vis "A". Loosen screw "B" and adjust door. Tighten screw "B". Afloje el tornillo "B"...
- Page 23 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
- Page 24 Cubierta Delantera IMPORTANTE No Regrese este producto! Visitar:...
- Page 25 Este no es el tamaño real (1) Bloqueo de leva (14) Soporte de estante (2) Perno de leva (15) Mango (3) Taco de madera (16) Cierre magnético (4) Perno (17) Anclaje de pared (5) Tornillo (18) Bisagra (6) Tornillo (19) Soporte de pared ABAJO (7) Placa de impacto (8) Tornillo...
- Page 26 9.1 Insérez les supports de grille (14) au niveau désiré et placez les étagères (E)x2 sur les supports d'étagère. 10.1 Fixez (J) au sous-ensemble A/B/C/F de l'étape précédente avec (11) tel qu'illustré. 10.2 Fixez (7) à (J) avec (5) comme illustré. 10.3 Fixez (15) à...
- Page 27 ADVERTENCIA: Riesgo de lesiones a las personas - no coloque un televisor sobre muebles. Este mueble no está aprobado para su uso con un televisor. Registre su producto para recibir lo siguiente: Detalles de nuevas tendencias - Vistazo a lo nuevo Encuestas - alec su voz entre su comunidad Códigos de ofertas y descuentos exclusivos Fácil y rápido servicio de partes de remplace...
- Page 29 Taille actuelle Pas de taille réelle (1) Serrure à came (14) Support d'étagère (2) Boulon à came (15) Poignée (3) Cheville en bois (16) Loquet magnétique (4) Boulon (17) Ancrage mural (5) Vis (18) Charnière (6) Vis (19) Support mural (7) Gâche (8) Vis (9) Vis...
- Page 31 Merci...
