4072015COM

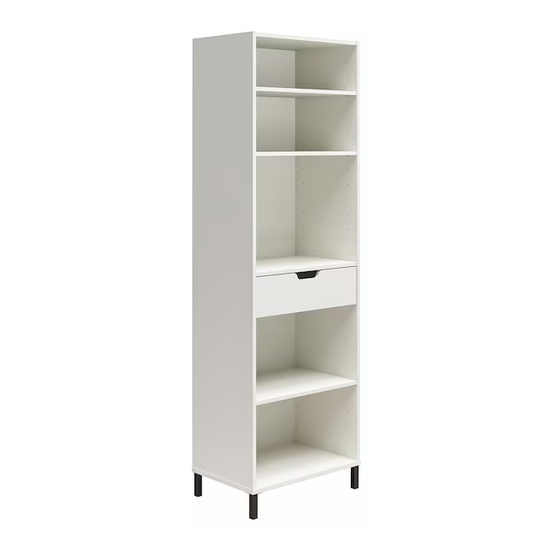

Open Storage Cabinet
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Secure Your Furniture
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from tipping furniture.
WARNING: Manufacturer assumes no liability
for improper installation or excessive loads
placed on screws or bracket. This wall anchor
is not a substitute for proper adult supervision.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.systembuild.com
Easy
Assembly Difficulty Meter
For the latest information on SystemBuild products
follow us at Ameriwood Home
B344072015COM0
Tough
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4072015COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Systembuild Evolution 4072015COM

Summary of Contents for Systembuild Evolution 4072015COM

  • Page 1 4072015COM Open Storage Cabinet B344072015COM0 Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-866-452-4081 (toll free) Monday-Friday 9am - 5pm CST Visit: www.systembuild.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-866-452-4081 Monday-Friday 9am - 5pm CST Tube Visit systembuild.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing,...
  • Page 4 Before You Start Please Note: You may need to lightly tap the wood dowels into the holes during your assembly process. systembuild.com Tube...

  • Page 5: Board Identification

    Board Identification Not actual size 3407215030 Right Panel Left Panel 34072015020 34072015010 Bottom 34072015040 Adjustable Shelf (x3) Drawer Front Shelf 34072015060 34072015070 34072015050 SIDE This piece is paperboard construction. It is not made from wood, but is required for the assembly of your unit. Drawer Side (x2) 39993120346200C Drawer Bottom...
  • Page 6 Board Identification Not actual size SIDE BACK SIDE systembuild.com Tube...

  • Page 7: Part List

    Part List Actual Size (x8) (x8) (x4) (x8) #A22700 #A22710 #A21970 #A21670 cam lock cam bolt drive fastener wood dowel (x20) (x10) (x12) (x4) #A12120 #A11080 #A80250 #A23030 7/16" screw 7/16" screw shelf support confirmat screw (x2) (x36) #A54510 #A21110 drawer bracket nail systembuild.com...
  • Page 8 Part List Not Actual Size (x1) #A84050 safety bracket left cabinet member right cabinet member left drawer member (x4) right drawer member #A44500 foot (x1) drawer slide kit #A56760 systembuild.com Tube...
  • Page 9 STEP 1 MARKED WITH "L" (x1) (x3) (x4) "L" systembuild.com Tube...
  • Page 10 STEP 2 MARKED WITH "R" (x1) (x3) (x4) "R" systembuild.com Tube...
  • Page 11 STEP 3 Quick Assembly (x4) (x4) Proper orientation of CAM LOCK systembuild.com Tube...
  • Page 12 STEP 4 Quick Assembly (x4) (x4) Proper orientation of CAM LOCK systembuild.com Tube...
  • Page 13 STEP 5 finished edges face up systembuild.com Tube...
  • Page 14 STEP 6 finished edges face up systembuild.com Tube...
  • Page 15 STEP 7 (x4) finished edges face up systembuild.com Tube...
  • Page 16 STEP 8 (x12) (x4) systembuild.com Tube...
  • Page 17 STEP 9 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. Carefully turn your unit on its front side. Attached the back panel as shown nailing straight into the raw edges. (x36) surface Assure that our unit is square.
  • Page 18 STEP 10 For Masonry, Concrete, or other wall materials: Consult your local hardware store for appropriate anchors to securely attach the safety bracket. IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.

  • Page 19: Side View

    STEP 11 (x2) (x4) SIDE VIEW SIDE SIDE systembuild.com Tube...
  • Page 20 STEP 12 (x4) SIDE SIDE systembuild.com Tube...
  • Page 21 STEP 13 finished surface SIDE SIDE systembuild.com Tube...
  • Page 22 STEP 14 (x4) BACK SIDE SIDE systembuild.com Tube...
  • Page 23 STEP 15 (x4) (x1) SIDE SIDE systembuild.com Tube...
  • Page 24 STEP 16 roller cabinet member drawer runner roller Note: The drawer bracket holes are slotted. Drawer front can be adjusted by loosening screws, making needed adjustments and retightening screws. systembuild.com Tube...
  • Page 25 STEP 17 (x12) finished edges face out systembuild.com Tube...
  • Page 26 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 0 lbs 0.0 kg 30 lbs 13.6 kg 20 lbs 35 lbs 9.1 kg 15.9 kg 30 lbs 13.6 kg...
  • Page 27 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit systembuild.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
  • Page 28 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-866-452-4081 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.systembuild.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Page 29 Español Página 17 IMPORTANT: El Panel trasero es una parte estructural de la unidad y debe ser instalado correctamente. Gire cuidadosamente su unidad en su parte frontal. Unido el panel posterior como se muestra clavando directamente en los bordes crudos. Asegúrese de que la unidad es cuadrada.
  • Page 30 Español Página 24 Nota: Los orificios del soporte del cajón están ranurados. El frente del cajón se puede ajustar aflojando los tornillos, haciendo los ajustes necesarios y repintando los tornillos. Página 26 CARGA MAXIMA Esta unidad ha sido diseñada para soportar la carga máxima anotada. El exceder estos límites puede causar inestabilidad, colapsarse y/o causar serias lesiones.
  • Page 31 Français Couverture Avant CE LIVRET D'INSTRUCTION CONTIENT DES INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ. VEUILLEZ LIRE ET GARDER POUR UNE RÉFÉRENCE FUTURE Ne retournez pas ce produit! Contactez notre équipe de service à la clientèle amicale d'abord pour obtenir de l'aide. Appelez-nous: 1-866-452-4081 (sans frais) du Lundi au Vendredi de 9h à...
  • Page 32 Français Page 17 IMPORTANT: Le panneau arrière est une partie structurelle de cet appreil et doit être installé correctement. Tournez soigneusement votre appareil sur son côté avant. Attaché le panneau arrière comme indiqué clouage directement dans les bords bruts. Assurez-vous que l’appareil est carré. La distance d’un coin à...
  • Page 33 Français Page 24 Remarque: Les trous de support de tiroir sont fendues. L’avant du tiroir peut être ajusté en desserrant les vis, en effectuant les ajustements nécessaires et en repoussant les vis. Page 26 CHARGES MAXIMALES Ce meuble a été conçu pour supporter les charges maximales indiquées. En excédant ces limites de charge, le meuble pourrait devenir instable, s'effondrer, et/ou causer des blessures graves.
