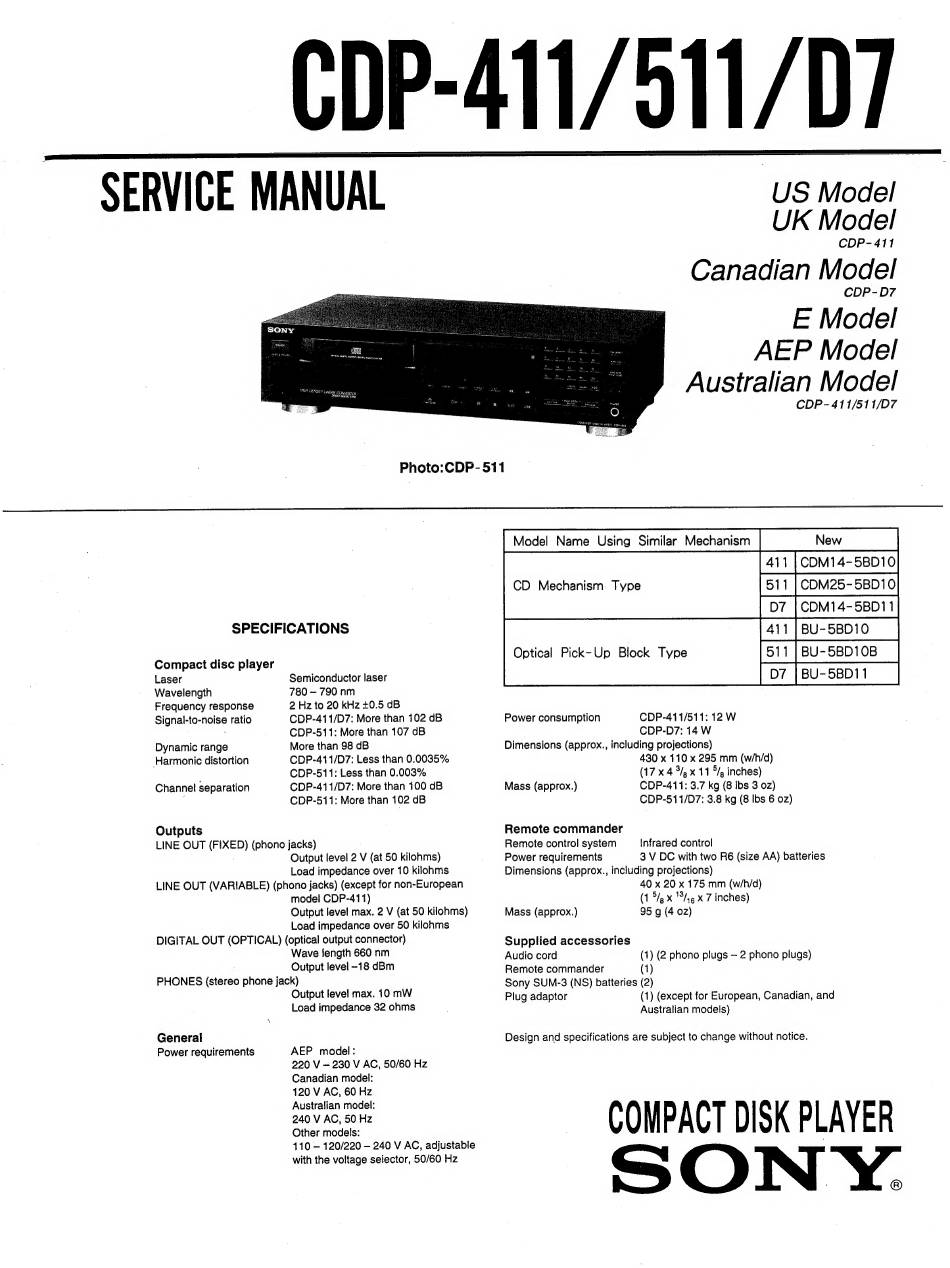

CDP-411/911/D7
SERVICE MANUAL
HIGH DENSITY Lanes EAR CONVENE
Sree ER
US Model
UK Model
CDP-411
Canadian Model
CDP-D7
E Model
AEP Model
Australian Model
CDP- 411/511/D7
Photo:CDP- 511
SPECIFICATIONS
Compact disc player
Laser Semiconductor laser
Wavelength 780 - 790 nm
Frequency response 2 Hz to 20 kHz +0.5 dB
CDP-411/D7: More than 102 dB
CDP-511: More than 107 dB
More than 98 dB
CDP-411/D7: Less than 0.0035%
CDP-511: Less than 0.003%
CDP-411/D7: More than 100 dB
CDP-511: More than 102 dB
Signal-to-noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT (FIXED) (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
LINE OUT (VARIABLE) (phono jacks) (except for non-European
model CDP-411)
Output level max. 2 V (at 50 kilonms)
Load impedance over 50 kilohms
DIGITAL OUT (OPTICAL) (optical output connector)
Wave length 660 nm
Output level -18 dBm
PHONES (stereo phone jack)
Output level max. 10 mW
Load impedance 32 ohms
General
Power requirements AEP model:
220 V — 230 V AC, 50/60 Hz
Canadian model:
120 V AC, 60 Hz
Australian model:
240 V AC, 50 Hz
Other models:
110 — 120/220 — 240 V AC, adjustable
with the voltage selector, 50/60 Hz
Model Name Using Similar Mechanism
CD Mechanism. Type
New
CDM14-58D10
:
CDM14-5BD11
BU-5BD10
BU-58D10B
BU-5BD11
Optical Pick-Up Block Type
OQ Oo
<=
NS ai on ow 2 oS)
CDP-411/511: 12 W
CDP-D7: 14 W
Dimensions (approx., including projections)
430 x 110 x 295 mm (w/h/d)
(17 x 4 5/, x 11 °/s inches)
CDP-411: 3.7 kg (8 Ibs 3 oz)
CDP-511/D7: 3.8 kg (8 Ibs 6 0z)
Power consumption
Mass (approx.)
Remote commander
Remote control system Infrared control
Power requirements 3 V DC with two R6 (size AA) batteries
Dimensions (approx., including projections)
40 x 20 x 175 mm (w/h/d)
(1 5/5 x 15/45 x 7 inches)
Mass (approx.) 95 g (4 02)
Supplied accessories
Audio cord (1) (2 phono plugs — 2 phono plugs)
Remote commander (1}
Sony SUM-3 (NS) batteries (2)
Plug adaptor (1) (except for European, Canadian, and
Australian models)
Design and specifications are subject to change without notice.
COMPACT DISK PLAYER
SONY.
